ATX motherboard with black PCB, silver heatsinks, four DDR5 slots, three M.2 shields, rear I/O shield, Wi-Fi antenna connectors

GIGABYTE

GIGABYTE X870 GAMING X WIFI7 AMD motherboard

SKU CH-3KWS-XBTND MPN X870 GAMING X WIFI7

AM5 board with 16+2+2 power phases, four DDR5 slots up to 256 GB, three M.2 sockets including PCIe 5.0, dual USB4, Wi-Fi 7 and 2.5 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported256GB

Option X870 GAMING X WIFI7

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 9000, 8000 and 7000 series CPUs via AM5 socket
  • Four DDR5 slots reach 256 GB with EXPO profiles up to 8000 MT/s
  • 16+2+2 phase VRM with thermal armour keeps power delivery cool
  • PCIe 5.0 graphics slot, PCIe 5.0 M.2 plus two more M.2 sockets
  • Wi-Fi 7, 2.5 GbE LAN and dual USB4 Type-C with DisplayPort Alt Mode

Socket AM5 DDR5 Platform

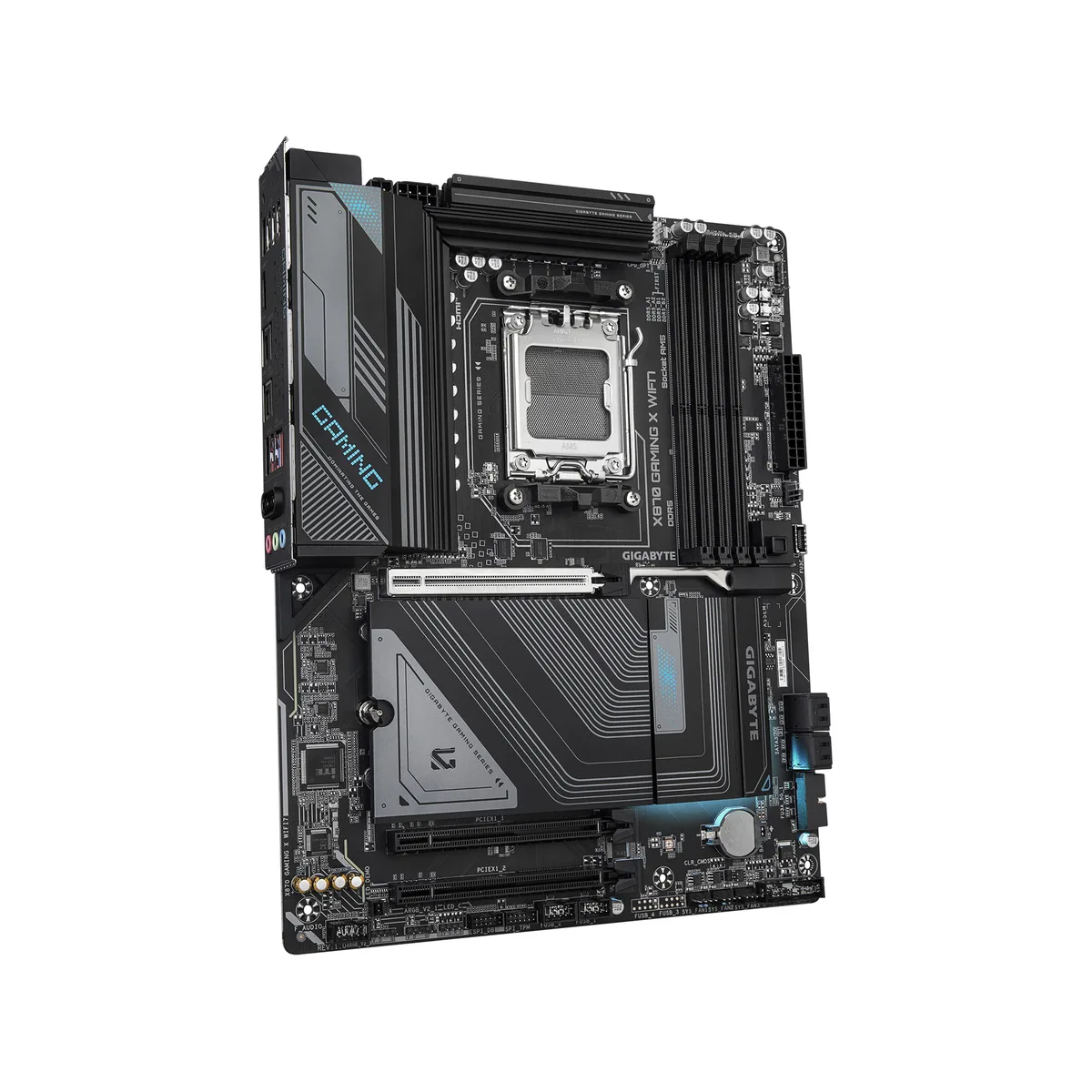

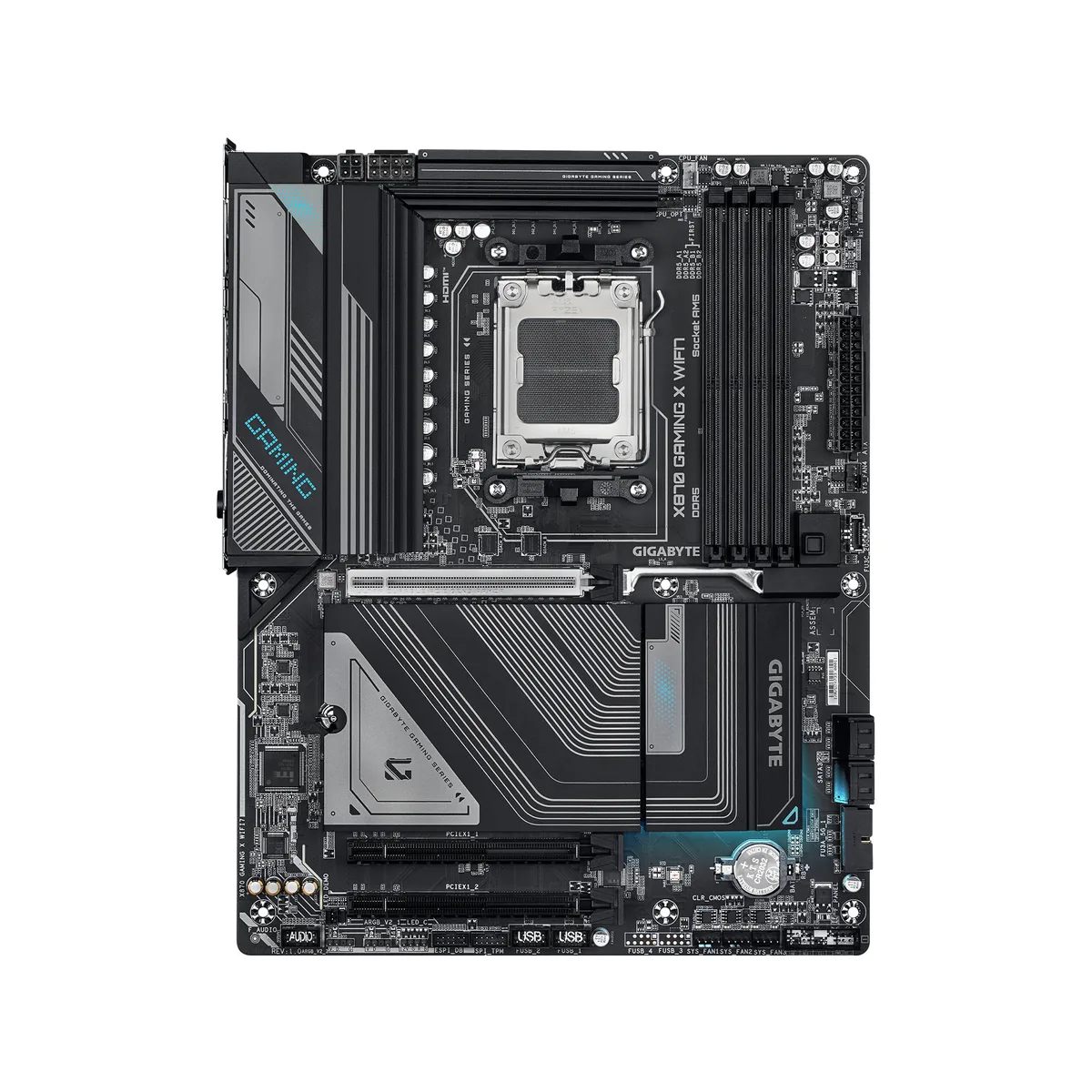

The GIGABYTE X870 GAMING X WIFI7 is an ATX motherboard built around the AMD X870 chipset for Socket AM5 processors. It supports Ryzen 7000, 8000 and 9000 series CPUs with a 16+2+2 phase digital VRM design. Four 288-pin DDR5 slots accept up to 256 GB of memory and run at speeds from 4400 to 8000 MT/s via AMD EXPO profiles.

Builders Who Need PCIe 5.0 Storage And Wi-Fi 7

This board suits enthusiasts assembling a high-speed desktop who want one PCIe 5.0 x4 M.2 slot wired to the CPU plus two additional chipset M.2 slots. Dual USB4 Type-C ports with DisplayPort Alt Mode and a 2.5 GbE LAN port handle modern peripherals. Wi-Fi 7 with the EZ-Plug antenna makes wireless setup simple. Builders staying on PCIe 4.0 graphics or SATA-only storage will not use the headline connectivity.

PCIe 5.0 M.2 Slot From The CPU

The single M.2 connector labelled M2A_CPU delivers PCIe 5.0 x4 bandwidth when a Ryzen 7000 or 9000 series processor is installed. Ryzen 8000 series CPUs limit this slot to PCIe 4.0 x4. That distinction decides whether the board matches your storage performance target.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series CPUs via AM5 socket
  • Four DDR5 slots reach 256 GB with EXPO profiles up to 8000 MT/s
  • 16+2+2 phase VRM with thermal armour keeps power delivery cool
  • PCIe 5.0 graphics slot, PCIe 5.0 M.2 plus two more M.2 sockets
  • Wi-Fi 7, 2.5 GbE LAN and dual USB4 Type-C with DisplayPort Alt Mode

Specifications

BrandGIGABYTE
ModelX870 GAMING X WIFI7
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x1Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
* The M2B_
SATA RAID0/1/5/10
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.4

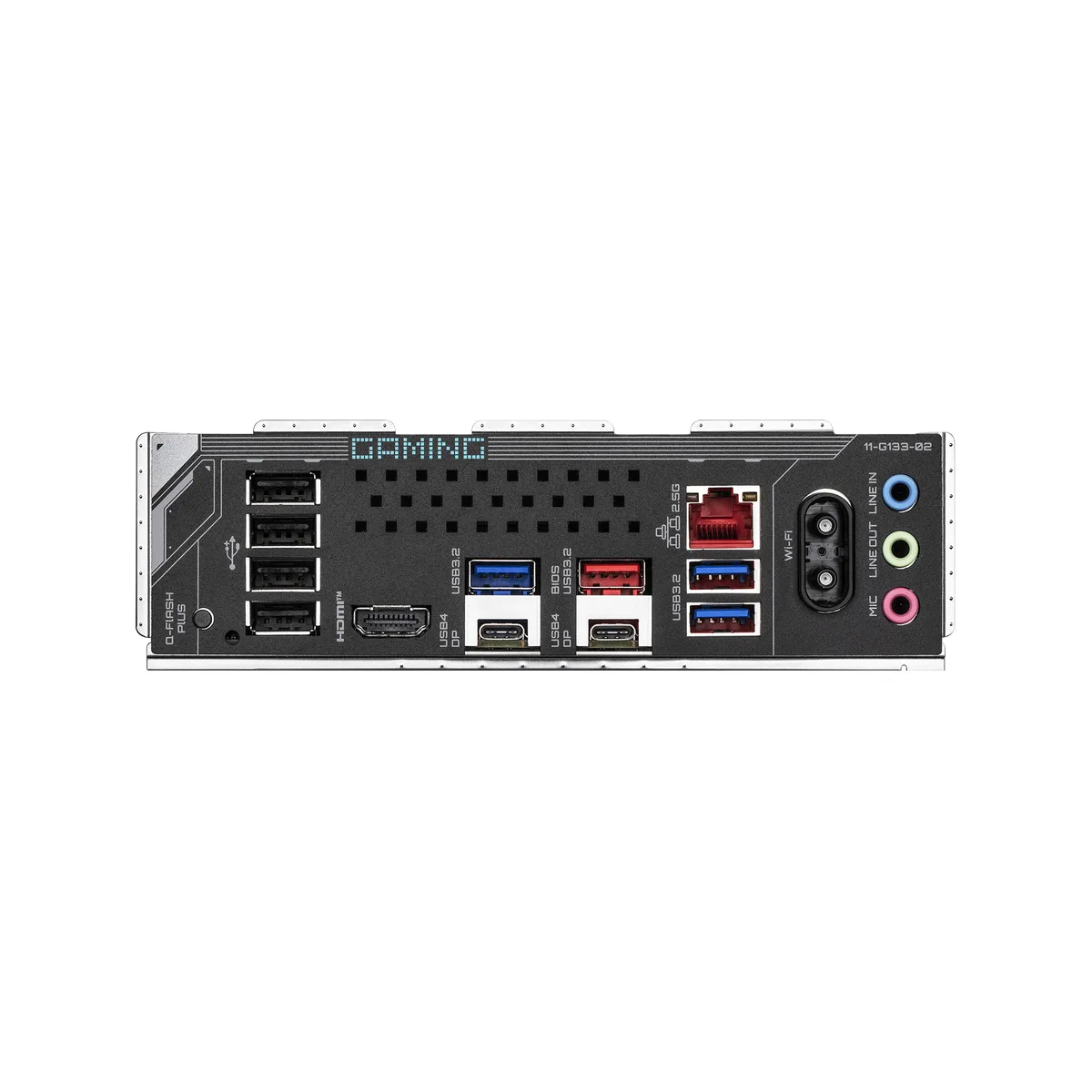

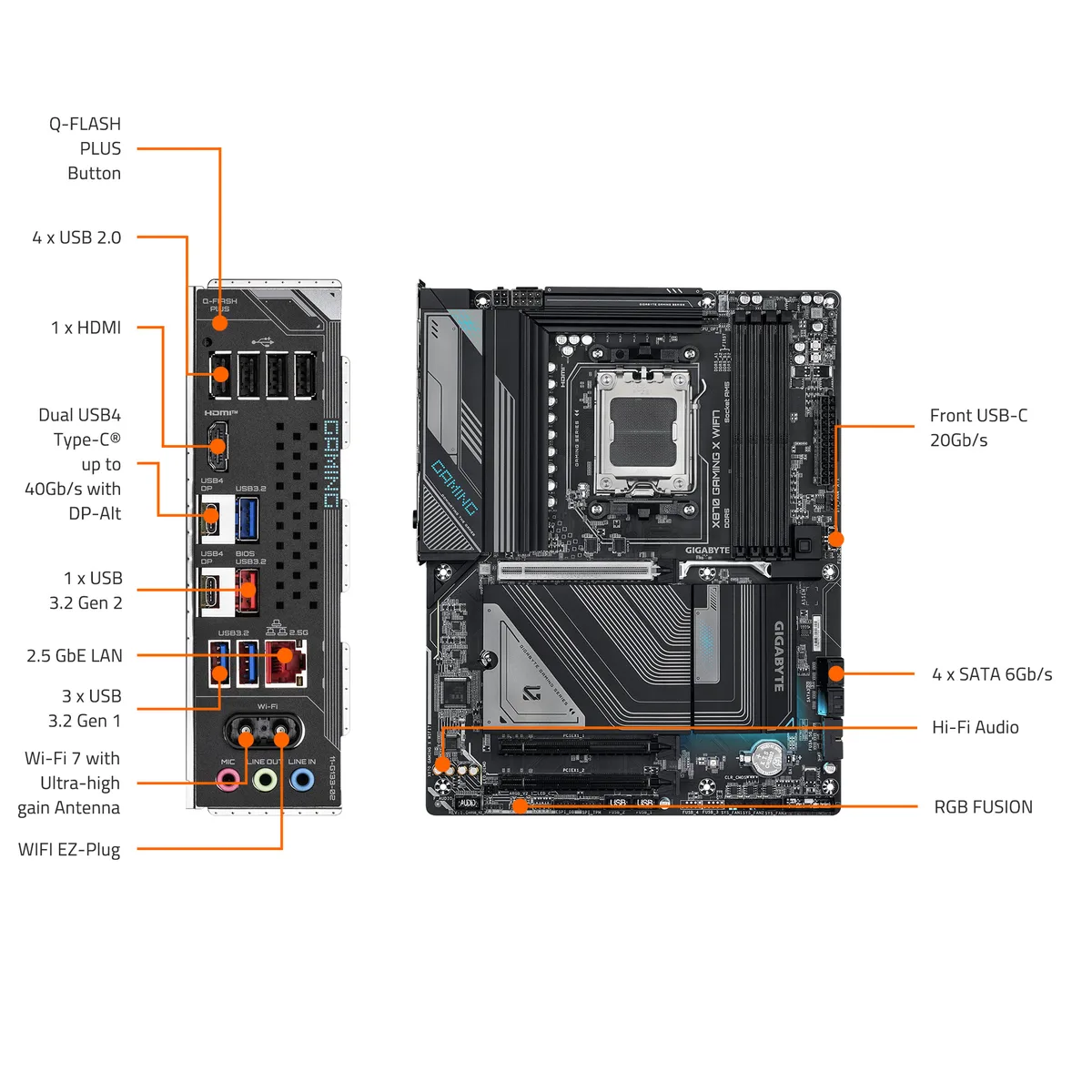

Back I/O Ports1 x Q-Flash Plus button
2 x antenna connectors (2T2R)
1 x HDMI port
2 x USB4 USB Type-C ports (DisplayPort)
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Shipping weight2.11 kg
Package size337 × 273 × 83 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case clearance is needed for the 16+2+2 phase VRM heatsink on this ATX board?

The board follows standard ATX dimensions; the VRM thermal armor sits within the usual CPU‑socket keep‑out zone, so any case that fits an ATX motherboard will clear it.

How do the PCIe EZ-Latch and M.2 EZ-Latch Click mechanisms work during installation?

Press the PCIe slot release lever to unlock a graphics card without a screwdriver; for M.2 drives, lift the tool‑free heatsink clip, insert the SSD at 2280 or 2580 length, then snap the clip back down.

When should the Wi‑Fi 7 antenna connectors be checked or replaced?

Inspect the external antenna cables if signal drops; the EZ‑Plug antenna base screws onto the rear I/O and can be swapped without opening the case.
