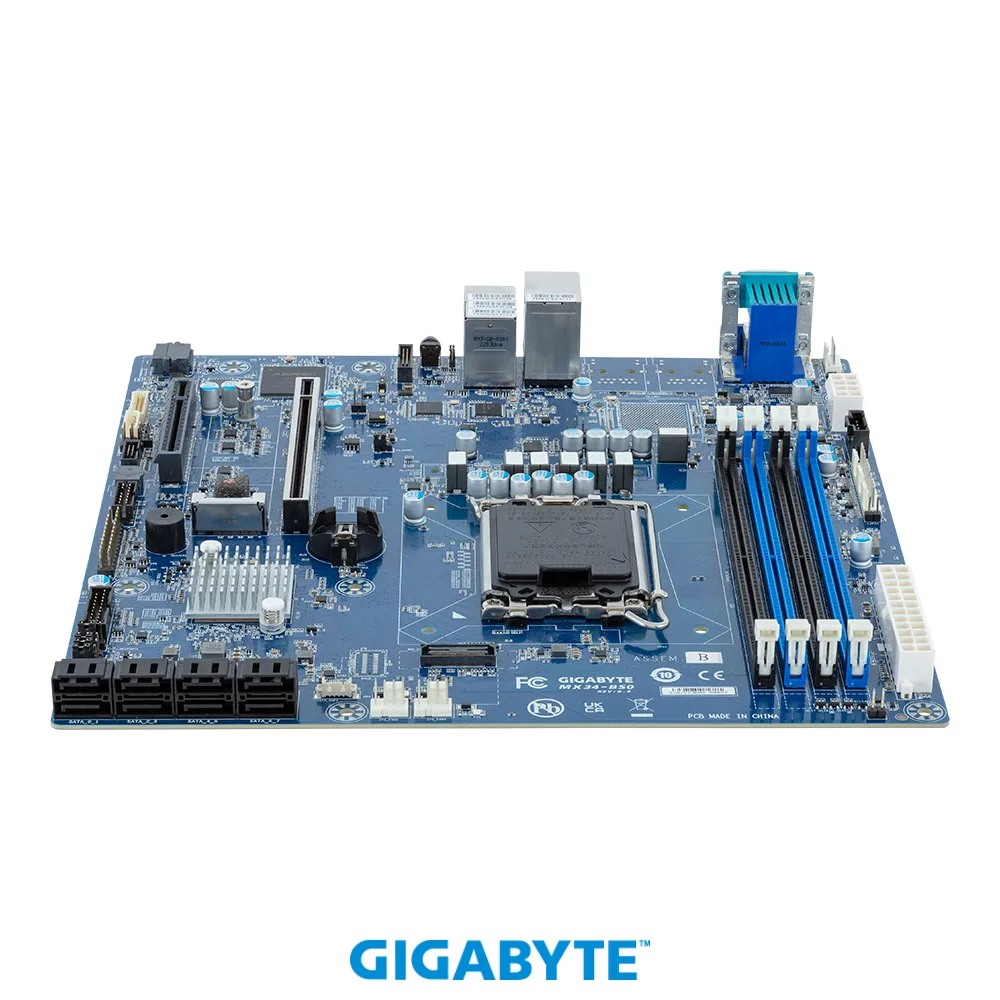

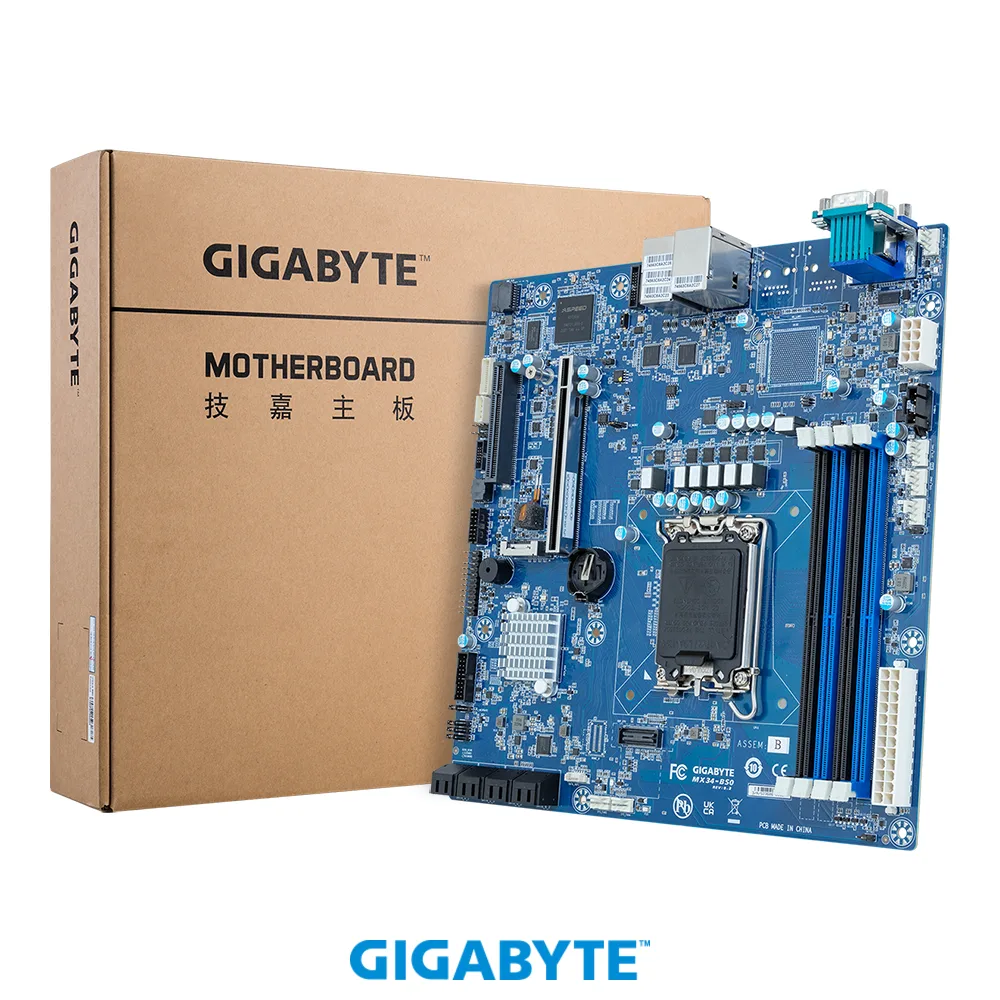

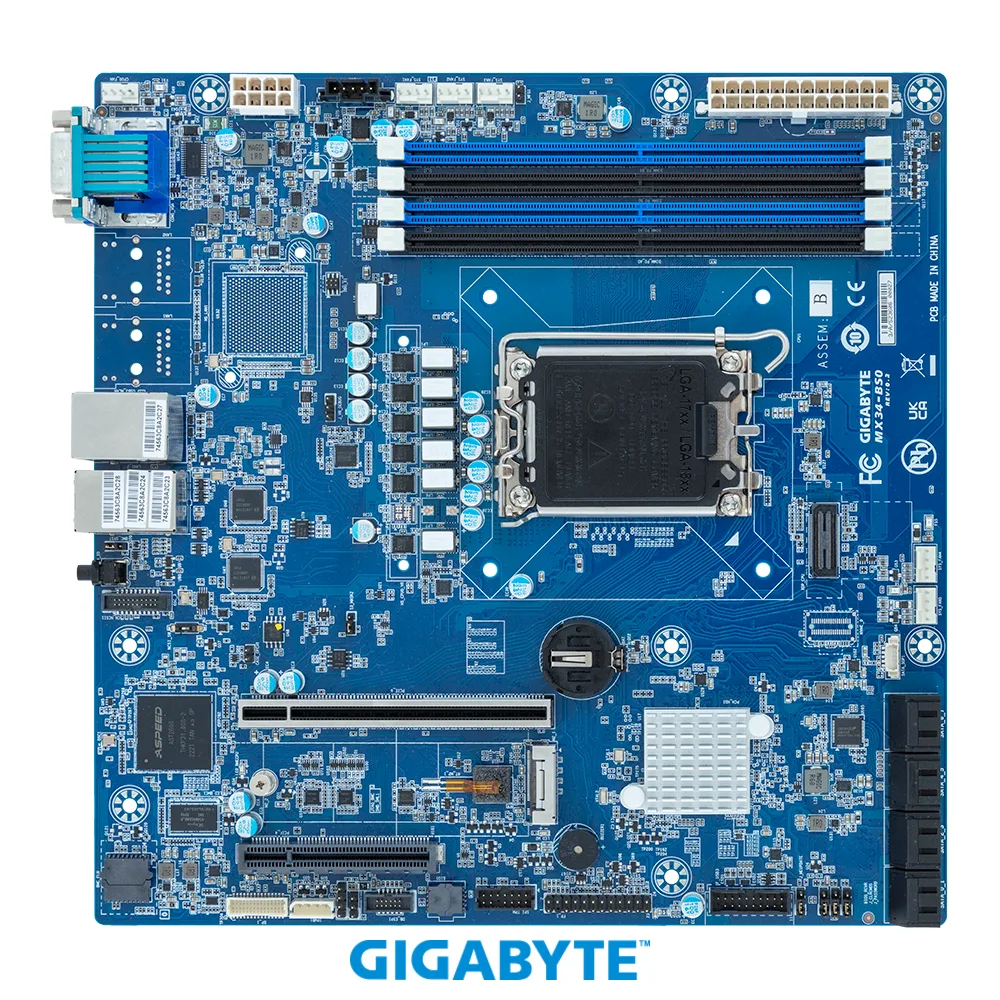

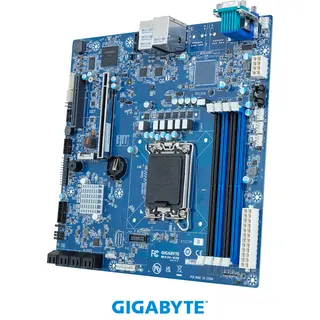

Green microATX server motherboard with silver sockets and black expansion slots

GIGABYTE

GIGABYTE MX34-BS0 server motherboard Intel Xeon E-2400 microATX UP

SKU CH-DTME-J1QQS MPN MX34-BS0

Supports single Intel Xeon E-2400 or Pentium Gold G7400 CPUs with dual-channel DDR5 ECC memory, dual 1GbE LAN, eight SATA ports, one M.2 slot and a PCIe Gen5 x16 slot

  • Supports Intel Xeon E-2400 CPUs with up to 8 cores
  • Dual-channel DDR5 ECC UDIMM across four DIMM slots
  • Intel C262 chipset delivers 16 lanes PCIe 5.0 and 24 lanes PCIe 4.0
  • Dual 1 GbE LAN ports via Intel I210-AT controllers
  • Eight SATA 6 Gb/s ports plus one M.2 PCIe 4.0 x4 slot

Target Platform

The GIGABYTE MX34-BS0 is a microATX UP server motherboard built for single Intel Xeon E-2400 or Pentium Gold G7400 processors. It targets small-business and cloud workloads that need reliable compute density in a compact chassis. The Intel C262 chipset provides the I/O foundation for these entry-level service deployments.

Expansion and Storage Layout

One PCIe Gen5 x16 slot and a single M.2 connector with a PCIe Gen4 x4 link deliver high-speed add-in and storage capability. Eight SATA 6Gb/s ports support extensive local drive arrays. Dual Intel I210-AT controllers supply two 1Gb/s LAN ports for redundant network connectivity.

Installation Notes

The microATX form factor fits standard server enclosures and aligns with common mounting points. DDR5 ECC UDIMMs populate four dual-channel slots using standard keying. An optional TPM 2.0 module connects via SPI or LPC bus for hardware security. Builders needing more than one processor socket or additional PCIe lanes should evaluate dual-socket platforms.

Highlights

  • Supports Intel Xeon E-2400 CPUs with up to 8 cores
  • Dual-channel DDR5 ECC UDIMM across four DIMM slots
  • Intel C262 chipset delivers 16 lanes PCIe 5.0 and 24 lanes PCIe 4.0
  • Dual 1 GbE LAN ports via Intel I210-AT controllers
  • Eight SATA 6 Gb/s ports plus one M.2 PCIe 4.0 x4 slot

Specifications

No published specifications for this item yet.

Questions about this item

Will the optional TPM 2.0 module need to be added later for hardware-based security?

The board includes a header for an optional TPM 2.0 module; it can be fitted at any time if hardware-based authentication is required.

How many PCIe 5.0 lanes are available for the single x16 expansion slot under sustained load?

The Intel C262 chipset and Xeon E-2400 processor provide up to 16 lanes of PCIe 5.0, which the single x16 slot uses for full bandwidth.

What is the typical power draw of the Xeon E-2400 processor when the server runs continuously?

Supported Xeon E-2400 processors have a TDP of 95 W, setting the baseline CPU power draw for all-day operation.
