GIGABYTE

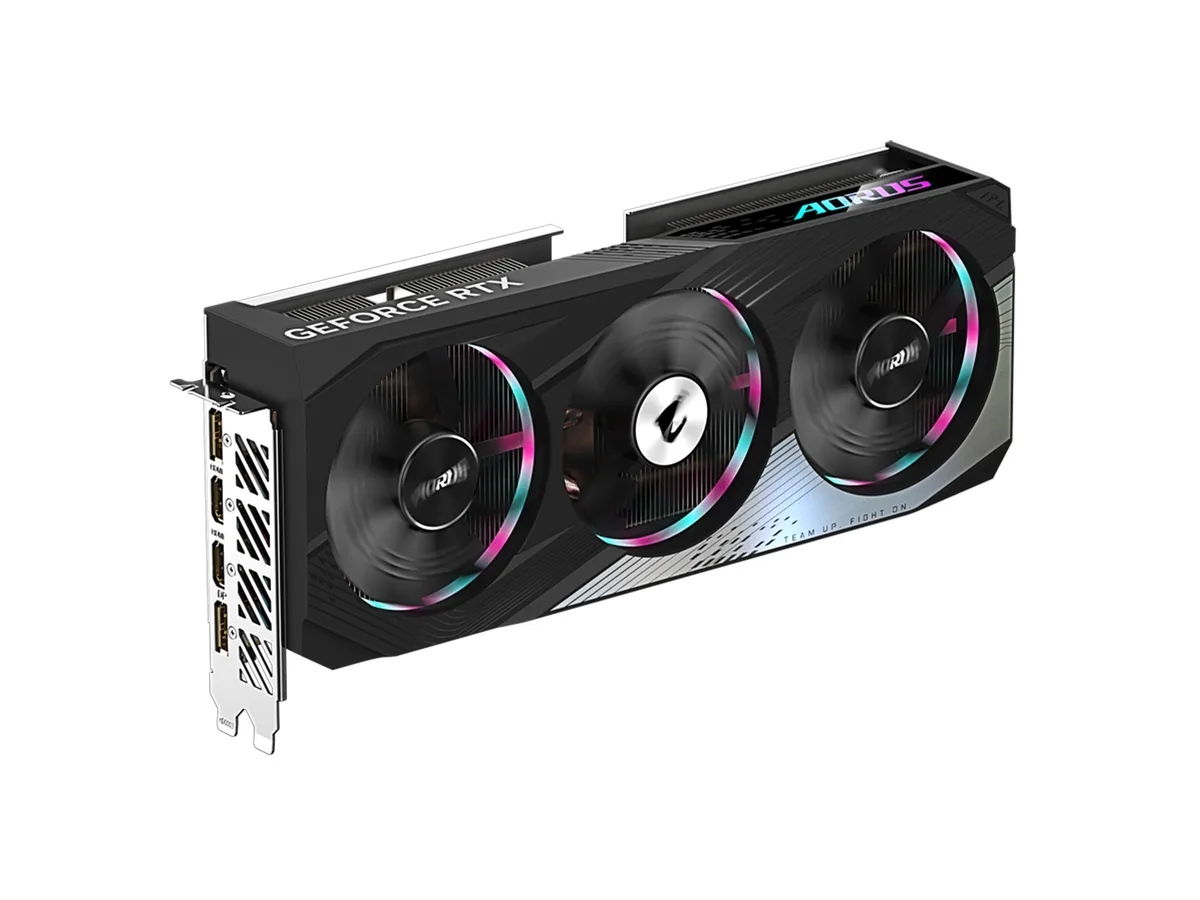

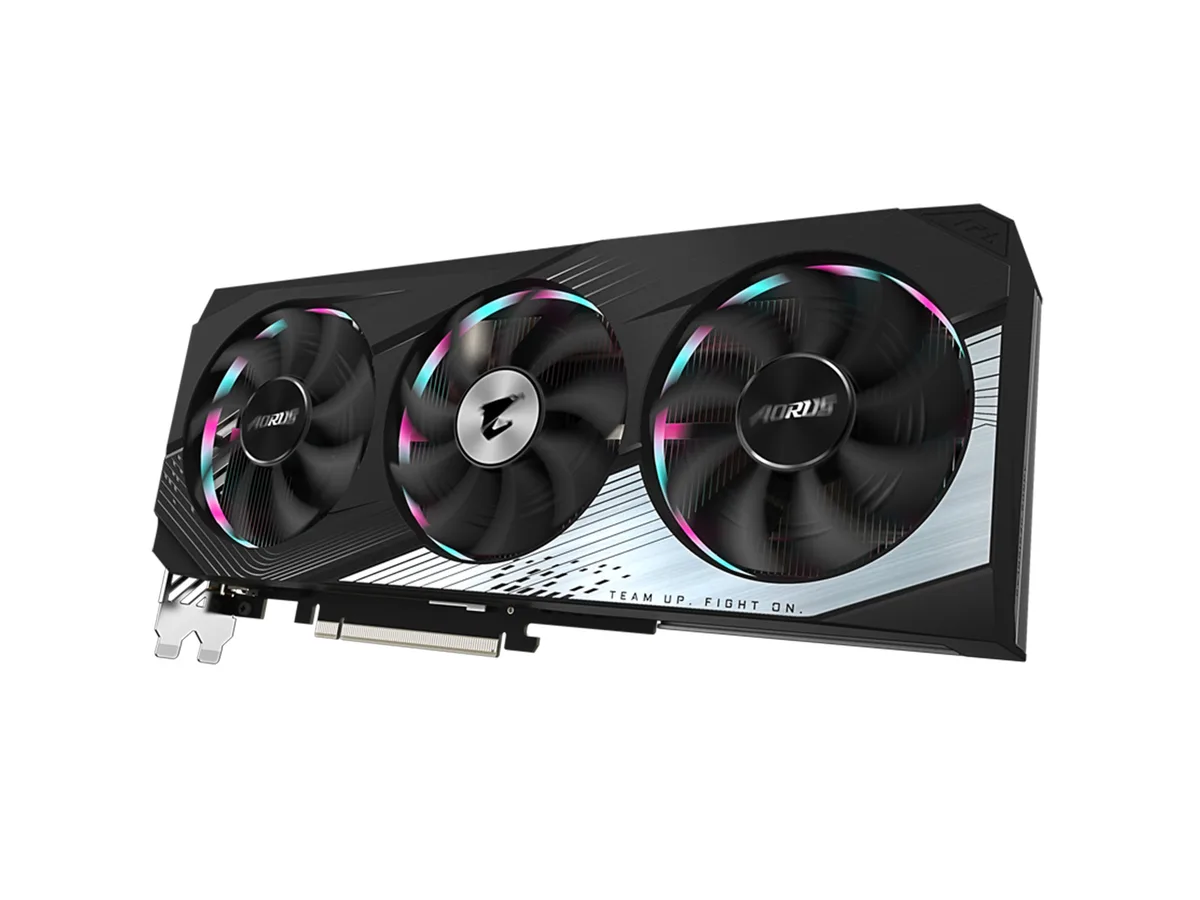

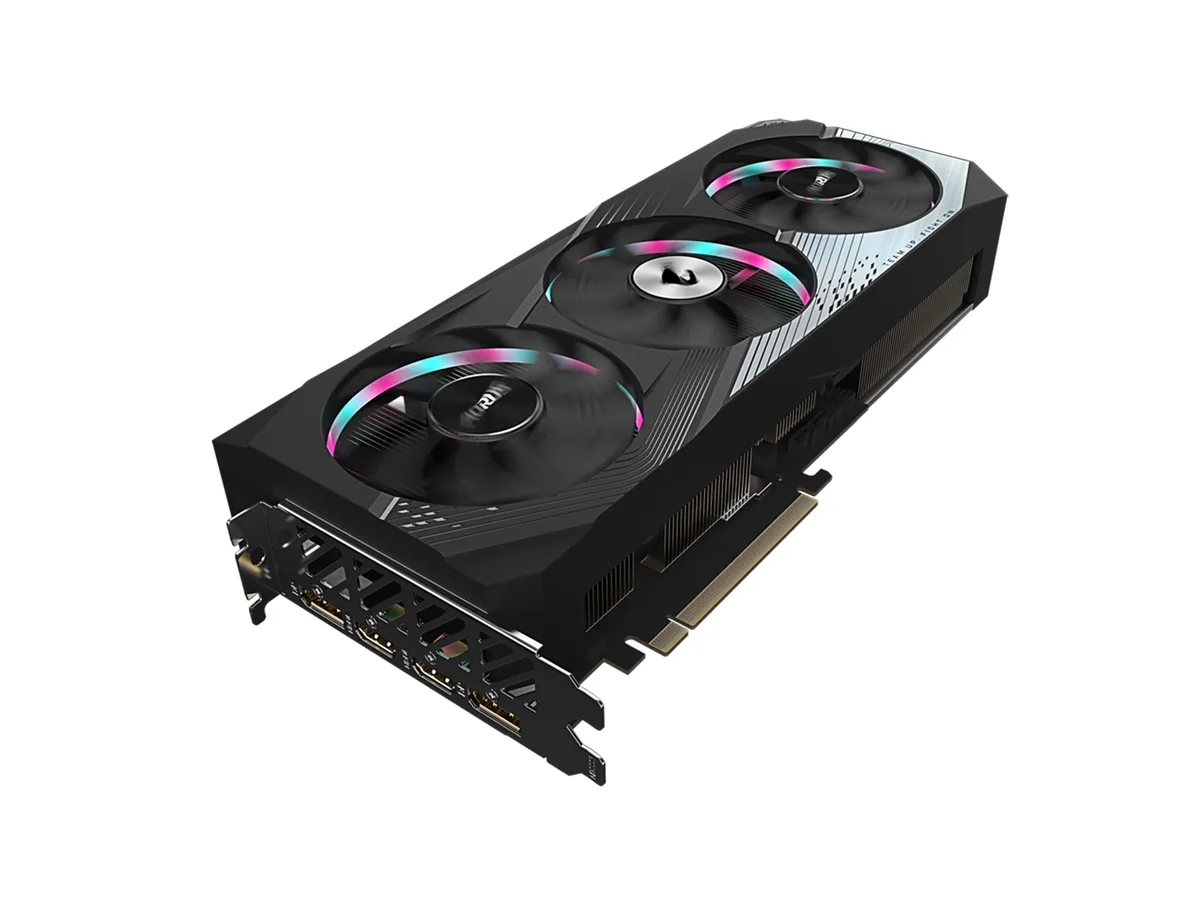

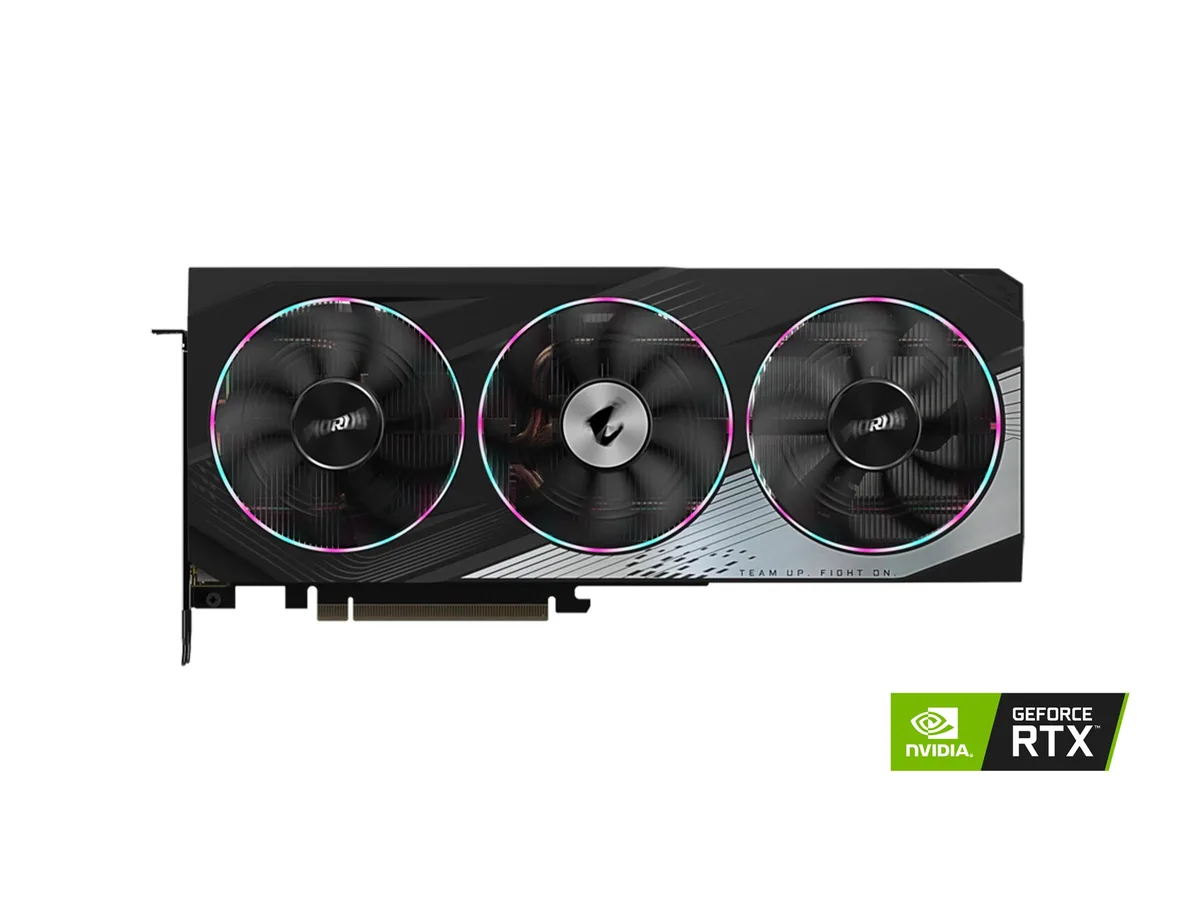

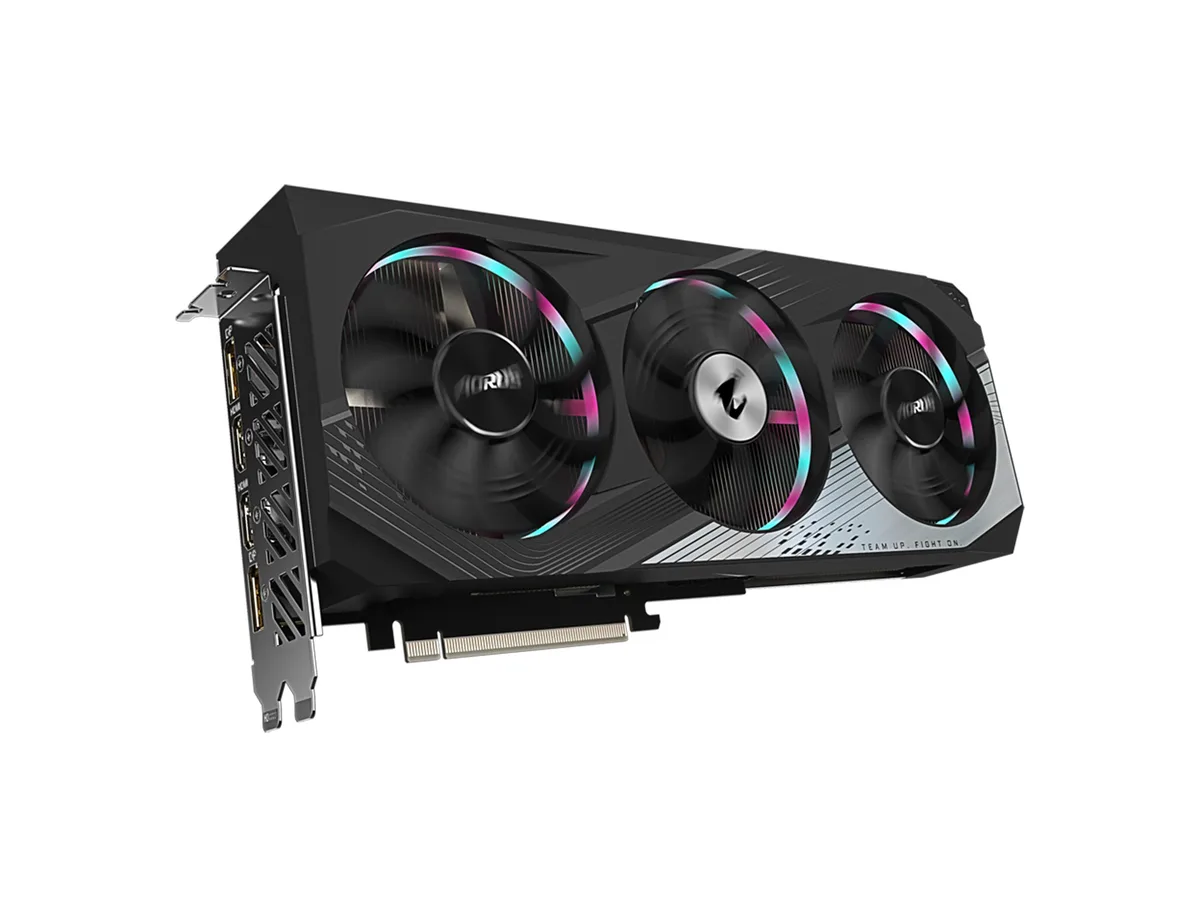

GIGABYTE GV-N4060AORUS E-8GD GeForce RTX 4060 graphics card
Refurbished GeForce RTX 4060 with 3072 CUDA cores, 8GB GDDR6 memory on a 128-bit bus, triple-fan WINDFORCE cooling and a 115W TDP
- InterfacePCI Express 4.0 x8
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPUGeForce RTX 4060
- CUDA Cores3072
- Effective Memory Clock17000 MHz
- 8 GB GDDR6 memory handles modern game textures
- 3072 CUDA cores accelerate compute and shading workloads
- WINDFORCE triple-fan cooler keeps thermals in check
- 115 W TDP fits a 450 W power supply
- PCIe 4.0 x8 interface and 2 HDMI plus 2 DisplayPort outputs support four displays
AORUS RTX 4060 8GB for 1080p gaming
The GIGABYTE AORUS GeForce RTX 4060 Elite 8G graphics card targets 1080p gaming with 3072 CUDA cores and 8GB GDDR6 memory on a 128-bit interface. It connects via PCI Express 4.0 x8 and draws a rated 115W TDP through a single 8-pin power connector. A 450W power supply is recommended for stable system operation.
Sustained load behaviour with WINDFORCE cooling
Under continuous load the triple-fan WINDFORCE cooler keeps the GPU at stable clocks without the throttling seen in short bursts. The 2.5-slot form factor and 299mm length allow ample heatsink mass for heat soak. Dual BIOS lets users select a performance or quiet profile for long sessions.
Thermals noise and power in normal use
In typical gaming the card runs near its 115W rating while the three fans spin at low RPM for quiet output. The metal backplate adds structural rigidity and helps spread heat away from the PCB. Idle power drops to minimal levels thanks to Ada Lovelace efficiency.
Highlights
- 8 GB GDDR6 memory handles modern game textures
- 3072 CUDA cores accelerate compute and shading workloads
- WINDFORCE triple-fan cooler keeps thermals in check
- 115 W TDP fits a 450 W power supply
- PCIe 4.0 x8 interface and 2 HDMI plus 2 DisplayPort outputs support four displays
Specifications
| Brand | GIGABYTE |
|---|---|
| Series | AORUS |
| Model | GV-N4060AORUS E-8GD |
| Interface | PCI Express 4.0 x8 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4060 |
| CUDA Cores | 3072 |
| Effective Memory Clock | 17000 MHz |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 2 x HDMI |
| DisplayPort | 2 x DisplayPort |
| Max Resolution | 7680 x 4320 |
| Cooler | Triple Fans |
| Thermal Design Power | 115W |
| Recommended PSU Wattage | 450W |
| Power Connector | 8-Pin |
| Form Factor | ATX |
| Max GPU Length | 299 mm |
| Slot Width | 2.5 Slots |
| Shipping weight | 1.50 kg |
| Package size | 368 × 189 × 83 mm |
Questions about this item
How loud and hot does the triple-fan WINDFORCE cooler run when the 115 W TDP is sustained all day?
The 115 W TDP and triple-fan WINDFORCE cooler keep temperatures and noise low during extended loads; the dual-BIOS switch lets you choose a quieter profile if needed.
My power supply only has a single 8-pin PCIe connector — is that enough for this card?
Yes, the board draws up to 115 W through one 8-pin connector, and the manufacturer recommends a 450 W PSU for the full system.
Will the 2.5-slot, 299 mm length fit alongside my existing ATX motherboard and CPU cooler?
The card occupies 2.5 slots and measures 299 mm long, so check your case clearance and motherboard layout before installing.
