GIGABYTE
GIGABYTE GeForce RTX 2070 SUPER GAMING OC 3X WHITE graphics card
An 8 GB GDDR6 graphics card with 2560 CUDA cores at 1815 MHz, PCIe 3.0 x16, and four display outputs
- InterfacePCI Express 3.0 x16
- Chipset ManufacturerNVIDIA
- GPU SeriesGeForce RTX 2070 SUPER
- Core Clock1815 MHz
- CUDA Cores2560
- Effective Memory Clock14000 MHz
- 8GB GDDR6 memory handles large textures smoothly
- 256-bit bus feeds the GPU at 14000 MHz effective
- 2560 CUDA cores accelerate rendering and compute workloads
- Core clock reaches 1815 MHz for strong frame rates
- Four display outputs via HDMI 2.0b and three DisplayPort 1.4
White RTX 2070 SUPER for high-refresh gaming
The GIGABYTE GeForce RTX 2070 SUPER GAMING OC 3X WHITE targets enthusiasts who want strong 1440p frame rates in a distinctive white aesthetic. Its NVIDIA GPU delivers 2560 CUDA cores clocked at 1815 MHz alongside 8GB of GDDR6 on a 256-bit bus. The card suits builds that value visual cohesion as much as raw throughput.
PCIe 3.0 x16 and display output limits
The board connects through a PCI Express 3.0 x16 slot, capping total bus bandwidth at the 3.0 specification rather than newer 4.0 or 5.0 speeds. For external displays it offers one HDMI 2.0b port and three DisplayPort 1.4 connectors, supporting up to four simultaneous monitors at resolutions and refresh rates allowed by those standards. DirectX 12 and OpenGL 4.6 compatibility covers modern API requirements.
Triple-fan cooler and ATX mounting implications

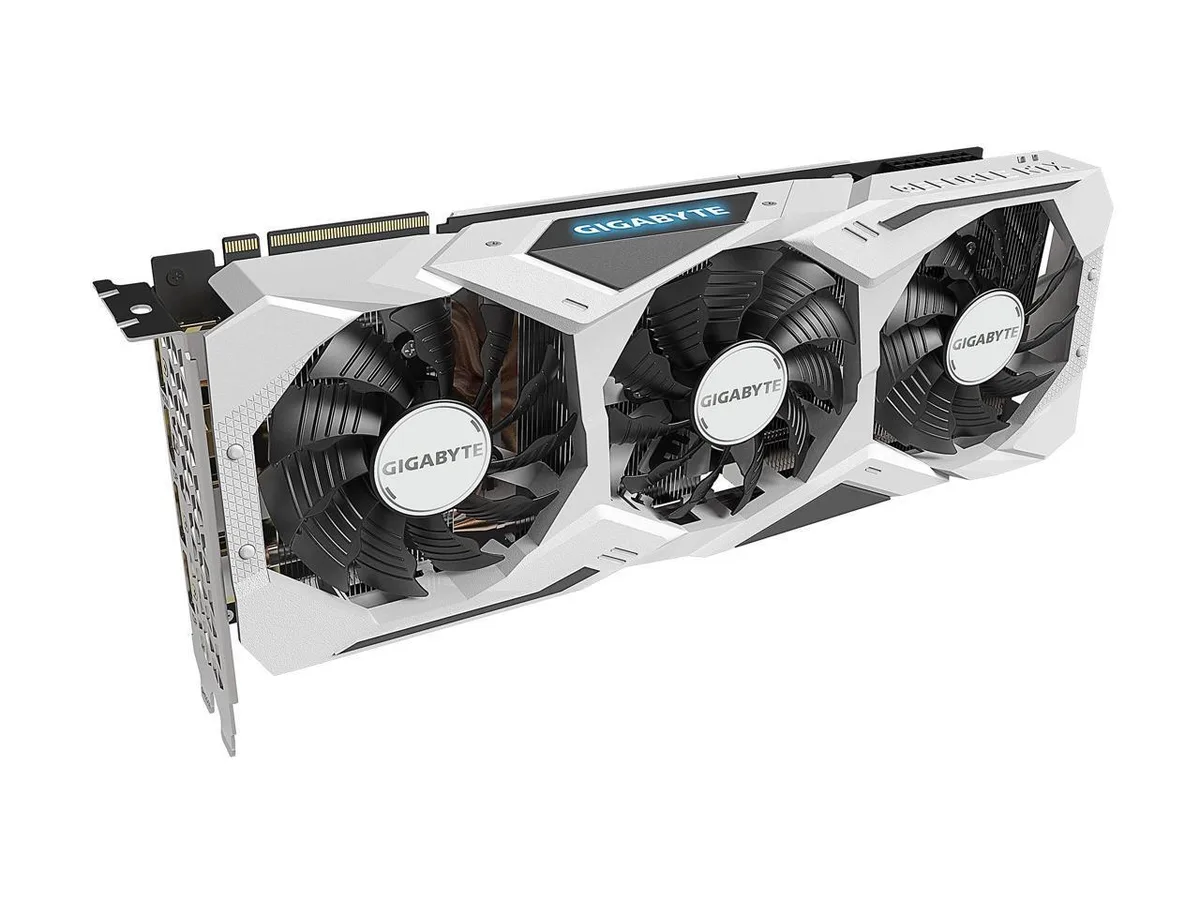

A three-fan thermal solution sits under the white shroud, moving heat away from the GPU and memory during extended sessions. The ATX form factor demands adequate case length and clearance for the cooler height, while the 256-bit memory interface and 14000 MHz effective clock rely on steady airflow to sustain performance. Rear I/O brackets align with standard slot spacing for straightforward installation.
Highlights
- 8GB GDDR6 memory handles large textures smoothly
- 256-bit bus feeds the GPU at 14000 MHz effective
- 2560 CUDA cores accelerate rendering and compute workloads
- Core clock reaches 1815 MHz for strong frame rates
- Four display outputs via HDMI 2.0b and three DisplayPort 1.4
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | GV-N207SGAMINGOC WHITE-8GD |
| Interface | PCI Express 3.0 x16 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | GeForce RTX 2070 SUPER |
| Core Clock | 1815 MHz |
| CUDA Cores | 2560 |
| Effective Memory Clock | 14000 MHz |
| Memory Size | 8GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 3 x DisplayPort 1.4 |
Questions about this item
Will the three DisplayPort 1.4 outputs and single HDMI 2.0b port drive four monitors at once?
Yes, the card supports up to four simultaneous displays across its three DisplayPort 1.4 and one HDMI 2.0b connectors
Does my motherboard need a specific PCIe slot for this card?
It requires a PCI Express 3.0 x16 slot, which is standard on most modern ATX boards
What power connectors should my PSU provide for the 8GB GDDR6 model?
The card draws auxiliary power through standard 8-pin PCIe connectors; check your PSU for two available 8-pin leads
