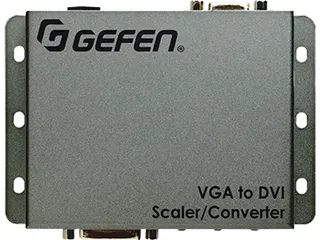

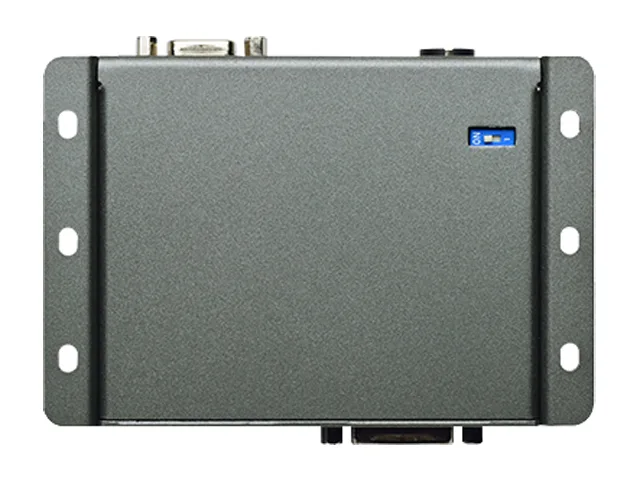

Small rectangular metal box with VGA and DVI ports

Gefen

Gefen EXT-VGA-DVI-SC VGA to DVI media converter

SKU CH-B909-CZ47P

Converts and scales VGA to DVI up to 1920 x 1200 and 1080p60 with OSD control

  • Converter TypeVGA to DVI
  • Power Consumption2W maximum
  • Power Supply12V DC nominal (6V to 24V DC operating range)
  • SpecificationMaximum Pixel Clock: 165 MHz Maximum TMDS Clock: 165 MHz Vid
  • FeatureConverts and scales VGA to DVI Input resolutions up to 1920
  • Dimensions4.9" x 1" x 3.2" (excluding connectors, W x H x D)
  • Converts VGA to DVI digital video
  • Scales input up to 1920 x 1200 resolution
  • Outputs 1080p60 or 1920 x 1200 WUXGA
  • On-screen display simplifies configuration
  • Compact 4.9 x 1 x 3.2 inch form factor

Pro Video VGA-to-DVI Scaler

The Gefen EXT-VGA-DVI-SC converts analogue VGA signals to a digital DVI-I output. It accepts input resolutions up to 1920 x 1200 and scales them to 1080p60 or 1920 x 1200. An on-screen display menu provides configuration control. The unit draws a maximum of 2W from a 12V DC supply.

Replaces Analogue VGA Capture Chains

This converter removes the need for separate scan converters or capture cards when connecting legacy VGA sources to digital displays or recorders. The jump is worth it when a source only offers HD-15 output but the destination requires a digital TMDS link at 165 MHz pixel clock. It does not add new video information beyond the original analogue signal.

Compact Desktop Installation

The enclosure measures 4.9 x 1 x 3.2 inches and weighs 0.4 lbs, fitting easily on a rack shelf or desk. Power operates across a 6V to 24V DC range, so a compatible 12V nominal adapter is required. Common issues include mismatched aspect-ratio settings in the OSD and using a DVI cable that lacks the digital pins.

Highlights

  • Converts VGA to DVI digital video
  • Scales input up to 1920 x 1200 resolution
  • Outputs 1080p60 or 1920 x 1200 WUXGA
  • On-screen display simplifies configuration
  • Compact 4.9 x 1 x 3.2 inch form factor

Specifications

BrandGefen
ModelEXT-VGA-DVI-SC
Converter TypeVGA to DVI
Power Consumption2W maximum
Power Supply12V DC nominal (6V to 24V DC operating range)
SpecificationMaximum Pixel Clock: 165 MHz
Maximum TMDS Clock: 165 MHz
Video Input Connector: (1) VGA HD-15, female
Video Output Connectors: (1) DVI-I, 29-pin, female (digital only)
USB Connector: (1) Mini-B
Menu/Navigation Switches: (3) tact-type
Power Indicator: (1) LED, blue
Power Supply Connector: (1) 3-pin, locking
Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 °F (-20 to +85 °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
FeatureConverts and scales VGA to DVI
Input resolutions up to 1920 x 1200 (WUXGA)
Output resolutions up to 1080p60 and 1920 x 1200 (WUXGA)
On-screen display (OSD) menu allows easy set-up and control
Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop
Test Pattern Generator for quick system configuration
Gefen Syner-G simplifies in-field firmware updates and advanced EDID management including custom input timings
USB port for use with Gefen Syner-G
Wide power supply operating range (6V to 24V DC)
Locking power supply connector
Surface mountable
Dimensions4.9" x 1" x 3.2" (excluding connectors, W x H x D)
Weight0.4 lbs. (0.2kg)
Shipping weight1.32 kg
Package size356 × 229 × 102 mm

Questions about this item

What clearance does the 4.9" x 1" x 3.2" chassis need for the HD-15 and 29-pin DVI-I connectors?

Allow extra depth behind the unit for the VGA HD-15 and DVI-I 29-pin cables; the quoted dimensions exclude those connectors.

Which step is most often missed when powering the converter from a 12V DC source?

Confirm the supply stays within the 6V to 24V DC operating range and connects to the barrel jack before linking video sources.

How do I update firmware later using the Mini-B USB port?

Connect the Mini-B port to a PC, run the Gefen firmware utility, and follow the on-screen prompts to flash the new image.
