Gefen EXT-DVIKA-HBT2 KVM switch
Extends DVI, USB, RS-232 and two-way audio over a single CAT-5e cable up to 495 feet with HDBaseT 2.0 and supports 4K resolutions
- Bandwidth300 MHz
- LED IndicatorsPower/Video/Link Indicator LEDs (Sender/Receiver): 1 x Blue,
- Temperature+32 to +122 degree F (0 to +50 degree C)
- Humidity5% to 90% RH, non-condensing
- Power FeaturesPower Supply connector (Sender/Receiver): 1 x 48V DC, lockin
- Dimensions1.70" x 8.40" x 4.30"
- Extends DVI up to 495 feet over a single CAT-5e cable
- Powers the sender through the same CAT-5e cable so only the receiver needs a supply
- Supports 4K DCI cinema at 4096 x 2160 and 4K UHD at 3840 x 2160
- Passes 7.1-channel LPCM and high-bit-rate lossless audio formats
- Extends USB, RS-232 and two-way analog audio for a complete remote workstation
KVM Switch for DVI and HDMI Extension

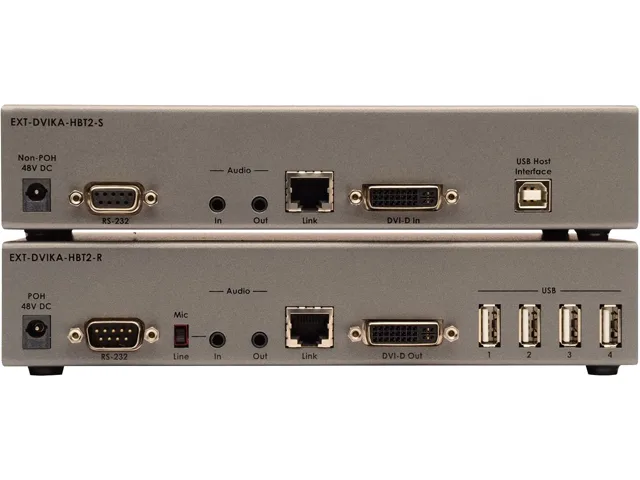

The Gefen EXT-DVIKA-HBT2 extends DVI, USB, RS-232 and two-way analog audio between one computer and one remote user over a single CAT-5e cable. It uses HDBaseT 2.0 Colligo technology to reach 495 feet (150 meters) while providing Power Over HDBaseT so only the receiver needs the 48 V DC supply. This unit suits control-room, signage or studio setups that need keyboard, mouse, microphone and speaker extension alongside video.
Video Capacity and Limitations
DVI resolutions up to 1080p and 1920 x 1200 are supported natively. When DVI-to-HDMI cables are used, the link carries 4K DCI Cinema at 4096 x 2160 (30 Hz 4:4:4) and 4K Ultra HD at 3840 x 2160 (60 Hz 4:2:0). Bandwidth is 300 MHz. The switch handles 7.1-channel LPCM and HBR lossless audio including Dolby Atmos, Dolby TrueHD, DTS:X and DTS-HD Master Audio. It does not support higher refresh rates or chroma sampling beyond those listed.
Thermals, Noise and Power Draw
Operating temperature range is 0 to 50 °C (32 to 122 °F) with 5 % to 90 % RH non-condensing. Combined sender and receiver consumption is 13 W from the single 48 V DC locking connector on the receiver. The compact metal enclosure (1.70" x 8.40" x 4.30", 1.10 lbs) has no moving parts, so acoustic output is negligible. Blue, amber and green LEDs on each unit indicate power, video and link status.
Highlights
- Extends DVI up to 495 feet over a single CAT-5e cable
- Powers the sender through the same CAT-5e cable so only the receiver needs a supply
- Supports 4K DCI cinema at 4096 x 2160 and 4K UHD at 3840 x 2160
- Passes 7.1-channel LPCM and high-bit-rate lossless audio formats
- Extends USB, RS-232 and two-way analog audio for a complete remote workstation
Specifications
| Brand | Gefen |
|---|---|
| Model | EXT-DVIKA-HBT2 |
| Bandwidth | 300 MHz |
| LED Indicators | Power/Video/Link Indicator LEDs (Sender/Receiver): 1 x Blue, 1 x Amber, 1 x Green |
| Temperature | +32 to +122 degree F (0 to +50 degree C) |
| Humidity | 5% to 90% RH, non-condensing |
| Power Features | Power Supply connector (Sender/Receiver): 1 x 48V DC, locking Power Consumption (Sender and Receiver combined): 13W |
| Dimensions | 1.70" x 8.40" x 4.30" |
| Weight | 1.10 lbs. |
| Shipping weight | 3.18 kg |
| Package size | 305 × 305 × 305 mm |
Questions about this item
Will my existing CAT-5e patch cables reach the 495 ft maximum extension distance?
Yes, the HDBaseT 2.0 link extends DVI, USB, RS-232 and 2-way audio up to 495 ft (150 m) over a single CAT-5e cable.
Which front-panel LEDs confirm the sender and receiver are linked and passing video?
Each unit shows a blue power LED, an amber link LED and a green video LED; all three lit means power, HDBaseT link and active video are present.
Does the box include the 48 V DC locking power supply, or must I order it separately?
The receiver ships with its 48 V DC locking power supply; the sender is powered over the same CAT-5e cable via PoH, so no separate supply is needed for it.
