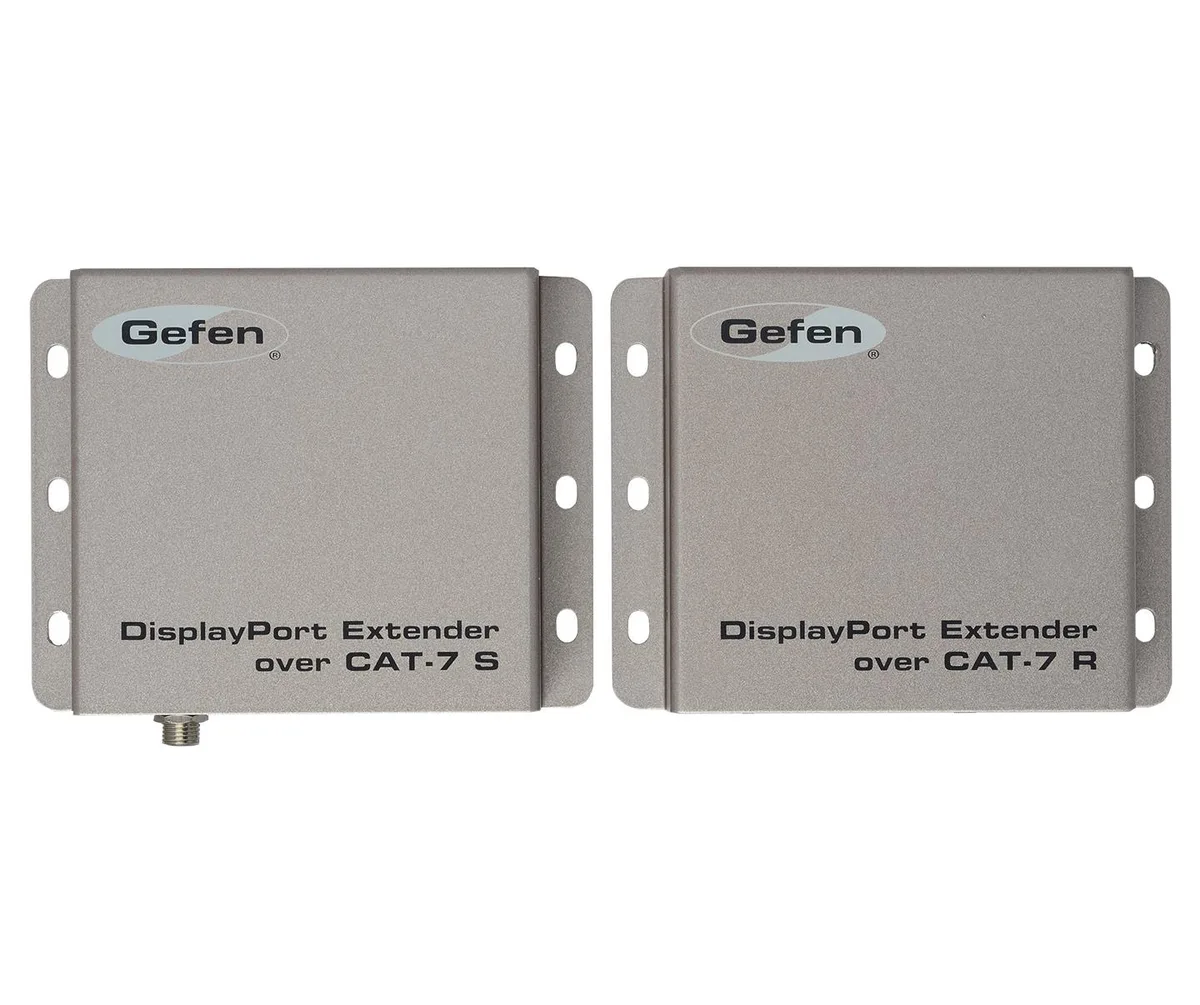

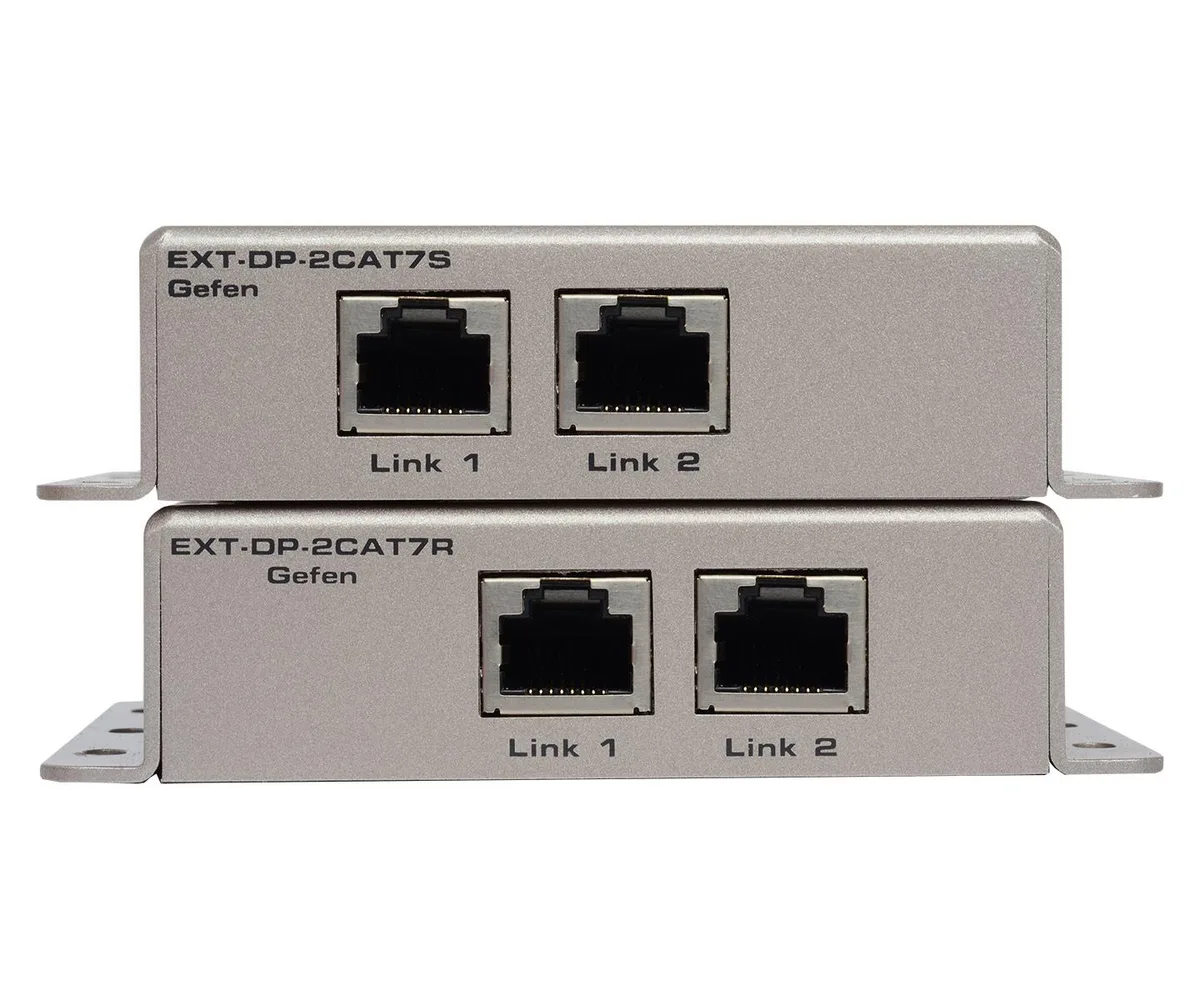

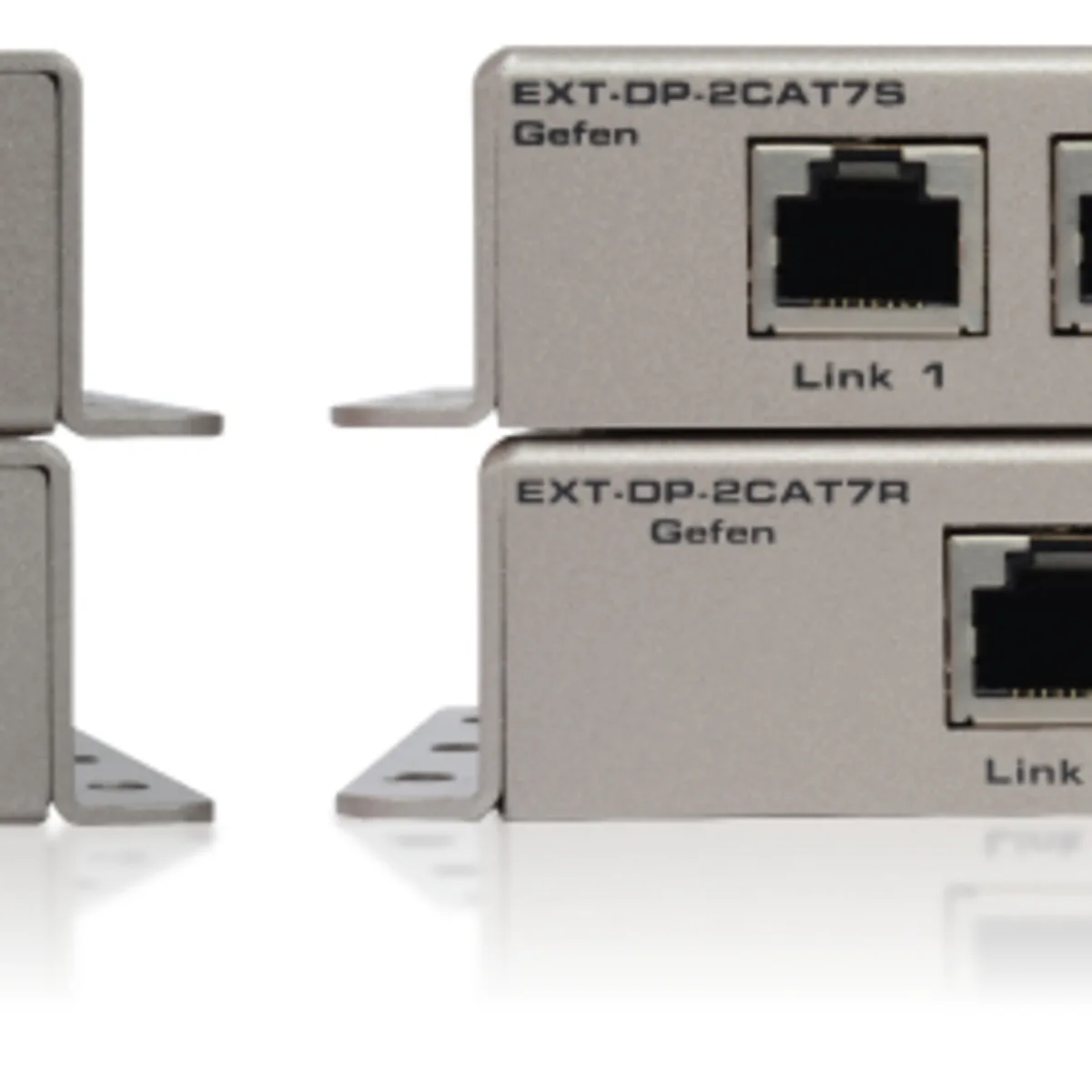

Gefen DisplayPort extender sender and receiver units with CAT-7 ports and rotary EQ switch

Gefen

Gefen EXT-DP-2CAT7 DisplayPort v extender 100 ft 2560x1600 over two CAT-7 cables

SKU CH-443W-4NKJQ MPN EXT-DP-2CAT7

Extends DisplayPort 1.1a video up to 100 feet over two CAT-7 cables at 2560 x 1600 with HDCP and 7.1 audio

  • Extender & Repeater TypeVideo Extender
  • Extends DisplayPort video up to 100 feet using two CAT-7 cables
  • Supports 2560 x 1600 resolution over dual cables for high-detail displays
  • HDCP compliant for protected content playback
  • 16-position EQ rotary switch compensates for cable skew
  • Receiver powered via first CAT-7 cable, no external supply needed

DisplayPort extender over CAT-7

The Gefen EXT-DP-2CAT7 extends a DisplayPort 1.1a source up to 100 feet using two CAT-7 cables. It supports HDCP and up to 7.1 channels of linear PCM audio. The receiver draws power from the first cable, so no external supply is needed at the display end.

Resolution limits by cable count

With two CAT-7 cables the extender reaches 2560 x 1600. A single cable handles 1920 x 1200 or 1080p at 120 Hz. Audio sampling rates from 32 kHz to 192 kHz are supported across both configurations.

16-position EQ rotary switch

A 16-position equaliser on the receiver compensates for cable skew at the far end. An HPD auto-calibration button and pre-emphasis and drive-level switches provide further signal tuning. These controls decide whether the link stays stable over the full 30 metre run.

Highlights

  • Extends DisplayPort video up to 100 feet using two CAT-7 cables
  • Supports 2560 x 1600 resolution over dual cables for high-detail displays
  • HDCP compliant for protected content playback
  • 16-position EQ rotary switch compensates for cable skew
  • Receiver powered via first CAT-7 cable, no external supply needed

Specifications

BrandGefen
Extender & Repeater TypeVideo Extender
Shipping weight1.00 kg
Package size349 × 166 × 104 mm

Questions about this item

One CAT-7 cable or two — which resolution do I get with each?

Two cables deliver up to 2560 x 1600; a single cable carries up to 1920 x 1200 or 1080p at 120Hz.

What does the 100-foot claim mean when I actually hook it up?

The extender transports DisplayPort 1.1a video with HDCP up to 100 feet (30 meters) over the CAT-7 run.

Does the DisplayPort 1.1a link limit my refresh rate at 2560 x 1600?

At the maximum 2560 x 1600 resolution the link runs at standard 60Hz; 120Hz is available only at 1920 x 1200 or 1080p over one cable.
