GE Lighting

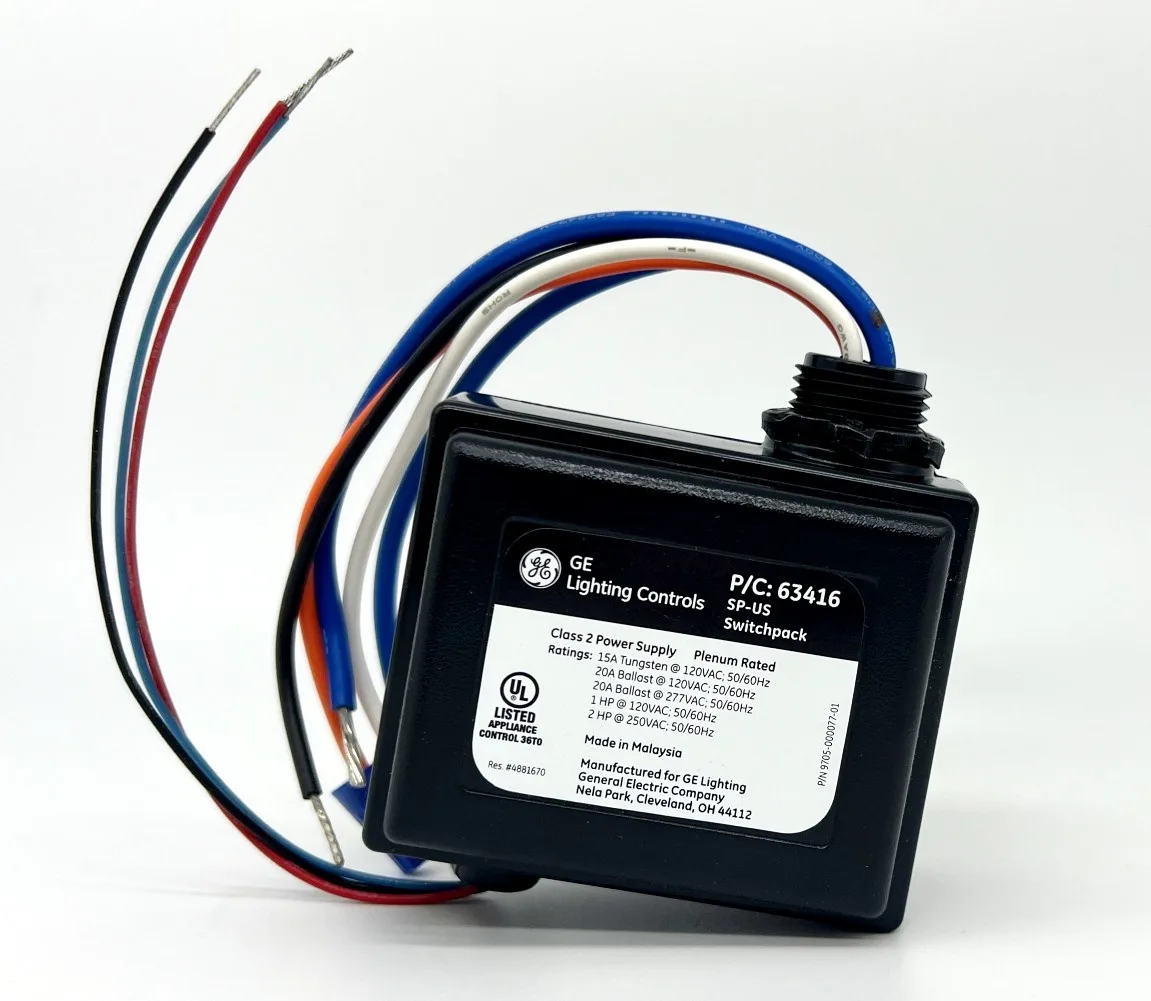

GE Lighting 63416 Low Voltage Switchpack SP-US Ballast
Controls up to five GE Aware sensors with 15 VDC output and switches 20 A ballast loads at 120 or 277 VAC
- Powers up to five GE Aware sensors with 15 VDC 125 mA output
- Controls 20 A ballast loads at 120 VAC or 277 VAC
- Isolated contacts enable low-voltage circuit and HVAC control
- Compact plenum-rated ABS housing meets UL 94V0 flammability standard
- Measures 74.6 mm x 61.9 mm x 42.9 mm for tight junction-box fit
What this switchpack powers
The GE Lighting 63416 SP-US provides 15 VDC at 125 mA to operate up to five GE Aware occupancy sensors. It accepts 120 or 277 VAC input at 50 or 60 Hz and uses isolated contacts to switch low-voltage circuits. The unit is designed for commercial lighting control installations.
How it fits into a lighting circuit
A single switchpack can supply multiple sensors, and up to ten switchpacks may be linked to one sensor for multi-circuit control. Isolated contacts also allow switching of HVAC contactors or motors. The plenum-rated ABS housing with Teflon-coated leads mounts in an external junction box.
Thermal and electrical behaviour
The relay handles 20 A ballast loads at 120 VAC or 277 VAC, plus 1 HP at 120 VAC and 2 HP at 250 VAC. The medium-impact ABS housing meets UL 94V0 and measures 74.6 mm by 61.9 mm by 42.9 mm for compact junction-box installation.
Highlights
- Powers up to five GE Aware sensors with 15 VDC 125 mA output
- Controls 20 A ballast loads at 120 VAC or 277 VAC
- Isolated contacts enable low-voltage circuit and HVAC control
- Compact plenum-rated ABS housing meets UL 94V0 flammability standard
- Measures 74.6 mm x 61.9 mm x 42.9 mm for tight junction-box fit
Specifications
| Brand | GE |
|---|
Questions about this item
What is the maximum ballast load the GE 63416 can switch at 277 VAC?
The switchpack is rated for a 20 A ballast load at 277 VAC, 50/60 Hz.
How much heat or noise does the SP-US produce when powering sensors continuously?
The unit uses a transformer and high-current relay in an ABS housing; no fan or active cooling is fitted, so heat and audible noise are minimal during all-day operation.
Which low-voltage sensors must I already own for this switchpack to operate?
It supplies 15 VDC at 125 mA for up to five GE Aware occupancy sensors; those specific sensors are required for the control circuit to function.
