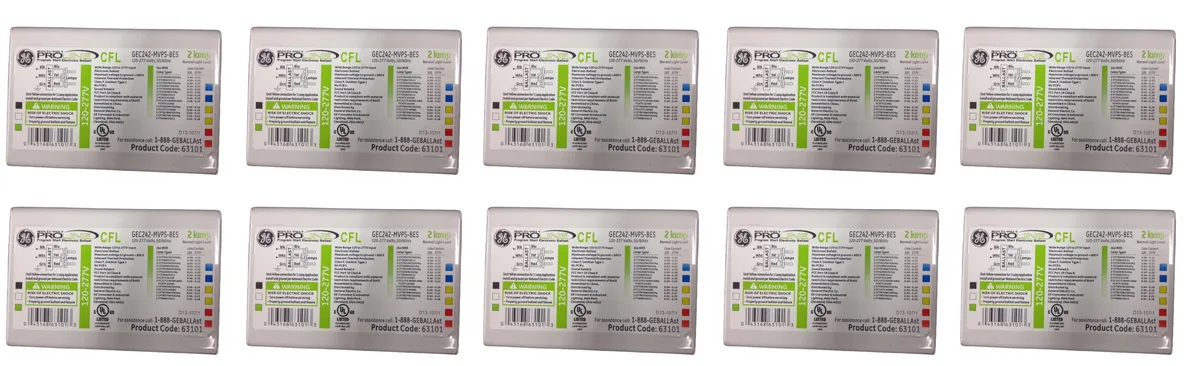

Rectangular metal can ballast with label, case of ten

GE

GE 63101 GEC242-MVPS-BES 120-277V Program Start 2x42W CFL Electronic Ballast (Case of 10)

SKU CH-HJ9B-GF1XG

Electronic ballast powers two 42 W compact fluorescent lamps on 120-277 V circuits with program start, high 1.15 ballast factor and A-rated 20-24 decibel sound in a metal can, sold in a case of 10

  • voltage120
  • Program start protects lamp life during frequent switching
  • High 1.15 ballast factor delivers brighter output
  • Active power factor correction improves electrical efficiency
  • Quiet Class A sound rating suits noise-sensitive spaces
  • Case of 10 simplifies multi-fixture installations

GE 63101 Program Start Ballast

The GE 63101 GEC242-MVPS-BES is a program start electronic ballast designed to operate two 42 W compact fluorescent lamps. It accepts a line voltage range of 120 to 277 V and delivers a high ballast factor of 1.15. The unit is sold as a case of 10 for commercial maintenance or retrofit projects.

Replaces Magnetic or Instant Start Ballasts

This ballast upgrades older magnetic or instant start models by providing programmed start operation that reduces electrode wear during ignition. The jump is worth it when extending lamp life in frequent switching applications such as occupancy sensor controlled corridors or restrooms. Active power factor correction and a sound rating of A at 20 to 24 decibels also improve system efficiency and acoustic comfort.

Handles Two 42 W Lamps in Series

The ballast comfortably drives two 42 W CFLs wired in series with line voltage regulation held within 10 percent. It operates reliably across an ambient temperature range of -29 °C to 40 °C (-20 °F to 104 °F). Headroom runs out if more than two lamps are connected or if the supply voltage falls outside the 120 to 277 V window.

Highlights

  • Program start protects lamp life during frequent switching
  • High 1.15 ballast factor delivers brighter output
  • Active power factor correction improves electrical efficiency
  • Quiet Class A sound rating suits noise-sensitive spaces
  • Case of 10 simplifies multi-fixture installations

Specifications

BrandGE
voltage120

Questions about this item

Will the 4.2 x 3 x 1 inch metal can fit inside my existing fixture housing?

The ballast measures 4.2 by 3 by 1 inches and uses a metal can enclosure, so verify your fixture cavity has at least that much clear space plus wiring room.

Which wires on the GEC242-MVPS-BES connect to the two 42 W CFL lamps for series programmed-start operation?

Wire the two lamps in series to the red and blue leads exactly as shown on the label; swapping them causes the programmed-start sequence to fail and the lamps will not strike.

How often should I expect to replace these ballasts if they run continuously at 40 °C ambient?

Rated for up to 40 °C ambient, continuous operation at that limit will shorten life; plan on checking for increased hum or flicker after several years and replace the unit if sound exceeds the A rating.
