Fulham
Fulham WorkHorse 5 WH5-120-L 120V Ballast
An instant-start electronic ballast running one to four fluorescent or compact fluorescent lamps at 120 V with a -20 °F minimum start temperature
- CollectionWorkHorse
- voltage120v
- location/usageType 1 outdoor
- listingcULus, Class P
- Country of OriginCHN
- warranty5 year manufacturer warranty
- Instant start electronic ballast for reliable fluorescent operation
- Supports 1 to 4 lamps from 10 W to 100 W
- Cold start capability down to -22 °F
- cULus listed Class P for Type 1 outdoor use
- Compact stainless steel housing measures 8.50 x 1.70 x 1.00 in

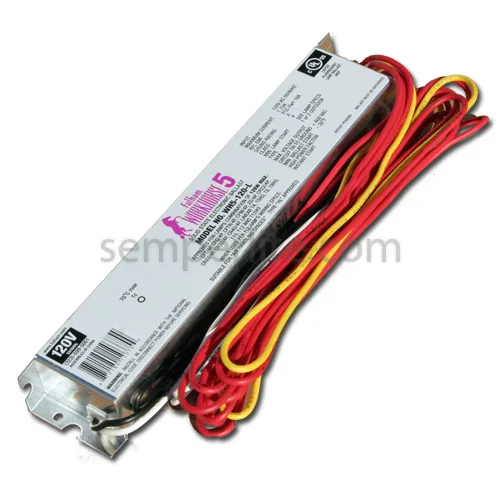

Fulham WorkHorse 5 120V Ballast
The Fulham WorkHorse 5 WH5-120-L is an instant-start electronic ballast designed for 120 V AC input. It operates a wide range of fluorescent and compact fluorescent lamps including T5 circuline, T8, T10, T12 and DBX types. The unit supports one to four lamps with wattages from 12 W up to 100 W. It carries cULus and Class P listings for safety compliance.
Type 1 Outdoor Instant Start Ballast
This ballast suits installers who need reliable cold-weather starting down to -20 °F and a Type 1 outdoor rating. Builders requiring dimming capability or a different input voltage will not find those functions here. The stainless steel finish and side-exit leads simplify mounting in approved enclosures.
120 V Input Voltage Constraint
The single specification that determines fit is the 120 V AC input rating; the ballast will not operate on other supply voltages. All lamp compatibility and starting performance are defined around this fixed input.
Highlights
- Instant start electronic ballast for reliable fluorescent operation
- Supports 1 to 4 lamps from 10 W to 100 W
- Cold start capability down to -22 °F
- cULus listed Class P for Type 1 outdoor use
- Compact stainless steel housing measures 8.50 x 1.70 x 1.00 in
Specifications
| Brand | Fulham |
|---|---|
| Collection | WorkHorse |
| voltage | 120v |
| location/usage | Type 1 outdoor |
| listing | cULus, Class P |
| Country of Origin | CHN |
| warranty | 5 year manufacturer warranty |
| finish | Stainless Steel |
| weight | 1.35 |
| description | The Fulham Work Horse WH5-120-L ballast operates a large variety of fluorescent and compact fluorescent lamps The WH5-120-L is an instant start electronic ballast |
| notes | Side exit leads |
| features | Instant Start, -20'F min. start temperature |
| type | ballast |
| size dimensions | 8.50 x 1.70 x 1.00 inchaes |
Questions about this item
How can I verify the Fulham WorkHorse 5 WH5-120-L is operating correctly after installation?
Confirm the connected fluorescent or compact fluorescent lamps start instantly without flickering at the rated 120V input and the ballast remains within its normal operating temperature range during use.
What components are included with the Fulham WH5-120-L and what must be purchased separately?
The ballast unit with side-exit leads is included; compatible fluorescent lamps such as T8, T12, T5-Circuline, T10 or DBX types ranging from 12 W to 100 W must be purchased separately.
Which lamp wattages and types are supported by the Fulham WorkHorse 5 WH5-120-L for my lighting project?
This instant-start ballast supports one to four lamps covering 12 W, 13 W, 15 W, 17 W, 24 W, 25 W, 28 W, 32 W, 40 W, 44 W, 45 W, 55 W, 58 W, 60 W, 75 W, 80 W, 85 W and 100 W across T8, T12, T5-Circuline, T10 and DBX bulb types.
