Fulham WH2-120-C WorkHorse 2 Ballast 120V
Electronic fluorescent ballast runs one or two lamps from 13 to 42 watts on 120 volt power with instant start and fuse protection
- CollectionFluorescent Electronic Ballast
- location/usageIndoor/Outdoor
- listingcULus, FCC Part 18-A, Class P, Sound Rated A, Type 1 & 2 Out
- Country of OriginChina
- warranty5 year manufacturer warranty
- finishSilver
- Instant start delivers immediate illumination without flicker
- Supports one or two lamps from 13 W to 42 W for flexible layouts
- cULus listed and FCC Part 18-A compliant for code-approved installs
- Rated to -22 °F so it operates reliably in cold environments
- Compact 3.30 x 1.80 x 1.00 in housing fits tight fixtures

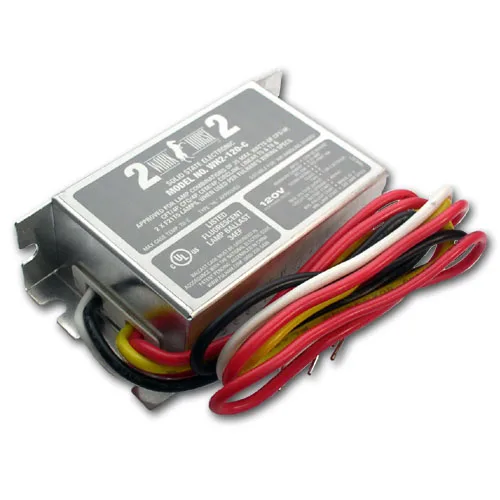

Fulham WH2-120-C WorkHorse 2 Ballast
The Fulham WH2-120-C WorkHorse 2 is an electronic fluorescent ballast designed for indoor or outdoor lighting fixtures. It operates on 120V AC at 50/60Hz and uses instant start technology to light compatible lamps. The unit is cULus listed, FCC Part 18-A compliant, Class P rated, and carries a Sound Rating A for quiet operation.
Suitable for standard fluorescent installations
This ballast suits installers needing a 120V instant-start ballast for one or two lamps ranging from 13W to 42W across T12, T5, T6, T8, T8U, and DBX types. It is not for projects requiring dimming capability or fixtures that need a different input voltage. The -22°F minimum starting temperature supports cold environments.
Input voltage 120V AC
The single specification that decides fit is the 120V AC input voltage. The ballast only works on 120V mains supply and supports a defined list of lamp wattages from 13W to 42W. Verify that the fixture voltage and lamp type match these exact parameters before purchasing.
Highlights
- Instant start delivers immediate illumination without flicker
- Supports one or two lamps from 13 W to 42 W for flexible layouts
- cULus listed and FCC Part 18-A compliant for code-approved installs
- Rated to -22 °F so it operates reliably in cold environments
- Compact 3.30 x 1.80 x 1.00 in housing fits tight fixtures
Specifications
| Brand | Fulham |
|---|---|
| Model | Electronic |
| Collection | Fluorescent Electronic Ballast |
| location/usage | Indoor/Outdoor |
| listing | cULus, FCC Part 18-A, Class P, Sound Rated A, Type 1 & 2 Outdoor |
| Country of Origin | China |
| warranty | 5 year manufacturer warranty |
| finish | Silver |
| weight | 0.75 lb. |
| description | Screw Down |
| notes | Workhorse Series, 120v 50/60Hz, Instant Start, FUSE Protected, HPF |
| type | Line Voltage |
| size dimensions | 3.30 x 1.80 x 1.00 inches |
Questions about this item
What are the exact mounting dimensions for the 3.30 x 1.80 x 1.00 inch ballast?
The unit measures 3.30 inches long, 1.80 inches wide and 1.00 inch high, so verify your junction box or enclosure has at least that much clearance before mounting.
Which wiring step is most often missed when installing the screw-down terminals?
Installers frequently forget to tighten each screw-down terminal fully after inserting the stripped leads, which can cause loose connections and lamp flicker.
When should the internal fuse be checked on this FUSE Protected ballast?
Inspect the fuse only if lamps fail to start at the rated -22 °F minimum temperature, as the fuse is not user-serviceable under normal operation.
