Fuji
Fujitsu ScanSnap iX1500 PA03770-B215 2 x Color CIS document scanner
Duplex document scanner with 600 x 600 dpi optical resolution, 30 ppm ADF speed and Wi-Fi connectivity
- TypeDuplex
- Element Type2 x Color CIS (1 x Front, 1 x Back)
- Light Source3 x Color LED (Red / Green / Blue)
- Scanning SpeedAuto Mode (Default) Simplex / Duplex: 30 ppm Normal Mode Sim
- Optical Resolution600 x 600 dpi
- Max. Document Size216.00 x 360.00 mm (8.50" x 14.17")
- Duplex scanning at 30 ppm speeds through high-volume batches
- Dual CIS sensors capture both sides in a single pass
- 600 x 600 dpi optical resolution preserves fine text detail
- 50-sheet ADF handles large jobs without constant reloading
- Wi-Fi and USB 3.1 Gen1 give flexible connection options

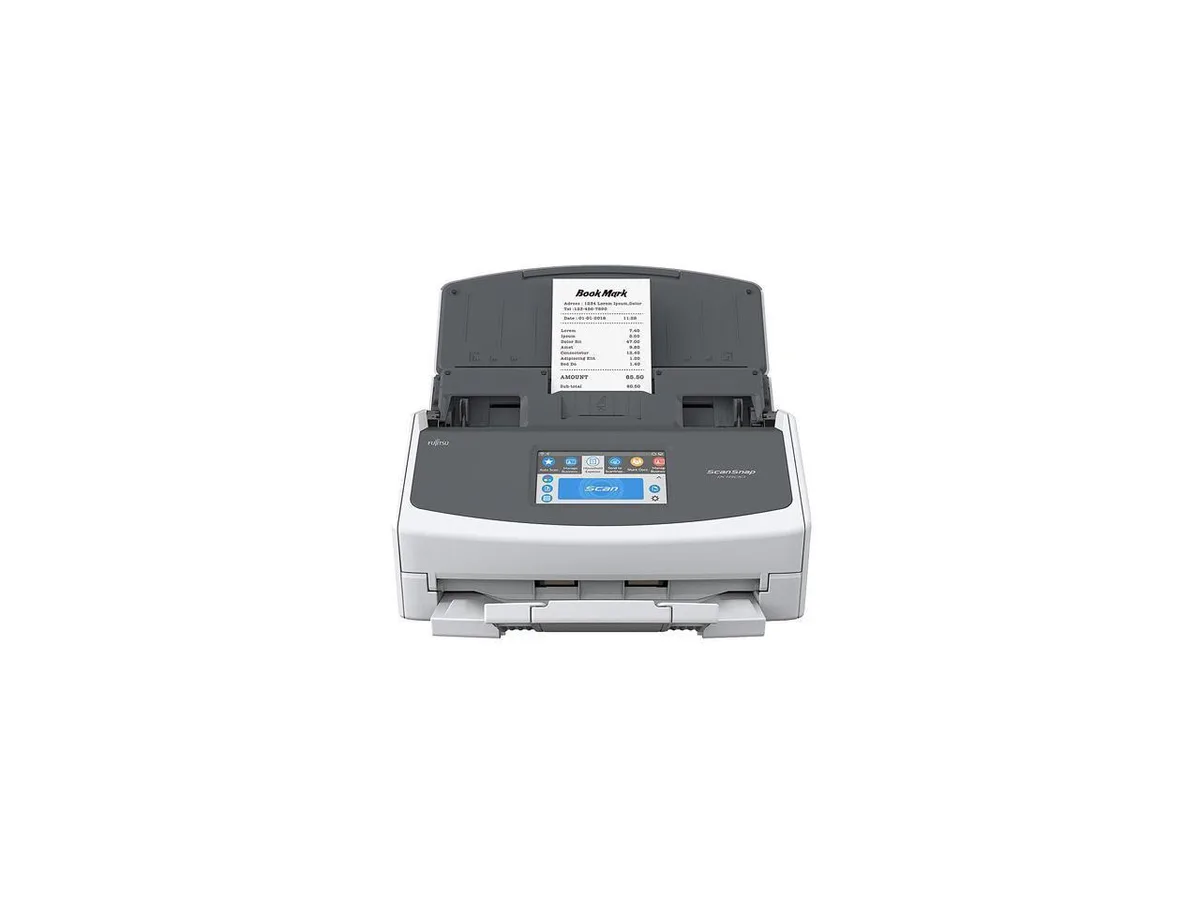

Fujitsu ScanSnap iX1500 Duplex Scanner
The Fujitsu ScanSnap iX1500 is a duplex document scanner built for offices and home workers who need to digitise double-sided pages in a single pass. Two colour CIS elements scan front and back simultaneously at 600 x 600 dpi optical resolution. A 50-sheet automatic document feeder handles standard A4 stacks, while a manual feed slot accepts larger formats up to 216 x 360 mm. USB 3.1 Gen1 and dual-band Wi-Fi give flexible connectivity to Windows 10, 8.1 or 7 systems.
Low Power Consumption and Quiet Operation
Power draw peaks at 17 watts during scanning and drops to 1.5 watts over USB or 1.6 watts over Wi-Fi in sleep mode, so the unit adds minimal load to a desk circuit. The LED light source runs cool and without the warm-up delay of older lamps, keeping acoustic output low during batch jobs. Automatic colour, greyscale and monochrome detection avoids unnecessary high-resolution passes, further reducing active scan time and energy use.
Compact Footprint with Flexible Placement
At 6.00 x 11.50 x 6.30 inches and 7.50 lbs the scanner fits on a shallow shelf or crowded desktop without dominating the workspace. The ADF holds 50 sheets of 80 g/m² paper, freeing the operator from constant reloading during large archives. Wi-Fi 802.11a/b/g/n/ac on 2.40 GHz and 5.00 GHz bands lets the device sit away from the host PC, while the included USB 3.1 Type-B cable provides a wired fallback. Minimum document size of 50.80 x 50.80 mm covers receipts and business cards without a carrier sheet.
Highlights
- Duplex scanning at 30 ppm speeds through high-volume batches
- Dual CIS sensors capture both sides in a single pass
- 600 x 600 dpi optical resolution preserves fine text detail
- 50-sheet ADF handles large jobs without constant reloading
- Wi-Fi and USB 3.1 Gen1 give flexible connection options
Specifications
| Brand | Fujitsu |
|---|---|
| Series | ScanSnap iX1500 |
| Model | PA03770-B215 |
| Type | Duplex |
| Element Type | 2 x Color CIS (1 x Front, 1 x Back) |
| Light Source | 3 x Color LED (Red / Green / Blue) |
| Scanning Speed | Auto Mode (Default) Simplex / Duplex: 30 ppm Normal Mode Simplex / Duplex: 30 ppm (Color / Grayscale: 150 dpi, Monochrome: 300 dpi) Better Mode Simplex / Duplex: 30 ppm (Color / Grayscale: 200 dpi, Monochrome: 400 dpi) Best Mode Simplex / Duplex: 30 ppm (Color / Grayscale: 300 dpi, Monochrome: 600 dpi) Excellent Mode Simplex / Duplex: 8 ppm (Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi) |
| Optical Resolution | 600 x 600 dpi |
| Max. Document Size | 216.00 x 360.00 mm (8.50" x 14.17") |
| Automatic Document Feeder (ADF) | Yes |
| ADF Capacity | 50 sheets (A4, 80 g/m2 or 20 lbs.) |
| USB Ports | USB 3.1 Gen1 / USB 3.0 / USB 2.0 / USB 1.1 (Connector Type: Type-B) |
| Other Ports | Wi-Fi: IEEE 802.11a/b/g/n/ac (Frequency band: 2.40 GHz / 5.00 GHz) |
| Power Requirements | AC 100 - 240V, 50 / 60 Hz |
| Power Consumption | Operating Mode: 17 watts or less Sleep Mode: USB connected: 1.5 watts or less Wi-Fi connected: 1.6 watts or less |
| Operating Systems Supported | Windows 10 / 8.1 (32-bit / 64-bit) Windows 7 (32-bit / 64-bit) |
| Features | Scanning Color Modes: Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome detection) Document Size: Normal Scan: Minimum 50.80 x 50.80 mm (2.00" x 2.00") Manual Scan: A3, B4, 279.00 x 432.00 mm (11.00" x 17.00") Long Paper Scanning: 3,000.00 mm (863.00 mm in 32-bit); Smart Device: 863.00 mm (Duplex), 1,726.00 mm (Simplex) Multifeed Detection: Overlap detection (Ultrasonic sensor), Length detection Wi-Fi Interface: Connection Mode: Access Point Connect Mode (Infrastructure mode) / Direct Connect Mode (Ad-hoc mode) Security: WEP (64bit / 128bit), WPA (TKIP / AES), W |
| Dimensions | 6.00" x 11.50" x 6.30" |
| Weight | 7.50 lbs. |
| Package Contents | ScanSnap iX1500 scanner Welcome Guide Safety Precautions AC Cable AC Adapter USB 3.1 Type-B Cable Receipt Guide Nuance License |
Questions about this item
How do I connect the scanner to my network, and what step do people miss?
Connect the USB 3.1 Type-B cable or join the 2.40 GHz / 5.00 GHz Wi-Fi network, then run the installer; the step often missed is selecting the correct SSID before the first scan.
Which parts will need replacement after heavy use?
The ADF pick roller and separation pad wear after many feeds; the welcome guide lists the user-replaceable kit and the scanner counts feeds to prompt replacement.
What limits throughput during a long batch job?
The ADF holds 50 sheets of 80 g/m2 paper; once empty you must reload, and the 17 W operating power caps sustained duplex speed at 30 ppm.
