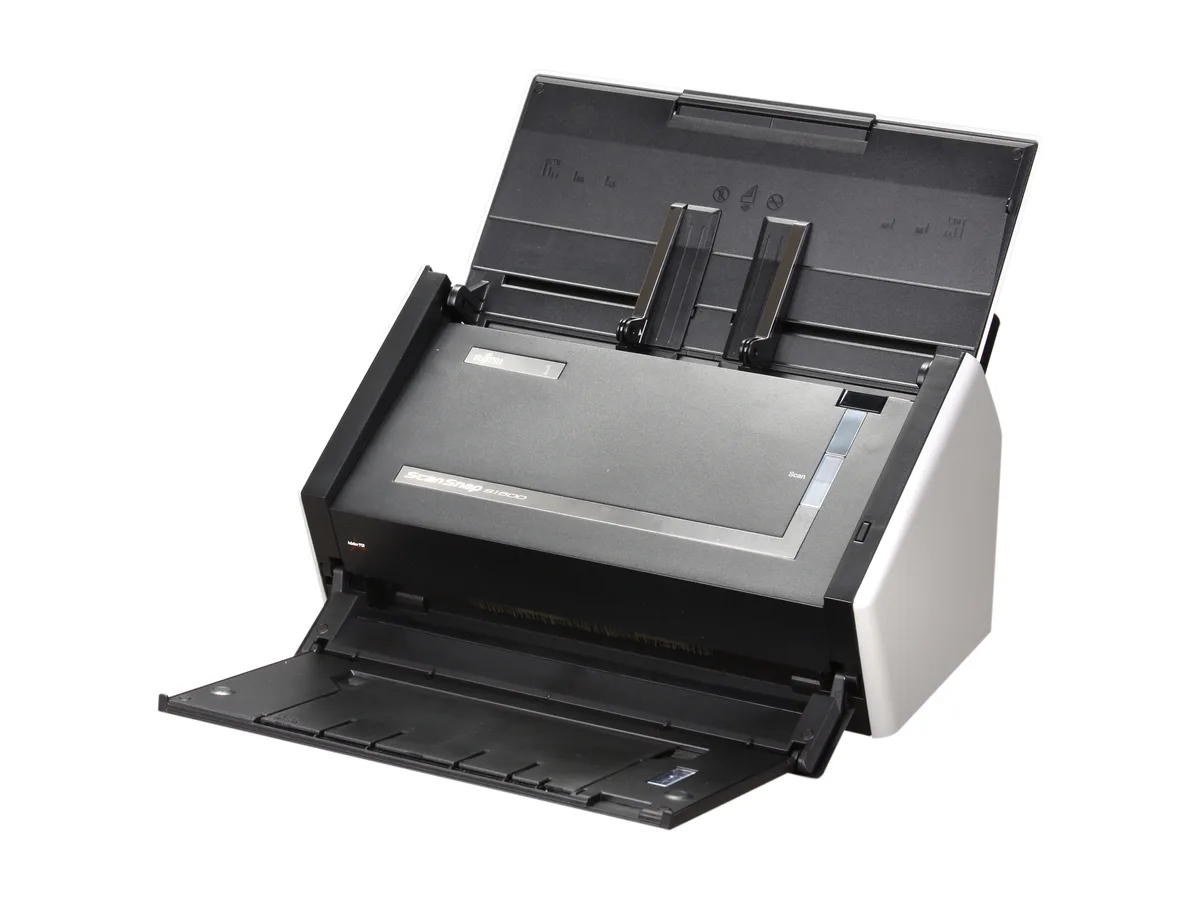

White rectangular sheet-fed document scanner with paper feed tray and output slot

Fujitsu

Fujitsu PA03586-B005 ScanSnap S1500 document scanner

SKU CH-KBG3-92488 MPN PA03586-B005

Sheet-fed duplex scanner captures 20 pages per minute at 600 dpi with a 50-sheet feeder and ultrasonic multi-feed detection

  • TypeSheet-Fed Duplex
  • Element TypeCCD
  • Light SourceWhite cold cathode discharge lamp
  • Scanning SpeedSimplex or Duplex, 20 pages per minute (ppm)
  • Optical Resolution600 x 600 dpi
  • Interpolated ResolutionColor: 600dpi, B&W: 1,200dpi
  • Scans 20 pages per minute in simplex or duplex mode
  • Creates searchable PDFs with a single button press
  • Handles up to 50 sheets in the automatic document feeder
  • Detects multi-feeds using ultrasonic or length sensors
  • Accepts documents up to 8.5 by 14 inches

Compact duplex scanner for Windows offices

The Fujitsu ScanSnap S1500 is a sheet-fed duplex scanner built for Microsoft Windows environments. It captures colour, greyscale or black-and-white pages at 20 ppm through a 50-page automatic document feeder. The CCD sensor delivers 600 x 600 dpi optical resolution with ultrasonic multi-feed detection.

Bundled software enables searchable PDFs and OCR

Included applications are ScanSnap Organizer V4.0, CardMinder V4.0, Adobe Acrobat X Standard and ABBYY FineReader for ScanSnap 4.0 PC Edition. Together they turn scanned pages into searchable PDF or JPEG files with a single button press. The driver does not support TWAIN or ISIS interfaces.

Desktop form factor with universal power input

The unit measures 11.5 x 6.3 x 6.2 inches and weighs 6.62 lbs, fitting on a standard desk. It accepts AC 100-240 V at 50/60 Hz, drawing 35 W or less while operating and 4.5 W in standby. USB connectivity provides the data link to the host PC.

Highlights

  • Scans 20 pages per minute in simplex or duplex mode
  • Creates searchable PDFs with a single button press
  • Handles up to 50 sheets in the automatic document feeder
  • Detects multi-feeds using ultrasonic or length sensors
  • Accepts documents up to 8.5 by 14 inches

Specifications

BrandFujitsu
SeriesScanSnap S1500
ModelPA03586-B005
TypeSheet-Fed Duplex
Element TypeCCD
Light SourceWhite cold cathode discharge lamp
Scanning SpeedSimplex or Duplex, 20 pages per minute (ppm)
Optical Resolution600 x 600 dpi
Interpolated ResolutionColor: 600dpi, B&W: 1,200dpi
Max. Document Size8.5" x 14"
Media TypeA4, A5, A6, B5, B6, Business card, Letter, Legal and Custom sizes
Automatic Document Feeder (ADF)Yes
USB PortsYes
Power RequirementsAC 100 - 240V, 50 / 60 Hz
Power ConsumptionOperating: 35W or less, Standby: 4.5W
FeaturesMulti-feed Detection: Ultrasonic Sensor or Length Detection (selectable)
Dimensions11.5" x 6.3" x 6.2"
Weight6.62 lbs.
Software IncludedScanSnap Organizer V4.0 (for PC only)
CardMinder V4.0 (for PC only)
Adobe Acrobat X Standard (for PC only)
ABBYY FineReader for ScanSnap 4.0 PC Edition
ScanSnap specific driver (Does not support TWAIN / ISIS) operable with ScanSnap Manager V5.0
Shipping weight4.54 kg
Package size394 × 262 × 231 mm

Questions about this item

How often will the pick rollers and separation pad in the 50-page ADF need replacing?

The pick rollers and separation pad are consumable parts; replacement interval depends on daily volume and paper type, so plan to inspect them after every few thousand scans.

What limits continuous operation at the rated 20 ppm duplex speed?

The 50-sheet ADF capacity and the 35 W operating power envelope are the first constraints during long batch runs.

How much heat and noise does the scanner produce when running all day?

Maximum power draw is 35 W while scanning and 4.5 W in standby; the CCD engine and cold-cathode lamp run cooler than CIS designs, keeping emitted heat and fan noise low during extended use.
