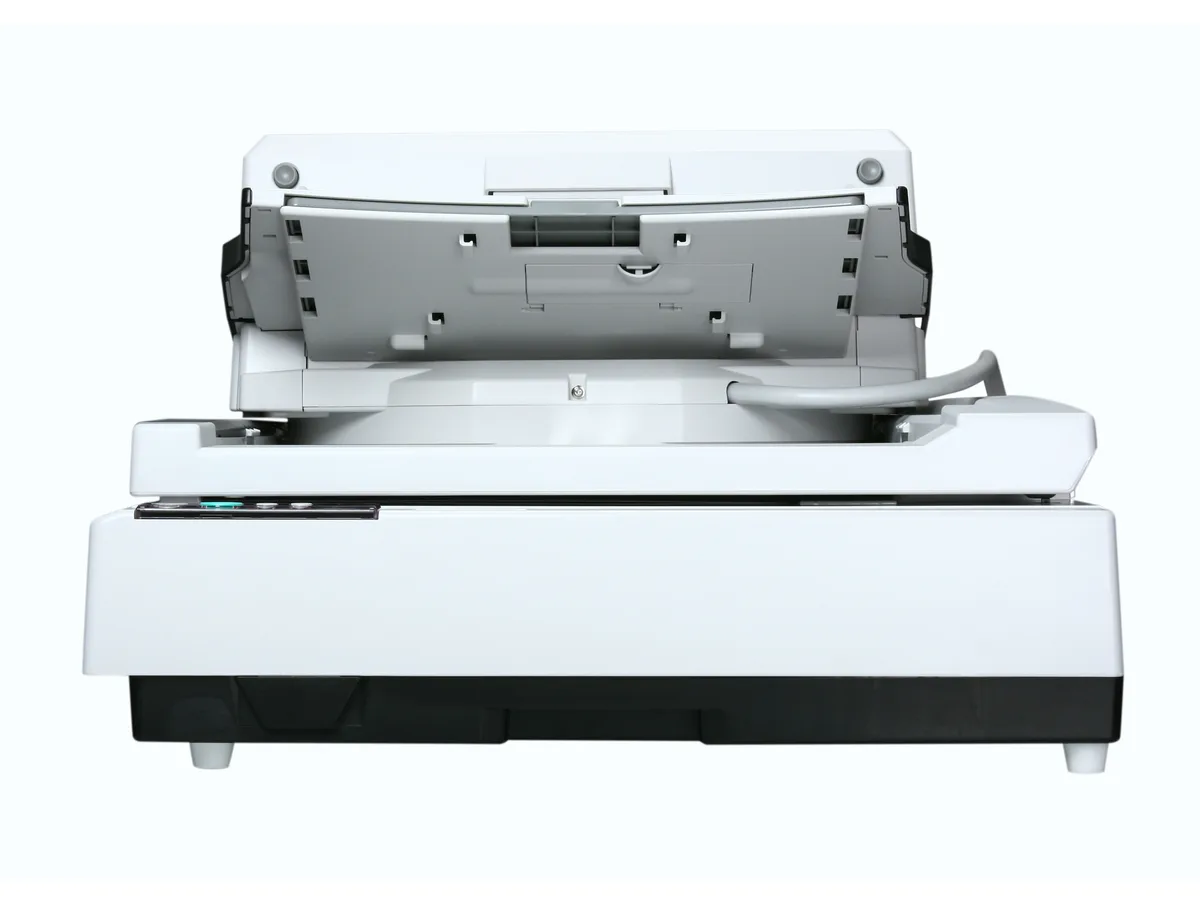

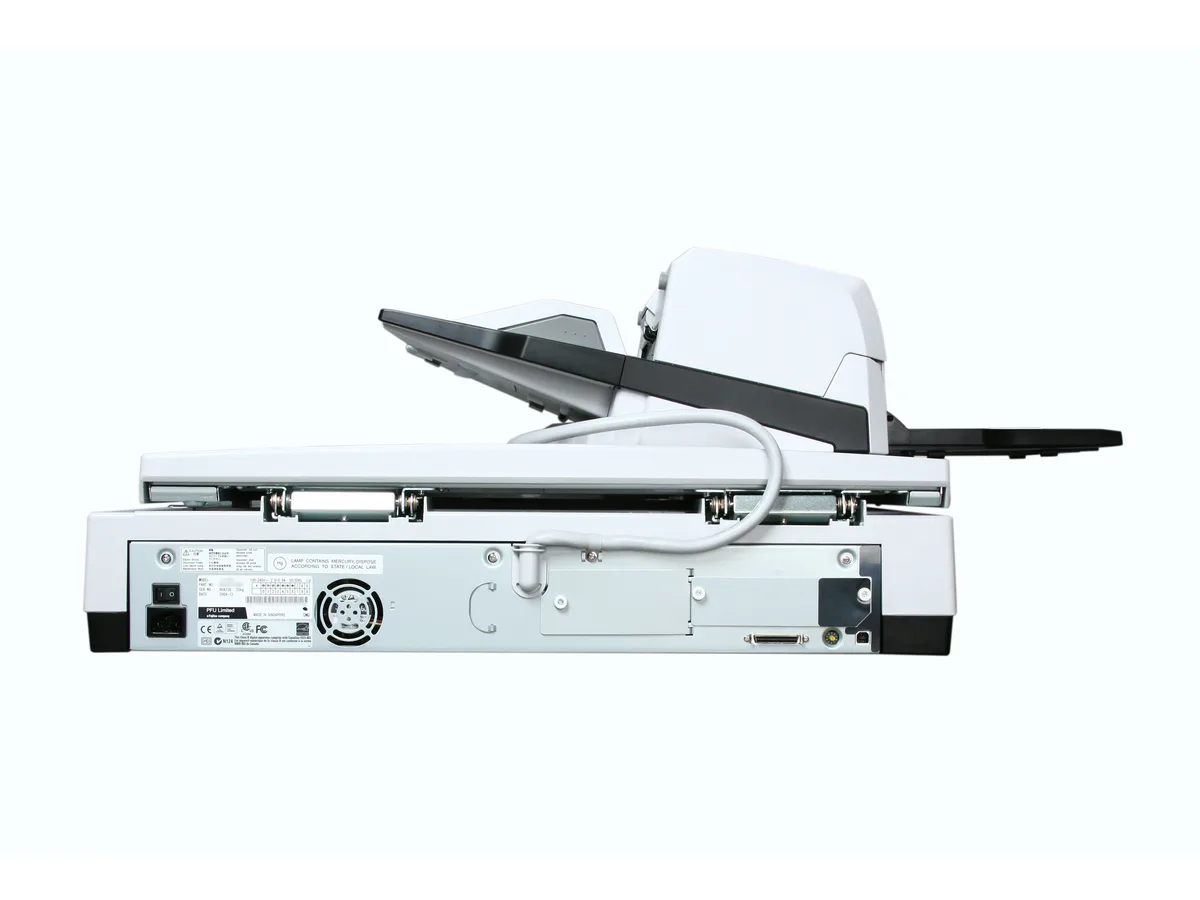

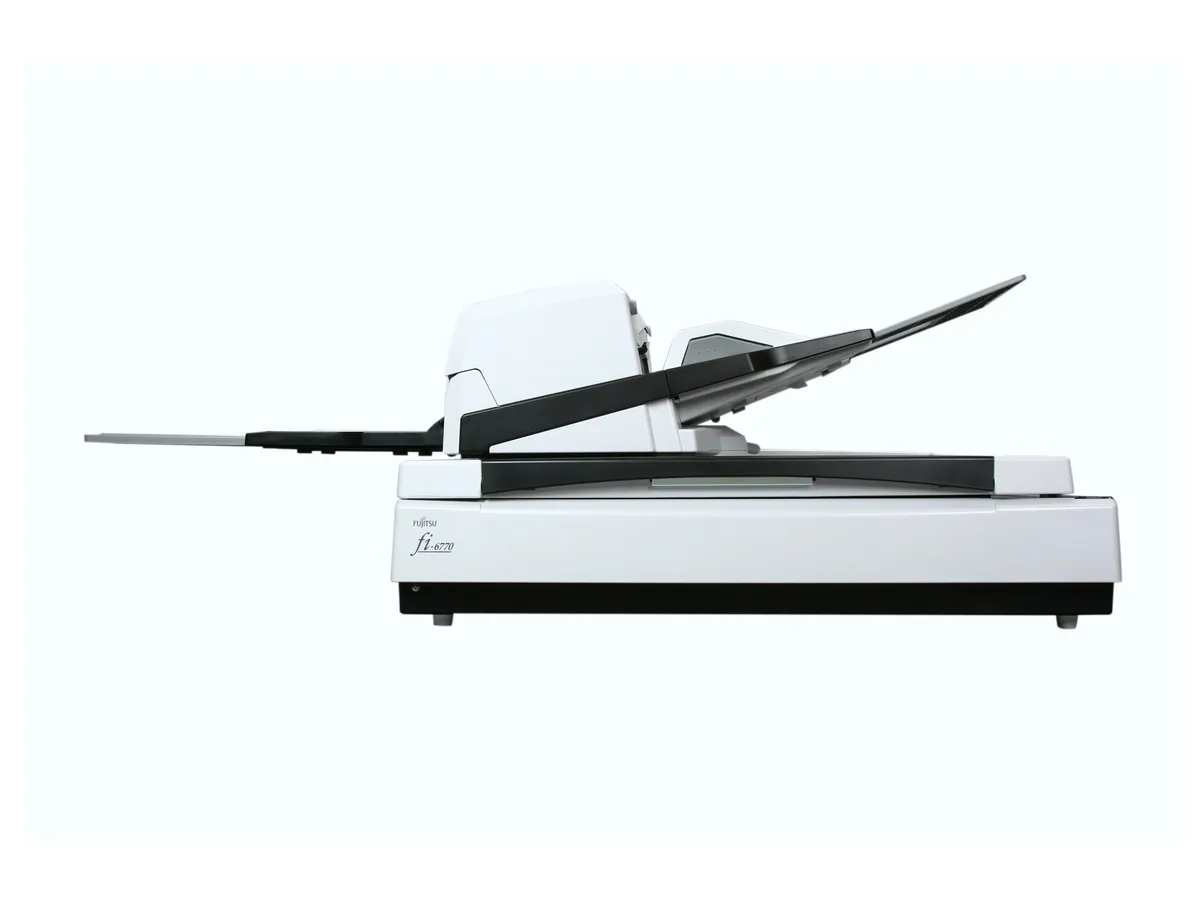

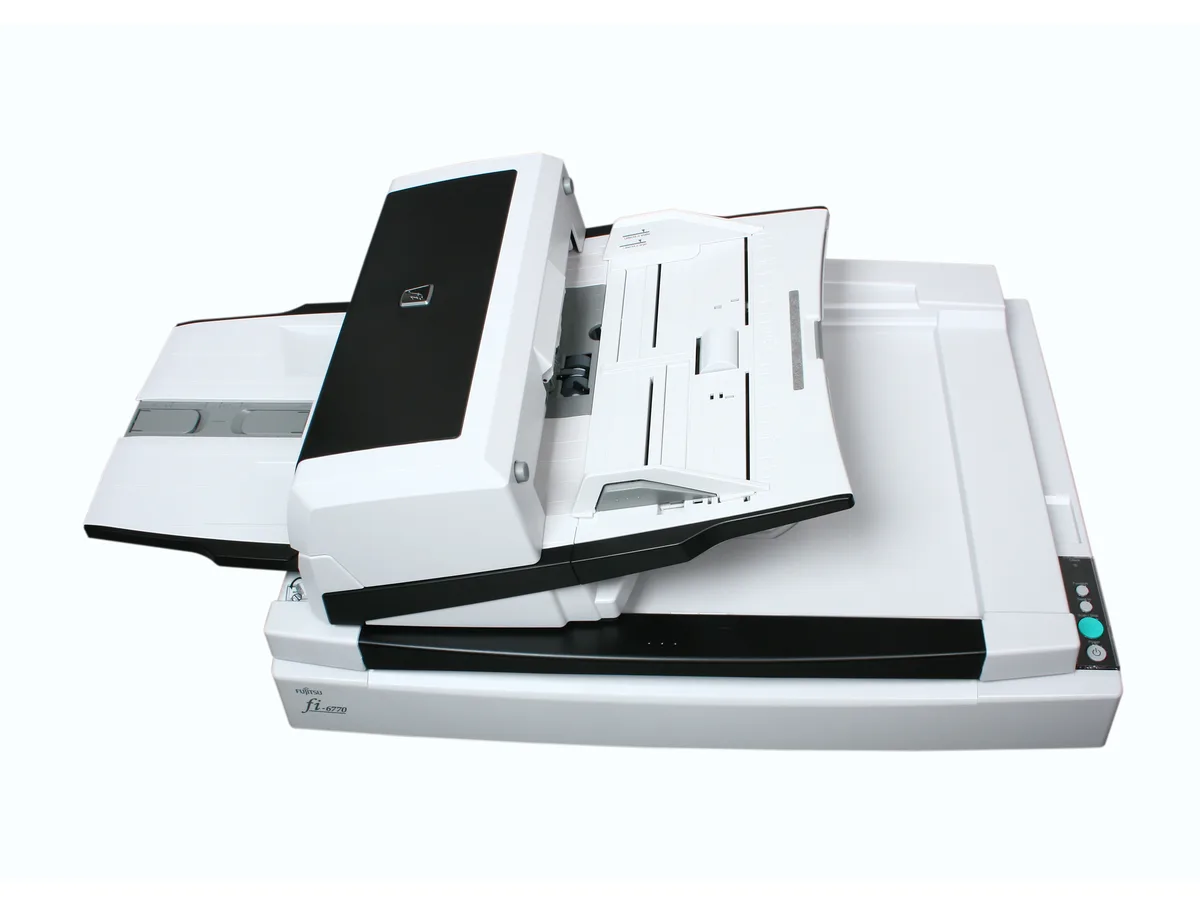

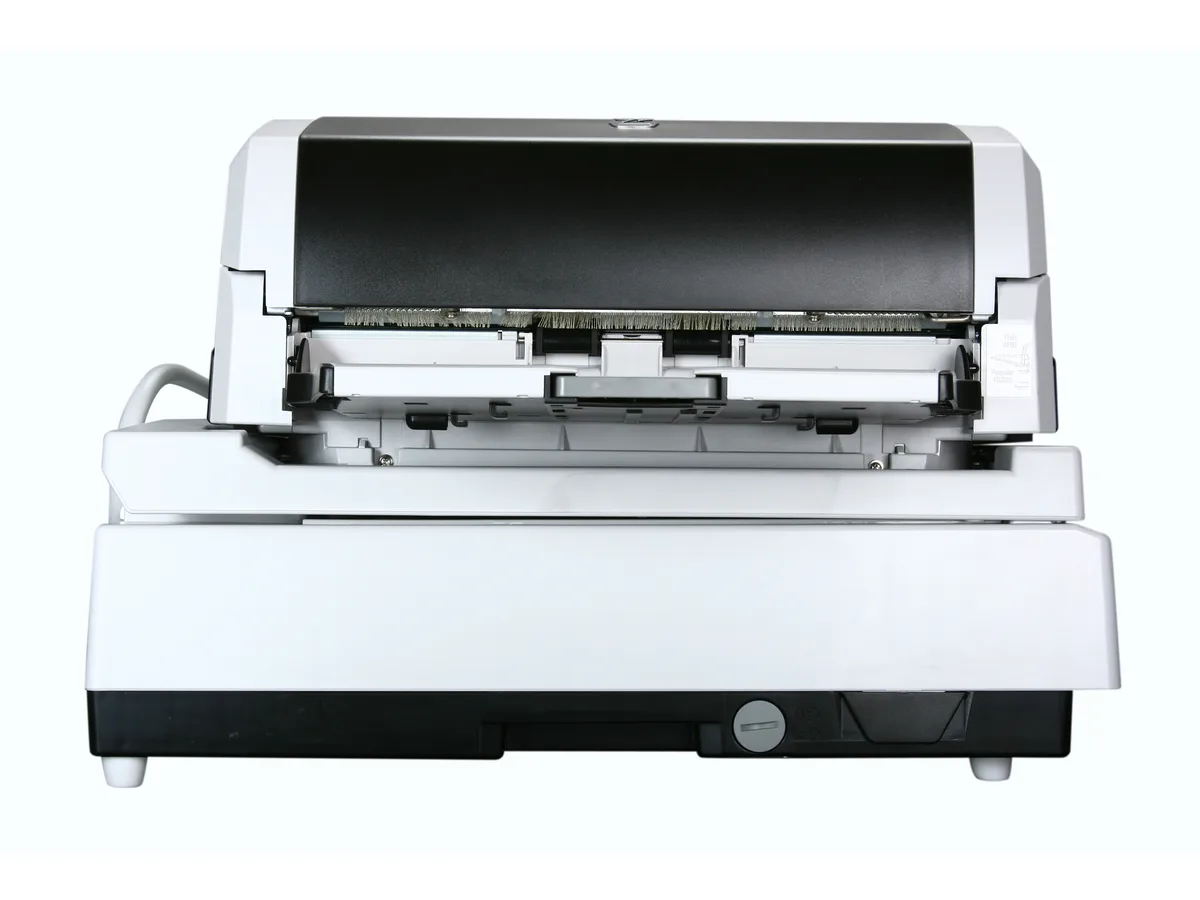

Large rectangular Fujitsu fi-6770 document scanner with automatic document feeder, matte grey finish, control panel on front

Fujitsu

Fujitsu PA03576-B105 fi-6770 Duplex Document Scanner

SKU CH-HM63-J1F2Z MPN PA03576-B105

Production-level duplex scanner with CCD imaging at 600 dpi optical resolution, handling 11 x 17 inch documents at up to 90 ppm simplex and 180 ipm duplex via Hi-Speed USB 2.0 and SCSI interfaces

  • TypeDuplex
  • Element TypeCCD
  • Scanning SpeedLetter/Landscape Mode Monochrome, Grayscale & Color @ 200 dp
  • Optical Resolution600 dpi
  • Max. Document Size11" x 17"
  • Automatic Document Feeder (ADF)Yes
  • Scans 90 ppm simplex at 200 dpi for high-volume throughput
  • Duplexes at 180 ipm to digitise double-sided pages in one pass
  • CCD sensor delivers 600 dpi optical resolution for sharp captures
  • Handles documents up to 11 x 17 inches for large-format jobs
  • Energy Star rated with sleep power below 9.1 watts

Fujitsu fi-6770 Production Scanner

The Fujitsu fi-6770 is a production-grade duplex document scanner built for high-volume offices. It uses a 24-bit CCD sensor to capture colour and monochrome images at 600 dpi optical resolution. The automatic document feeder handles paper up to 11 x 17 inches. It is designed for organisations that need reliable daily digitisation of large document batches.

Software Bundle and Connectivity

Included drivers and a software bundle provide compatibility with existing document management systems. Ultrasonic multi-feed detection can be trained to reduce false stops during unattended runs. Connectivity options include Hi-Speed USB 2.0, Ultra SCSI 50-pin, Ultra Wide SCSI 68-pin and a third-party interface slot. These interfaces support integration into varied IT environments.

Build and Daily Operation

The unit measures 13.38 x 27.16 x 19.68 inches and weighs 77.2 lbs, indicating a sturdy chassis for continuous operation. Power consumption reaches 216 W during scanning and drops below 6 W or 9.1 W in sleep modes. The scanner meets Energy Star and EU RoHS and VOC guidelines. Supported operating systems include Windows 2000, XP, Vista, 7, Server 2003, 2003 R2, 2008 and 2008 R2.

Highlights

  • Scans 90 ppm simplex at 200 dpi for high-volume throughput
  • Duplexes at 180 ipm to digitise double-sided pages in one pass
  • CCD sensor delivers 600 dpi optical resolution for sharp captures
  • Handles documents up to 11 x 17 inches for large-format jobs
  • Energy Star rated with sleep power below 9.1 watts

Specifications

BrandFujitsu
Seriesfi Series
Modelfi-6770
TypeDuplex
Element TypeCCD
Scanning SpeedLetter/Landscape Mode
Monochrome, Grayscale & Color @ 200 dpi - Simplex: 90 ppm; Duplex: 180 ipm
Monochrome, Grayscale & Color @ 300 dpi - Simplex: 80 ppm; Duplex: 160 ipm
Flatbed: 0.6 seconds (200 dpi), 0.7 seconds (300 dpi)
Letter/Portrait Mode
Monochrome, Grayscale & Color @ 200 dpi - Simplex: 70 ppm; Duplex: 140 ipm
Monochrome, Grayscale & Color @ 300 dpi - Simplex: 60 ppm; Duplex: 120 ipm
Flatbed: 0.9 seconds (200 dpi), 1.1 seconds (300 dpi)
Optical Resolution600 dpi
Max. Document Size11" x 17"
Automatic Document Feeder (ADF)Yes
USB PortsHi Speed USB 2.0
Other PortsUltra SCSI(50m), Third Party Slot & Ultra SCSI (50m), Ultra Wide SCSI (68m) VRS
Power RequirementsAC 100 - 240V, 50 / 60 Hz
Power Consumption216W
Sleep mode: Less than 6W, Less than 9.1W (CGA)
Operating Systems SupportedMicrosoft Windows 2000/XP, Microsoft Vista, Microsoft Windows 7, Microsoft Windows Server 2003/2003 R2, Microsoft Server 2008/2008 R2
FeaturesAdvanced scanning intelligence, high reliability, increased productivity
Production-level scanning power, right out of the box
High-impact scanning, low environmental impact
Dimensions13.38" x 27.16" x 19.68"
Weight77.2 lbs.
Shipping weight45.36 kg
Package size691 × 500 × 343 mm

Questions about this item

How often will the ADF rollers and ultrasonic double-feed sensor need replacement on the fi-6770?

The fi-6770 uses ultrasonic double-feed detection; roller life depends on volume, and Fujitsu service kits are available for the ADF mechanism.

What limits continuous throughput on the fi-6770 during long batch runs?

Sustained speed is capped at 90 ppm simplex or 180 ipm duplex at 200 dpi, with the ADF capacity and 216 W power draw as practical limits.

How much heat and noise does the fi-6770 produce when running all day?

Operating power is 216 W and sleep mode drops below 6 W; the unit weighs 77.2 lbs and measures 13.38" x 27.16" x 19.68".
