Fujitsu General
Fujitsu General fi-7160 PA03670-B085 document scanner
Sheet-fed scanner with 80-sheet ADF scans 60 ppm simplex and 120 ipm duplex at 600 dpi optical resolution
- TypeSheet Fed
- Element TypeCCD
- Light SourceWhite LED Array
- Optical Resolution600 dpi
- Max. Document Size8.50" x 220.00"
- Automatic Document Feeder (ADF)Yes
- Scans up to 60 ppm simplex and 120 ipm duplex for fast batch processing
- 80-sheet ADF with ultrasonic double-feed detection prevents missed pages
- Handles documents up to 220 inches long for versatile workflows
- USB 3.0 connectivity with 38 W operating power and 0.35 W standby
- Compact 6.40 x 11.80 x 6.70 in design fits any office space

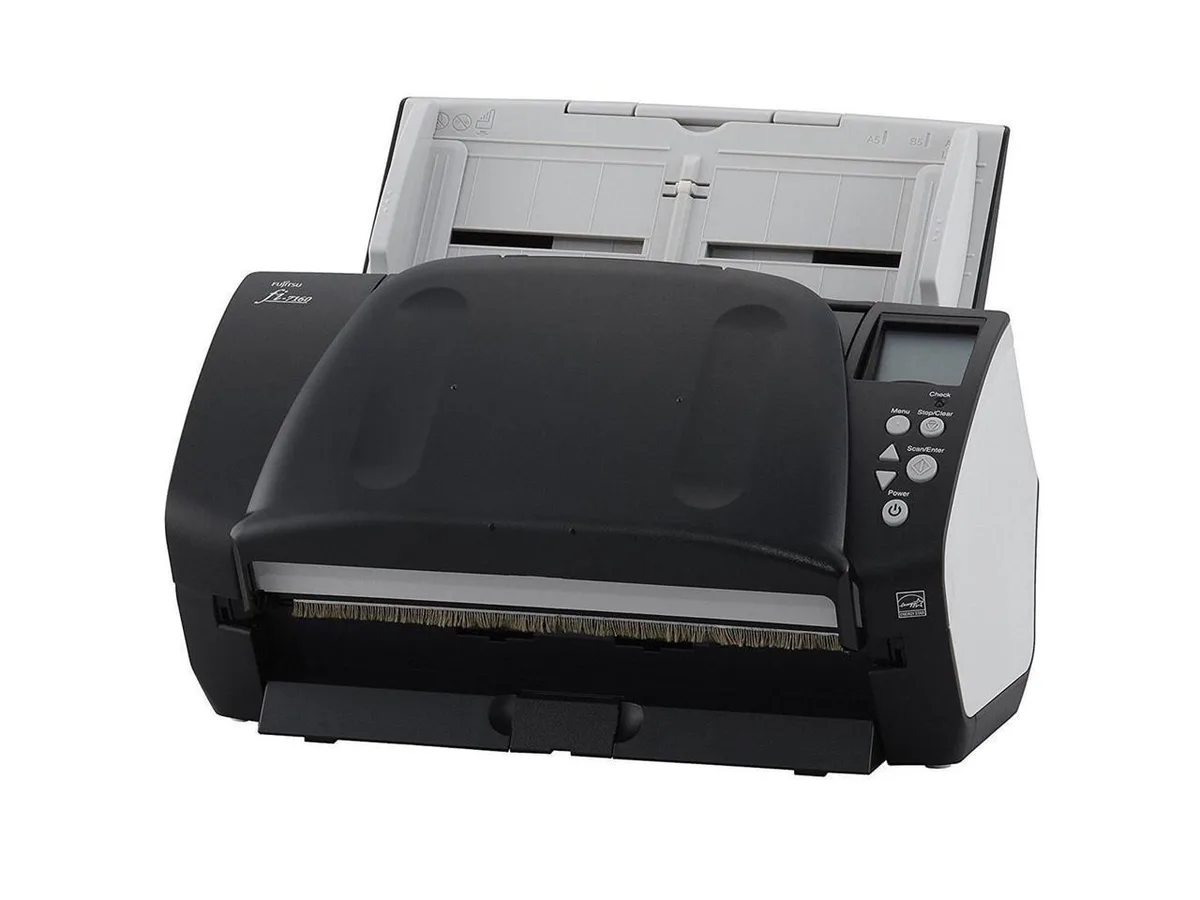

Fujitsu fi-7160 sheet-fed scanner
The Fujitsu fi-7160 is a sheet-fed document scanner built for professional workgroups that need fast, reliable digitisation of paper and receipts. It uses a CCD sensor with a white LED array and connects via USB 3.0 for straightforward desktop deployment.
80-sheet ADF with 220-inch long-page support
An 80-sheet automatic document feeder handles routine batches at up to 60 pages per minute simplex or 120 images per minute duplex. Long documents up to 220 inches in length are supported, while ultrasonic double-feed detection and paper protection functions reduce misfeeds and document damage.
USB 3.0 interface with broad Windows support
The scanner requires a USB 3.0 port and draws 38 watts or less during operation, dropping to 1.8 watts in sleep and 0.35 watts in standby. Supported operating systems range from Windows XP through Windows 10 and Windows Server 2012 R2, so older workstations can still use the device.
Highlights
- Scans up to 60 ppm simplex and 120 ipm duplex for fast batch processing
- 80-sheet ADF with ultrasonic double-feed detection prevents missed pages
- Handles documents up to 220 inches long for versatile workflows
- USB 3.0 connectivity with 38 W operating power and 0.35 W standby
- Compact 6.40 x 11.80 x 6.70 in design fits any office space
Specifications
| Series | fi Series |
|---|---|
| Model | FI-7160 (PA03670-B085) |
| Type | Sheet Fed |
| Element Type | CCD |
| Light Source | White LED Array |
| Optical Resolution | 600 dpi |
| Max. Document Size | 8.50" x 220.00" |
| Automatic Document Feeder (ADF) | Yes |
| ADF Capacity | 80 Sheets |
| USB Ports | USB 3.0 (backward compatible) |
| Power Requirements | 100 to 240 VAC +/- 10 % |
| Power Consumption | 38 Watts or less Sleep: 1.8 Watts; Standby: 0.35 Watts |
| Operating Systems Supported | Windows 10 (32-bit/64-bit), Windows 8 / 8.1 (32-bit/64-bit), Windows 7 (32-bit/64-bit), Windows Vista (32-bit/64-bit), Windows XP (32-bit/64-bit), Windows Server 2012 (64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2008 (32-bit/64-bit), Windows Server 2008 R2 (64-bit) |
| Dimensions | 6.40" x 11.80" x 6.70" |
| Weight | 9.26 lbs. |
Questions about this item
Will the USB 3.0 port on the fi-7160 work with my older PC that only has USB 2.0?
Yes, the USB 3.0 interface is backward compatible so it will operate on a USB 2.0 port, though transfer speeds will be limited to the older standard.
How can I confirm the scanner is feeding and imaging correctly after I install it?
Run a test batch through the 80-sheet ADF; the LCD panel shows job status and the Ultrasonic Double Feed Detection alerts you if any page is missed or multi-fed.
Does the box include a USB cable and power lead, or must I buy them separately?
The scanner ships with a USB 3.0 cable and a 100-240 VAC power cord, so no separate cables are required for basic operation.
