Fujitsu General
Fujitsu General fi-7160 PA03670-B055-R 600 dpi 60 ppm Duplex Document Scanner
Duplex document scanner captures 60 pages per minute at 600 dpi optical resolution with an 80-sheet automatic document feeder and USB 3.0 connectivity
- TypeDuplex
- Element TypeCCD
- Light SourceLED
- Scanning Speed60 ppm
- Optical Resolution600 x 600 dpi
- Automatic Document Feeder (ADF)Yes
- 60 ppm duplex scanning cuts batch time in half
- 80-sheet ADF loads large jobs without constant reloading
- 600 x 600 dpi optical resolution captures fine detail
- USB 3.0 interface moves data quickly to the PC
- CCD sensor with LED light delivers consistent image quality

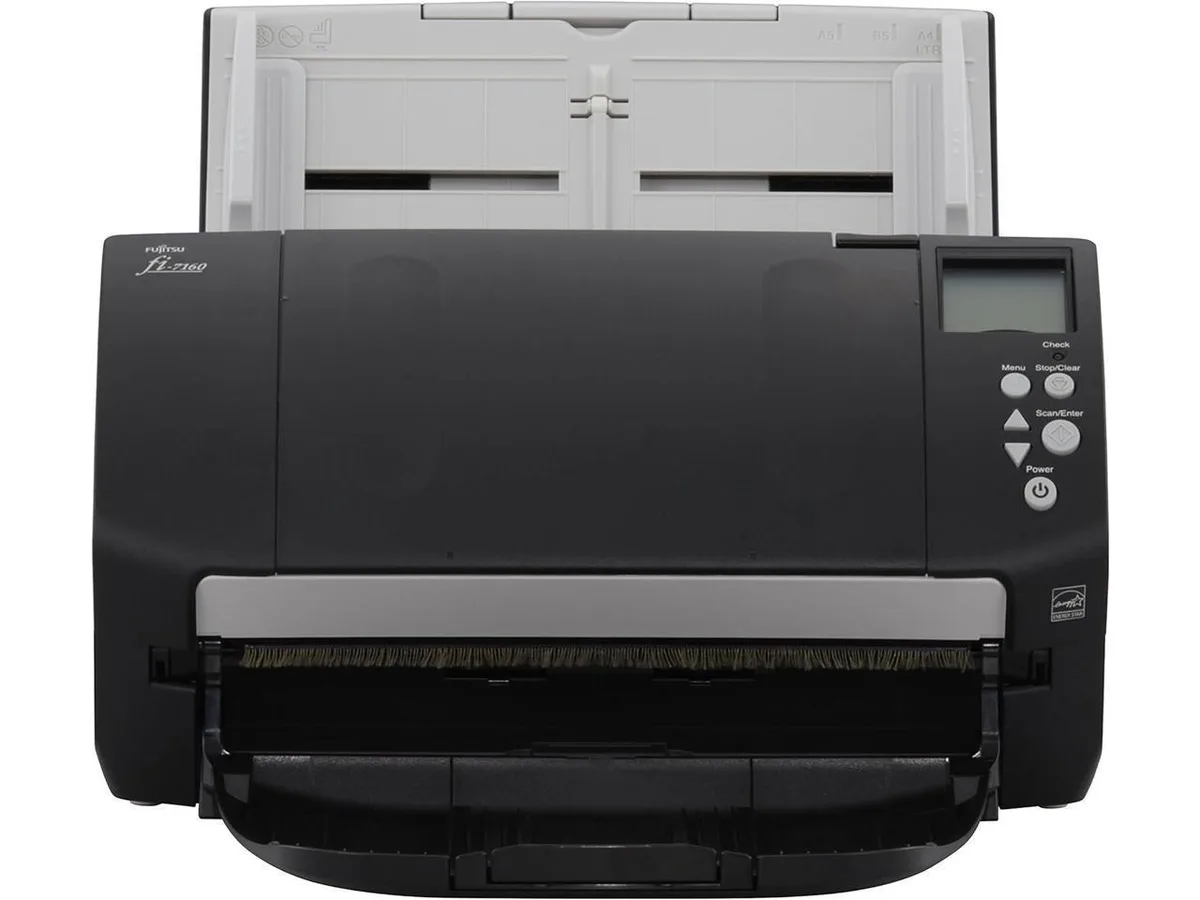

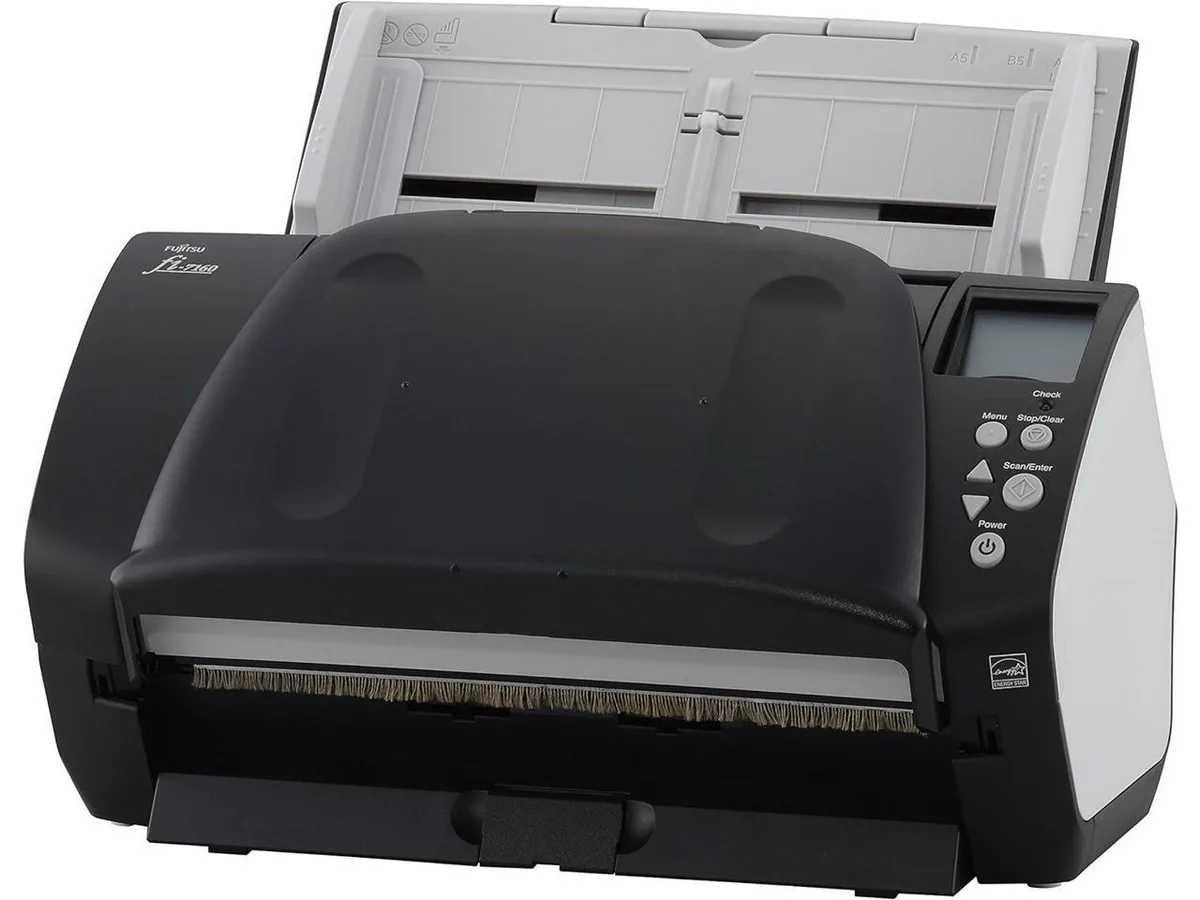

Fujitsu fi-7160 duplex document scanner
The Fujitsu fi-7160 is a duplex document scanner built for offices that need fast, reliable digitisation of paper records. It captures both sides of a page in a single pass at up to 60 ppm using a CCD sensor with LED illumination. Optical resolution reaches 600 x 600 dpi for sharp text and fine detail. An 80-sheet automatic document feeder handles high-volume batches without constant reloading.
USB 3.0 connectivity and software integration
A USB 3.0 interface provides quick data transfer to a host PC, fitting into existing workstations without specialised add-in cards. The scanner draws 38 watts during operation, so a standard mains outlet is sufficient. Bundled PaperStream IP and PaperStream Capture software streamline image processing and batch capture, reducing the need for separate scanning applications. Long-document support up to 5588 mm extends usability beyond standard page sizes.
Ideal for high-volume offices.
This unit suits departments that process large daily volumes of standard paperwork such as invoices, contracts or records. Buyers who need a compact, lightweight scanner for occasional use or field work should look elsewhere, as the device weighs 13.25 pounds and is designed for a fixed desk location. It is also not intended for high-resolution photo or film scanning, where specialised flatbed or film scanners deliver better results.
Highlights
- 60 ppm duplex scanning cuts batch time in half
- 80-sheet ADF loads large jobs without constant reloading
- 600 x 600 dpi optical resolution captures fine detail
- USB 3.0 interface moves data quickly to the PC
- CCD sensor with LED light delivers consistent image quality
Specifications
| Series | fi Series |
|---|---|
| Model | PA03670-B055-R |
| Type | Duplex |
| Element Type | CCD |
| Light Source | LED |
| Scanning Speed | 60 ppm |
| Optical Resolution | 600 x 600 dpi |
| Automatic Document Feeder (ADF) | Yes |
| ADF Capacity | 80 sheets |
Questions about this item
How many pages can the 80-sheet ADF process continuously at 60 ppm before the feeder needs reloading?
The 80-sheet Automatic Document Feeder holds up to 80 pages, so at the rated 60 pages per minute it will require reloading after roughly 80 sheets are scanned.
What is the power draw and noise consideration when the fi-7160 runs all day at its 38-watt rating?
The scanner draws 38 watts during operation; the LED light source and CCD sensor run without a warm-up period, keeping heat output low for continuous daily use.
Which host interface and software are required so the USB 3.0 connection works with PaperStream IP and Capture?
A USB 3.0 port on a Windows PC is needed; the included PaperStream IP and PaperStream Capture software install on that host to drive the scanner.
