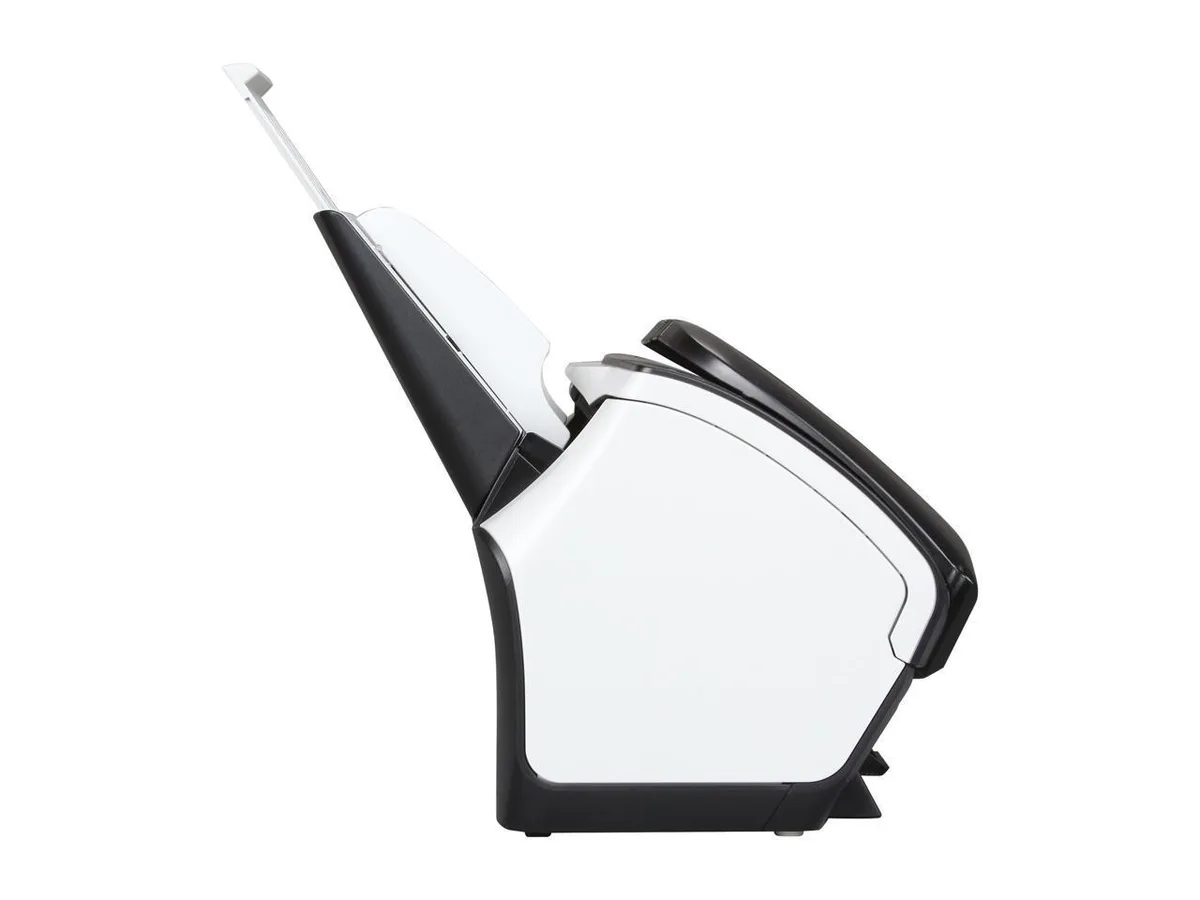

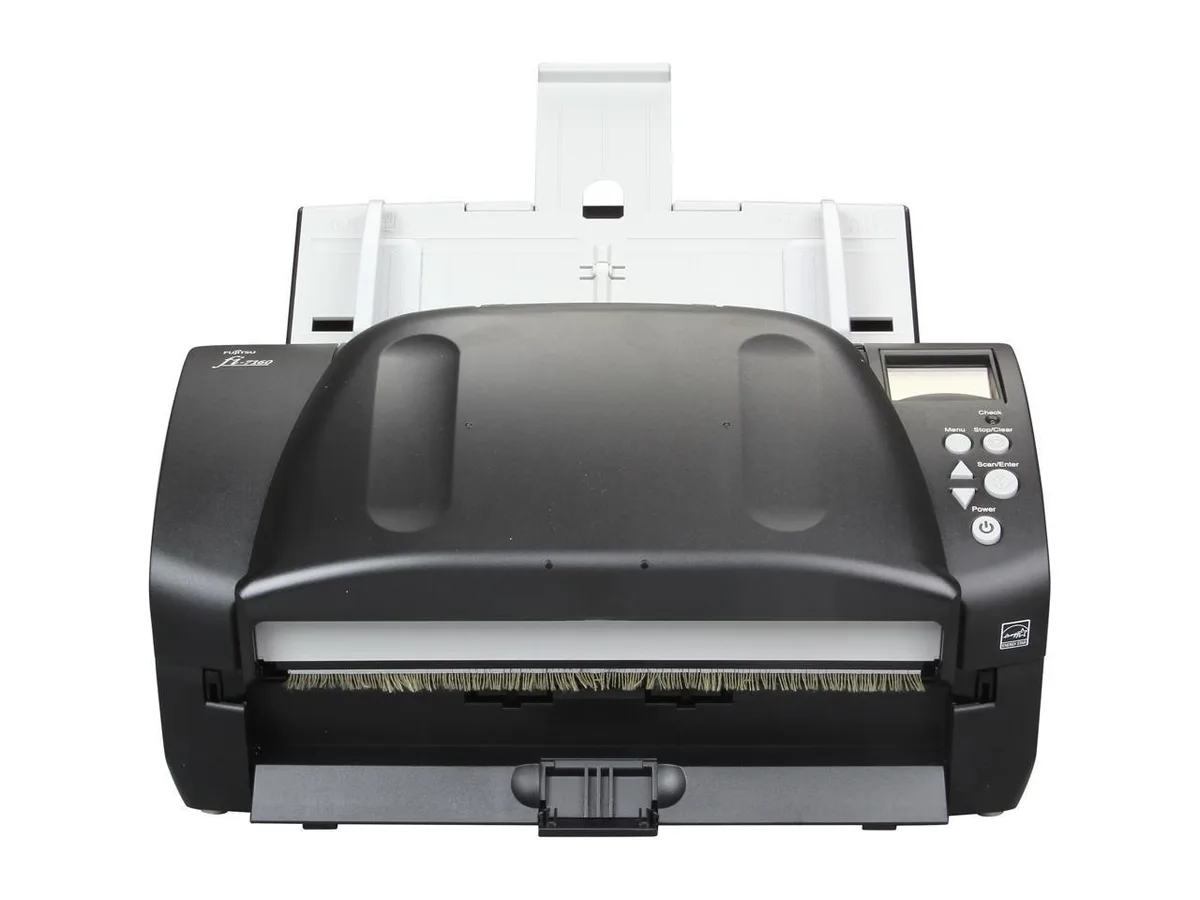

Rectangular black and grey document scanner with top paper feeder and front LCD panel

Fujitsu General

Fujitsu General fi-7160 (PA03670-B055) Duplex Document Scanner

SKU CH-2G1V-6RHC5

Duplex ADF scanner captures 60 ppm simplex or 120 ipm duplex at 600 dpi optical resolution with an 80-sheet feeder and USB 3.0 connectivity

  • TypeDuplex
  • Element TypeColor CCDs (Color Charge Coupled Device)
  • Light SourceWhite LED Array
  • Scanning SpeedSimplex: 60 ppm (200 dpi / 300 dpi) Duplex: 120 ipm (200 dpi
  • Color DepthColor: 24-bit Grayscale: 8-bit Monochrome: 1-bit
  • Optical Resolution600 dpi
  • Fast 60 ppm simplex scanning at 200 or 300 dpi
  • 120 ipm duplex speed for double-sided documents
  • 80-sheet ADF handles large batches without reloading
  • 600 dpi optical resolution captures fine detail
  • 24-bit color depth reproduces accurate colours

Fujitsu fi-7160 Duplex Document Scanner

The Fujitsu fi-7160 is a colour duplex document scanner built around a CCD sensor with a white LED light source. It connects via USB 3.0 and delivers an optical resolution of 600 dpi. Designed for office use, it handles up to 4,000 pages per day through an 80-sheet automatic document feeder.

Best for high-volume offices.

This scanner suits workgroups that need fast, unattended batch scanning of mixed-size documents up to 8.5 x 14 inches. Buyers who only scan occasional single pages or receipts will find the 80-sheet ADF and 60 ppm simplex speed unnecessary for their workflow.

120 ipm duplex scanning at 200 or 300 dpi

The defining specification is the duplex throughput of 120 images per minute at both 200 and 300 dpi. If your process requires two-sided capture at that rate, this model matches the requirement; if your volume is lower, a slower device may be more appropriate.

Highlights

  • Fast 60 ppm simplex scanning at 200 or 300 dpi
  • 120 ipm duplex speed for double-sided documents
  • 80-sheet ADF handles large batches without reloading
  • 600 dpi optical resolution captures fine detail
  • 24-bit color depth reproduces accurate colours

Specifications

Seriesfi Series
ModelFI-7160 (PA03670-B055)
TypeDuplex
Element TypeColor CCDs (Color Charge Coupled Device)
Light SourceWhite LED Array
Scanning SpeedSimplex: 60 ppm (200 dpi / 300 dpi)
Duplex: 120 ipm (200 dpi / 300 dpi)
Color DepthColor: 24-bit
Grayscale: 8-bit
Monochrome: 1-bit
Optical Resolution600 dpi
Max. Document Size8.5" x 14"
Automatic Document Feeder (ADF)Yes
ADF Capacity80 Sheets (A4: 80.00 g/m2 or 20.00 lbs.)
Document Size:
Minimum: 50.80 mm x 54.00 mm (2.00" x 2.13") (Landscape / Portrait)
Maximum: 216.00 mm x 355.60 mm (8.50" x 14.00")
Long Document: 210.00 mm x 5588.00 mm (8.27" x 220.00") (18.30 ft.)
USB PortsUSB 3.0 (backward compatible)
Power Requirements100 to 240 VAC +/- 10%
Power ConsumptionOperating mode: 38 Watts or less
Sleep mode: 1.8 Watts or less
Auto Standby (Off) mode: 0.35 Watt or less
Operating Systems SupportedWindows 8.1 (32-bit / 64-bit)
Windows 8 (32-bit / 64-bit)
Windows 7 (32-bit / 64-bit)
Windows Vista (32-bit / 64-bit)
Windows XP (32-bit / 64-bit)
Windows Server 2012 (64-bit)
Windows Server 2012 R2 (64-bit)
Windows Server 2008 (32-bit / 64-bit)
Windows Server 2008 R2 (64-bit)
FeaturesDaily Duty Cycle: 4,000 Pages
Minimum PC Specification: Paper Stream IP i5 2.5 MHz Processor, 4 GB RAM
Operating Environment:
Temperature: 5 to 35 degrees Celsius (42 to 95 degrees Fahrenheit)
Relative Humidity: 20% - 80% (non-condensing)
Features:
USB 3.0 for forward compatibility
Continuous hard and embossed card scanning up to 1.40 mm thick
Ultrasonic Double-feed Detection sensor for security against lost images
Scan sticky notes, taped receipts, and labels while securing against multifeeds
Long document support up to 5.60 m (18.30 ft.) in PaperStream IP
Dimensions6.40" x 11.80" x 6.70"
Weight9.26 lbs.

Questions about this item

How do I install the Fujitsu fi-7160 and what step is often missed?

Connect the scanner via the USB 3.0 port, install the ISIS and TWAIN drivers for Windows 8.1 or other supported OS versions, and ensure the PC meets the minimum specification of an i5 2.5 GHz processor with 4 GB RAM; the step often missed is verifying the driver installation completes before loading documents into the 80-sheet ADF.

What maintenance or replacement will the fi-7160 need later?

The pick rollers and brake rollers inside the ADF will wear after high-volume use and should be replaced periodically; the white LED array and CCD sensor are solid-state and do not require replacement, while the double-feed detection sensor should be kept clean for reliable operation.

What limit appears first during sustained scanning on the fi-7160?

The daily duty cycle of 4,000 pages is the first hard limit under sustained use; exceeding it risks overheating the 38-watt operating power envelope and accelerates ADF roller wear, so batch jobs should be planned around that 4,000-page ceiling.
