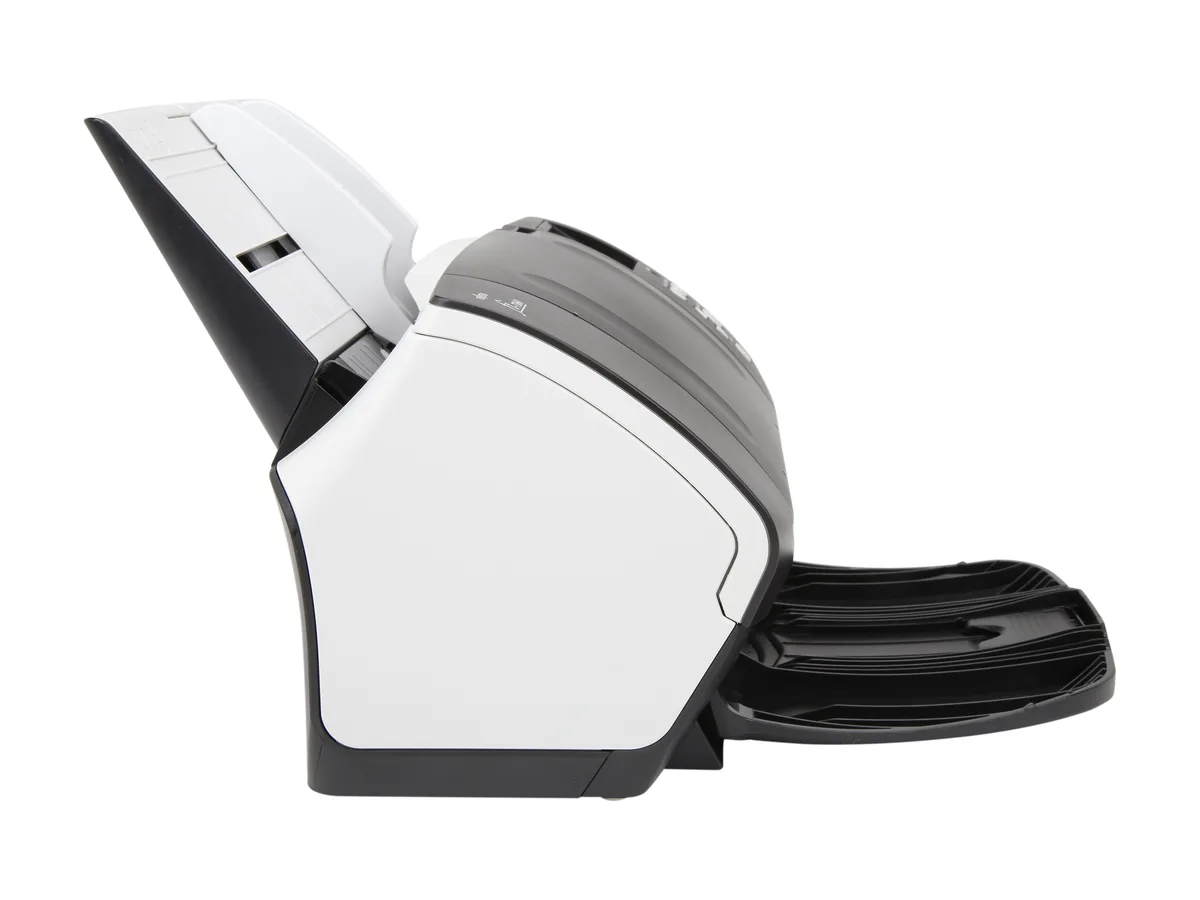

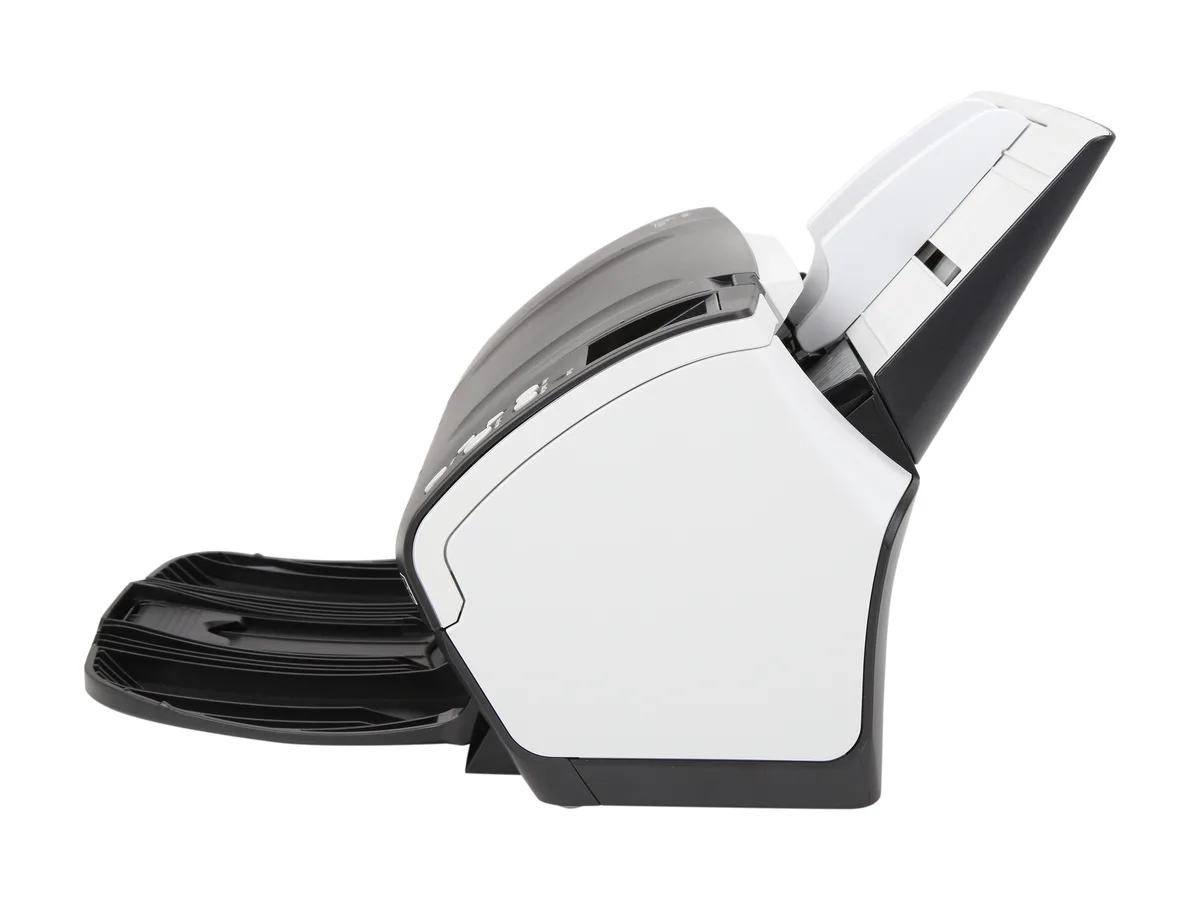

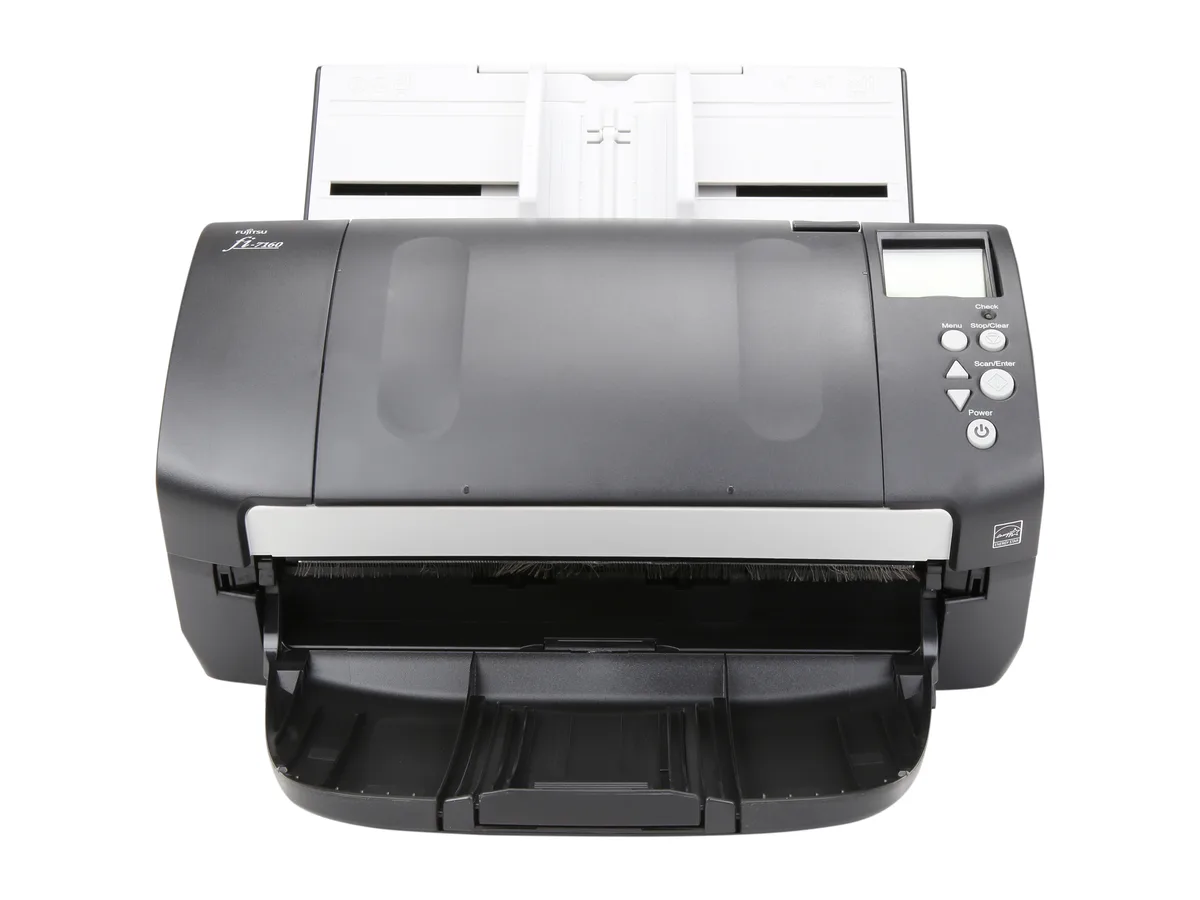

Rectangular desktop document scanner in matte grey with top paper tray and front output slot

Fujitsu

Fujitsu fi-7160 PA03670-B065 Duplex 600 dpi USB 3.0 Document Scanner

SKU CH-SQA1-6174Q MPN PA03670-B065

Duplex document scanner captures up to 60 pages per minute at 600 dpi with USB 3.0 connectivity

  • TypeDuplex
  • Element TypeCCD
  • Light SourceLED
  • Optical Resolution600 dpi
  • Interpolated Resolution1200 x 1200 dpi
  • Max. Document SizeDocument Size ADF Minimum: 50.8 mm x 54 mm (2.00" x 2.13") (
  • Duplex scanning up to 120 ipm boosts throughput
  • LED light source delivers consistent 600 dpi image quality
  • PaperStream IP and Capture software simplify batch capture
  • USB 3.0 interface enables fast data transfer
  • Acoustic sensors detect misfeeds to protect documents

Fujitsu fi-7160 Duplex Document Scanner

The Fujitsu fi-7160 PA03670-B065 is a duplex document scanner built for offices that need reliable batch digitisation. It feeds pages automatically through an ADF and captures colour images at up to 600 dpi optical resolution. USB 3.0 connectivity keeps data moving quickly to supported Windows workstations.

Sustained Load Behaviour

Duplex scanning reaches 120 ipm while simplex runs at 60 ppm, so long jobs finish without a drop in throughput. The LED light source eliminates warm-up delays between batches. Operating power stays at 38 W or less and sleep mode drops to 1.8 W, keeping energy draw steady during extended use.

Installation and Common Issues

USB 3.0 is backward compatible with USB 2.0 and 1.1 ports, so the scanner connects to most existing PCs without extra hardware. PaperStream IP and PaperStream Capture install on Windows 7 through Windows 10 and Server 2012 R2 or 2016. Acoustic sensors stop the feeder on misfeeds, preventing damaged documents when paper skews or double-feeds.

Highlights

  • Duplex scanning up to 120 ipm boosts throughput
  • LED light source delivers consistent 600 dpi image quality
  • PaperStream IP and Capture software simplify batch capture
  • USB 3.0 interface enables fast data transfer
  • Acoustic sensors detect misfeeds to protect documents

Specifications

BrandFujitsu
Seriesfi-7160
ModelPA03670-B065
TypeDuplex
Element TypeCCD
Light SourceLED
Optical Resolution600 dpi
Interpolated Resolution1200 x 1200 dpi
Max. Document SizeDocument Size ADF
Minimum: 50.8 mm x 54 mm (2.00" x 2.13") (Landscape / Portrait)
ADF Maximum: 216 mm x 355.6 mm (8.50" x 14.00")
Long Document: 216 mm x 5,588 mm (8.50" x 220.00")(18.3 ft.)
Media TypeLetter
A8 Sheets
Card
Automatic Document Feeder (ADF)Yes
ADF Capacity216.00 mm x 355.60 mm (8.50" x 14.00")
USB PortsUSB 3.0 / USB 2.0 / USB 1.1 (backward compatible)
Power Requirements100 to 240 VAC +/- 10 %
Power ConsumptionOperating mode: 38 Wstts or less,
Sleep mode: 1.8 Watts or less
Auto Standby(Off) mode: 0.35 Watts or less
Operating Systems SupportedWindows 10 (32-bit/64-bit), Windows 8 / 8.1 (32-bit/64-bit), Windows 7 (32-bit/64-bit), Windows Vista (32-bit/64-bit), Windows XP (32-bit/64-bit), Windows Server 2016 (64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2012 (64-bit), Windows Server 2008 R2 (64-bit), Windows Server 2008 (32-bit/64-bit), Linux (Ubuntu 16.04 / 14.04 LTS)
Dimensions6.40" x 11.80" x 6.70"
Weight9.26 lbs.
Shipping weight5.96 kg
Package size505 × 312 × 251 mm

Questions about this item

How much power does the fi-7160 draw when it runs all day?

Operating mode draws 38 W or less, sleep mode drops to 1.8 W or less, and auto standby uses 0.35 W or less.

What computer port and operating system do I need for the PA03670-B065?

It requires a USB 3.0, 2.0 or 1.1 port and supports Windows 10, 8.1, 7, Vista, XP, Server 2016 and Server 2012 R2.

Will the fi-7160 feed the long documents I already archive?

The ADF handles pages up to 216 mm x 5,588 mm (8.50" x 220.00"), so 18.3 ft long documents scan without manual feeding.
