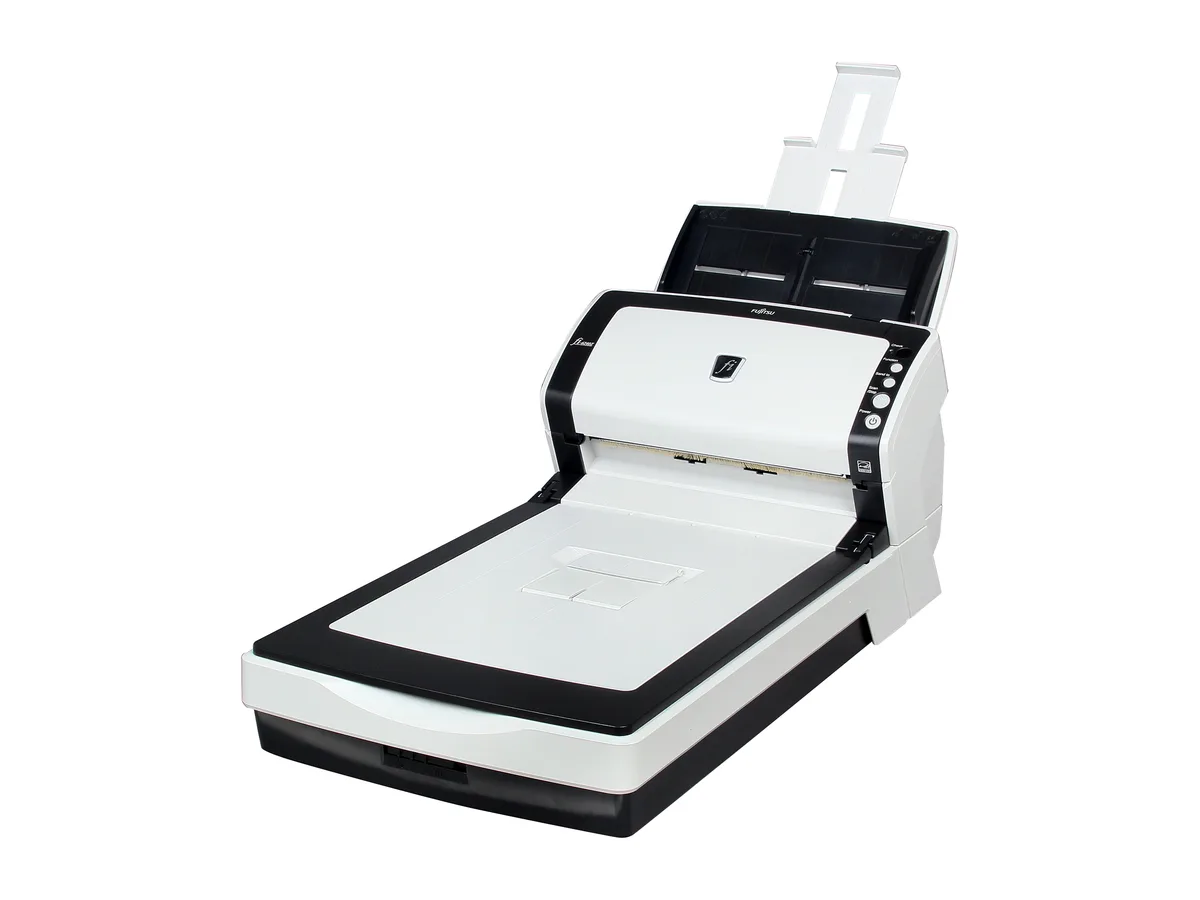

Fujitsu fi-6240Z document scanner with ADF and flatbed, light grey rectangular body

Fujitsu

Fujitsu fi-6240Z ADF + Flatbed document scanner

SKU CH-P87C-73RQF MPN fi-6240Z

Combines a 60 ppm ADF and a 1.7-second flatbed for duplex colour scanning up to 120 ipm at 200 dpi

  • TypeADF + Flatbed
  • Element TypeCCD
  • Light SourceWhite cold cathode discharge lamp x 3 (front x 1, back x 1,
  • Scanning SpeedADF mode Color / Grayscale / Monochrome: Simplex: 60 ppm, Du
  • Optical Resolution600 x 600 dpi
  • Max. Document Size8.5" x 14"
  • Duplex scanning up to 120 images per minute in colour
  • Flatbed scans complete in 1.7 seconds at 200 or 300 dpi
  • 600 x 600 dpi optical resolution for sharp detail
  • Ultrasonic multi-feed detection prevents missed pages
  • Handles documents from 52 x 74 mm up to 210 x 863 mm

ADF + Flatbed document scanner

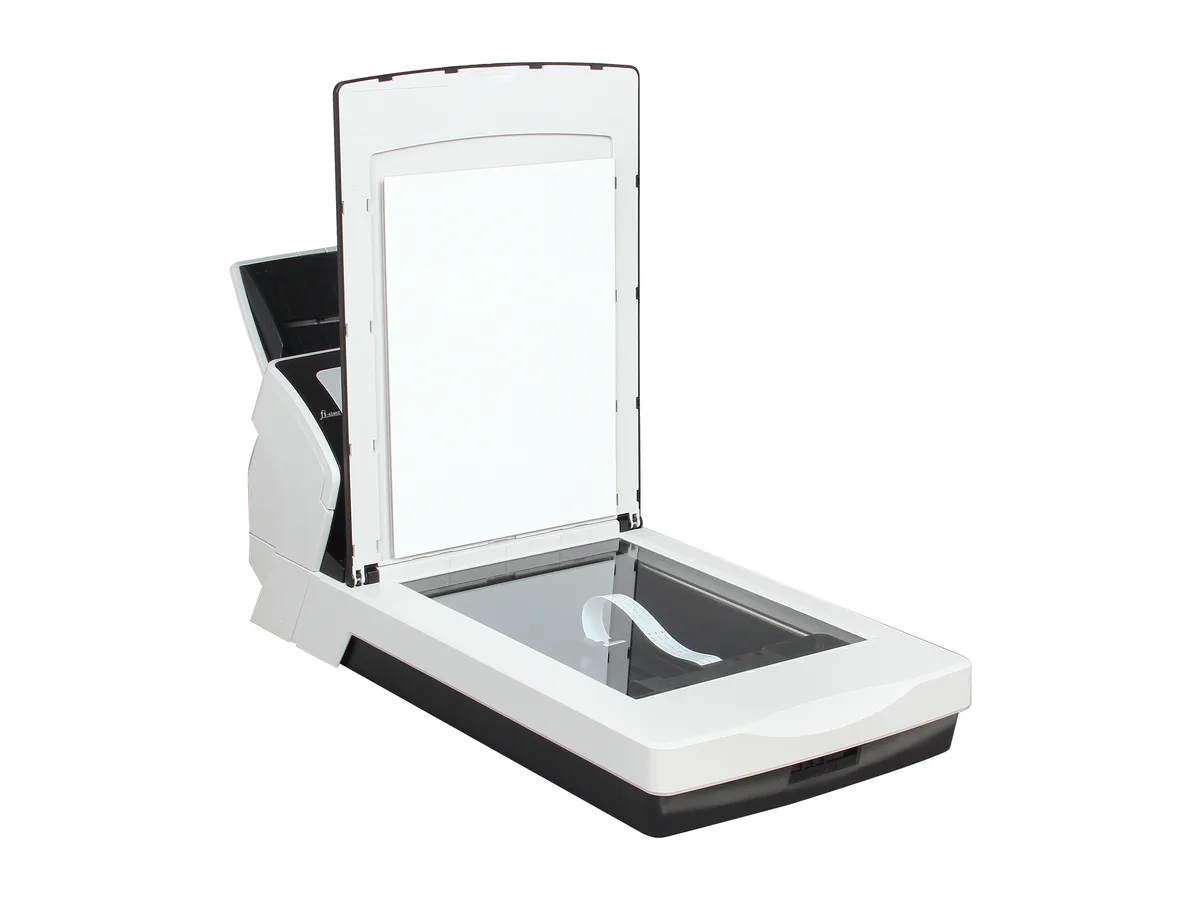

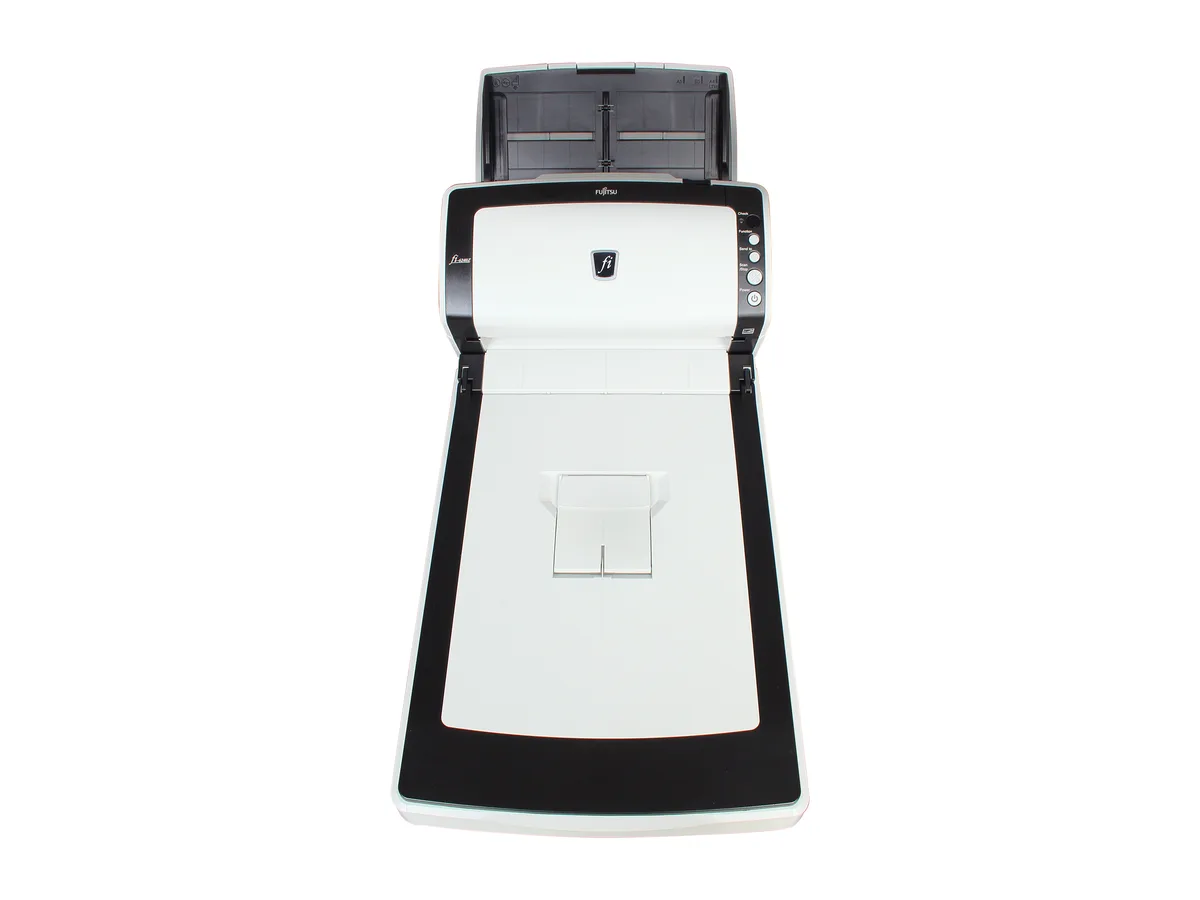

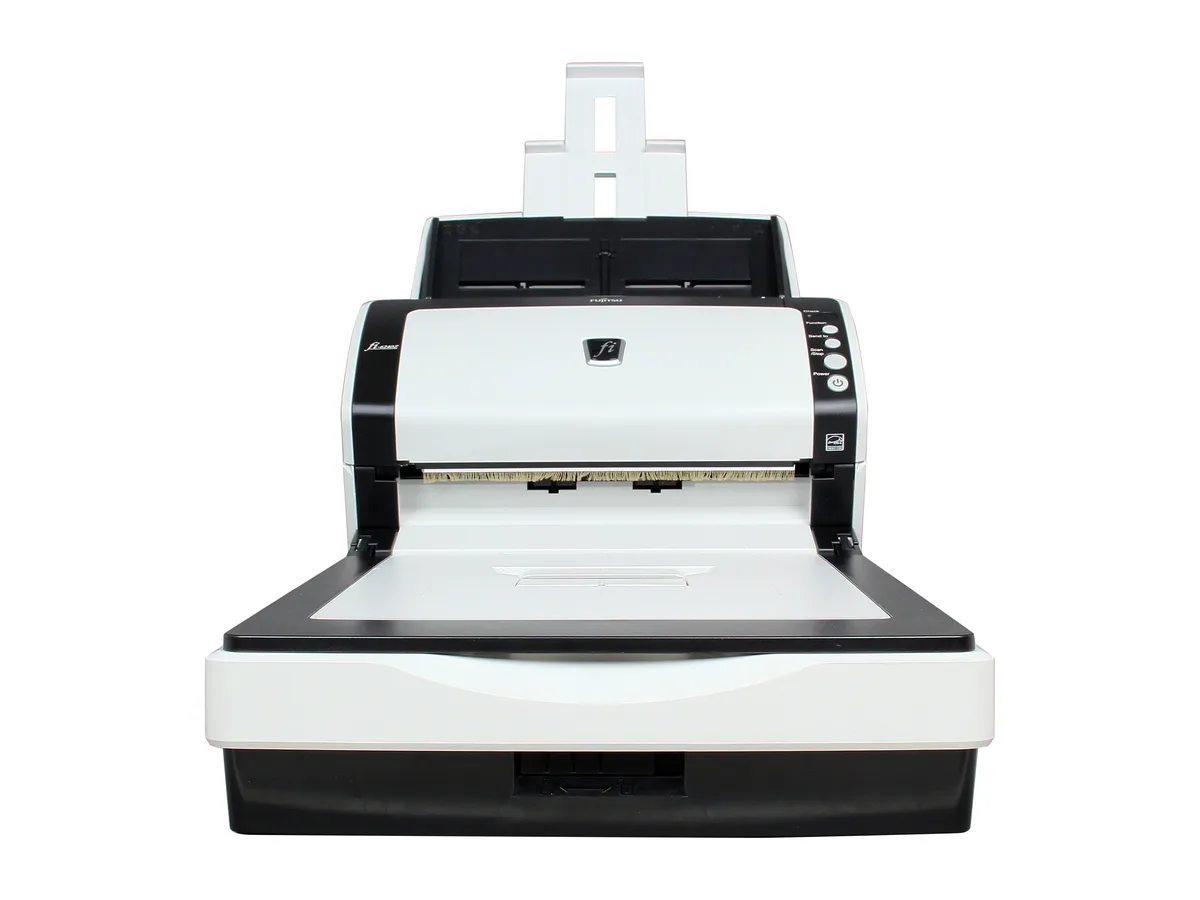

The Fujitsu fi-6240Z combines a 600 x 600 dpi CCD sensor with an automatic document feeder and a flatbed in a single unit. It handles media from 52 x 74 mm up to 216 x 355.6 mm and supports long-paper scanning to 210 x 863 mm. The scanner connects via USB and Ultra SCSI and operates on AC 100-240V.

Sustained throughput

In ADF mode the scanner maintains 60 ppm simplex and 120 ipm duplex at 200 dpi, dropping to 40 ppm simplex and 80 ipm duplex at 300 dpi. Flatbed capture takes 1.7 seconds per page at either 200 or 300 dpi. Power draw stays at 50 W or less while scanning and 5.70 W in sleep mode.

Interface and size limits

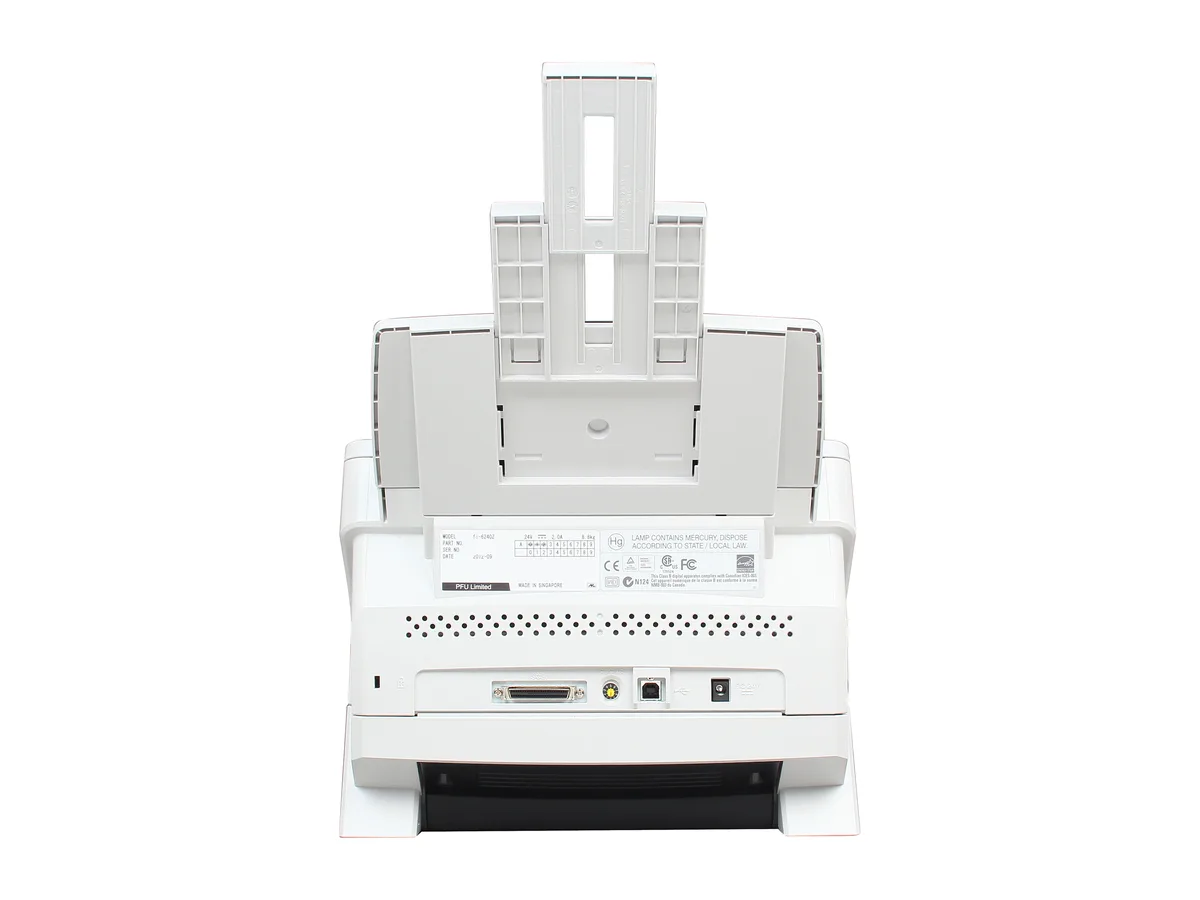

The Ultra SCSI and USB interfaces set the practical data-rate ceiling for this model. Maximum document size is 8.5 x 14 in, and the ADF minimum is 2 x 3 in. Long-paper mode extends length to 34 in. Supported operating systems end at Windows Server 2008 and Windows 7.

Highlights

  • Duplex scanning up to 120 images per minute in colour
  • Flatbed scans complete in 1.7 seconds at 200 or 300 dpi
  • 600 x 600 dpi optical resolution for sharp detail
  • Ultrasonic multi-feed detection prevents missed pages
  • Handles documents from 52 x 74 mm up to 210 x 863 mm

Specifications

BrandFujitsu
Modelfi-6240Z (PA03630-B505)
TypeADF + Flatbed
Element TypeCCD
Light SourceWhite cold cathode discharge lamp x 3 (front x 1, back x 1, Flatbed x 1)
Scanning SpeedADF mode
Color / Grayscale / Monochrome: Simplex: 60 ppm, Duplex: 120 ipm (200 dpi); Simplex: 40 ppm, Duplex: 80 ipm (300 dpi)
Flatbed mode
Color / Grayscale / Monochrome: 1.7 seconds (200 dpi / 300 dpi)
Optical Resolution600 x 600 dpi
Max. Document Size8.5" x 14"
Media TypeDocument size
ADF mode:
- Maximum: A4 Portrait: 210 x 297 mm, Legal: 216 x 355.6 mm (8.5 x 14 in.)
- Minimum: A8 Portrait: 52 x 74 mm (2 x 3 in.)
- Long paper scanning: Maximum 210 x 863 mm (8.27 x 34 in.), or 210 x 3,048 mm (8.27 x 120 in.)
Flatbed mode:
- Maximum: 216 x 297 mm (8.5 x 11.69 in.)
Paper chute capacity: 50 sheets (A4: 80 g/m2 or 20 lb) (Active loadable ADF)
Automatic Document Feeder (ADF)Yes
USB PortsYes
Other PortsUltra SCSI
Power RequirementsAC 100 - 240V, 50 / 60 Hz
Power ConsumptionOperating: 50 W or less
Sleep mode: 5.70 W or less
Operating Systems SupportedWindows 7(32-bit / 64-bit), Windows Vista(32-bit / 64-bit),
Windows Server 2003/2008(32-bit / 64-bit), Windows XP(32-bit / 64-bit)
FeaturesBlazing 60ppm / 120ipm scanning in colour, gray scale, and monochrome
Full colour 300 dpi scanning at 40ppm / 80ipm
Ultrasonic driven Intelligent Multi-Feed Function (iMFF)
Advanced Paper Protection Technology
Robust 50-page Automatic Document Feeder (ADF)
Plastic and embossed card scanning
Scanner Central Admin Suite
Comes with Kofax VRS Professional and ScandAll PRO 2.0 Premium
Package Contentsfi-6240Z (PA03630-B505)
ADF paper chute
AC cable
AC adapter
USB cable
Carrier Sheet (x1)
Setup DVD-ROM
Getting Started
QuickScan Pro brochure
Software IncludedTWAIN, ISIS, Kofax VRS Professional, Software Operation Panel, Error Recovery Guide, Image Processing software Option(trial), ScandAll PRO, ScandAll PRO ScanSnap mode Add-in, Scan to Microsoft SharePoint, ABBYY Fine Reader for ScanSnap, QuickScan Pro (trial), User's Guide, Scanner Central Admin, Adobe Reader
Shipping weight12.63 kg
Package size686 × 495 × 368 mm

Questions about this item

How much power does the fi-6240Z draw during all-day scanning and in sleep mode?

The scanner consumes 50 W or less while operating and drops to 5.70 W or less in sleep mode, running on AC 100-240 V, 50/60 Hz.

Which cables and host interface are required to connect the fi-6240Z to a PC?

The box includes a USB cable and an AC cable with adapter; the scanner provides USB and Ultra SCSI ports for host connection.

Will the fi-6240Z work with a Windows XP or Windows Server 2003 workstation I still use?

Yes, the supplied TWAIN and ISIS drivers support Windows XP (32-bit/64-bit) and Windows Server 2003 (32-bit/64-bit) alongside newer Windows versions.
