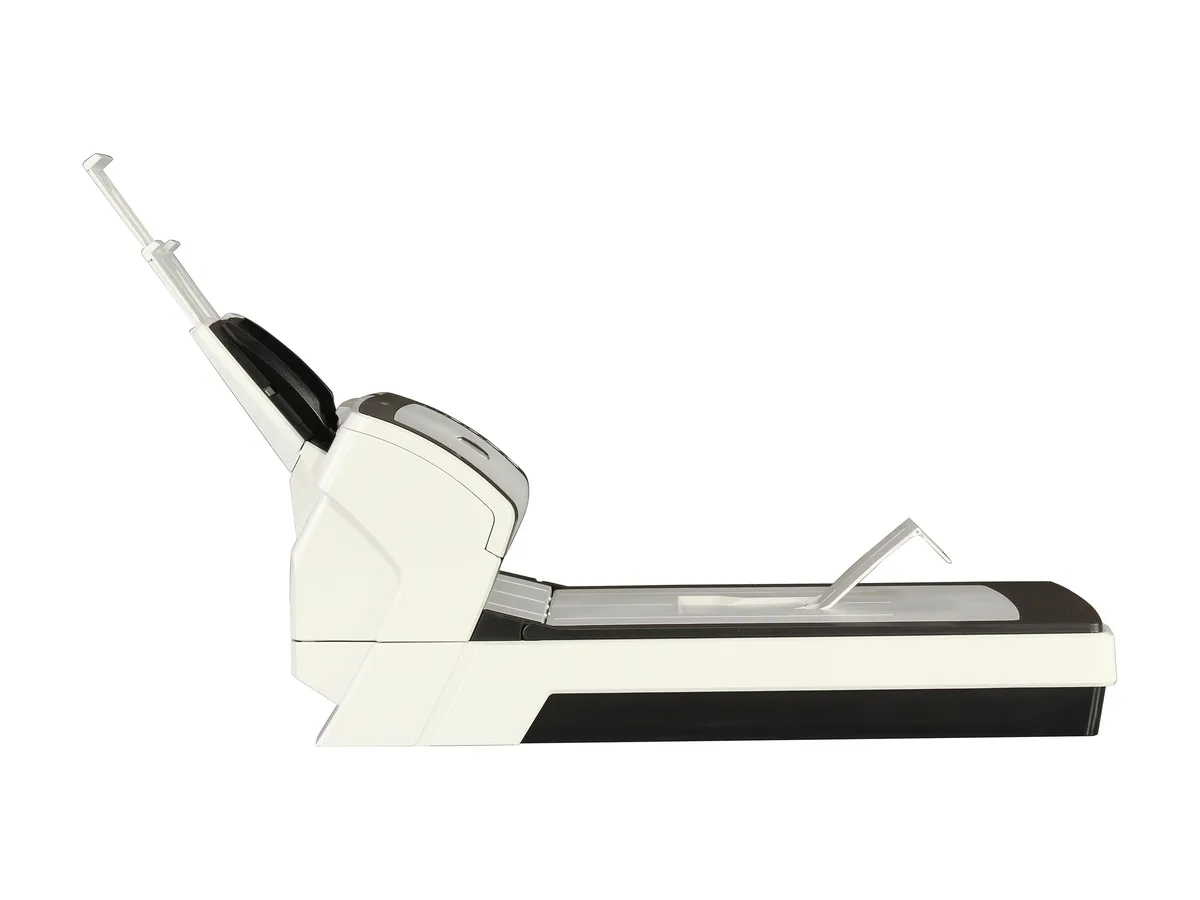

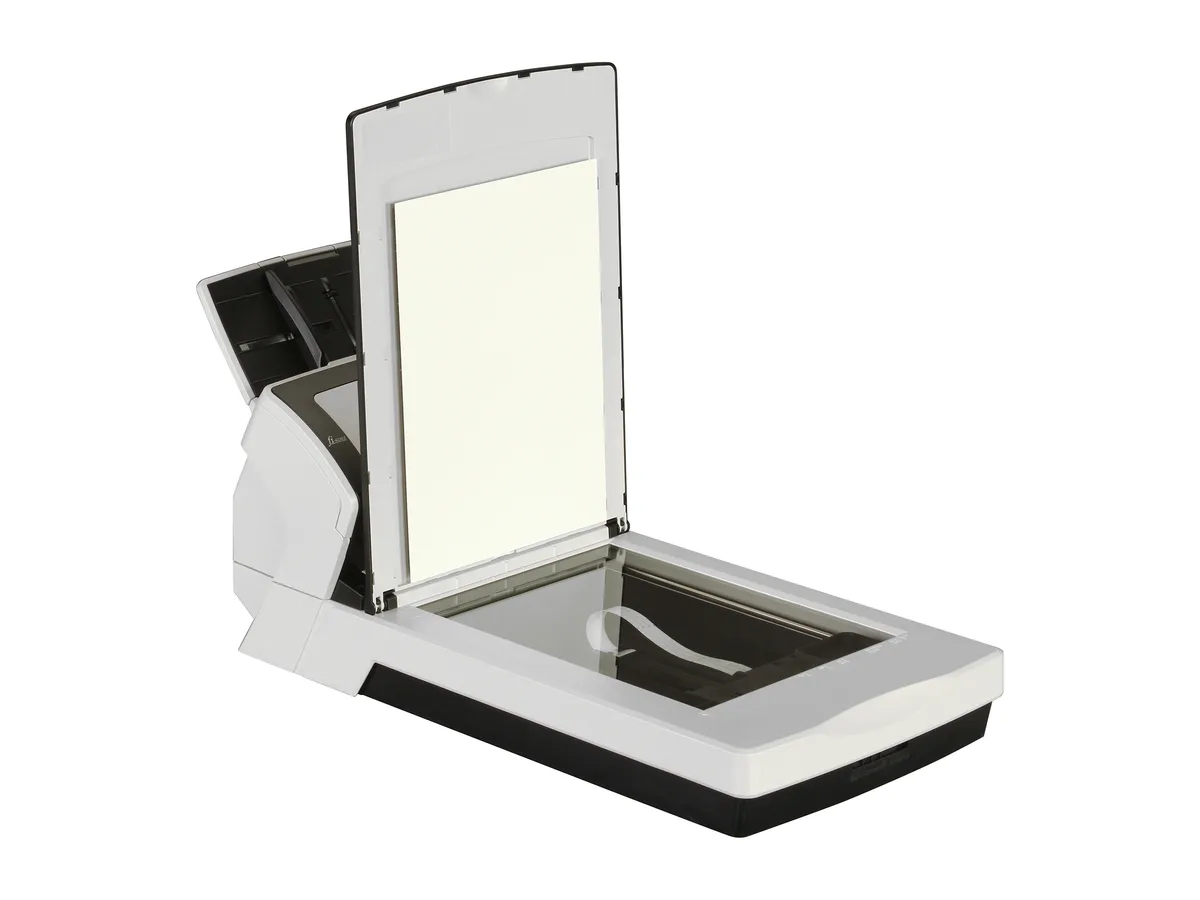

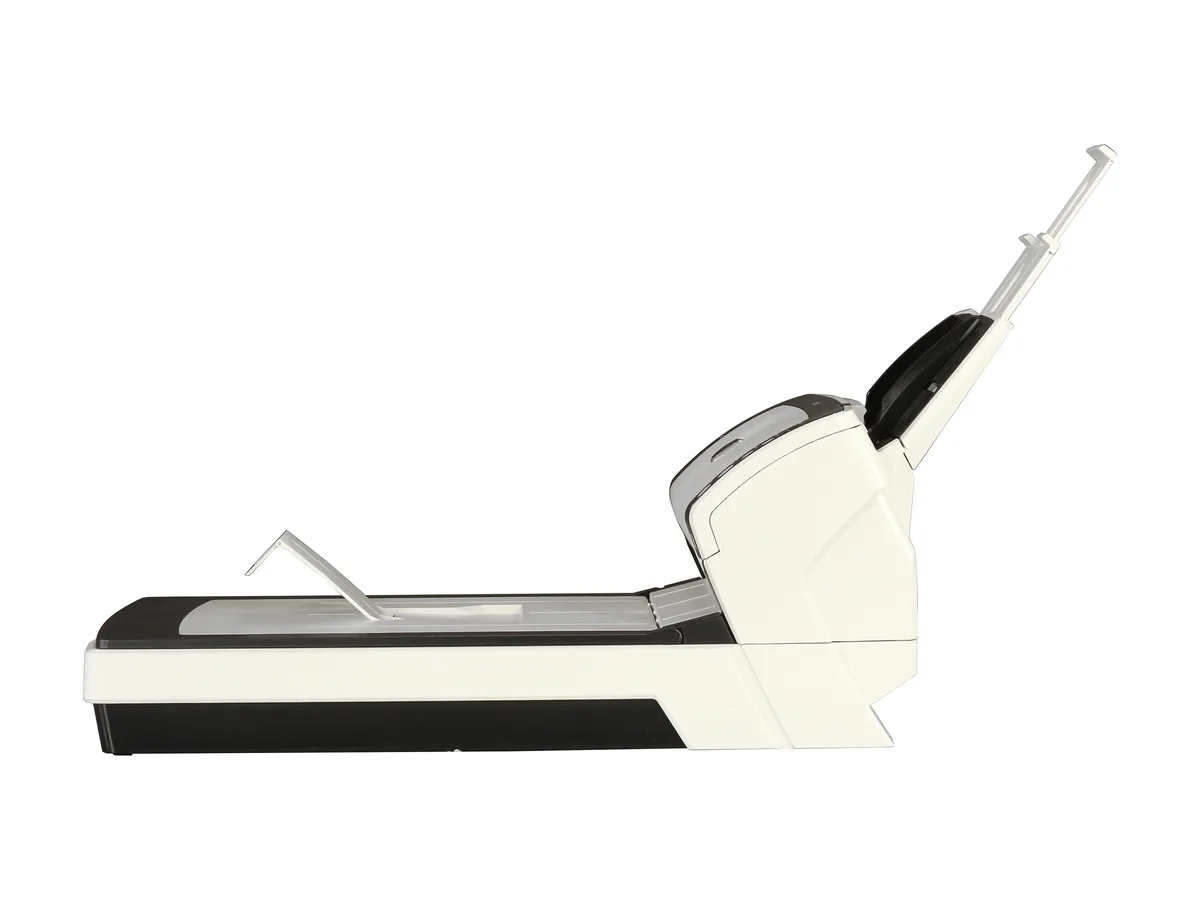

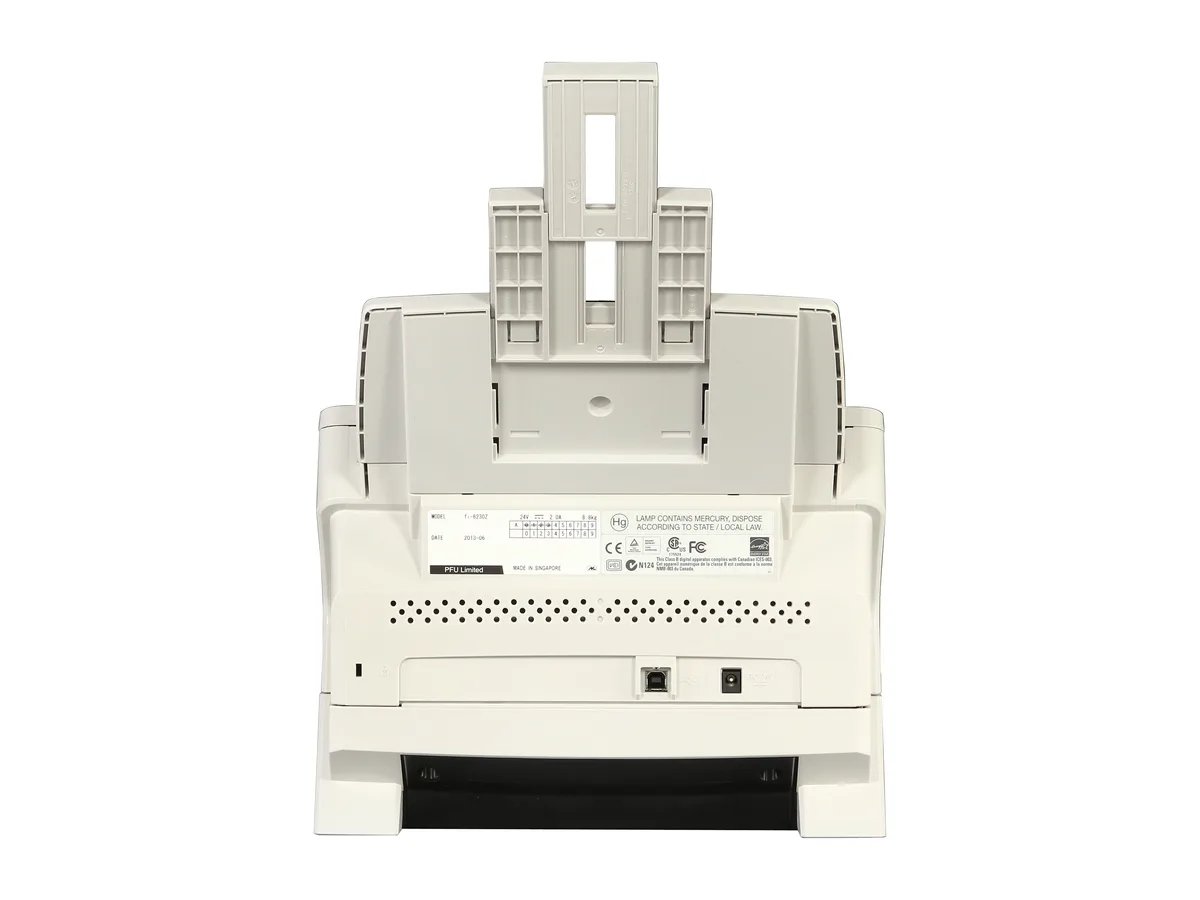

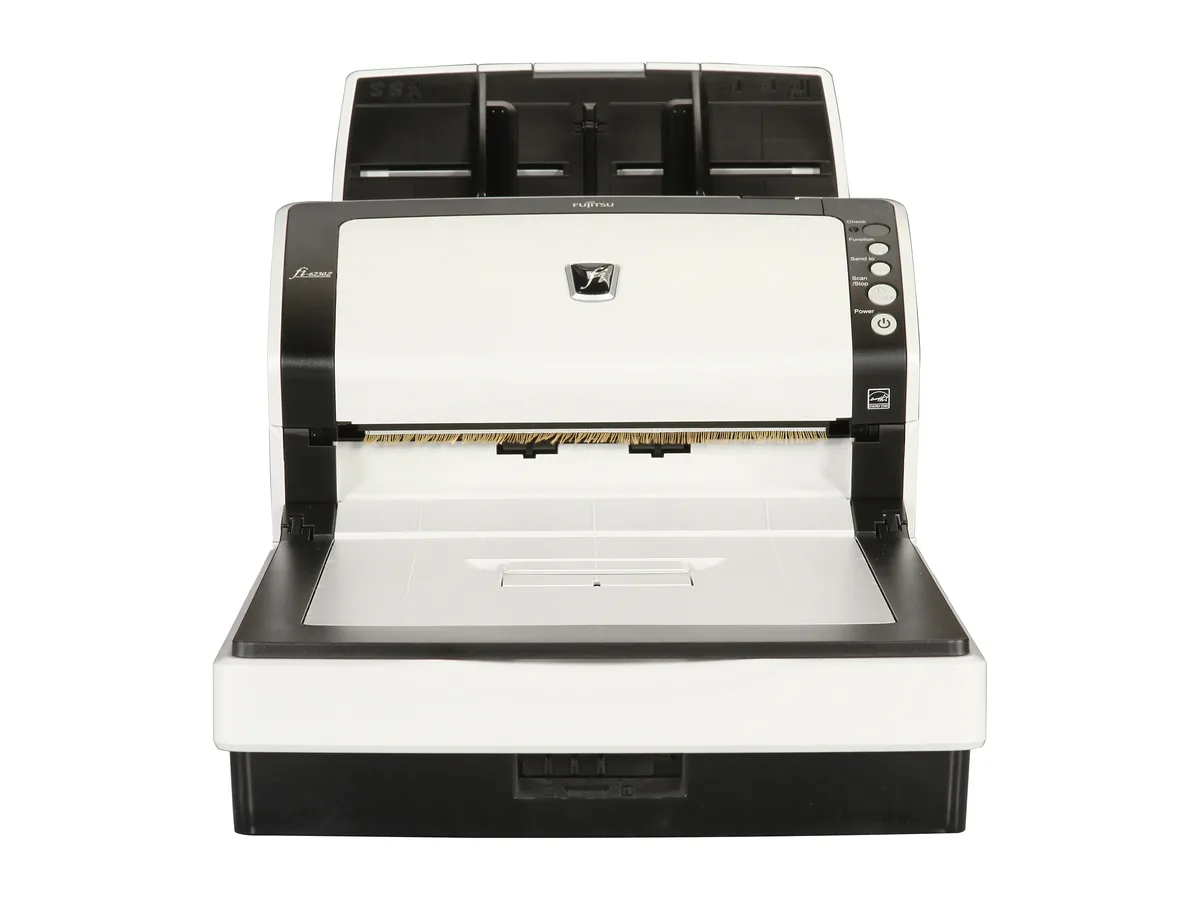

White rectangular document scanner with flatbed lid and ADF tray extended, front control panel visible

Fujitsu

Fujitsu fi-6230Z document scanner ADF + Flatbed 600 dpi 40 ppm 80 ipm

SKU CH-9AJ9-32HTB MPN fi-6230Z

Scans single-sided pages at 40 ppm or double-sided at 80 ipm with a 600 dpi CCD sensor, plus a flatbed for bound or fragile originals

  • TypeADF + Flatbed
  • Element TypeCCD
  • Light SourceWhite cold cathode discharge lamps
  • Scanning SpeedADF mode Color / Grayscale / Monochrome: Simplex: 40 ppm, Du
  • Optical Resolution600 x 600 dpi
  • Max. Document Size8.5" x 14"
  • Duplex scanning at 80 images per minute boosts batch throughput
  • 600 x 600 dpi optical resolution captures fine detail for accurate OCR
  • ADF plus flatbed handles both stacks and bound originals
  • Ultrasonic double-feed detection prevents missed pages during unattended runs
  • Scans embossed cards up to 1.4 mm thick without separate hardware

ADF and flatbed scanning

The Fujitsu fi-6230Z combines an automatic document feeder with a flatbed for versatile document capture. It uses a 24-bit CCD sensor with white cold cathode lamps for consistent illumination. The scanner connects via USB 2.0 and operates on AC 100-240V power. It includes TWAIN and ISIS drivers plus Kofax VRS Professional for image enhancement.

Suited for mixed-batch offices.

Offices that scan loose pages, bound books, and embossed cards up to 1.4 mm thick will benefit from the dual feed paths. Ultrasonic double-feed detection reduces missed pages during unattended runs. Organisations needing faster than 80 ipm duplex throughput or network scanning without a PC should consider other solutions.

600 dpi optical resolution

The scanner captures at 600 x 600 dpi optical resolution, which determines the detail available for OCR and archival records. ADF simplex speed reaches 40 ppm at 200 dpi and 30 ppm at 300 dpi, while duplex reaches 80 ipm and 60 ipm respectively. Flatbed scans complete in 1.7 seconds at either resolution.

Highlights

  • Duplex scanning at 80 images per minute boosts batch throughput
  • 600 x 600 dpi optical resolution captures fine detail for accurate OCR
  • ADF plus flatbed handles both stacks and bound originals
  • Ultrasonic double-feed detection prevents missed pages during unattended runs
  • Scans embossed cards up to 1.4 mm thick without separate hardware

Specifications

BrandFujitsu
ModelFujitsu fi-6230Z(PA03630-B555)
TypeADF + Flatbed
Element TypeCCD
Light SourceWhite cold cathode discharge lamps
Scanning SpeedADF mode
Color / Grayscale / Monochrome: Simplex: 40 ppm, Duplex: 80 ipm (200 dpi); Simplex: 30 ppm, Duplex: 60 ipm (300 dpi)
Flatbed mode
Color / Grayscale / Monochrome: 1.7 seconds (200 dpi / 300 dpi)
Optical Resolution600 x 600 dpi
Max. Document Size8.5" x 14"
Media TypeDocument size
ADF mode:
- Maximum: A4 Portrait: 8.5 x 14 in.
- Minimum: A8 Portrait: 52 x 74 mm (2 x 3 in.)
- Long paper scanning: 8.27 x 34 in., or 210 x 3,048 mm (8.27 x 120 in.)
Flatbed mode:
- Maximum: 216 x 297 mm (8.5 x 11.69 in.)
ADF Capacity: 50 sheets (A4: 80 g/m2 or 20 lb)
Automatic Document Feeder (ADF)Yes
USB PortsUSB 2.0
Power RequirementsAC 100 - 240V, 50 / 60 Hz
Power Consumption45 W or less (Sleep: 5.36W or less)
Operating Systems SupportedWindows 7 (32-bit/64-bit), Windows Vista (32-bit/64-bit), Windows
Server 2003/2008 (32-bit/64-bit), Windows XP (32-bit/64-bit)
FeaturesContinuous hard and embossed card scanning up to 1.4mm thick
Ultrasonic Double-feed Detection sensor for security against lost images
Intelligent Multi-Feed Function for efficiently scanning overlapped documents like taped receipts
Paper Protection sensor to stop a jam before it happens
Long document support up to 10 feet
Agent, console and server remote scanner management
Real-time Fujitsu scanner inventory
Status and alert monitoring
Centralized driver update deployment
Consumable management
Kofax VRS 5.0 Professional
ScandAll PRO 2.0 batch scanning and PDF creation software
ScanSn
Dimensions11.8" x 22.9" x 9.0" (W x D x H)
Weight19.36 lbs. (8.8 kg) or less
Package ContentsADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM,
Getting Started Guide, 1 Carrier Sheet
Software IncludedTWAIN, ISIS, Kofax VRS Professional, Software Operation Panel,
Error Recovery Guide, ScandAll PRO 2.0 Std. with PDF edit, ScanSnap
mode add-in, Scan to Microsoft Share Point, ABBYY FineReader for
ScanSnap, Scanner Central Admin
Shipping weight12.43 kg
Package size692 × 495 × 368 mm

Questions about this item

How do I install the fi-6230Z and what step is often missed?

Connect the USB 2.0 cable and the AC adapter to a 100-240V supply, then run the Setup DVD-ROM to install TWAIN, ISIS, Kofax VRS Professional and ScandAll PRO 2.0 Std.; the step often missed is restarting Windows before launching the Software Operation Panel.

What maintenance or replacement will the fi-6230Z need later?

The white cold cathode discharge lamps and the reversing rollers in the ADF will require periodic cleaning and eventual replacement; the carrier sheet supplied in the box should also be replaced when it shows wear.

What limit appears first during sustained high-volume scanning on the fi-6230Z?

At 200 dpi the ADF reaches 80 ipm in duplex, but at 300 dpi the speed drops to 60 ipm, so the 300 dpi throughput ceiling is the first limit you will hit during long OCR or barcode batches.
