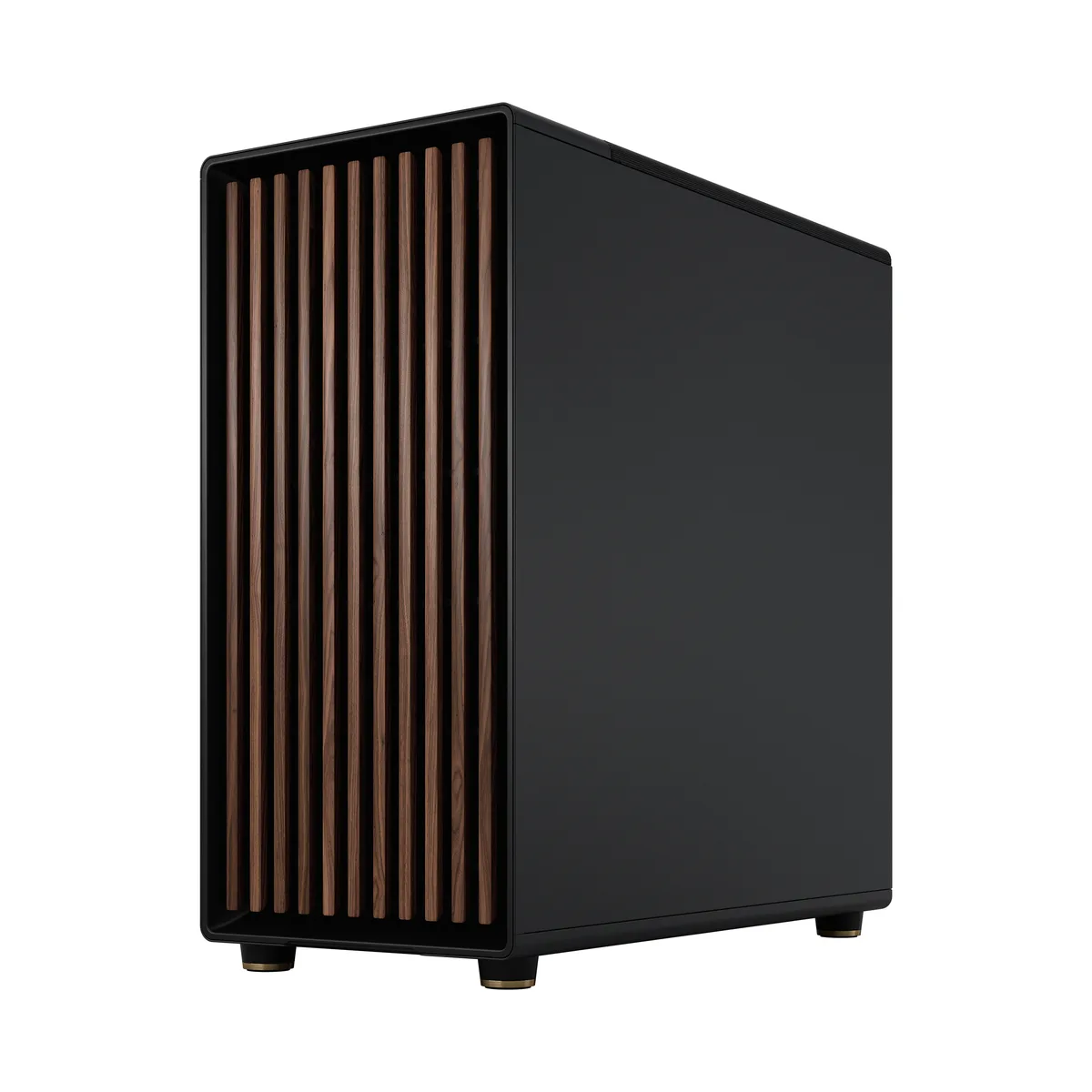

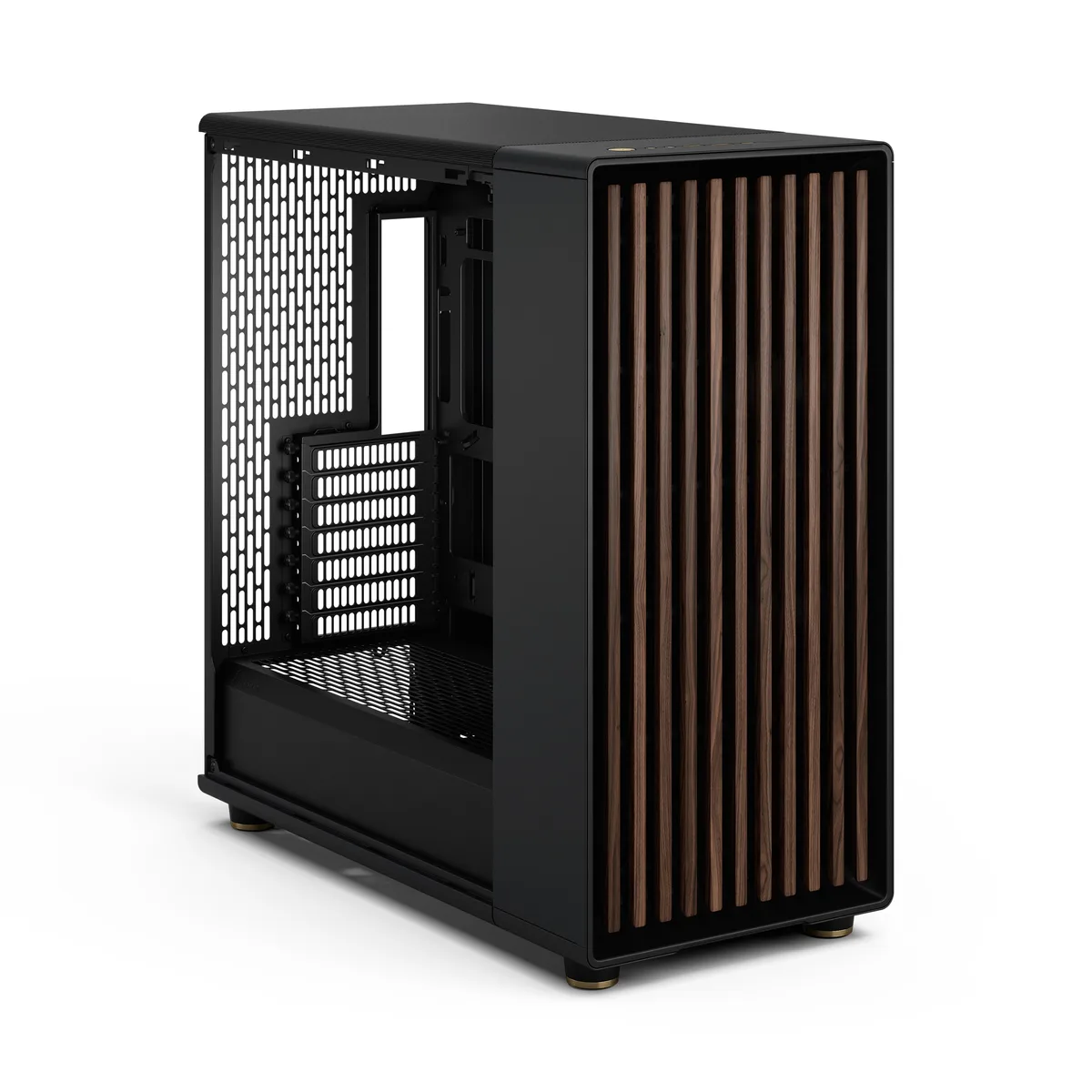

Charcoal black full-tower case with walnut front panel and tempered glass side

Fractal Design

Fractal Design North XL RC FD-C-NOR1X-05 Charcoal Black PC case

SKU CH-9XVF-XE3S4 MPN FD-C-NOR1X-05

Full-tower ATX case for back-connect motherboards with three 140 mm fans, 413 mm GPU clearance, 420 mm front radiator support and a tempered-glass side panel

  • TypeATX Full Tower
  • ColorCharcoal Black
  • Case MaterialSteel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityATX / ATX (Back Connect) / Micro ATX (Back Connect) / Mini I

Options Charcoal Support Back Connect

  • Designed for back-connect motherboards with a clutter-free interior layout
  • Open front and top mesh deliver natural ventilation for cooling
  • Supports graphics cards up to 413 mm or 380 mm with front radiator
  • Front radiators up to 420 mm and top radiators up to 360 mm
  • Three pre-installed 140 mm Aspect PWM fans included for immediate airflow

Designed for Reverse-Connector Builds

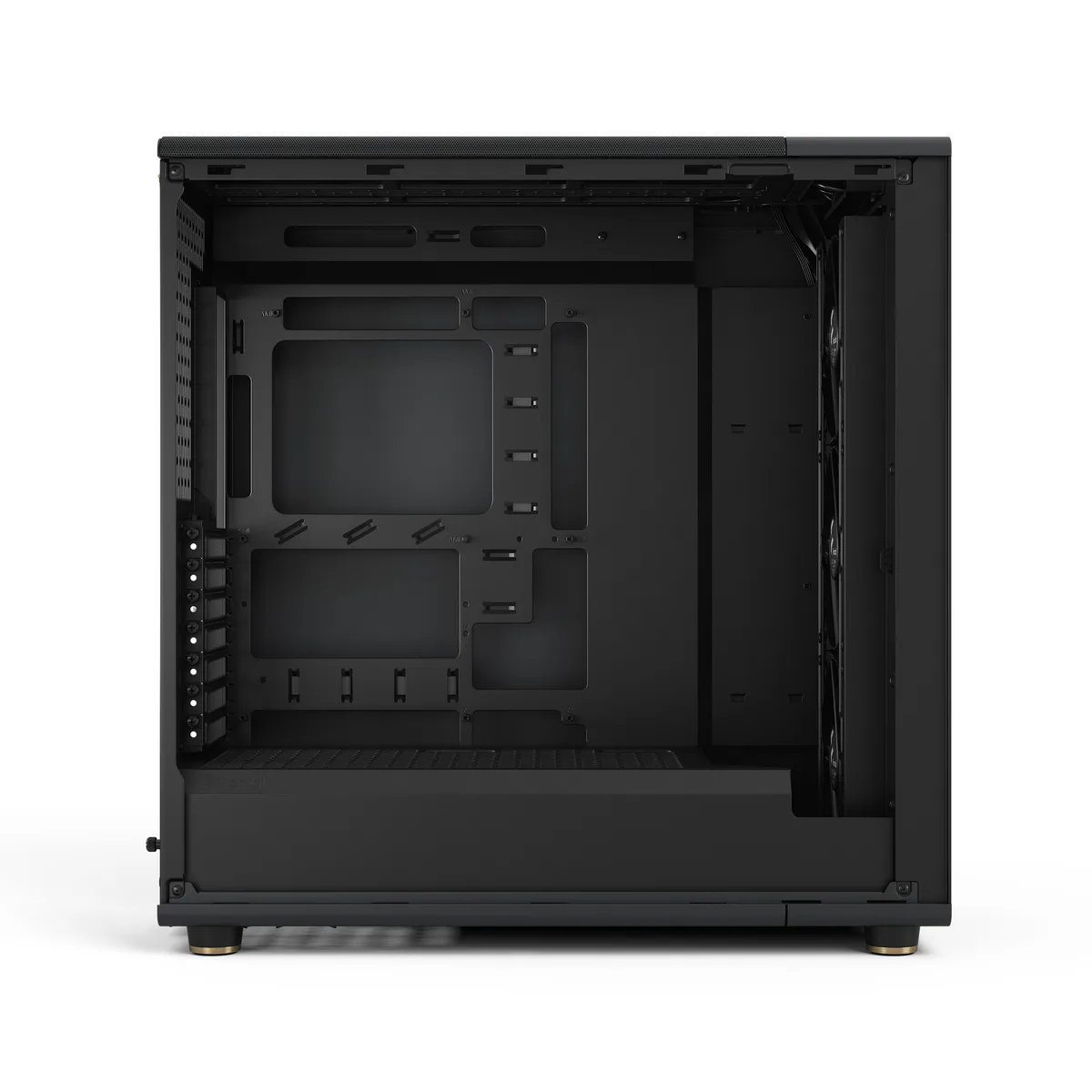

The North XL RC is an ATX full-tower case built exclusively for motherboards that route their connectors to the rear. Standard ATX boards are not supported. Its steel frame and charcoal black finish frame a tempered-glass side panel, creating a showcase for clean, cable-free internals.

Cooling Layout and Component Clearance

Three 140 mm Aspect PWM fans come pre-installed at the front, delivering airflow through the open mesh face. The top panel accepts radiators up to 360 mm or fans up to 3 x 120 mm, while the front supports up to 420 mm and the rear up to 120 mm. A graphics card up to 413 mm fits without a front radiator, or 380 mm with one, and the CPU cooler height limit is 169 mm.

Included Fans and Tool-Free Access

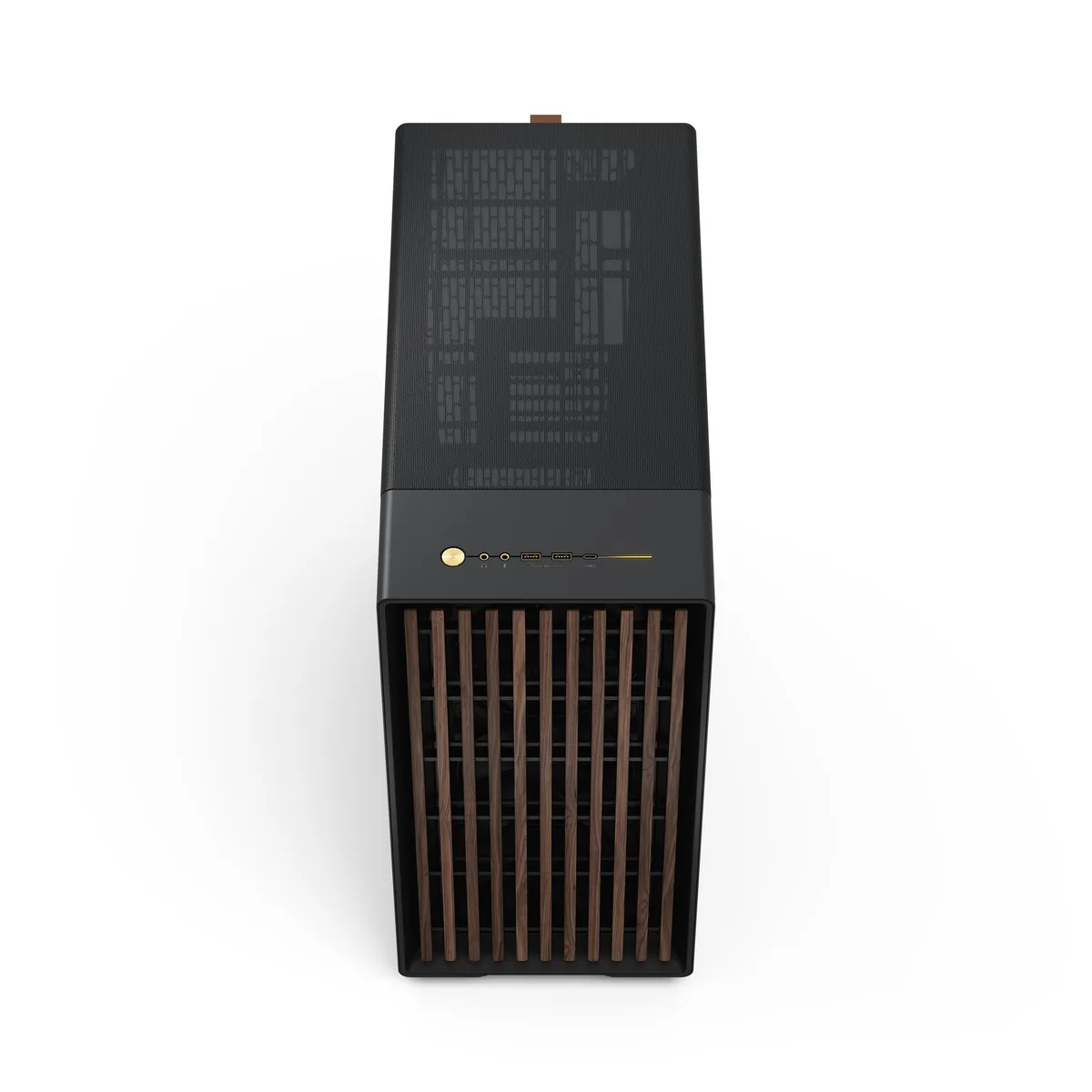

The three bundled 140 mm Aspect PWM fans provide a balanced starting point for positive-pressure cooling. All side panels slide off, the front panel unclips, and the top panel lifts away via an integrated tab, giving full access to drive bays — two 3.5-inch and four 2.5-inch — and seven expansion slots without tools.

Highlights

  • Designed for back-connect motherboards with a clutter-free interior layout
  • Open front and top mesh deliver natural ventilation for cooling
  • Supports graphics cards up to 413 mm or 380 mm with front radiator
  • Front radiators up to 420 mm and top radiators up to 360 mm
  • Three pre-installed 140 mm Aspect PWM fans included for immediate airflow

Specifications

BrandFractal Design
SeriesNorth XL RC
ModelFD-C-NOR1X-05
TypeATX Full Tower
ColorCharcoal Black
Case MaterialSteel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityATX / ATX (Back Connect) / Micro ATX (Back Connect) / Mini ITX
Side PanelTempered Glass Panel
LEDNo
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays4
Expansion Slots7
Front Ports1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.0, Audio & Mic
Fan OptionsFront - 3 x 120mm / Rear - 1 x 120mm / Top - 2 x 140mm / Top - 3 x 120mm
Pre-installed FansFront - 3 x 140mm
Radiator OptionsFront - Up to 420mm / Rear - Up to 120mm / Top - Up to 280mm
Max GPU Length413 mm
Max CPU Cooler Height169 mm
Max PSU Length290 mm
Dimensions19.80" x 9.45" x 20.04"
Shipping weight11.57 kg
Package size610 × 607 × 353 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my standard ATX motherboard fit in this case?

No, this chassis only supports ATX and Micro ATX boards that use the back-connect layout. Standard ATX motherboards with front-facing connectors are not compatible.

What is the longest graphics card I can install if I also mount a 420 mm front radiator?

With a 420 mm radiator at the front the maximum GPU length drops to 380 mm; without the radiator you can fit a card up to 413 mm.

Which fans come pre-installed and where are they mounted?

Three 140 mm Aspect PWM fans are fitted at the front as standard.
