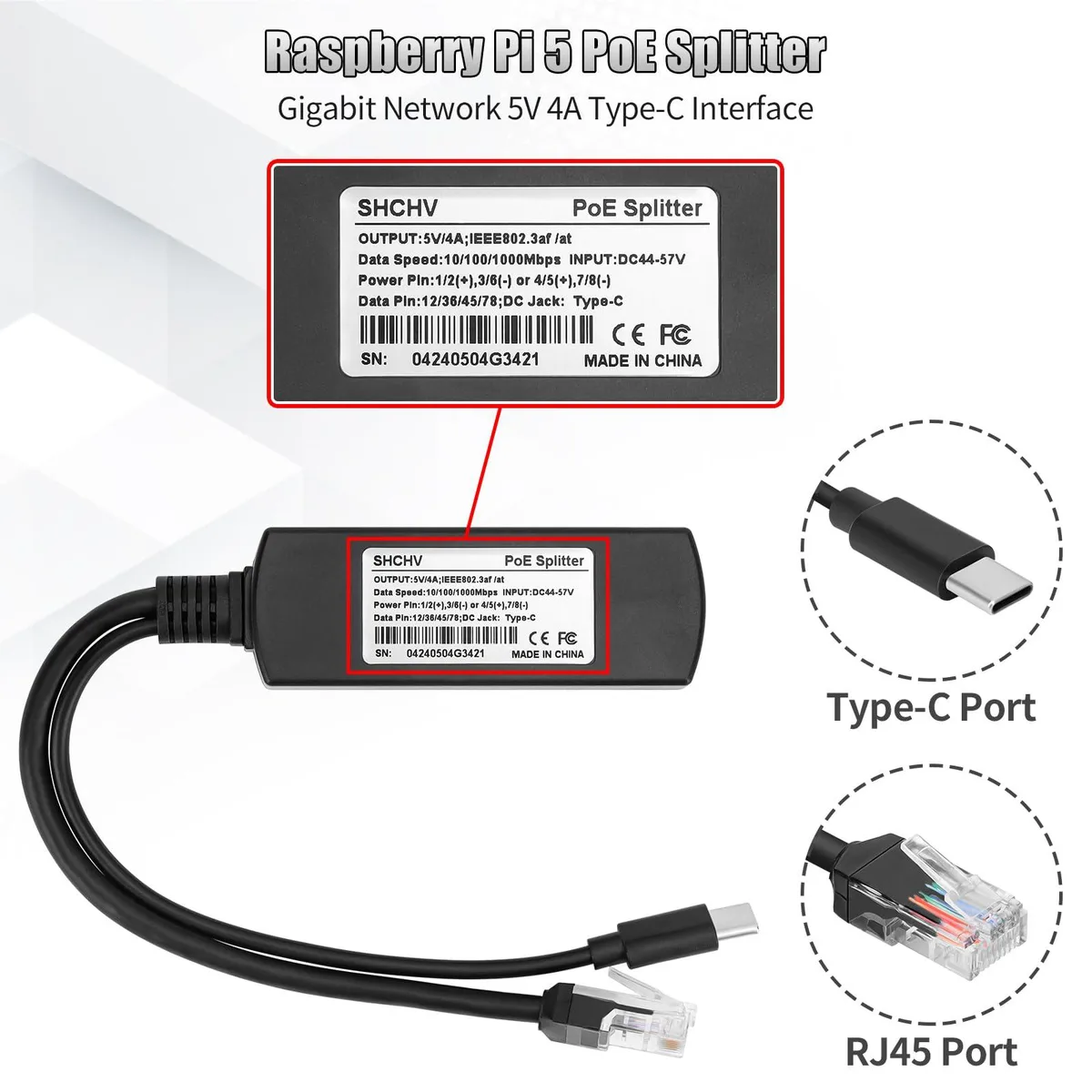

Small black rectangular PoE splitter with USB-C male connector and Ethernet port, 4.3 by 3.9 by 1.2 inches

FPVERA Gigabit PoE Splitter 5V 4A USB-C for Raspberry Pi 5

SKU CH-HBR3-7VD1X

Splits Gigabit PoE into 5 V 4 A USB-C power and 10/100/1000 Mbps data for Raspberry Pi 5 and other devices

  • Interfaceusb_c
  • Powerline Speeds1000 megabits_per_second
  • Connection TypeIEEE 802.3af/at PoE
  • Connection Speeds1000 megabits_per_second
  • Features1 * Raspberry Pi 5 PoE Splitter
  • Dimensions4.3 in x 3.9 in x 1.2 in
  • Delivers up to 4 A at 5 V for stable Pi 5 power
  • Gigabit Ethernet carries data and power over one cable
  • IEEE 802.3af/at compliant for broad switch compatibility
  • USB-C plug connects directly to the Pi 5 board
  • Operates reliably from 0 °C to 55 °C

Raspberry Pi 5 PoE Splitter

This adapter delivers 5 V at up to 4 A over a USB-C connector, drawing power from an IEEE 802.3af/at PoE source. It targets Raspberry Pi 5 boards, IP cameras, tablets and similar non-PoE devices that need both data and power from a single Ethernet run.

Gigabit PoE limits

The splitter passes 10/100/1000 Mbps traffic while negotiating 802.3af or 802.3at power classes on the wire. It supports both 1/2 (+), 3/6 (–) and 4/5 (+), 7/8 (–) pin assignments, so it works with a wide range of PoE switches and injectors without rewiring. Category 5 UTP or better cabling is required for reliable operation at the rated speed.

5 V 4 A headroom

The 5 V rail supplies a maximum of 4 A, which covers the Raspberry Pi 5 under typical loads plus attached peripherals. Continuous operation is rated from 0 °C to 55 °C at up to 90 % humidity, while storage tolerates –20 °C to 70 °C at 95 % humidity. An input power LED gives immediate visual confirmation that PoE voltage is present.

Highlights

  • Delivers up to 4 A at 5 V for stable Pi 5 power
  • Gigabit Ethernet carries data and power over one cable
  • IEEE 802.3af/at compliant for broad switch compatibility
  • USB-C plug connects directly to the Pi 5 board
  • Operates reliably from 0 °C to 55 °C

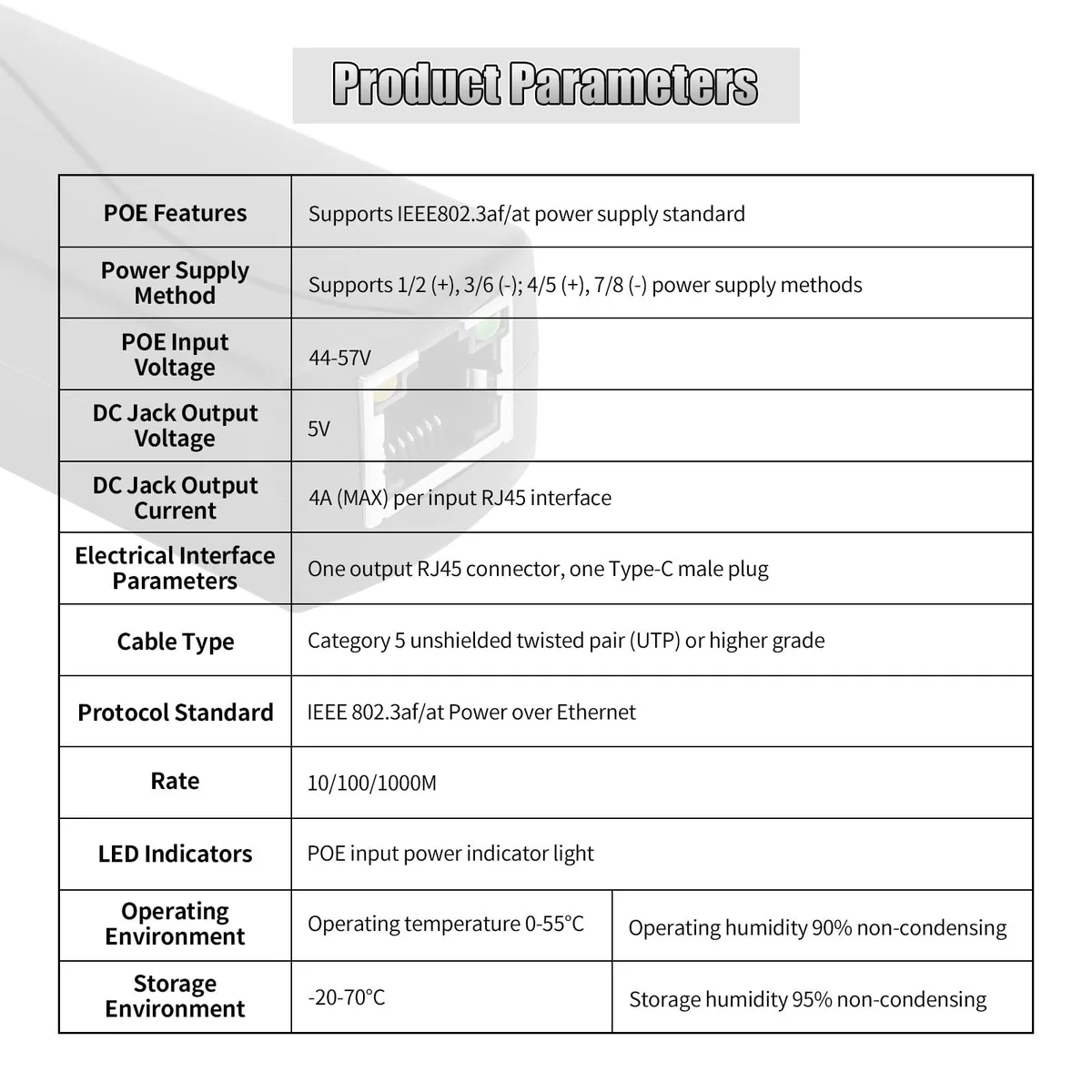

Specifications

BrandFPVERA
Interfaceusb_c
Powerline Speeds1000 megabits_per_second
Connection TypeIEEE 802.3af/at PoE
Connection Speeds1000 megabits_per_second
Features1 * Raspberry Pi 5 PoE Splitter
Dimensions4.3 in x 3.9 in x 1.2 in
Package Contents1 * Raspberry Pi 5 PoE Splitter

Questions about this item

Which FPVERA PoE splitter version should I choose for a Raspberry Pi 5?

This single model delivers 5 V at up to 4 A through a USB-C male connector and is built specifically for the Raspberry Pi 5, so there are no alternative capacities or versions to select.

What does the 1000 megabits per second rating mean when the splitter is connected to my Pi 5?

The gigabit Ethernet link carries both data and power simultaneously, so the Pi 5 can sustain up to 1000 Mbps network throughput while drawing its full 5 V 4 A supply from the same cable.

How does the IEEE 802.3af/at PoE standard limit what I can plug into the splitter?

The adapter accepts any IEEE 802.3af or 802.3at PoE source — switches, injectors or midspans — and converts it to 5 V 4 A over USB-C, so the connected device must operate within that 5 V 4 A envelope.
