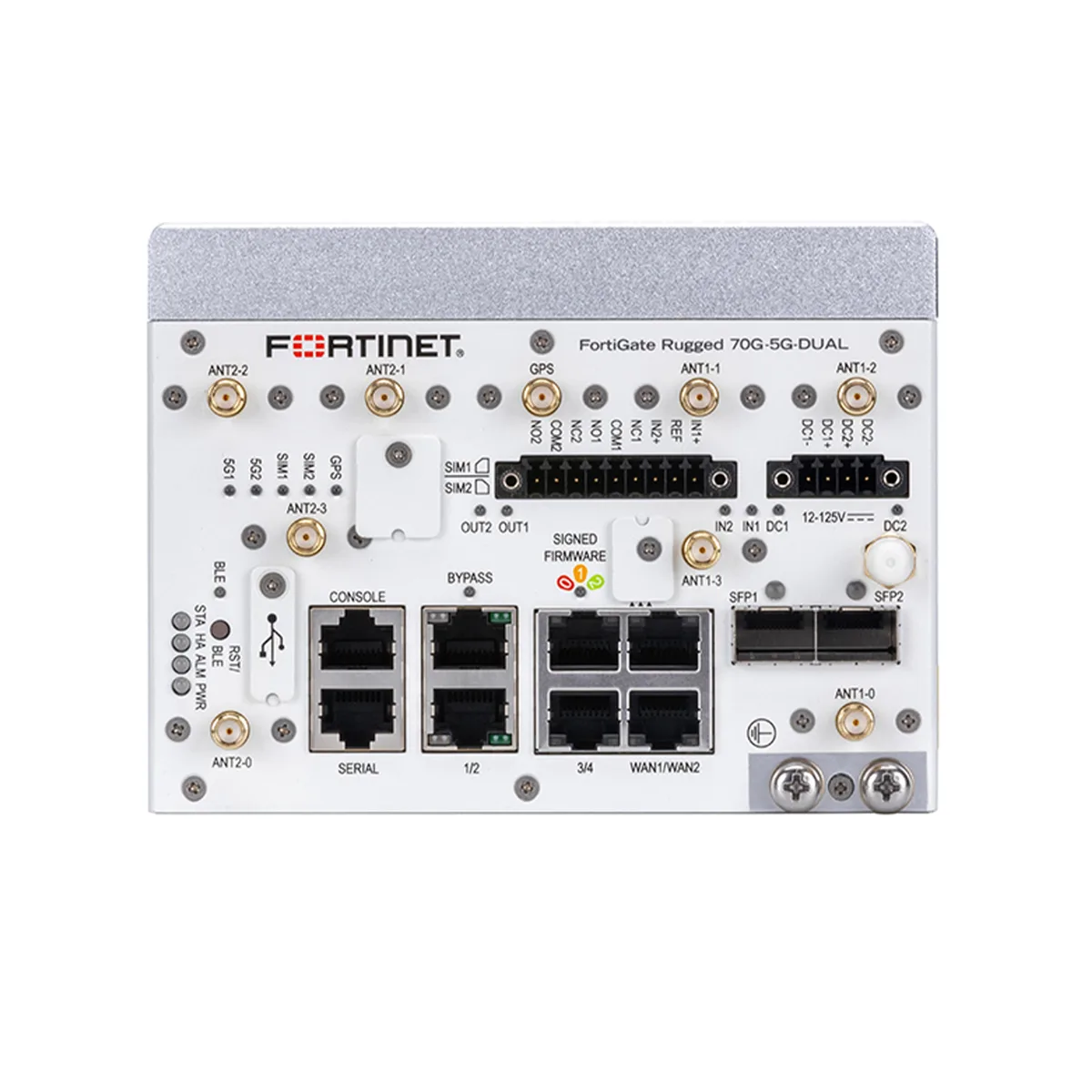

Ruggedised DIN-rail firewall, matte metal enclosure, six RJ45 ports, two SFP slots, eight external 5G antennae, dual power inputs

Fortinet

Fortinet FGR-70G-5G-DUAL firewall appliance

SKU CH-EQ35-D5H20 MPN FGR-70G-5G-DUAL

A ruggedised, fanless firewall with six RJ45 ports, two SFP slots, dual 5G modems and redundant power inputs for harsh environments

  • Form FactorDIN-rail
  • Ports6 GE RJ45 ports 2 SFP slots 1 bypass pair
  • VPNSYSTEM PERFORMANCE AND CAPACITY IPv4 Firewall Throughput (15
  • ComplianceRegulatory Compliance: FCC Part 15 Class A, RCM, VCCI Class
  • Max Power Consumption26.2 W
  • FeaturesCELLULAR WIRELESS Maximum Tx Power: 23 dBm (Power Class 3),
  • Ruggedized fanless design operates reliably in harsh conditions
  • Dual 5G SIM slots provide active-active cellular failover
  • Six GE RJ45 ports plus two SFP slots enable flexible wired connectivity
  • 12 Mpps firewall throughput secures high-speed traffic with 5.82 µs latency
  • DIN-rail form factor with dual power inputs simplifies industrial deployment

Industrial network security

The FortiGate Rugged 70G-5G-DUAL is a DIN-rail firewall appliance built for harsh indoor environments. It delivers 8 Gbps IPv4 firewall throughput at 1518, 512 and 64 byte packet sizes with 12 Mpps packet processing and 5.82 µs latency. Dual 5G modems with active-active SIM slots provide resilient cellular WAN connectivity across all regions.

Replacing basic routers

This unit replaces consumer-grade routers or single-modem gateways when uptime and deterministic latency matter. The jump is worth it for sites that need consolidated FortiGuard AI-powered security services, built-in SD-WAN traffic steering and passive GPS timing without adding separate boxes. Buyers who require PoE switching or more than six copper ports should look elsewhere.

DIN-rail deployment

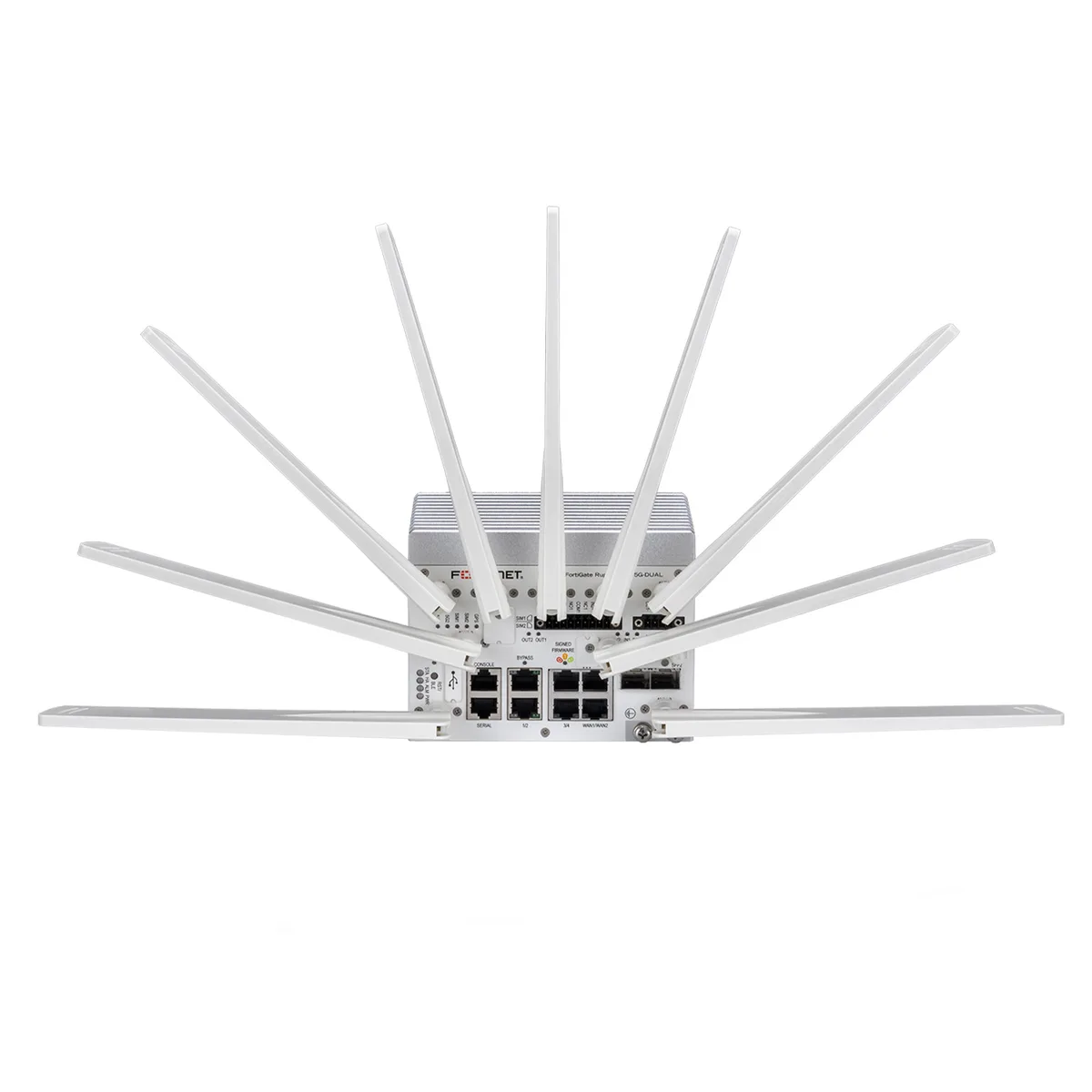

Fanless construction and a 26.2 W maximum draw simplify cabinet installation on standard DIN rail. Dual power inputs allow redundant feeds without external relays. Two SFP slots accept fibre uplinks, while the bypass pair maintains traffic flow during power loss. Installers must provision 5.47 × 4.1 × 4.8 in clearance and route eight external 5G antennae plus one GPS SMA antenna.

Highlights

  • Ruggedized fanless design operates reliably in harsh conditions
  • Dual 5G SIM slots provide active-active cellular failover
  • Six GE RJ45 ports plus two SFP slots enable flexible wired connectivity
  • 12 Mpps firewall throughput secures high-speed traffic with 5.82 µs latency
  • DIN-rail form factor with dual power inputs simplifies industrial deployment

Specifications

BrandFortinet
SeriesFortiGate Rugged Series
ModelFortiGate Rugged 70G-5G-DUAL
Part NumberFGR-70G-5G-DUAL
Form FactorDIN-rail
Ports6 GE RJ45 ports
2 SFP slots
1 bypass pair
VPNSYSTEM PERFORMANCE AND CAPACITY
IPv4 Firewall Throughput (1518/512/64 byte UDP packets):
8/8/8 Gbps
Firewall Latency (64 byte, UDP):
5.82 µs
Firewall Throughput (Packets Per Second):
12 Mpps
Concurrent Sessions (TCP):
1.4 M
New Sessions/Second (TCP):
85 000
Firewall Policies:
5000
IPsec VPN Throughput (512 byte):
7.1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels:
200
Client-to-Gateway IPsec VPN Tunnels:
500
SSL Inspection Throughput (IPS, avg. HTTPS):
1.4 Gbps
SSL Inspection CPS (IPS, avg. HTTPS):
715
SSL Inspection Concurrent Session (IPS, avg. HTTPS):
1.4 M
Application Control Throughp
ComplianceRegulatory Compliance:
FCC Part 15 Class A, RCM, VCCI Class A, CE, UL/cUL, CB USGv6/IPv6
Max Power Consumption26.2 W
FeaturesCELLULAR WIRELESS
Maximum Tx Power:
23 dBm (Power Class 3), 26 dBm (Power Class 2 in B41/n41)
Regions:
All Regions
Modem Model:
Telit Cinterion FN990A28-HP
(2 SIM Slots, Active/Active)
5G Bands:
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79 bands)
LTE:
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
UMTS/HSPA+:
B1, B2, B4, B5, B6, B8, B19
W
DimensionsHeight x Width x Length (inches): 5.47 x 4.1 x 4.8
Weight4.63 lbs (2.1 kg)
Shipping weight2.27 kg
Package size274 × 229 × 229 mm
