Compact white desktop firewall unit with five RJ45 ports on front

Fortinet

Fortinet FG40F firewall appliance 5× GE RJ45 ports

SKU CH-8JPR-PD7MY MPN FG40F

Desktop firewall with five Gigabit Ethernet ports supporting 5 Gbps firewall throughput and 700,000 concurrent sessions

  • Form FactorDesktop
  • Ports5x GE RJ45 ports
  • Simultaneous Sessions700000
  • ThroughputIPS Throughput: 1 Gbps NGFW Throughput: 4 800 Mbps Threat Pr
  • Power InputPowered by External DC Power Adapter, 100–240V AC, 50/60 Hz
  • Max Power Consumption9.46 W

Option Appliance Only

  • Enterprise-grade AI-powered security with FortiGuard services
  • 5 Gigabit RJ45 ports including 4 internal and 1 WAN
  • 5 Mpps firewall throughput with 2.97 µs latency
  • 700,000 concurrent sessions and 35,000 new sessions per second
  • Desktop form factor at 9.46 W max power consumption

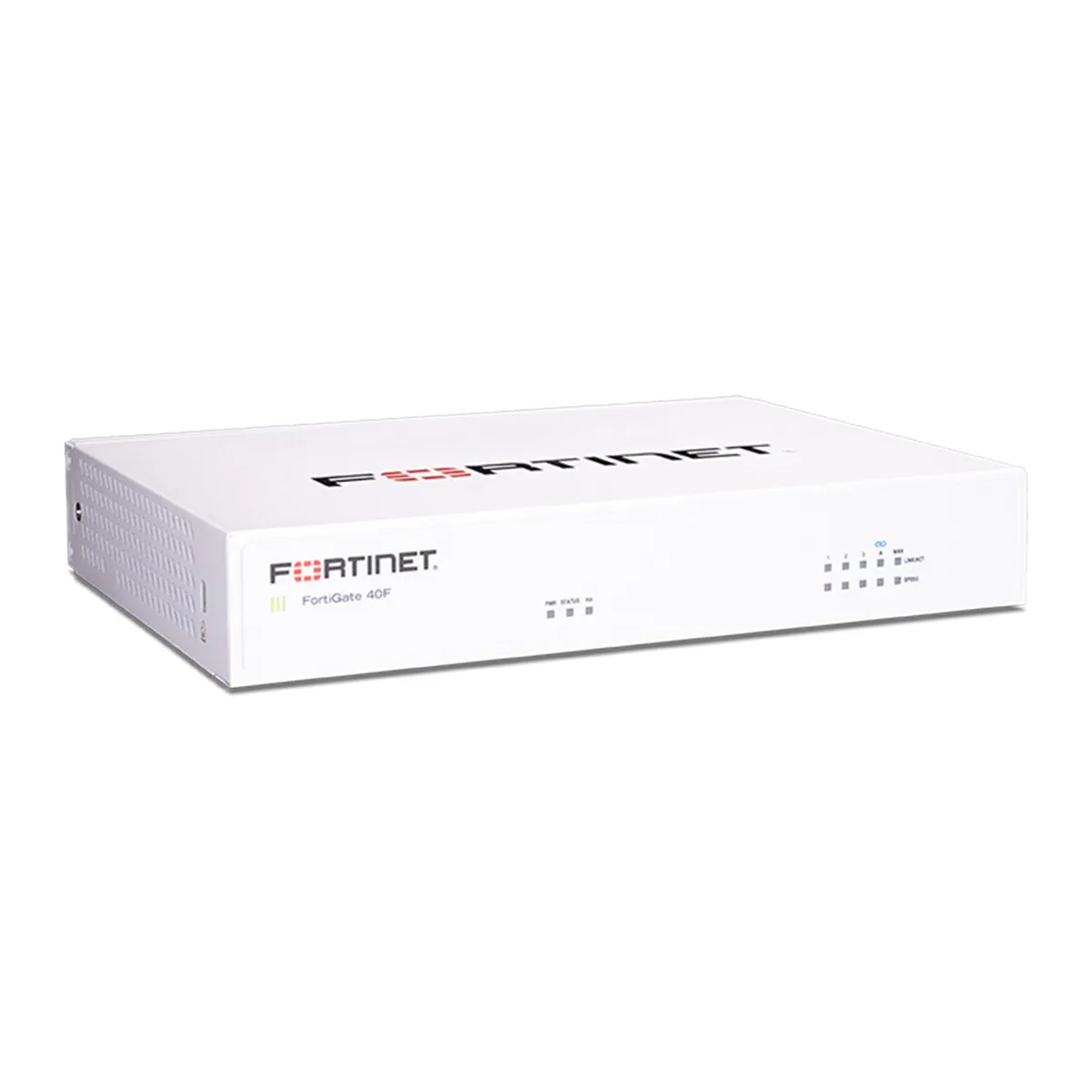

FortiGate 40F desktop firewall

The FortiGate 40F is a desktop network security appliance designed for branch offices and small sites that need consolidated threat protection and SD-WAN capability. It provides five Gigabit Ethernet RJ45 ports, with four configured as internal switch ports and one as a dedicated WAN uplink. The unit ships new and is managed through the Fortinet Security Fabric platform.

Sustained load behaviour

Under continuous traffic the appliance delivers IPv4 firewall throughput of 5 Gbps across 1518, 512 and 64 byte UDP frames, with a packet rate of 7.5 Mpps and latency of 2.97 µs. Threat protection throughput reaches 5 600 Mbps while NGFW throughput holds at 4 800 Mbps, and the system maintains 700 000 concurrent TCP sessions with 35 000 new sessions per second. Maximum power draw stays at 9.46 W from the external DC adapter.

Pre-deployment checks

Verify that your rack or desktop space accommodates the 1.5 x 8.5 x 6.3 inch chassis and 2.2 lb weight. Confirm the external power adapter can connect to a 100–240 V AC, 50/60 Hz supply. Ensure your FortiGuard subscription covers the security services you plan to activate and that the five RJ45 ports match your WAN and LAN cabling plan.

Highlights

  • Enterprise-grade AI-powered security with FortiGuard services

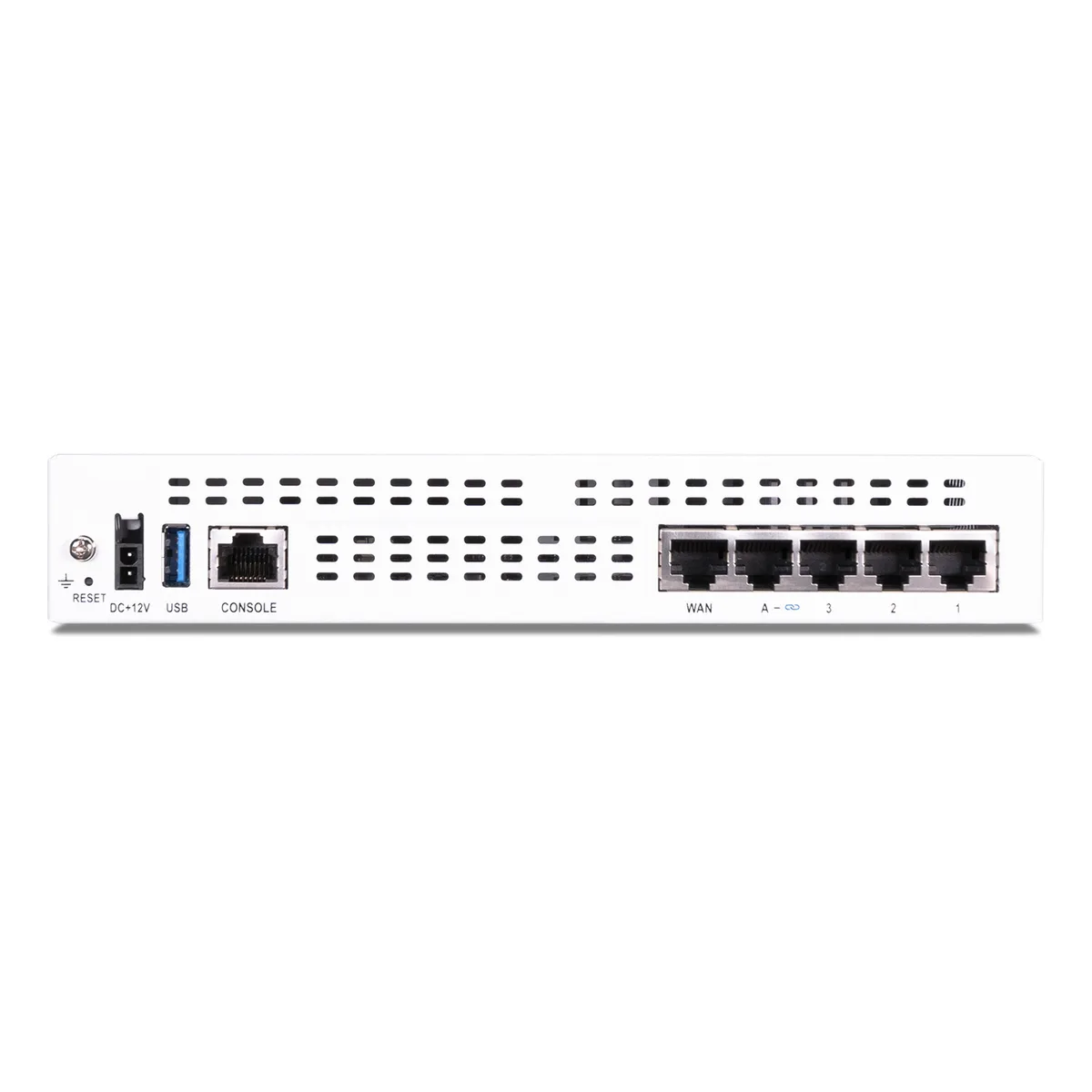

  • 5 Gigabit RJ45 ports including 4 internal and 1 WAN
  • 5 Mpps firewall throughput with 2.97 µs latency
  • 700,000 concurrent sessions and 35,000 new sessions per second
  • Desktop form factor at 9.46 W max power consumption

Specifications

BrandFortinet
SeriesFortiGate 40F Series
ModelFortiGate 40F
Part NumberFG-40F
Form FactorDesktop
Ports5x GE RJ45 ports
Simultaneous Sessions700000
ThroughputIPS Throughput: 1 Gbps
NGFW Throughput: 4 800 Mbps
Threat Protection Throughput: 5 600 Mbps
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 5 / 5 / 5 Gbps
Firewall Throughput (Packet per Second): 7.5 Mpps
Power InputPowered by External DC Power Adapter,
100–240V AC, 50/60 Hz
Max Power Consumption9.46 W
FeaturesFirewall Latency (64 byte, UDP): 2.97 µs
Firewall Throughput (Packet per Second): 7.5 Mpps
Concurrent Sessions (TCP): 700 000
New Sessions/Second (TCP): 35 000
Firewall Policies: 2000
IPsec VPN Throughput (512 byte): 1 4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 200
Client-to-Gateway IPsec VPN Tunnels: 250
SSL-VPN Throughput: 490 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 200
SSL Inspection Throughput (IPS, avg. HTTPS): 310 Mbps
SSL Inspection CPS (IPS, avg. HTTPS): 320
SSL Inspection Concurrent Session (IPS, avg. HTTPS): 55 000
Application Control Throughpu
Dimensions1.5 x 8.5 x 6.3 (inches)
Weight2.2 lbs (1 kg)
Shipping weight2.27 kg
Package size279 × 229 × 152 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat does the 9.46 W maximum power draw add to a rack running 24/7?

The unit tops out at 9.46 W, so its thermal contribution is modest; a standard desktop footprint of 1.5 × 8.5 × 6.3 inches fits easily in passive airflow without extra cooling.

Which external power adapter must I already have for the FG40F to operate?

It ships with a 100–240 V AC, 50/60 Hz external DC adapter, so only a local mains socket is required — no PoE injector or separate PSU needed.

Can the five GE RJ45 ports link directly to my older 100 Mbps switches without negotiation issues?

Yes, the 5× GE RJ45 interfaces auto-negotiate down to 10/100 Mbps, so legacy switches connect transparently while the appliance maintains 700 000 concurrent sessions and 7.5 Mpps throughput.
