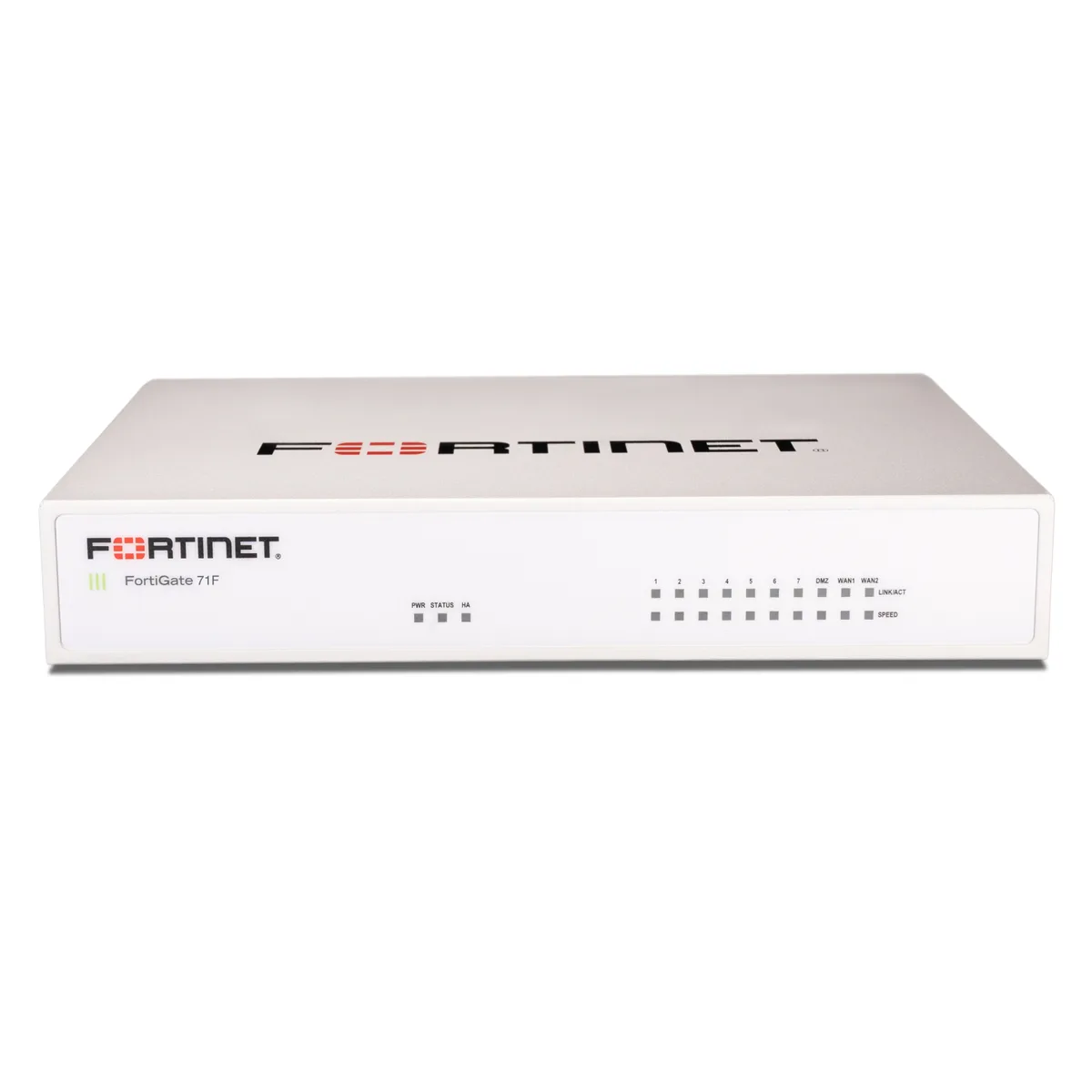

Compact white desktop firewall appliance with front RJ45 ports and status LEDs

Fortinet

Fortinet FG-71F-BDL-809-36 firewall appliance

SKU CH-K5ZD-4DQQG MPN FG-71F-BDL-809-36

Compact desktop firewall with 10 Gbps throughput, 128 GB SSD and three-year premium support and enterprise protection

  • Form FactorDesktop
  • PortsGE RJ45 WAN / DMZ Ports: 2 / 1 GE RJ45 Internal Ports: 5 GE
  • VPNFirewall Throughput (1518 / 512 / 64 byte UDP packets): 10/1
  • Power InputPower Required: Powered by External DC Power Adapter, 100-24
  • Max Power ConsumptionPower Consumption (Average / Maximum): 17.2 W / 18.7 W
  • FeaturesInternal Storage: 1 x 128 GB SSD
  • 10 Gbps firewall throughput handles heavy traffic loads
  • 5 million concurrent TCP sessions support dense user environments
  • 128 GB internal SSD stores logs and local data
  • 7 W maximum power draw keeps operating costs low
  • 365-day FortiCare Premium support provides round-the-clock assistance

Compact Desktop Firewall with Integrated Security

The FortiGate-71F is a desktop-form-factor firewall appliance built for small-office and branch environments. It includes a 36-month FortiCare Premium and FortiGuard Enterprise Protection bundle that delivers 24x7x365 support and real-time defence across the entire attack surface. The unit ships with 128 GB of internal SSD storage and requires a company name at checkout to activate the licence.

Gigabit Ethernet Port Limits and Throughput

The appliance provides two WAN/DMZ ports, five internal ports and two FortiLink ports, all operating at Gigabit RJ45 speeds. Firewall throughput reaches 10 Gbps with 1518-byte packets and drops to 6 Gbps at 64-byte packets, while latency sits at 2.54 µs and concurrent TCP sessions max out at 1.5 M. New sessions per second and VPN throughput are capped by the same Gigabit interfaces and the listed packet-processing figures.

Power and Physical Checks Before Ordering

Verify that an external DC power adapter supplied with the unit matches your local 100-240 V AC supply at 50 or 60 Hz; maximum draw is 1.0 A at 100 V and 0.6 A at 240 V, with average consumption of 17.2 W and peak of 18.7 W. Confirm the 38.5 x 216 x 160 mm footprint and 1.01 kg weight suit your desktop or wall-mount location, and ensure a console cable with an RJ45 connector is available for initial configuration.

Highlights

  • 10 Gbps firewall throughput handles heavy traffic loads
  • 5 million concurrent TCP sessions support dense user environments
  • 128 GB internal SSD stores logs and local data
  • 7 W maximum power draw keeps operating costs low
  • 365-day FortiCare Premium support provides round-the-clock assistance

Specifications

BrandFortinet
ModelFORTIGATE 71F w/ FortiCare Premium and FortiGuard Enterprise Protection (3Y)
Part NumberFG-71F-BDL-809-36
Form FactorDesktop
PortsGE RJ45 WAN / DMZ Ports: 2 / 1
GE RJ45 Internal Ports: 5
GE RJ45 FortiLink Ports (Default): 2
USB Ports: 1
Console (RJ45): 1
VPNFirewall Throughput (1518 / 512 / 64 byte UDP packets): 10/10/6 Gbps
Firewall Latency (64 byte UDP packets): 2.54 µs
Firewall Throughput (Packets Per Second): 9 Mpps
Concurrent Sessions (TCP): 1.5 M
New Sessions/Second (TCP): 35 000
Firewall Policies: 5000
IPsec VPN Throughput (512 byte): 6.1 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 200
Client-to-Gateway IPsec VPN Tunnels: 500
SSL-VPN Throughput: 405 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 200
SSL Inspection Throughput (IPS, avg. HTTPS): 700 Mbps
SSL Inspection CPS (IPS, avg. HTTPS): 500
SSL Inspection Con
Power InputPower Required: Powered by External DC Power Adapter, 100-240V AC, 50/60 Hz
Maximum Current: 100VAC/1.0A, 240VAC/0.6A
Max Power ConsumptionPower Consumption (Average / Maximum): 17.2 W / 18.7 W
FeaturesInternal Storage: 1 x 128 GB SSD
DimensionsHeight x Width x Length (inches): 1.5 x 8.5 x 6.3
Height x Width x Length (mm): 38.5 x 216 x 160 mm
WeightWeight: 2.23 lbs (1.01 kg)
Shipping weight2.27 kg
Package size290 × 213 × 122 mm

Questions about this item

Should I choose the 36-month bundle or a shorter term?

The FG-71F-BDL-809-36 includes three years of FortiCare Premium and FortiGuard Enterprise Protection, covering 24x7x365 support and full threat protection for the entire period.

What does the 10 Gbps firewall throughput mean for my office network?

The appliance handles up to 10 Gbps with 1518-byte packets and 6 Gbps with 64-byte packets, so real-world throughput will fall between those figures depending on your traffic mix.

How many GE RJ45 ports does the unit provide and what limits their speed?

It has two WAN/DMZ ports, five internal ports, two FortiLink ports and one console port, all Gigabit Ethernet RJ45, so each link caps at 1 Gbps.
