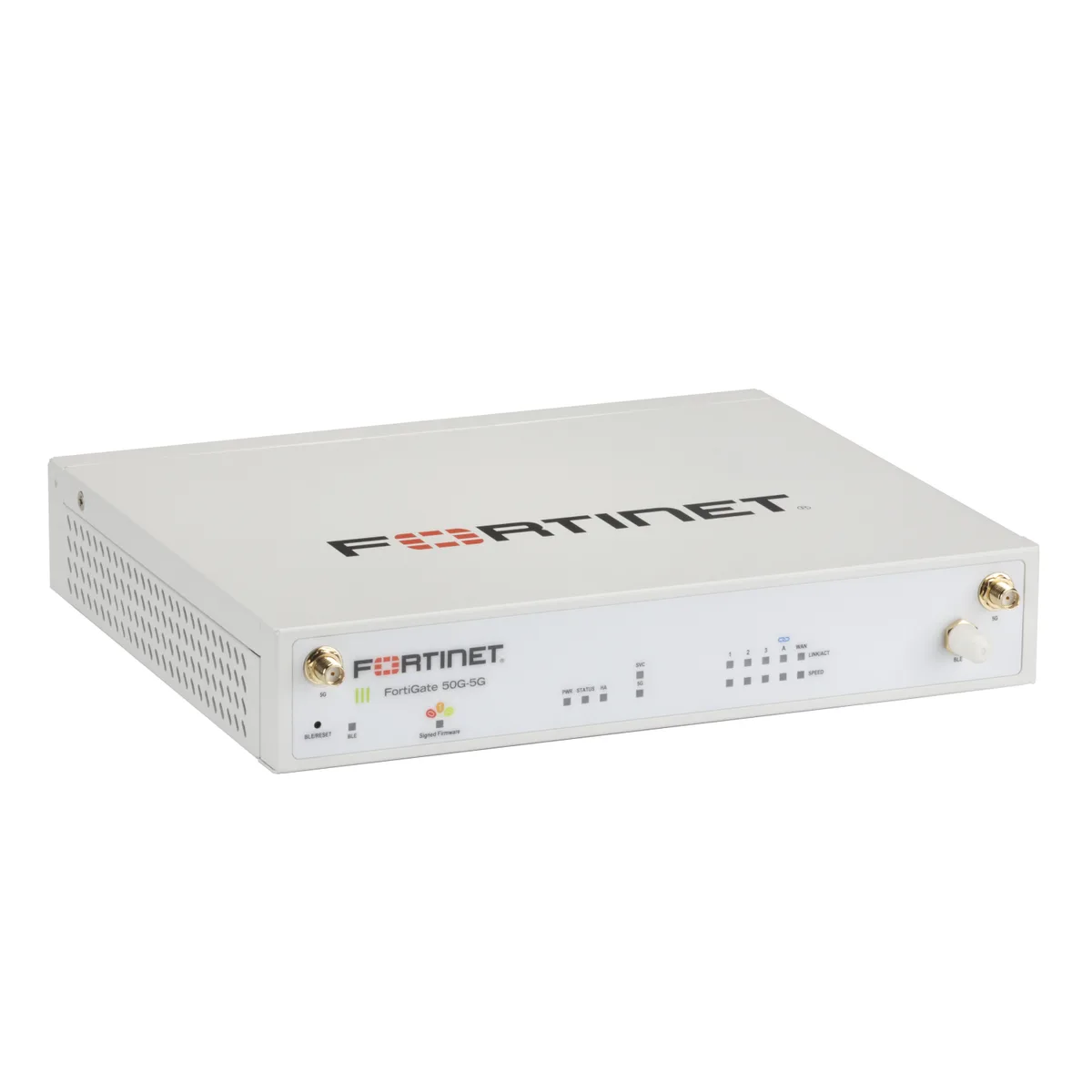

Compact white desktop firewall appliance with five external antennas, front ports and LED indicators

Fortinet

Fortinet FG-50G-5G-BDL-809-12 firewall appliance

SKU CH-Y6GR-V0FMZ MPN FG-50G-5G-BDL-809-12

Desktop firewall appliance with integrated 5G modem, five antenna ports, four hardware-accelerated Gigabit Ethernet ports and 1-year FortiCare Premium plus FortiGuard Enterprise Protection

  • Form FactorDesktop
  • PortsHardware Accelerated GE WAN Ports: 1 Hardware Accelerated GE
  • VPNFirewall Throughput (1518/512/64 byte UDP packets): 5 / 5 /
  • Power InputPower Rating: 12VDC, 3A Power Required: Powered by External
  • Max Power ConsumptionPower Consumption (Avg./Maximum): 8.3 W / 8.9 W
  • Features5G Modem Maximum Tx Power: 23 dBm (Power Class 3), 26 dBm (P
  • 5G connectivity with Telit Cinterion FN990A28-HP modem and dual SIM slots
  • Hardware-accelerated firewall throughput up to 5 Gbps with 2.42 µs latency
  • 720 000 concurrent TCP sessions for scalable secure access
  • Desktop form factor at 1.0 kg with 8.9 W maximum power draw
  • Bundled 1-year FortiCare Premium and FortiGuard Enterprise Protection services

FortiGate 50G-5G desktop firewall

The FortiGate 50G-5G is a desktop network security appliance that combines firewall, SD-WAN and an embedded 5G modem in one unit. It targets distributed enterprise sites that need secure connectivity without a wired WAN circuit. The bundle includes one year of FortiCare Premium and FortiGuard Enterprise Protection.

Capacity and headroom

Hardware-accelerated throughput reaches 5 Gbps for 1518-byte packets and 4 Gbps for 64-byte packets with 2.42 µs latency. The system sustains 6 Mpps and 720 000 concurrent TCP sessions. A single WAN port and three LAN ports provide the wired headroom; the 5G modem adds cellular failover or primary WAN where fibre is absent.

Build and connectors

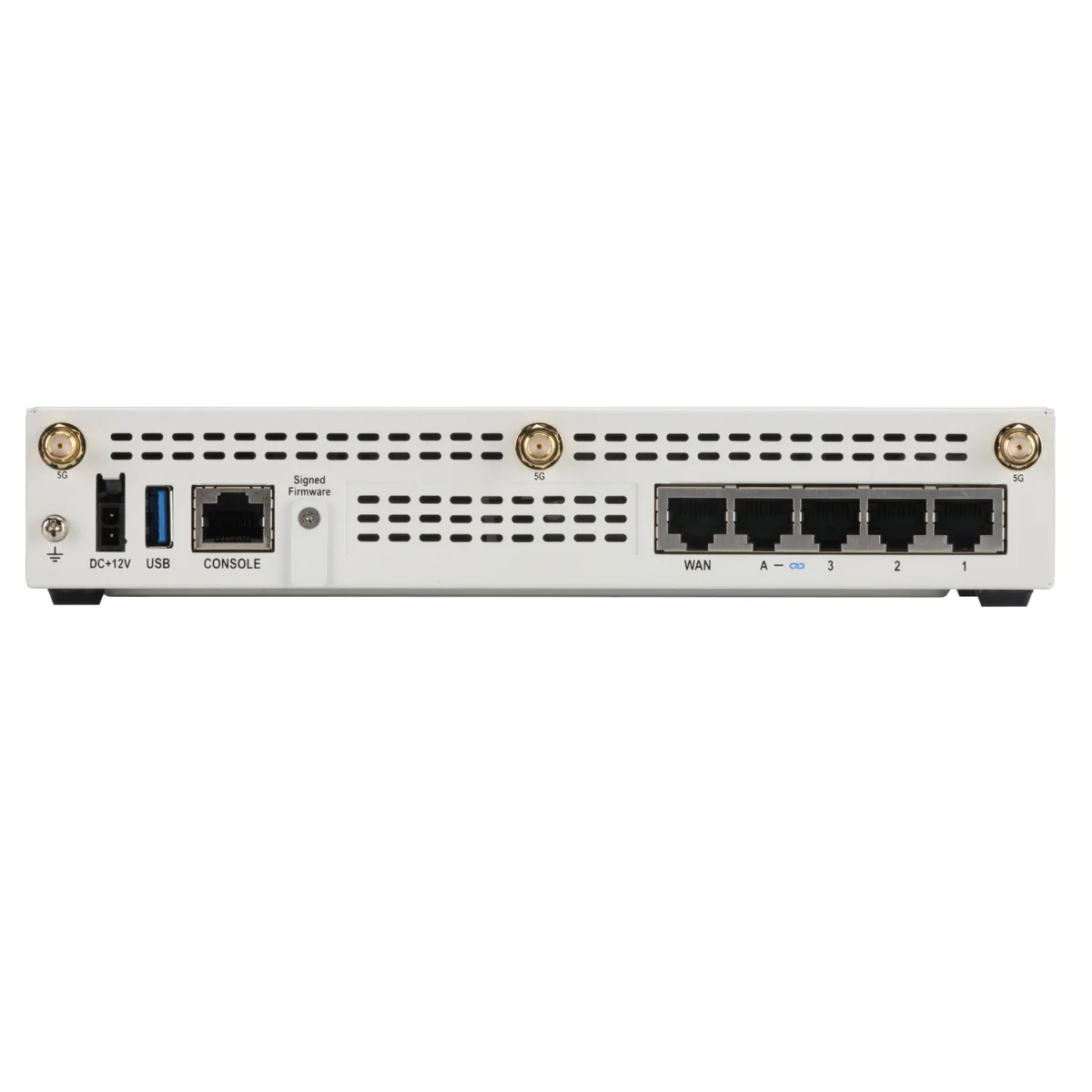

The fanless chassis measures 40.5 x 216 x 160 mm and weighs 1.0 kg, drawing 8.3 W average and 8.9 W maximum from a 12 V 3 A external adapter. Five SMA antenna ports support the dual-SIM 5G modem across bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20 and n28. One USB port, one RJ45 console port and a FortiLink port complete the I/O.

Highlights

  • 5G connectivity with Telit Cinterion FN990A28-HP modem and dual SIM slots
  • Hardware-accelerated firewall throughput up to 5 Gbps with 2.42 µs latency
  • 720 000 concurrent TCP sessions for scalable secure access
  • Desktop form factor at 1.0 kg with 8.9 W maximum power draw
  • Bundled 1-year FortiCare Premium and FortiGuard Enterprise Protection services

Specifications

BrandFortinet
ModelFortiGate-50G-5G w/ FortiCare Premium and FortiGuard Enterprise Protection (1Y)
Part NumberFG-50G-5G-BDL-809-12
Form FactorDesktop
PortsHardware Accelerated GE WAN Ports: 1
Hardware Accelerated GE RJ45 Ports: 3
Hardware Accelerated GE RJ45 FortiLink Ports (Default): 1
USB Port: 1
Console Port (RJ45): 1
Antenna Ports (SMA): 5
VPNFirewall Throughput (1518/512/64 byte UDP packets): 5 / 5 / 4 Gbps
Firewall Latency (64 byte UDP packets): 2.42 µs
Firewall Throughput (Packets Per Second): 6 Mpps
Concurrent Sessions (TCP): 720 000
New Sessions/Second (TCP): 85 000
Firewall Policies: 2000
IPsec VPN Throughput (512 byte): 4.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 200
Client-to-Gateway IPsec VPN Tunnels: 250
SSL Inspection Throughput (IPS, avg. HTTPS): 1.3 Gbps
SSL Inspection CPS (IPS, avg. HTTPS): 699
SSL Inspection Concurrent Session (IPS, avg. HTTPS): 74 000
Application Control Throughput (HTTP 64K): 2.8 Gbps
Power InputPower Rating: 12VDC, 3A
Power Required: Powered by External DC Power Adapter, 100-240V AC, 50/60 Hz
Maximum Current: 100V/0.4A, 240V/0.2A
Max Power ConsumptionPower Consumption (Avg./Maximum): 8.3 W / 8.9 W
Features5G Modem
Maximum Tx Power: 23 dBm (Power Class 3), 26 dBm (Power Class 2 in B41/n41)
Modem Model: Telit Cinterion FN990A28-HP (2 SIM Slots, Active/Passive)
5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79 bands)
LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
UMTS/HSPA+: B1, B2, B4, B5, B6, B8, B19
WCDMA: B1, B2, B4, B5 (B
DimensionsHeight x Width x Length (inches): 1.6 x 8.5 x 6.3
Height x Width x Length (mm): 40.5 x 216 x 160
Weight2.2 lbs (1.0 kg)
Shipping weight4.54 kg
Package size1016 × 457 × 254 mm

Questions about this item

Will the 5G modem on this FG-50G-5G-BDL-809-12 work alongside my existing wired WAN router?

Yes, the appliance has one hardware-accelerated GE WAN port and three GE RJ45 LAN ports, so you can keep your current router on the wired WAN and use the built-in 5G modem as a secondary or failover link.

How can I verify the Telit Cinterion FN990A28-HP modem is active and passing traffic after installation?

In FortiOS, open the Modem dashboard widget to confirm the SIM status shows Connected, the signal quality bars are green, and the live throughput counters increment on the WAN interface.

What ships in the box with FG-50G-5G-BDL-809-12 and what must I source separately?

The package includes the desktop appliance, external 12 V DC power adapter, one USB port, one RJ45 console cable, and five SMA antennas for the 5G modem; you must supply two active 5G SIM cards and Ethernet patch cables.
