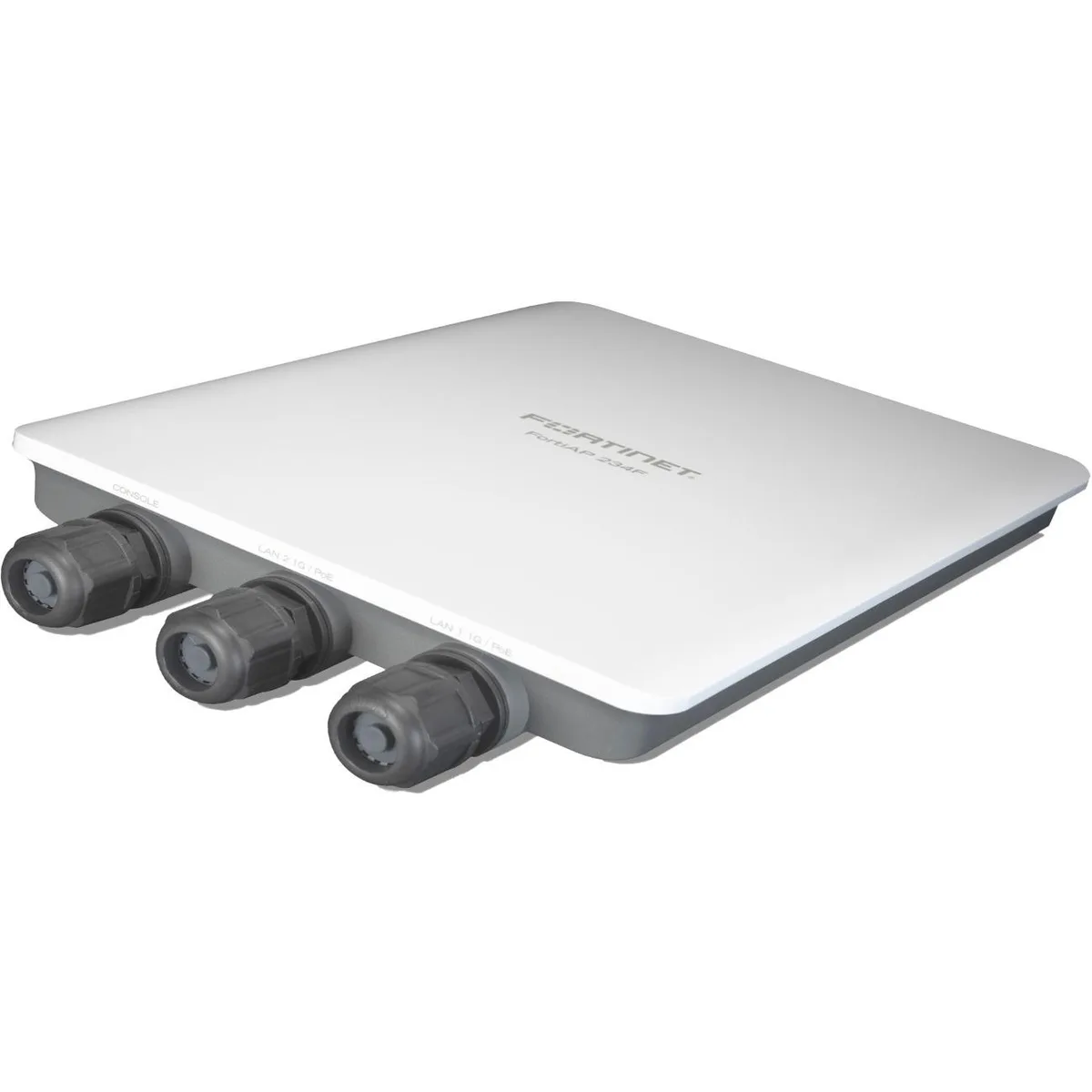

White rectangular rugged access point with internal antennas and pole wall mount kit

Fortinet

Fortinet FAP234FA Wi-Fi 6 tri-radio access point

SKU CH-QTVZ-A650K MPN FAP234FA

Enterprise Wi-Fi 6 tri-radio access point with dual 1 Gbps Ethernet ports, internal directional antennas and an included PoE injector for indoor or outdoor mounting

  • ColorWhite
  • Standards802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11
  • Wireless Data RatesRadio 1: up to 574 Mbps Radio 2: up to 1200 Mbps Radio 3: Fr
  • Frequency Band2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5
  • AntennaDual Band Antenna
  • Interface2x 10/100/1000 Base-T RJ45, 1x RS-232 RJ45 Serial Port

Options FAP234FA

  • Tri-radio design serves 2.4 GHz and 5 GHz clients while a third radio scans both bands continuously
  • Wi-Fi 6 with 2×2 MU-MIMO delivers up to 574 Mbps on 2.4 GHz and 1200 Mbps on 5 GHz
  • Rugged enclosure rated for -40 °C to 60 °C operating temperature suits indoor and outdoor use
  • Two Gigabit Ethernet ports and included 802.3at PoE injector simplify cabling and power
  • Wall and pole mounting kit included for flexible installation

Enterprise tri-radio Wi-Fi 6 access point

The Fortinet FortiAP 234F is an enterprise-grade wireless access point built for indoor and outdoor deployment. It operates three radios simultaneously, with two serving client traffic on 2.4 GHz and 5 GHz bands and a third dedicated to background scanning. The unit includes a wall and pole mounting kit plus an 802.3at PoE injector with reset functionality.

Sustained dual-band throughput

Under continuous load the two client radios deliver up to 574 Mbps on the 2.4 GHz band and up to 1200 Mbps on the 5 GHz band using 2x2 MU-MIMO. The third radio performs 24/7 spectrum scanning across both frequency ranges without interrupting client connections. Maximum power draw is 15.5 W, and the operating temperature spans -40 °C to 60 °C for harsh environments.

Pole or wall mounting with PoE injector included

Installation uses the supplied mounting kit for pole or wall attachment and a single Ethernet cable for both data and power via the included injector. Two gigabit RJ45 ports allow wired uplinks or daisy-chaining, while a serial console port and USB Type-A interface support local management. The directional patch antennas are fixed, so orientation must be planned during mounting.

Highlights

  • Tri-radio design serves 2.4 GHz and 5 GHz clients while a third radio scans both bands continuously
  • Wi-Fi 6 with 2×2 MU-MIMO delivers up to 574 Mbps on 2.4 GHz and 1200 Mbps on 5 GHz
  • Rugged enclosure rated for -40 °C to 60 °C operating temperature suits indoor and outdoor use
  • Two Gigabit Ethernet ports and included 802.3at PoE injector simplify cabling and power
  • Wall and pole mounting kit included for flexible installation

Specifications

BrandFortinet
SeriesFortiAP
ModelFortiAP 234F
ColorWhite
Standards802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11u, 802.11v, 802.11w, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az
Wireless Data RatesRadio 1: up to 574 Mbps
Radio 2: up to 1200 Mbps
Radio 3: Frequency scanning only
Frequency Band2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
AntennaDual Band Antenna
Interface2x 10/100/1000 Base-T RJ45, 1x RS-232 RJ45 Serial Port
Multiple SSIDsUp to 8 per client serving radio (7 if background scanning is enabled)
MIMOUL MU-MIMO
DL-MU-MIMO
Power Supply802.3at PoE: GPI-130 ; ships with PoE Injector (reset functionality)
Max Power Consumption15.5 W
TemperatureOperating Temperature
-40°F to 140°F (-40°C to 60°C)
Storage Temperature
-40°F to 176°F (-40°C to 80°C)
Humidity10% to 90% non condensing
Dimensions12.45 x 8.6 x 1.66 inches (316 x 218 x 42 mm)
Weight2.88 lbs (1.307 kg
FeaturesNumber of Antennas
2 dual band WiFi + 1 dual band scanning + 1 single band
2.4 GHz BLE/ZigBee
Antenna Type and Peak Gain
Directional patch antenna
Dual band antenna
Scanning radio: 3.5 dBi in 2.4 GHz band and 4.5 dBi in 5 GHz band
BLE antenna: 3.5 dBi in 2.4 GHz band
Antenna Beam Width
2.4GHz Horizontal BW 70 degree Vertical BW 30 degree
5.0GHz Horizontal BW 78 degree Vertical BW 25 degree
Radio 1 Capabilities
Frequency band: 2.4GHz
Channel width: 20/40MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 2x2 Service
Radio 2 Capabilities
Frequency band: 5.0GHz
Channel width: 20/40
Shipping weight4.08 kg
Package size370 × 308 × 152 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the FortiAP 234F draw when it runs 24/7?

Maximum power consumption is 15.5 W and it is powered by the included 802.3at PoE injector (GPI-130).

Does the FortiAP 234F need a separate PoE switch or injector to operate?

No, a PoE injector with reset functionality ships in the box, so the AP works without an external PoE switch.

Will the FortiAP 234F serve legacy 802.11n clients on 2.4 GHz while scanning both bands?

Yes, the tri-radio design keeps the 2.4 GHz and 5 GHz serving radios active while the third radio scans continuously.
