FOCUSTEC
FOCUSTEC USB 2.0 KVM Switch 4-Port Cat5e/6/6a/7 196ft 60m 480Mbps
Extends four USB 2.0 ports up to 196 ft over Cat5e/6/6a/7 cable at 480 Mbps with driver-free operation across Windows, macOS, Android and Linux
- TypeUSB
- Extend USB 2.0 devices up to 196 ft over Cat5e/6 cable
- Four USB 2.0 ports at 480 Mbps for keyboard, mouse, webcams
- Works with Windows, macOS, Android and Linux without drivers
- Transmitter bus-powered, receiver uses lockable 12 V DC adapter
- ±8 kV air-gap and ±4 kV contact ESD protection built in
USB 2.0 KVM Extender over Cat5e/6/6a/7

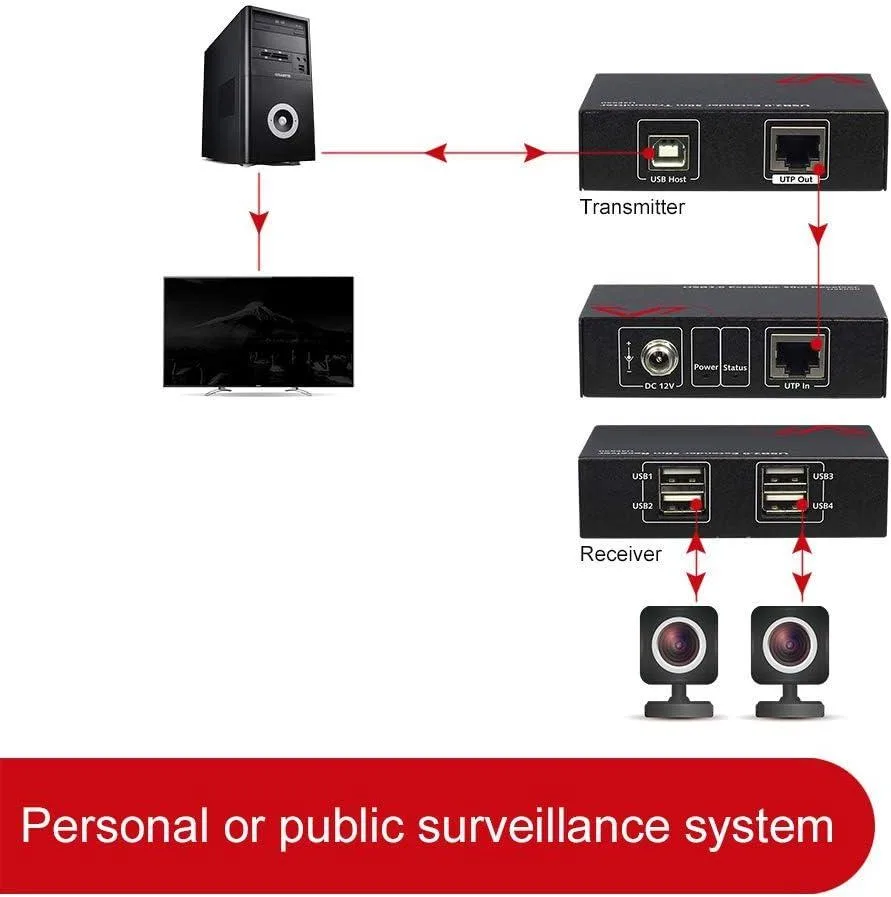

This powered USB 2.0 KVM extender carries keyboard, mouse and peripheral signals up to 196 ft (60 m) over a single Cat5e/6/6a/7 cable. The transmitter draws power from the host USB port while the receiver uses a lockable DC 12 V adapter for a secure connection. It delivers up to 480 Mbps bandwidth and is certified to FCC and CE standards.
Suits remote workstations.

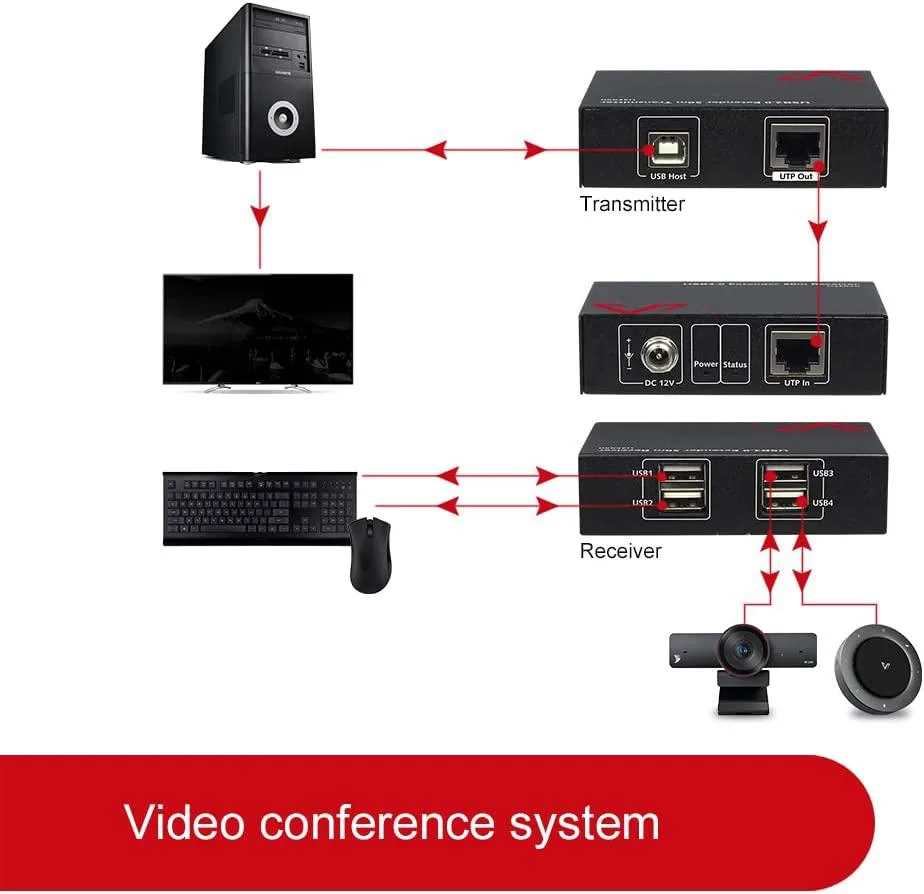

The four USB 2.0 ports on the receiver let you operate a keyboard, mouse and up to two webcams simultaneously from a distance. It works with Windows, macOS, Android and Linux without driver installation. Buyers who need USB 3.x speeds, video extension or more than four downstream ports should look at a different solution.
Handles typical HID and webcam traffic at 480 Mbps
The link comfortably supports standard keyboards, mice, flash drives and dual 720p webcams over the full 60 m run. Bandwidth runs out when multiple high-throughput devices such as external SSDs or 1080p capture cards are active together. ESD protection is rated to ±8 kV air-gap and ±4 kV contact discharge for robust operation.
Highlights
- Extend USB 2.0 devices up to 196 ft over Cat5e/6 cable
- Four USB 2.0 ports at 480 Mbps for keyboard, mouse, webcams
- Works with Windows, macOS, Android and Linux without drivers
- Transmitter bus-powered, receiver uses lockable 12 V DC adapter
- ±8 kV air-gap and ±4 kV contact ESD protection built in
Specifications
| Type | USB |
|---|
Questions about this item
What type of cable do I need to connect the transmitter and receiver units?
Use a single Cat5e, Cat6, Cat6a, or Cat7 cable up to 196 ft (60 m) to link the two units.
Will my USB 1.1 keyboard and mouse work through this extender?
Yes, the extender is compatible with USB 1.1 and USB 2.0 peripheral devices.
How can I confirm the link is active after connecting everything?
The receiver requires the lockable DC 12 V power adapter; once it is connected and the host PC recognises the attached peripherals, the link is operating.
