Compact black KVM switch with wired desktop controller and cables

FOCUSTEC

FOCUSTEC 2-Port DisplayPort KVM Switch 4K 60Hz DP 1.2 USB 2.0 Wired Controller

SKU CH-6K68-ZE839

A 2-port DisplayPort KVM switch lets two computers share one 4K 60 Hz monitor, keyboard, mouse and four USB 2.0 devices, switched by button or wired desktop controller

  • TypeUSB
  • Share two computers on one 4K 60 Hz monitor
  • Switch instantly via front button or wired desktop controller
  • Four USB 2.0 ports let you share drives printers and cameras
  • DP 1.2 compliant 3840 x 2160 at 60 Hz with automatic EDID adjustment
  • Plug and play with no drivers needed for Windows Mac or Linux

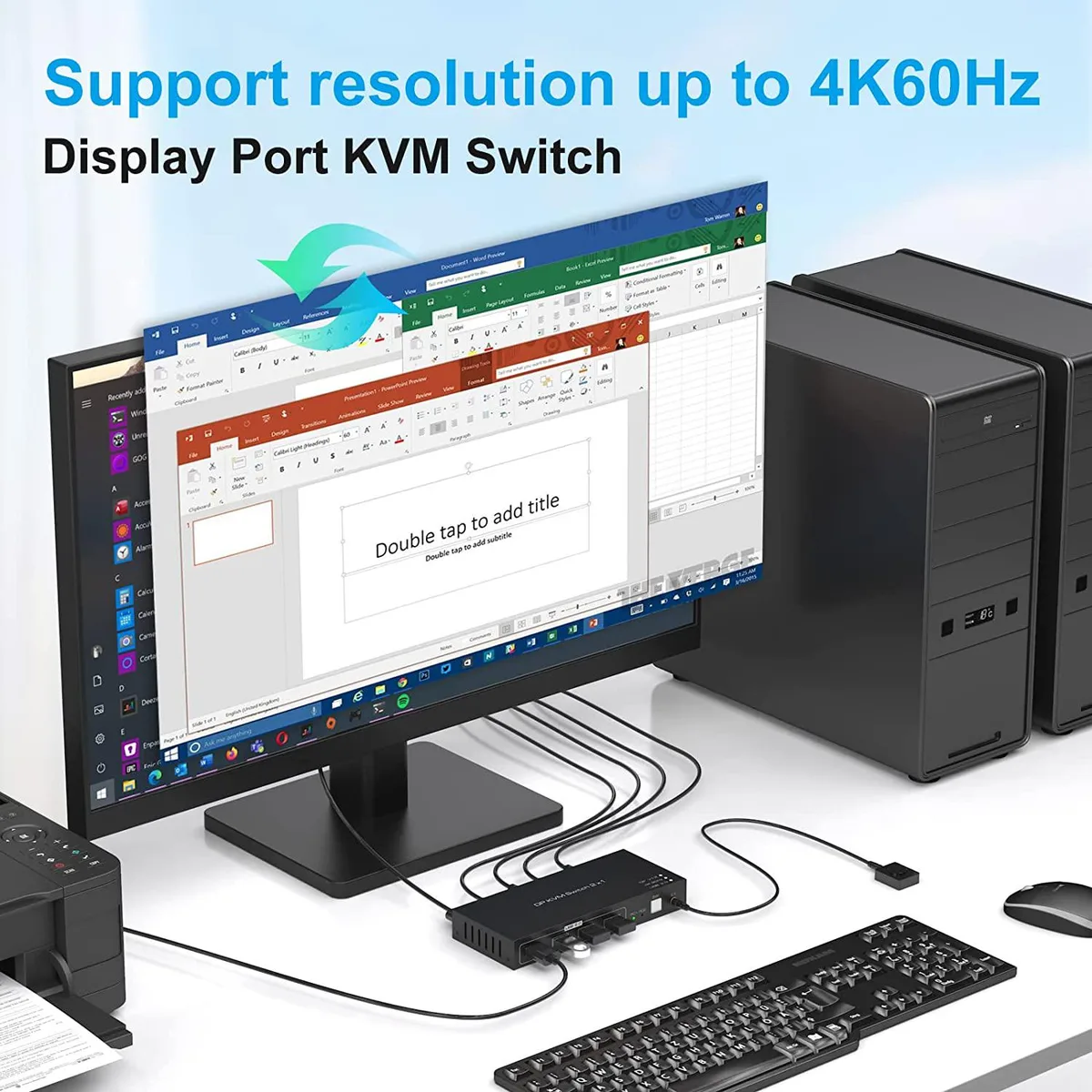

Two-Port DisplayPort KVM Switch

This FOCUSTEC KVM switch lets two computers share one UHD monitor, keyboard and mouse. Switching is handled by a front-panel push button or the wired desktop controller. Four USB 2.0 hub ports provide shared access to peripherals such as barcode scanners, external drives, printers or webcams. The unit is plug-and-play with automatic EDID adaptation and requires no driver installation.

Upgrade From Manual Cable Swapping

Users who currently unplug and reconnect DisplayPort and USB cables when moving between systems gain instant, push-button switching. The jump is worthwhile whenever two workstations or a desktop and a laptop need to share a single 3840 x 2160 at 60 Hz display without degradation. If more than two computers must be managed, this two-port model cannot accommodate the extra systems.

Limits of the DisplayPort 1.2 Interface

The switch passes video at up to 3840 x 2160 at 60 Hz and is backward compatible with lower resolutions. USB peripheral sharing is limited to the 2.0 signalling rate, so high-speed storage or 3.0-class devices will not operate at their full throughput. The wired controller extends up to 3.5 mm via male-to-female extension cables, restricting placement distance between the switch and the control button.

Highlights

  • Share two computers on one 4K 60 Hz monitor
  • Switch instantly via front button or wired desktop controller
  • Four USB 2.0 ports let you share drives printers and cameras
  • DP 1.2 compliant 3840 x 2160 at 60 Hz with automatic EDID adjustment
  • Plug and play with no drivers needed for Windows Mac or Linux

Specifications

TypeUSB

Questions about this item

What DisplayPort cables and monitor resolution does this KVM switch require for a 4K 60 Hz setup?

Connect each computer and the monitor with DisplayPort 1.2 cables. The switch supports up to 3840 x 2160 at 60 Hz and is backward compatible with lower resolutions.

How do I install the wired desktop controller so switching works reliably?

Plug the controller into the 3.5 mm jack on the KVM unit, then connect both computers and the monitor with DisplayPort cables and the two included USB 2.0 cables to the dedicated PC ports. A common mistake is plugging the keyboard or mouse into the four peripheral hub ports instead of the console USB ports on the front.

When would I need to add a 5 V power adapter to keep USB devices working?

If a connected barcode scanner, USB hard drive or other peripheral does not receive enough power from the host computers, attach a 5 V supply to the KVM's power input to drive the four USB 2.0 hub ports.
