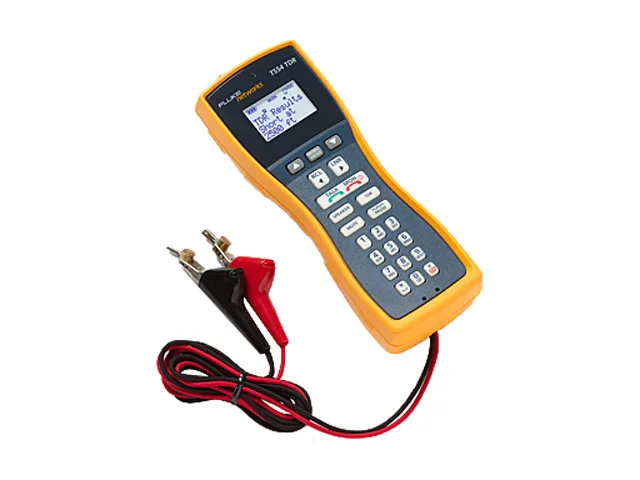

Yellow handheld test set with large backlit LCD screen and keypad

FLUKE networks

FLUKE networks TS54-A-09-TDR test set 9 memories 23 digits 32 ohm 100 mA 140 VDC

SKU CH-2BY9-T059T MPN TS54-A-09-TDR

Handheld test set measures cable length, locates faults and checks voltage up to 140 VDC with a backlit LCD and 9 speed-dial memories

  • TypeTools and Hardware
  • Locate faults on virtually all cable types with built-in TDR
  • 9 speed-dial memories store up to 23 digits each
  • Extra-large backlit LCD shows voltage from 4 to 140 VDC
  • Two-way hands-free speakerphone with 32 ohm headset impedance
  • Data-indication warning plus DTMF digit-grabbing isolates faulty equipment

Professional cable test set

The Fluke Networks TS54-A-09-TDR is a handheld test set built for voice, data and video service technicians. It combines cable length measurement with fault location across virtually all cable types. An extra-large backlit LCD and two-way hands-free speakerphone support field work. Caller ID with call waiting verification confirms functional service on site.

Upgrade from basic butt sets

This unit replaces simple lineman handsets that only offer talk and monitor functions. The jump is worth it when you need DTMF digit grabbing to isolate faulty premise equipment, voltage and current indication to spot line problems, and data presence warnings. Nine speed-dial memories storing 23 digits each plus last-number redial speed up repetitive test calls.

Limits of analog line interface

The set operates on 4 to 140 VDC with a current range of 10 to 100 mA. AC impedance is 600 ohms nominal off-hook and greater than 120 k ohms on-hook across 300 to 3400 Hz. Headset impedance is fixed at 32 ohms. Pulsing runs at 10 pps with a 60/40 break-make ratio and interdigit intervals exceeding 300 ms.

Highlights

  • Locate faults on virtually all cable types with built-in TDR
  • 9 speed-dial memories store up to 23 digits each
  • Extra-large backlit LCD shows voltage from 4 to 140 VDC
  • Two-way hands-free speakerphone with 32 ohm headset impedance
  • Data-indication warning plus DTMF digit-grabbing isolates faulty equipment

Specifications

BrandFluke Networks
TypeTools and Hardware
Shipping weight1.81 kg
Package size330 × 114 × 102 mm

Questions about this item

What headset impedance does the TS54-A-09-TDR support?

The handset jack accepts a 32 ohm headset for hands-free operation.

How do I store a number in the speed-dial memory?

Enter the digits, press the memory key, then choose one of the 9 slots; each holds up to 23 digits.

When should I replace the batteries in this test set?

Replace them when the backlit LCD dims or voltage indication becomes unreliable during line testing.
