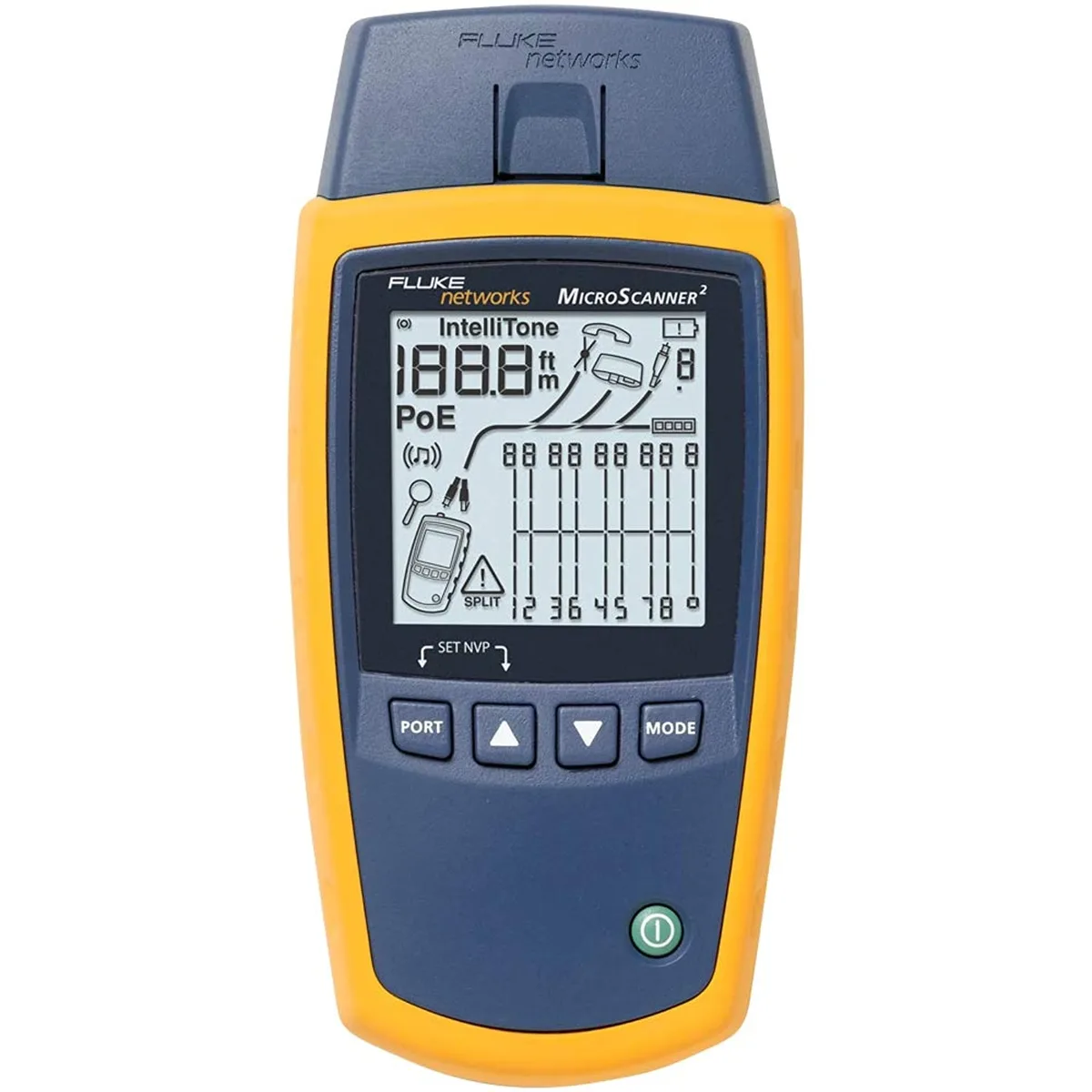

Yellow handheld cable verifier with oversized backlit LCD screen, integrated RJ11 RJ45 and coax ports

FLUKE networks

FLUKE networks MS2-100 MicroScanner2 cable verifier

SKU CH-42EG-36BYD

Verifies copper voice, data and video cables with built-in IntelliTone toning, tests RJ11, RJ45 and coax up to 460 metres, and detects 10/100/1000 Ethernet plus PoE on an oversized backlit LCD

  • Tests cable length up to 460 metres with .3 metre resolution
  • Verifies wiremap to TIA 568A/B standards for correct terminations
  • Built-in IntelliTone toning traces cables through walls and panels
  • Detects 10/100/1000 Ethernet, POTS and 802.3 PoE on live links
  • Oversized backlit LCD shows four test modes simultaneously in any light

Cable verifier for installers

The Fluke Networks MS2-100 MicroScanner2 is a copper cable verifier built for technicians who test voice, data and video links. It accepts RJ11, RJ45 and coax connectors directly on the unit so no adapters are required. The tool validates wiring to TIA 568A/B standards and identifies far-end devices on active networks. It suits anyone certifying structured cabling or troubleshooting live Ethernet, POTS and PoE circuits.

Handheld operation with detachable adapter

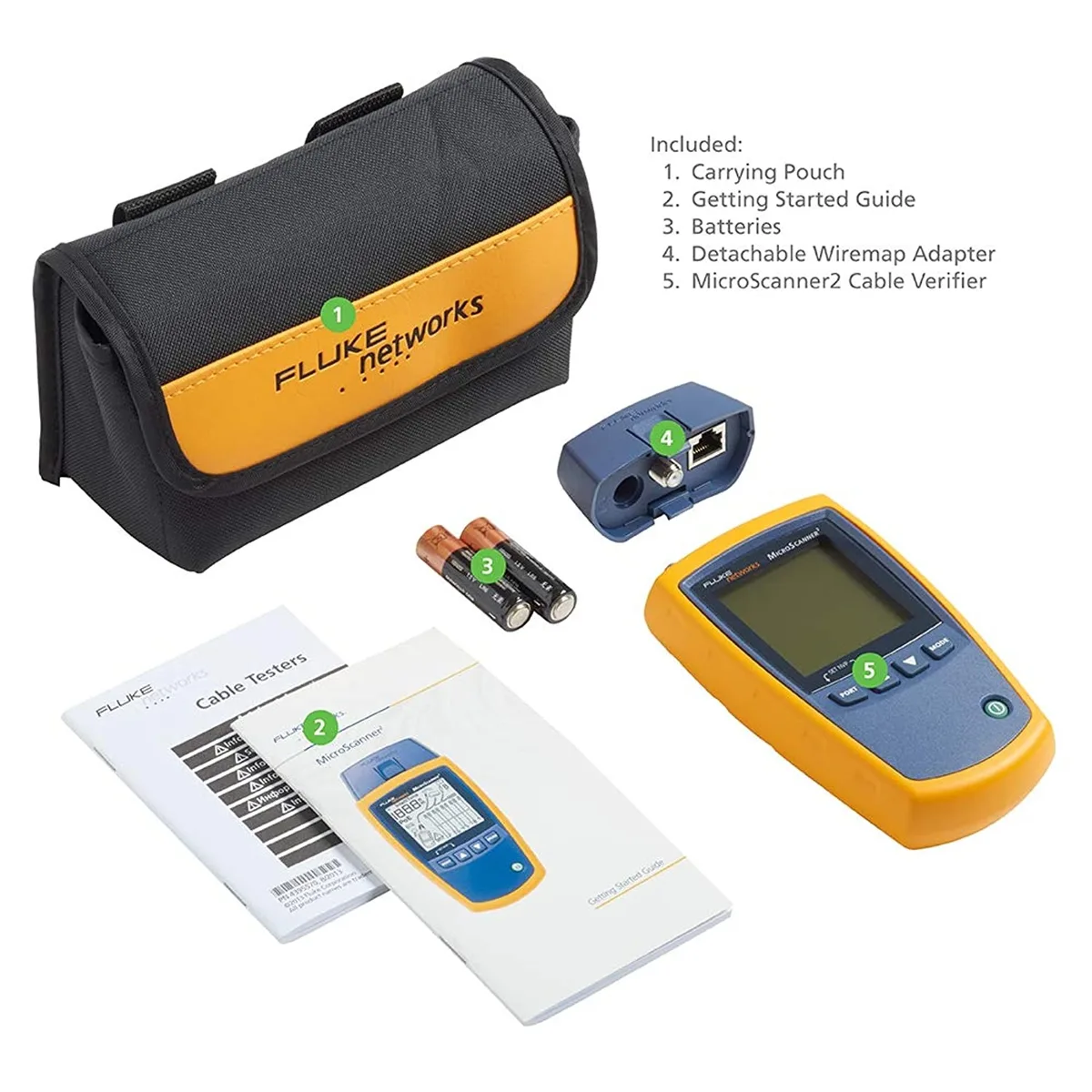

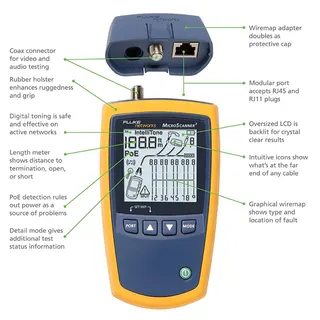

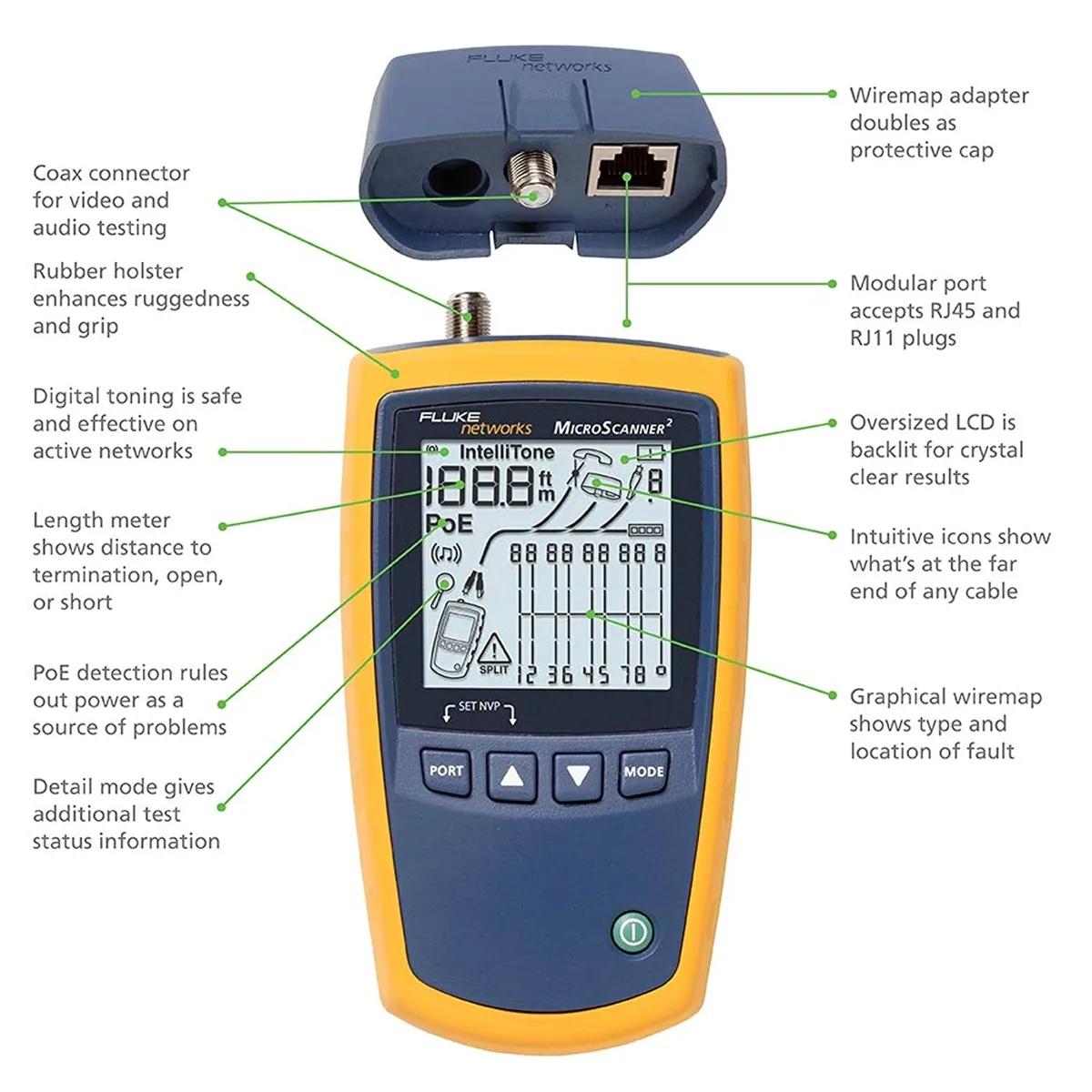

The verifier ships with a detachable wiremap adapter, two AA alkaline batteries, a carry pouch and a user guide. Its oversized backlit LCD shows four test modes simultaneously including graphical wiremap, pair lengths, distance to fault via TDR, cable ID and far-end device detection. The interface uses intuitive icons readable in bright light or darkness. Low-voltage test ports eliminate the need for external adapters during routine checks.

Length measurement to 460 metres

The single specification that defines fit is the maximum cable length the TDR can measure: 460 metres or 1500 feet with resolution to 0.3 metres or 1 foot. Coax testing covers 75, 50 and 93 ohm cables via the F connector. The unit detects 10, 100 and 1000Base-T Ethernet plus 802.3af PoE. It does not support fibre optic media or certification-grade documentation required for warranty programmes.

Highlights

  • Tests cable length up to 460 metres with .3 metre resolution
  • Verifies wiremap to TIA 568A/B standards for correct terminations
  • Built-in IntelliTone toning traces cables through walls and panels
  • Detects 10/100/1000 Ethernet, POTS and 802.3 PoE on live links
  • Oversized backlit LCD shows four test modes simultaneously in any light

Specifications

No published specifications for this item yet.

Questions about this item

How do I confirm the MicroScanner2 is testing cables correctly after setup?

The oversized backlit LCD shows four test modes at once — graphical wiremap, pair lengths, distance to fault with TDR, cable ID and far-end device — so you can verify wiremap to TIA 568A/B standards, length up to 460 meter or 1500 feet with .3 meter or 1 feet resolution, and PoE detection for 802.3af devices in a single view.

What comes in the box and what must I buy separately for the MS2-100?

Included are the MicroScanner2 verifier, detachable wiremap adapter, user guide, two AA alkaline batteries and a carry pouch; the unit has integrated RJ11, RJ45 and coax F-connector ports supporting 75 ohm, 50 ohm and 93 ohm cables, so no extra adapters are required for those interfaces.

Which version of the MicroScanner2 should I choose for testing Ethernet, voice and coax?

The MS2-100 model tests 10/100/1000Base-T Ethernet, POTS voice on RJ11, and coax via the F connector for 75 ohm, 50 ohm and 93 ohm cables, with built-in IntelliTone toning and PoE detection — a single version covers all three cable types.
