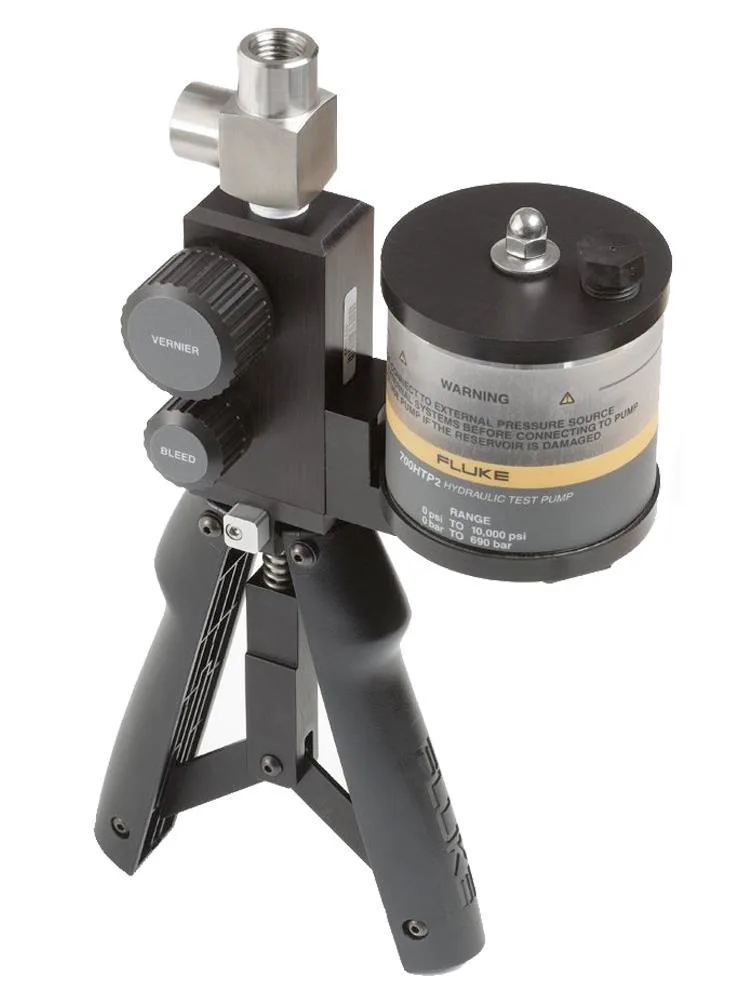

Fluke 700HTP-2 hydraulic test pump with pressure adjustment knob and adapters

Fluke

Fluke 700HTP-2 Hydraulic Test Pump 10K PSI

SKU CH-CPFC-47S75

Hydraulic test pump generates pressure up to 10K PSI with direct module connection, improved priming, stroke limiting and fine-adjustment vernier

  • TypeElectronic
  • Hydraulic test pump generates up to 10K PSI for calibration tasks
  • Direct connection to Fluke 700 pressure modules streamlines setup workflow
  • Improved priming mechanism ensures reliable fluid delivery each stroke
  • Integral vernier knob enables fine pressure adjustment during testing
  • Variable stroke adjustment allows custom volume and pressure per stroke

What the Fluke 700HTP-2 hydraulic test pump does

The Fluke 700HTP-2 hydraulic test pump generates pressure up to 10K PSI for calibration and testing tasks. It connects directly to Fluke pressure modules, consolidating two separate pieces into a single tool. Technicians use it to verify gauges, transmitters and switches in process and maintenance environments.

Sustained-load behaviour and pressure control

An integral vernier knob provides fine pressure adjustment during extended calibration sessions. The variable stroke adjustment lets the operator vary volume and pressure per stroke, reducing fatigue when multiple test points are required. Improved priming and a refined stroke limiting mechanism maintain consistent output over repeated cycles.

Installation notes and common issues

The pump includes two 1/4 in NPT male to 1/4 in BSP female adapters for direct module connection. No external power source is needed, so setup is limited to threading the adapters and attaching the module. The most frequent issue is cross-threading the NPT or BSP fittings if they are not started by hand before tightening.

Highlights

  • Hydraulic test pump generates up to 10K PSI for calibration tasks
  • Direct connection to Fluke 700 pressure modules streamlines setup workflow
  • Improved priming mechanism ensures reliable fluid delivery each stroke
  • Integral vernier knob enables fine pressure adjustment during testing
  • Variable stroke adjustment allows custom volume and pressure per stroke

Specifications

BrandFLUKE
TypeElectronic

Questions about this item

How much effort is needed to operate the Fluke 700HTP-2 hydraulic pump continuously at 10K PSI?

The pump features an improved stroke-limiting mechanism and variable stroke adjustment, letting the user set volume and pressure per stroke for reduced fatigue during extended calibration sessions.

Which pressure modules or fittings must I already own to connect the Fluke 700HTP-2 for calibration work?

The pump connects directly to Fluke pressure modules and includes two 1/4 in NPT male to 1/4 in BSP female adapters; compatible modules and any additional hoses are separate purchases.

Will the Fluke 700HTP-2 work with my older Fluke pressure modules that use 1/4 NPT ports?

Yes, the supplied NPT-to-BSP adapters allow direct connection to legacy 1/4 NPT modules, consolidating the separate pump and module setup into a single integrated unit.
