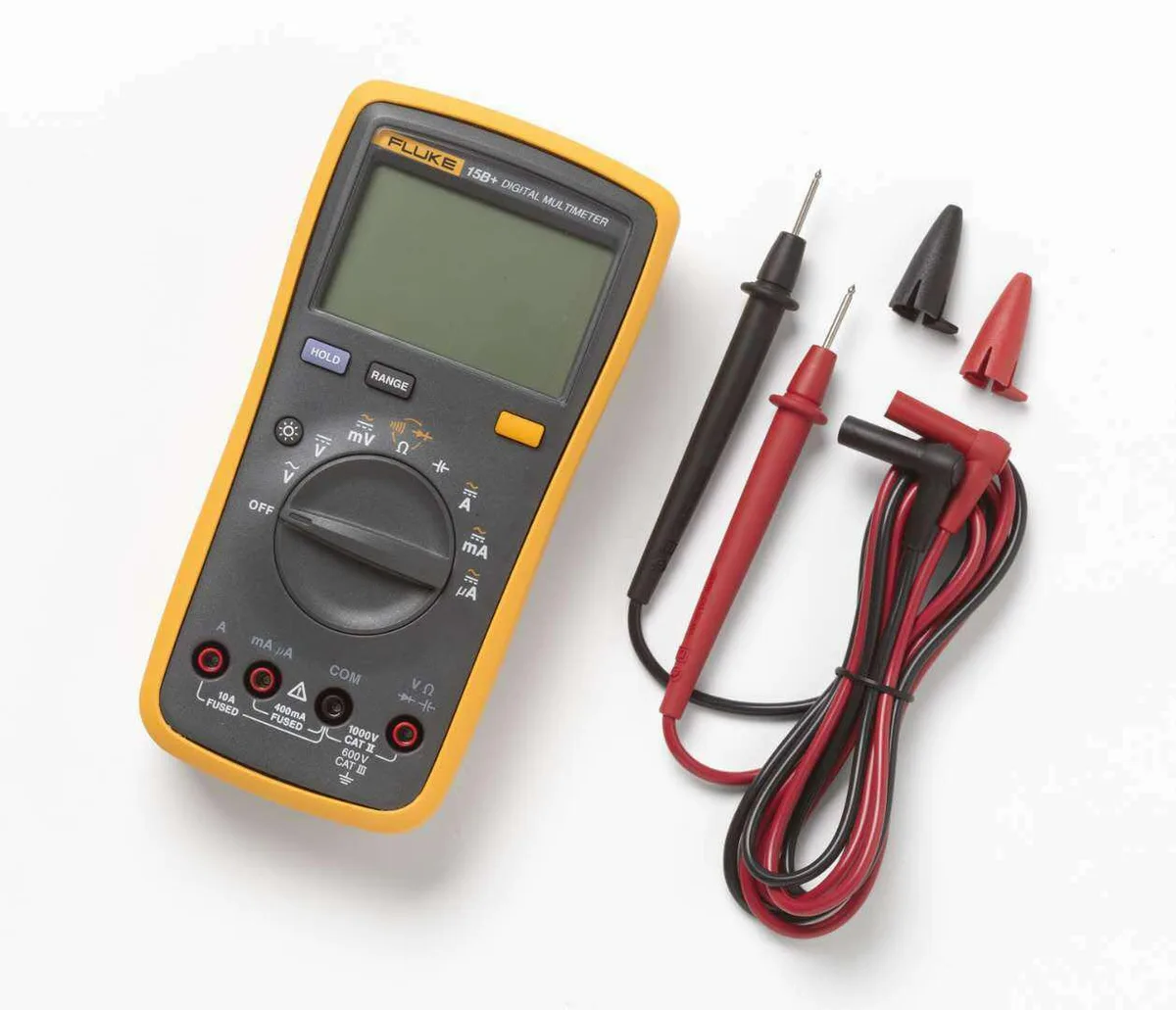

Yellow Fluke 15B+ multimeter with white backlight and 21-piece test lead kit

Fluke

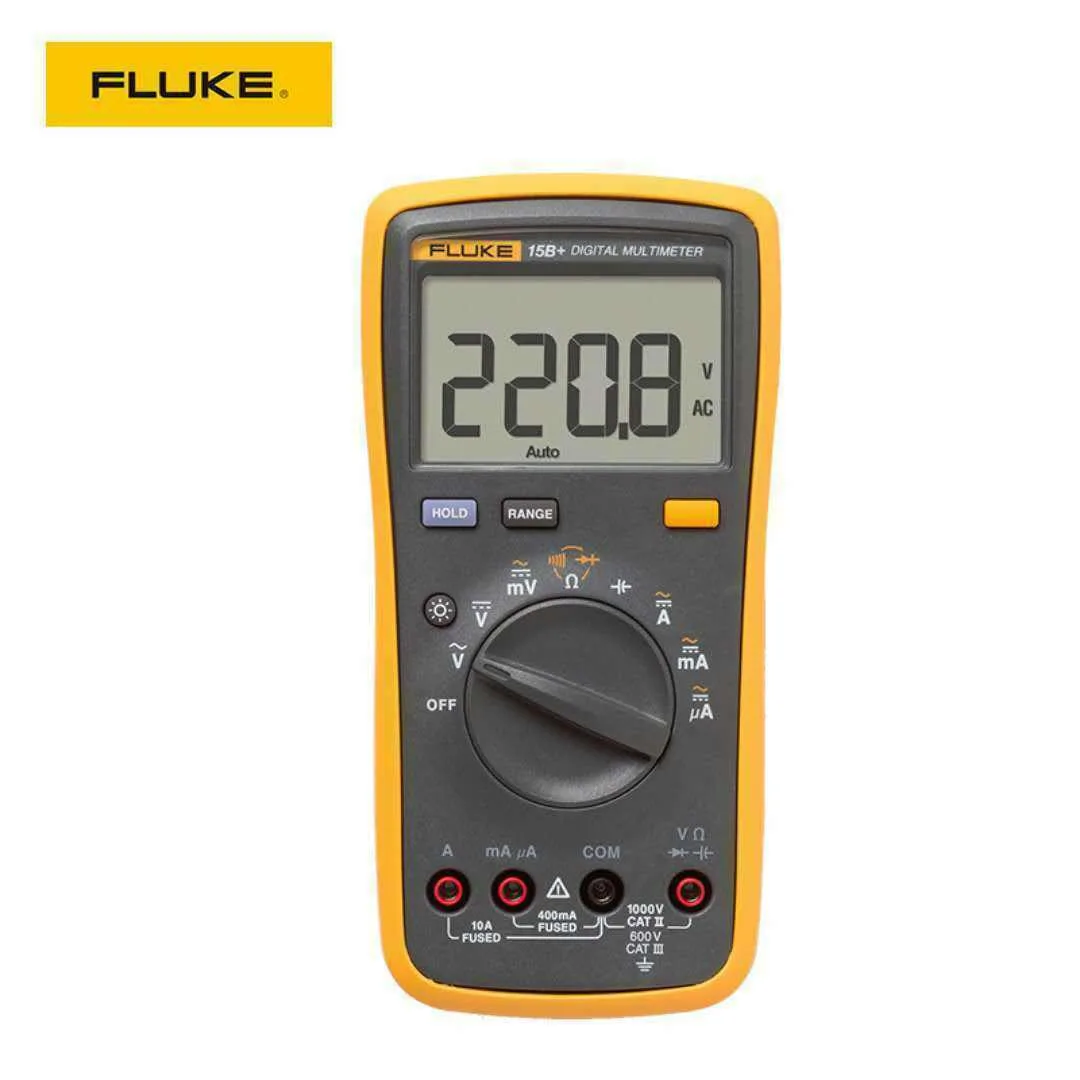

Fluke 15B+ Digital Multimeter & 21-in-1 Test Lead Kit

SKU CH-DYG5-61VPB

A 4000-count digital multimeter with a 1.5× larger white-backlit display, 0.01 nF to 1000 F capacitance range and 21-piece test lead kit for 1000 V work

  • TypeMultifunction Testers
  • Larger display with 1.5 times the original screen size
  • White LED backlight for brighter readings in low light
  • Capacitance measurement from 0.01nF up to 1000F
  • 4000-count LCD updates three times per second

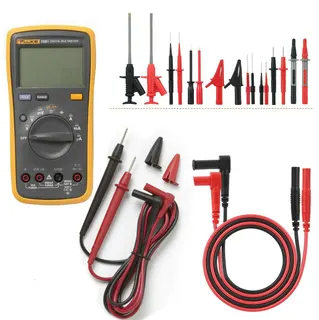

  • Includes 21-piece test lead kit for versatile connections

Digital Multimeter with 21-in-1 Lead Kit

The Fluke 15B+ is a digital multimeter supplied with a 21-in-1 test lead kit for general electrical measurement. It targets technicians and hobbyists who need a single instrument for voltage, current, resistance and capacitance checks. The bundle provides the probes and accessories required to connect to a variety of test points immediately. It suits users who want a ready-to-use measurement package without sourcing leads separately.

Measurement Range and Display Limits

The meter measures up to 1000 V between any terminal and earth ground with a 4000-count LCD that updates three times per second. Capacitance range spans 0.01 nF to 1000 F, while current inputs are protected by a 440 mA, 1000 V fast fuse. Operating temperature is rated 0 to 40 degrees and storage temperature -30 to 60 degrees. Buyers who need higher voltage ratings, faster update rates or greater count resolution cannot meet those needs with this model.

Build Quality and Connector Practicality

A white LED backlight improves screen readability in low light and the display area is 1.5 times larger than the previous version. Power comes from two AA batteries delivering 500 hours minimum life, reduced to 50 hours in LED test mode without load. The unit operates up to 2000 m altitude and tolerates non-condensing humidity up to 90 percent at 10 to 30 degrees. Users requiring rechargeable power, ruggedised casing or waterproof sealing will find those features absent.

Highlights

  • Larger display with 1.5 times the original screen size
  • White LED backlight for brighter readings in low light
  • Capacitance measurement from 0.01nF up to 1000F
  • 4000-count LCD updates three times per second
  • Includes 21-piece test lead kit for versatile connections

Specifications

TypeMultifunction Testers

Questions about this item

Should I choose the 21-in-1 lead kit or buy the multimeter alone?

The 21-in-1 kit supplies a wide variety of probes, clips and adapters that cover most bench and automotive tasks, while the meter alone requires separate lead purchases.

What does the 4000-count display mean for daily measurements?

It provides a resolution of one count on a 4000-count scale with three updates per second, so voltage, current and resistance readings are detailed and responsive.

How does the 1000 V CAT rating limit where I can use this meter?

The 1000 V maximum between any terminal and earth ground lets you work on mains panels, industrial control circuits and automotive systems rated up to that voltage.
