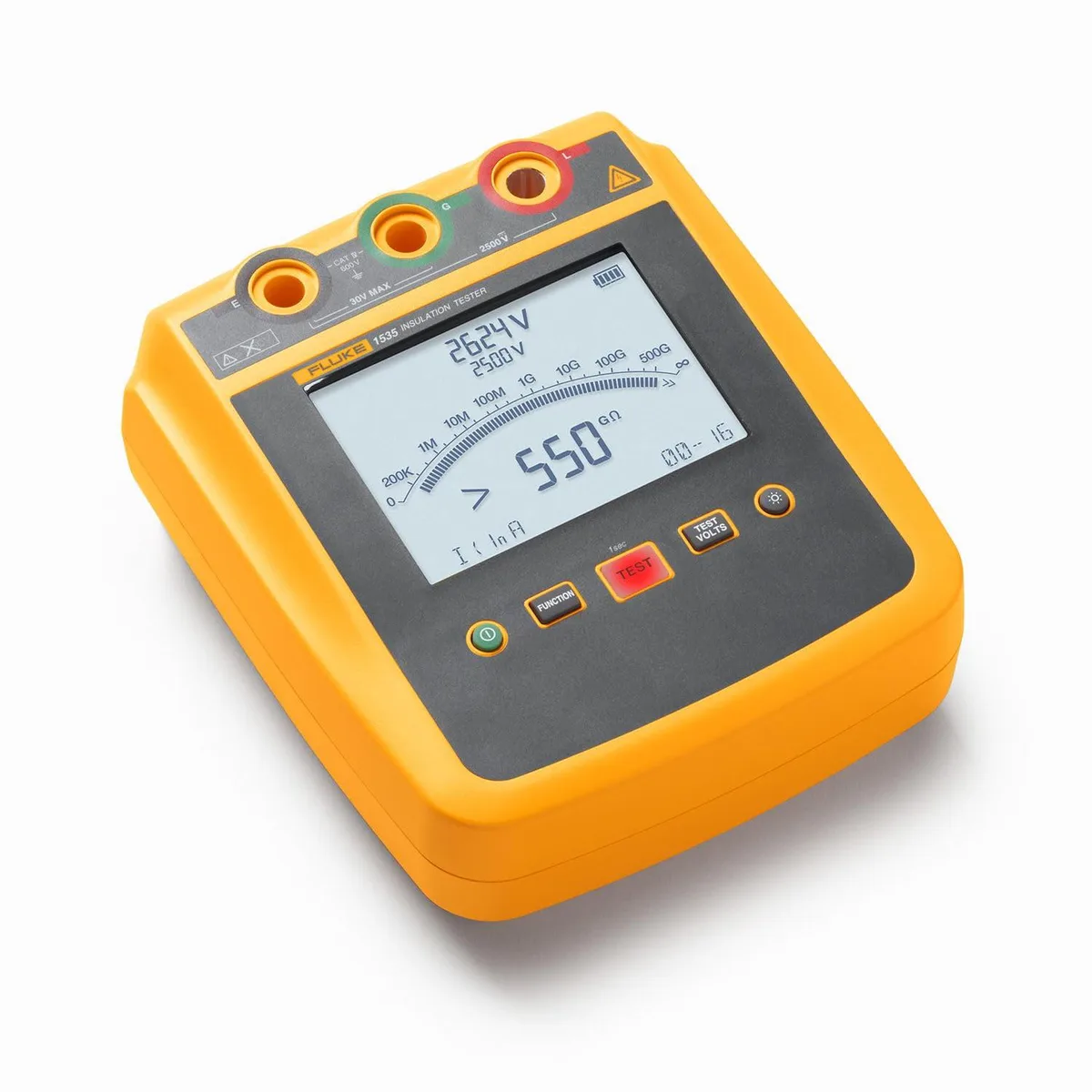

Yellow handheld Fluke 1535 insulation tester with digital display and test leads

Fluke

Fluke 1535 Insulation Tester 2500 V 500 G

SKU CH-EBDW-NRKSV

Tests insulation at selectable voltages from 250 V to 2500 V and measures resistance up to 500 G with automatic PI and DAR calculation

  • Quickly check cables, motors & transformers with 250 V to 2500 V test voltages
  • Automatic PI & DAR calculation reduces environmental impact on readings
  • Fast, stable resistance readings up to 500 G improve troubleshooting efficiency
  • Voltage alarm plus CAT IV 600 V rating enhances operator safety
  • Up to 1300 tests at 2500 V or 6500 at 250 V per battery set

Industrial insulation tester

The Fluke 1535 is a portable insulation resistance tester built for frontline technicians, electricians and contractors who verify the integrity of cables, motor windings, transformers and solar installations. It provides user selectable test voltages of 250 V, 500 V, 1000 V and 2500 V and measures insulation resistance up to 500 G. Automatic calculation of polarization index and dielectric absorption ratio reduces the influence of environmental factors on results.

Voltage and safety limits

Test voltages are limited to the four fixed steps of 250 V, 500 V, 1000 V and 2500 V, so the instrument cannot deliver intermediate or higher voltages. The safety rating complies with CAT IV 600 V, meaning the tester is not rated for measurement categories above 600 V. Battery capacity supports up to 1300 measurements at 2500 V or 6500 measurements at 250 V before replacement is required.

Installation and common issues

The unit ships ready to use with test leads and batteries installed; operation begins by selecting the required voltage and connecting the leads to the equipment under test. Common problems include attempting measurements on circuits that exceed the CAT IV 600 V rating, selecting a test voltage higher than the insulation rating of the device being tested, and depleted batteries reducing the available measurement count.

Highlights

  • Quickly check cables, motors & transformers with 250 V to 2500 V test voltages
  • Automatic PI & DAR calculation reduces environmental impact on readings
  • Fast, stable resistance readings up to 500 G improve troubleshooting efficiency
  • Voltage alarm plus CAT IV 600 V rating enhances operator safety
  • Up to 1300 tests at 2500 V or 6500 at 250 V per battery set

Specifications

No published specifications for this item yet.

Questions about this item

Which test voltage should I choose for a 1000 V system?

Select the 1000 V test voltage setting on the Fluke 1535 to match the rated voltage of the equipment under test.

What does the 500 G resistance capability mean on a job site?

The tester can measure insulation resistance up to 500 G, allowing verification of high-integrity cables, motor windings and transformer insulation.

How does the CAT IV 600 V rating affect where I can use the tester?

CAT IV 600 V means the instrument is rated for measurements at the origin of low-voltage installations such as service entrances and meter centres.
