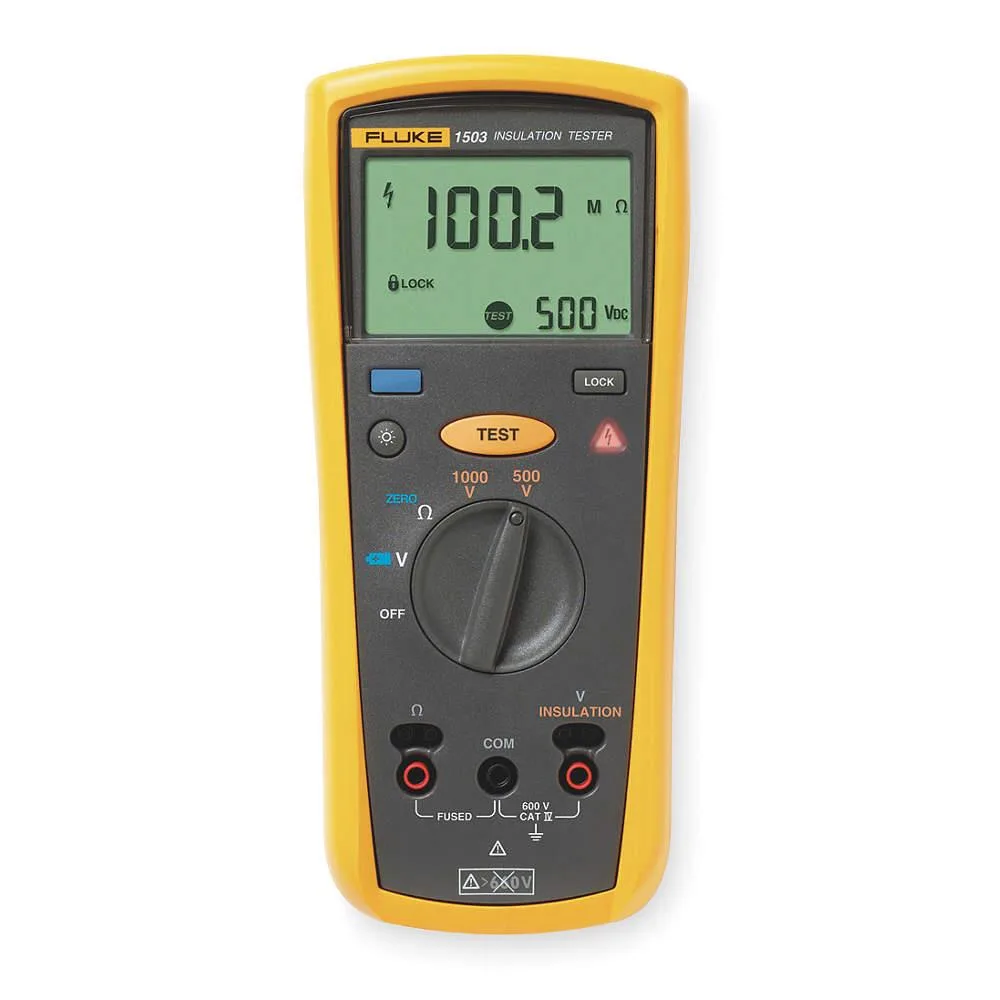

Yellow Fluke 1503 digital insulation tester with LCD display and test leads

Fluke

Fluke 1503 Insulation Resistance Meter 500/1000V

SKU CH-8NF6-QKF19 MPN 1503

A compact digital insulation tester delivering 500 V or 1000 V DC test voltages, measuring resistance from 0.1 MΩ to 2000 MΩ with live-circuit detection above 30 V and CAT IV 600 V safety rating.

  • Analog/DigitalDigital
  • TypeInsulation Tester
  • Tests insulation to 2000 megohm for reliable fault finding
  • Dual 500/1000V DC test voltages suit varied maintenance tasks
  • Live circuit detection above 30V protects the operator
  • CAT IV 600V safety rating meets demanding industrial standards
  • Compact kit includes remote probe, leads, clips and batteries

Insulation resistance meter for maintenance teams

The Fluke 1503 is a digital megohmmeter built for troubleshooting, commissioning and preventative maintenance. It supplies selectable 500 V or 1000 V DC test voltages and measures insulation from .1 to 2000 megohm. A remote probe, test leads, probes, alligator clips and a protective boot are included.

Limits of the CAT IV 600 V safety rating

The tester is rated CAT IV 600 V, so it is approved for measurements at the service entrance and on outdoor conductors. It must not be used on circuits whose voltage to earth exceeds 600 V. Live-circuit detection warns when more than 30 V is present, but the instrument itself is not rated for higher-category environments.

Accuracy that defines the pass or fail call

Insulation readings carry an accuracy of +/-2 % plus 3 digits, and low-ohm resistance reads up to 20 kilohm with the same tolerance. That specification decides whether a marginal result is a true defect or a measurement artefact. Buyers who need tighter uncertainty for calibration-grade records should look elsewhere.

Highlights

  • Tests insulation to 2000 megohm for reliable fault finding
  • Dual 500/1000V DC test voltages suit varied maintenance tasks
  • Live circuit detection above 30V protects the operator
  • CAT IV 600V safety rating meets demanding industrial standards
  • Compact kit includes remote probe, leads, clips and batteries

Specifications

BrandFLUKE
Model1503
Analog/DigitalDigital
TypeInsulation Tester

Questions about this item

Should I use the 500 V or 1000 V test setting for my application?

Select 500 V for lower-voltage equipment and 1000 V for higher-voltage insulation; both are built into the 1503 so you can switch on the meter.

What does the 2000 megohm upper range mean when I am testing a motor winding?

It lets you measure insulation resistance up to 2000 megohm with a stated accuracy of ±2 % + 3 digits, so readings near that limit are still reliable.

How does the CAT IV 600 V rating affect where I can safely connect the tester?

CAT IV 600 V means the 1503 is rated for measurements at the origin of low-voltage installations, such as service entrances and main panels.
