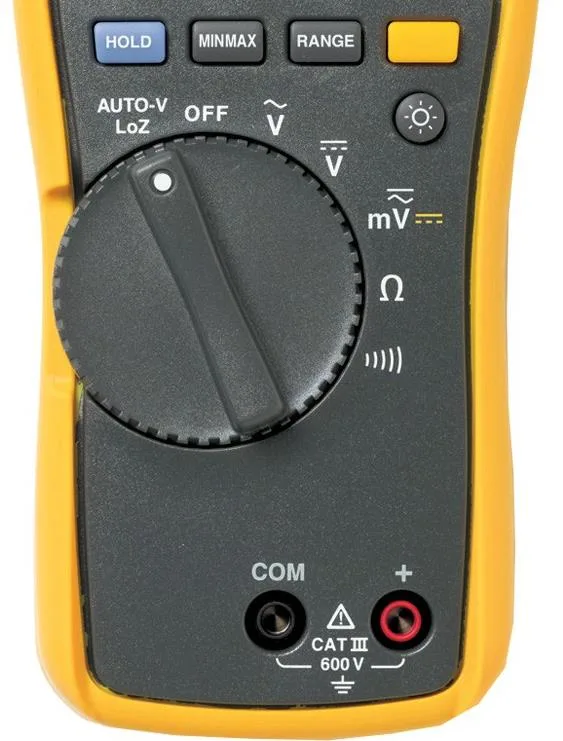

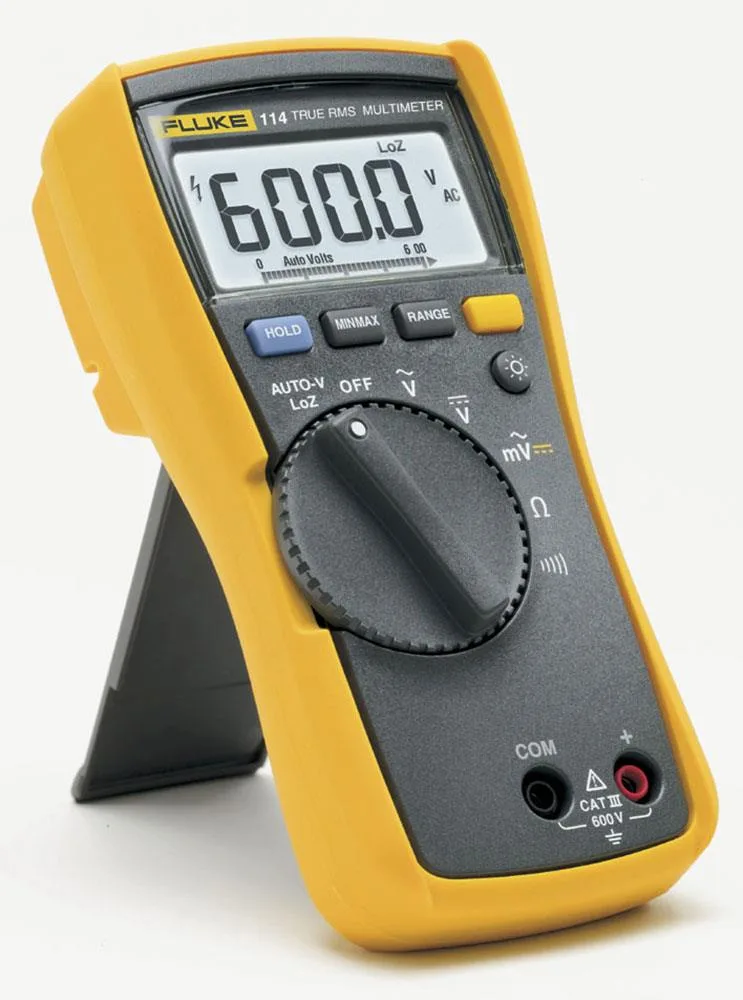

Yellow Fluke 114 digital multimeter with large backlit display and rotary selector

Fluke

Fluke 114 Digital TRMS Multimeter measurement tool

SKU CH-2ZE3-WQHP1 MPN 114

Measures AC/DC voltage, resistance and continuity with true-RMS accuracy, automatic voltage selection and a large backlit display for low-light work

  • Size/Dimensions6.57 x 3.31 x 1.82
  • Analog/DigitalDigital
  • TypeMultimeter
  • True-RMS readings for accurate AC voltage and current measurement
  • AutoVolt automatically selects AC or DC voltage range
  • Large 6 000-count display with white LED backlight for low light
  • LoZ mode prevents false readings from ghost voltage
  • CAT III 600 V safety rating with UL CSA VDE listings

Essential TRMS Multimeter for Electricians

The Fluke 114 is a handheld digital true-rms multimeter designed for electrical troubleshooting. Its 6,000-count display features digits that are 28 percent larger than previous models and a large white LED backlight for poorly lit areas. A single 9 volt alkaline battery provides 400 hours of operation without the backlight engaged.

Suited for Voltage and Resistance Checks

This meter suits electricians and technicians who need reliable go/no-go testing with automatic ac/dc voltage selection via AutoVolt. The LoZ function helps prevent false readings caused by ghost voltage during diagnostics. Buyers who require current measurement, capacitance, frequency or temperature functions should look at a different instrument.

Safety Rated for CAT III 600 V Environments

All inputs are protected to CE, IEC 61010-1 CAT III 600 V and carry UL, CSA, TV and VDE listings. The compact body measures 6.57 x 3.31 x 1.82 inches for easy one-hand operation. This safety rating is the specification that determines whether the meter matches the installation category of the work site.

Highlights

  • True-RMS readings for accurate AC voltage and current measurement
  • AutoVolt automatically selects AC or DC voltage range
  • Large 6 000-count display with white LED backlight for low light
  • LoZ mode prevents false readings from ghost voltage
  • CAT III 600 V safety rating with UL CSA VDE listings

Specifications

BrandFluke
Model114
Size/Dimensions6.57 x 3.31 x 1.82
Analog/DigitalDigital
TypeMultimeter

Questions about this item

Will the Fluke 114 fit alongside older test leads and probes I already own?

Yes, the 114 uses standard 4 mm banana-jack inputs, so existing leads and probes with 4 mm plugs connect directly without adapters.

How can I confirm the 114 is measuring correctly after I unpack it?

Select the resistance range, touch the probe tips together, and verify the display reads near 0 Ω; then measure a known 1.5 V alkaline cell and check for approximately 1.5 V dc.

What ships in the box and what must I purchase separately?

The 114 includes the meter, a 9 V alkaline battery installed, test leads with 4 mm probes, and a printed safety sheet; a carrying case and specialty probes are sold separately.
