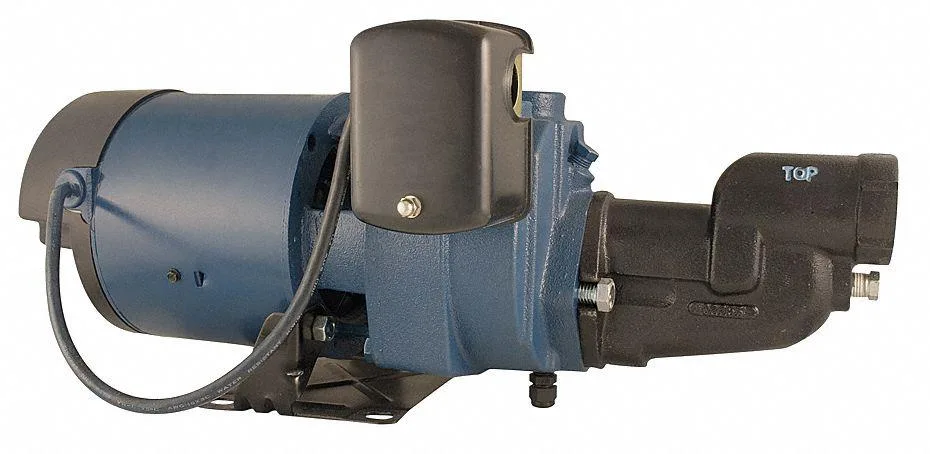

Blue painted shallow well jet pump with pressure switch and ejector attached

Flint & Walling

Flint & Walling EK10S 1 HP Shallow Well Jet Pump

SKU CH-36WP-GSJND

Shallow well jet pump delivering up to 17.4 gpm at 30 psi with a 25 ft suction lift and dual-voltage motor

  • Delivers 17.4 gpm at 30 PSI for strong household supply
  • Maintains 16.1 gpm at 50 PSI for consistent pressure at higher demand
  • Draws from depths up to 25 ft for versatile shallow-well installation
  • Dual-voltage 115/230 V motor adapts to existing wiring without rewiring
  • Factory-set pressure switch stops at 65 PSI protecting plumbing from over-pressure

Shallow well jet pump for residential water supply

The Flint & Walling EK10S is a 1 hp shallow well jet pump designed for homes drawing water from sources up to 25 ft below the pump. It operates on 115/230V AC at 14/7 A and includes a pressure switch and ejector for immediate installation. The 1-1/4 in NPT inlet and 1 in NPT discharge connect to standard plumbing. This unit is not suited for deep well applications or installations requiring suction lifts greater than 25 ft.

Thermal performance and electrical draw

The motor runs on single-phase 115/230V AC power, drawing 14 A at 115 V or 7 A at 230 V during normal operation. The pump delivers 17.4 gpm at 30 psi, 16.7 gpm at 40 psi and 16.1 gpm at 50 psi, all measured at a 10 ft lift. Maximum case pressure is rated at 150 psi with a shut-off pressure of 65 psi. No decibel rating or temperature rise data is provided by the manufacturer.

Included accessories simplify setup

A factory-set pressure switch is included, allowing the pump to cycle automatically between cut-in and cut-out pressures without separate purchase. The ejector is also supplied, so the jet assembly is ready for shallow well piping. No control box, tank or additional fittings are bundled; installers must source those separately.

Highlights

  • Delivers 17.4 gpm at 30 PSI for strong household supply
  • Maintains 16.1 gpm at 50 PSI for consistent pressure at higher demand
  • Draws from depths up to 25 ft for versatile shallow-well installation
  • Dual-voltage 115/230 V motor adapts to existing wiring without rewiring
  • Factory-set pressure switch stops at 65 PSI protecting plumbing from over-pressure

Specifications

BrandFLINT & WALLING

Questions about this item

How do I install the 1-1/4 in NPT inlet and 1 in NPT discharge connections, and what step is often missed?

Use thread sealant on both NPT fittings, prime the pump housing completely before starting, and set the pressure switch to match the 30-50 psi operating range; the step most often missed is full priming, which causes loss of suction at the 25 ft maximum lift.

Which components will need replacement over time on this 1 HP shallow well jet pump?

The ejector assembly, pressure switch contacts, motor shaft seal, and impeller are the primary wear items; inspect the ejector nozzle and venturi annually for mineral buildup that reduces the 17.4 gpm flow at 30 psi.

What is the first performance limit reached during continuous operation at 40 psi?

The shut-off pressure of 65 psi caps the maximum head; at 40 psi the pump delivers 16.7 gpm, and sustained running against a closed valve will hit the 65 psi limit and trigger the pressure switch to cycle the 115/230 V motor off.
