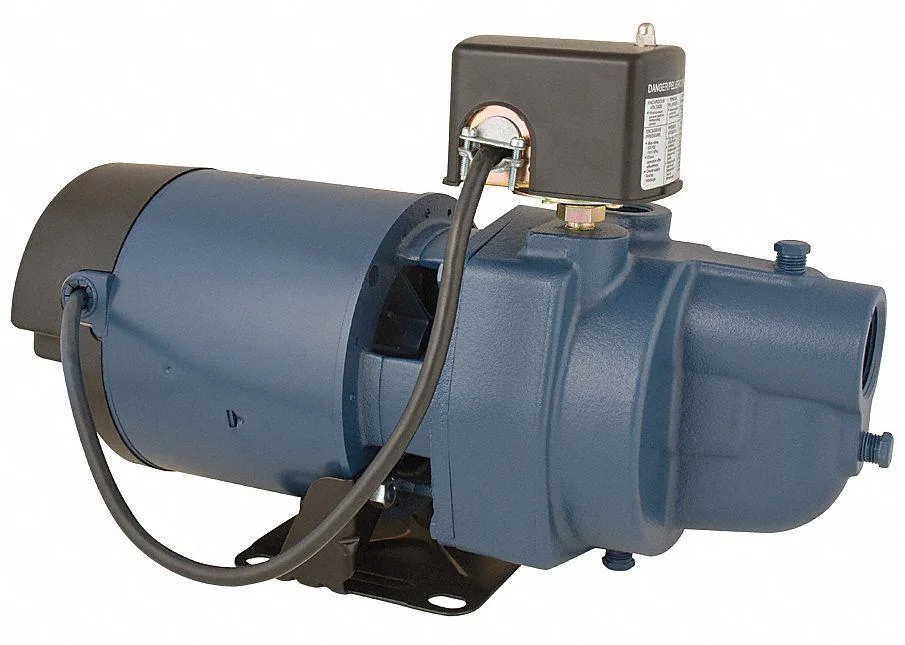

Shallow well jet pump, painted metal housing, motor and ejector assembly, pressure switch visible

Flint & Walling

Flint & Walling EK05S Shallow Well Jet Pump 1/2 HP

SKU CH-0V1C-HE6RJ

Shallow well jet pump with 1/2 HP motor delivers 9.3 gpm at 30 PSI and includes ejector and pressure switch

  • Delivers 9.3 gpm at 30 psi for strong household flow
  • Dual 115/230 V voltage fits standard wiring without rewiring
  • 25 ft suction lift reaches shallow groundwater sources
  • Built-in pressure switch automates pump cycling
  • 1/2 hp motor balances power with energy efficiency

Shallow Well Jet Pump 1/2 HP

The Flint & Walling EK05S is a shallow well jet pump rated at 1/2 horsepower for residential water supply. It operates on dual voltage 115/230V AC and includes an ejector and pressure switch for a complete installation. This unit suits homeowners drawing from wells with suction lifts up to 25 ft.

Flow rates at 10 ft lift

At a 10 ft suction lift the pump delivers 9.3 gpm at 30 psi and 7.8 gpm at 40 psi, with no rated flow at 50 psi. The maximum suction lift is 25 ft and the shut-off pressure reaches 60 psi, so demand beyond these points will exceed the pump's capacity. Inlet is 1-1/4 in NPT and discharge is 3/4 in NPT.

Motor draw and pressure limits

The motor draws 8.6 amps at 115V or 4.3 amps at 230V during normal operation. Maximum case pressure is rated at 150 psi, providing a safety margin above the 60 psi shut-off. Overall dimensions are 19 1/2 length, 11 width and 10 3/5 height for placement planning.

Highlights

  • Delivers 9.3 gpm at 30 psi for strong household flow
  • Dual 115/230 V voltage fits standard wiring without rewiring
  • 25 ft suction lift reaches shallow groundwater sources
  • Built-in pressure switch automates pump cycling
  • 1/2 hp motor balances power with energy efficiency

Specifications

BrandFLINT & WALLING

Questions about this item

Will the 1-1/4 in NPT inlet and 3/4 in NPT discharge connect to my existing galvanised pipework?

Both ports use standard NPT threads so they will mate with any 1-1/4 in and 3/4 in NPT fittings you already have.

How can I verify the pump is delivering the rated 9.3 gpm at 30 psi after installation?

Install a pressure gauge on the discharge tee; with the suction lift at 10 ft the gauge should read 30 psi while the flow meter shows 9.3 gpm.

Does the box include the ejector and pressure switch, or must I buy them separately?

The ejector and pressure switch are both included; only pipe, fittings and wiring are purchased separately.
