Black rectangular AC adapter with 5.5 by 2.5 mm barrel connector and detachable power cord

FLEANE

FLEANE 110W 15.6V 7.05A Toughbook AC Adapter 5.5x2.5mm

SKU CH-D30G-TCJAE

110 W AC adapter with 5.5×2.5 mm tip for Panasonic Toughbook CF-19, CF-31, CF-33, CF-52, CF-53, CF-54, CF-55 and CF-73 series

  • TypeCharger
  • Delivers 110W at 15.6V 7.05A for reliable power
  • 5 x 2.5 mm barrel tip fits listed Toughbook DC ports
  • Compatible with CF-19, CF-31, CF-33, CF-52, CF-53, CF-54, CF-73 series
  • Replaces Panasonic part numbers CF-AA5713A, CF-AA5713A M1, CF-AA5713AE
  • Built-in circuit protection guards against over-voltage, over-current and short circuits

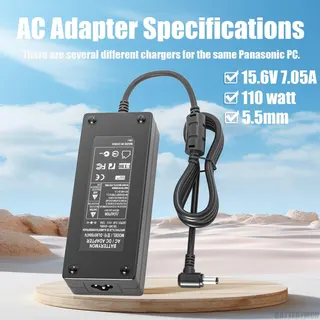

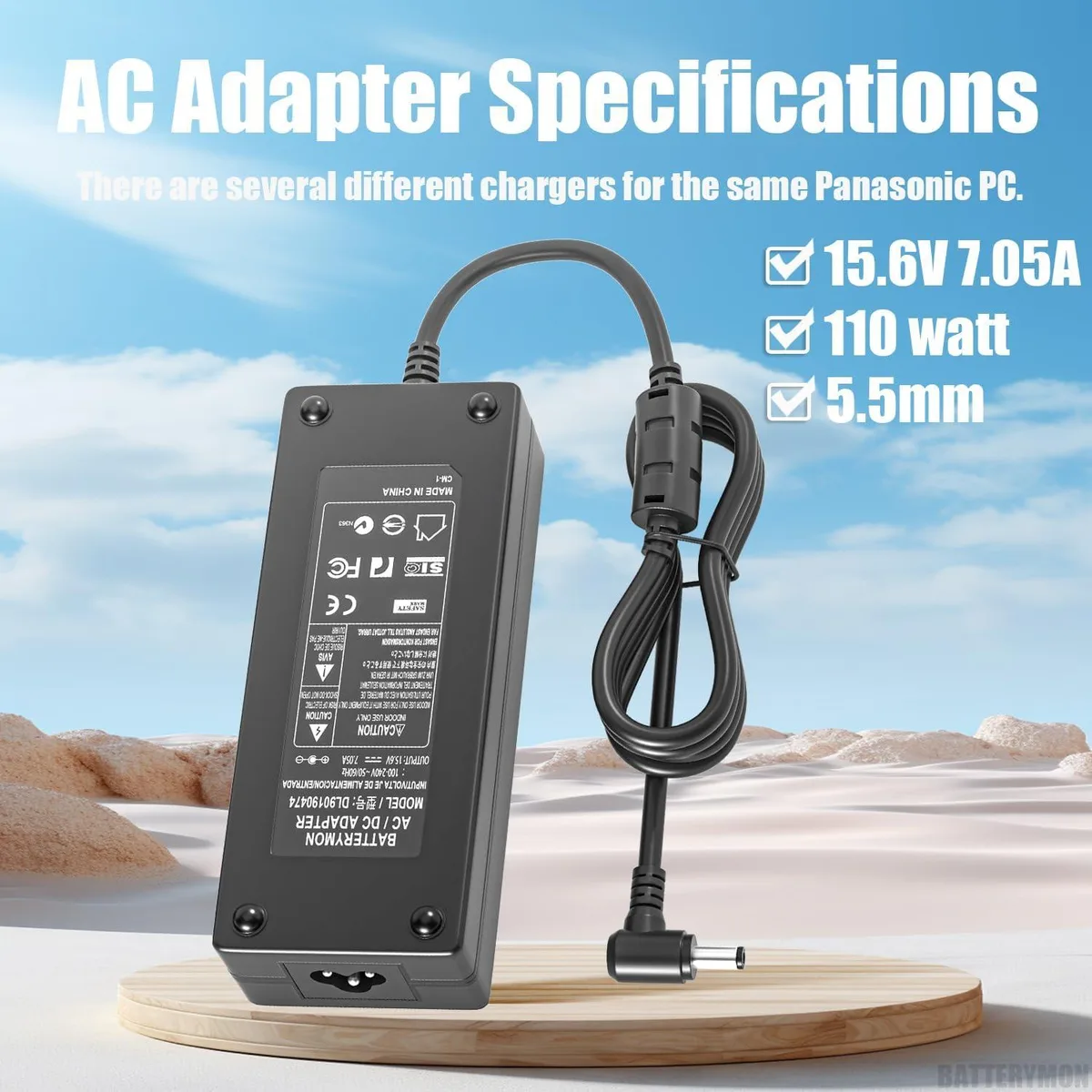

110W Toughbook Charger 5.5x2.5mm

This 110W AC adapter delivers 15.6V at up to 7.05A for compatible Panasonic Toughbook laptops. It fits models such as the CF-19, CF-31, CF-33, CF-52, CF-53, CF-54 and CF-73 series. The barrel tip measures 5.5mm by 2.5mm. It replaces part numbers including CF-AA5713A and CF-AA5713A M1.

Installation and common issues

The package includes the charger and a mains power cable for immediate use. Connect the barrel tip to the laptop DC-in jack and plug the cable into a wall outlet. The most frequent problem is ordering the wrong tip size; the same Toughbook model can ship with two different connector types. Verify the 5.5x2.5mm dimensions on your original adapter before fitting.

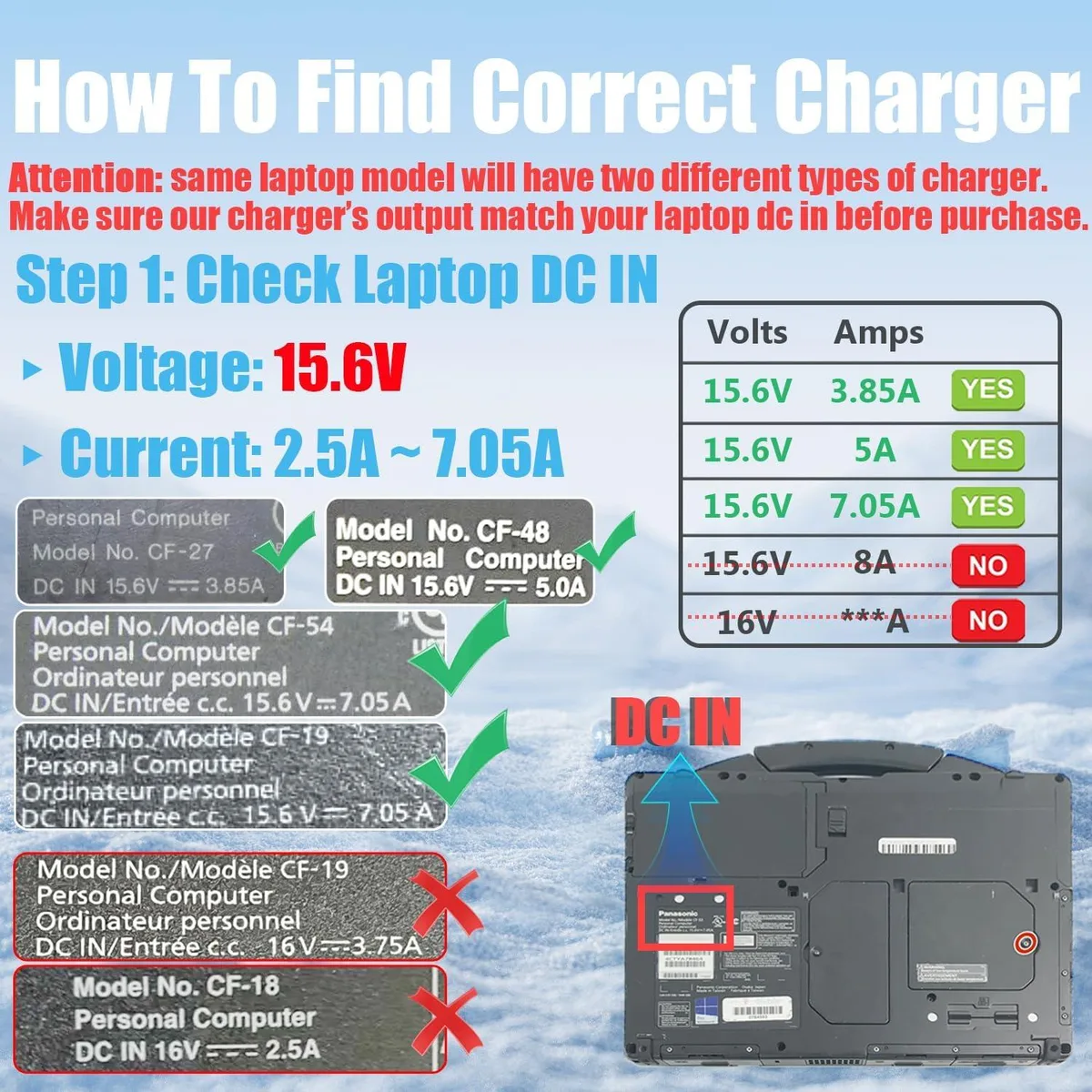

Check your existing setup

Confirm your laptop requires a 15.6V input and accepts a current draw between 4.74A and 7.05A. Cross-reference the part number on your old charger against the compatible list such as CF-AA5713AE or CF19ADNAXD. Ensure the DC-in port matches the 5.5mm outer and 2.5mm inner diameter. This unit is not suitable for devices needing a different voltage or tip geometry.

Highlights

  • Delivers 110W at 15.6V 7.05A for reliable power
  • 5 x 2.5 mm barrel tip fits listed Toughbook DC ports
  • Compatible with CF-19, CF-31, CF-33, CF-52, CF-53, CF-54, CF-73 series
  • Replaces Panasonic part numbers CF-AA5713A, CF-AA5713A M1, CF-AA5713AE
  • Built-in circuit protection guards against over-voltage, over-current and short circuits

Specifications

TypeCharger

Questions about this item

How can I confirm the 110W adapter is charging my CF-54 correctly after connecting the 5.5x2.5mm tip?

The laptop's battery indicator should show charging and the charge LED will light. If the system powers on and runs without the battery inserted, the adapter is delivering the required 15.6V 7.05A output.

What comes in the package and do I need to buy a separate mains lead for UK sockets?

The box contains the 110W charger unit and a detachable power cable. No extra cable is required; the supplied cord connects the adapter to a standard wall outlet.

My Toughbook is a CF-33 — should I choose the 110W model or is the 65W version enough?

The 110W unit covers every listed model including the CF-33 and CF-55. It also replaces the 65W CF-AA5713A series, so the higher-wattage adapter works for all compatible Toughbooks.
