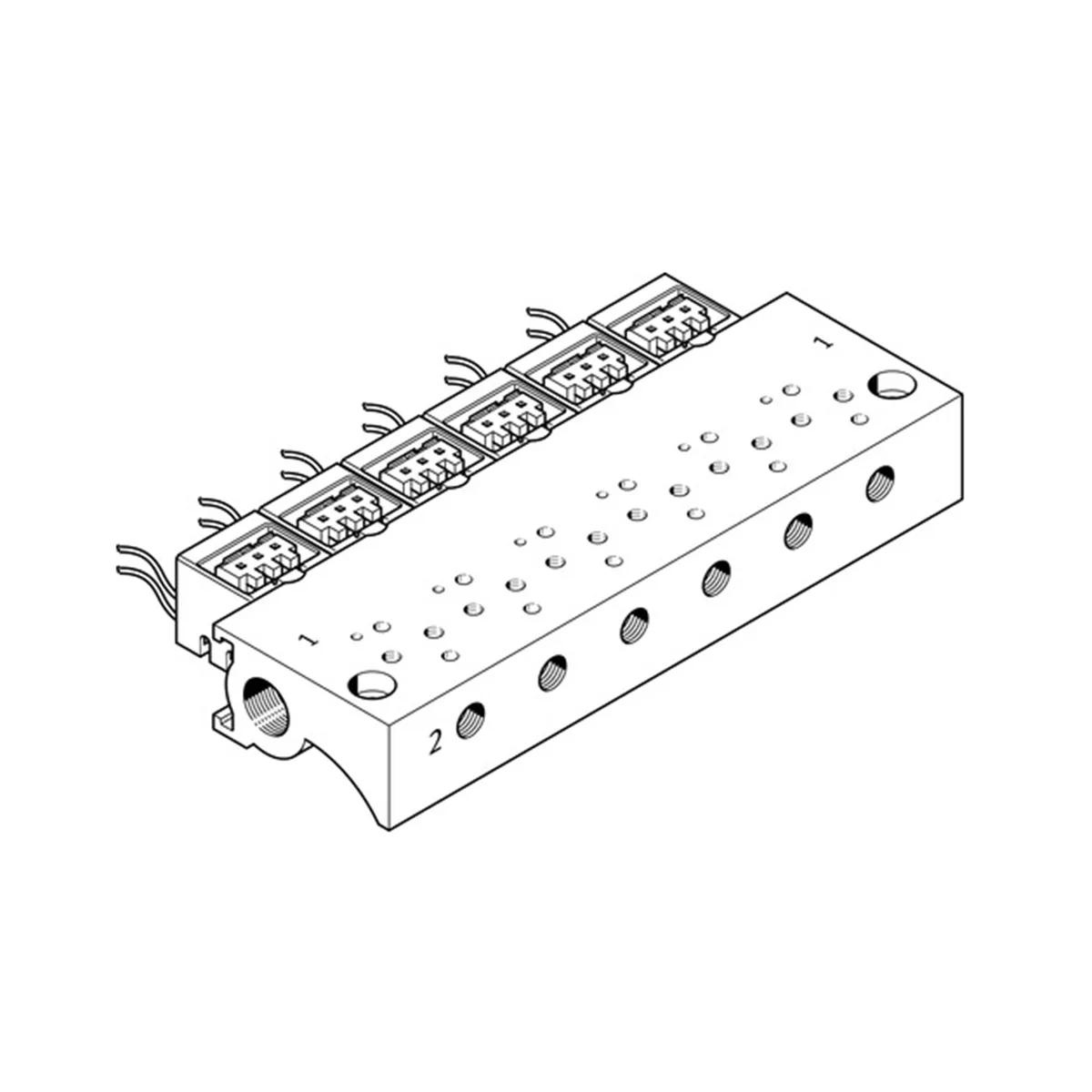

Red aluminum manifold with M7 and M3 ports, six valve positions

Festo

Festo MHA1-P6-2-M3-PI 197229 manifold electrician tool

SKU CH-FYB9-V86BA MPN MHA1-P6-2-M3-PI

A six-position manifold for compressed-air systems, operating from vacuum to 8 bar with M7 supply and M3 outlet ports on an aluminium sub-base

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 6 valve positions for compact pneumatic layouts
  • M7 and M3 ports for direct tube connection
  • Wrought aluminium sub-base resists low corrosion stress
  • Operates from -10 °C to 60 °C ambient
  • Compressed air to ISO 8573-1:2010 [7:4:4] quality

Pneumatic manifold for six valve positions

The Festo MHA1-P6-2-M3-PI manifold provides a sub-base for up to six pneumatic valves. It suits automation engineers and maintenance technicians who build or service compressed-air control systems. The unit mounts via through-holes and uses wrought aluminium alloy for the sub-base. Buyers needing more than six valve stations or a different port configuration will need an alternative manifold.

Simple through-hole mounting with M7 and M3 ports

Installation uses through-hole mounting on the sub-base and internal-thread valve mounting. Pneumatic connection 1 is M7 while connection 2 is M3. Ensure the compressed air supply meets ISO 8573-1:2010 class 7:4:4 and that operating pressure stays within 0 to 8 bar. Incorrect media quality or pressure outside this range can cause premature wear or malfunction.

Six valve positions maximum defines system capacity

The manifold supports a maximum of six valve positions, which sets the limit for the number of valves you can mount on this single sub-base. This figure determines whether the part matches your circuit design. The operating temperature range spans -10 °C to 60 °C and the corrosion resistance class is 1 for low corrosion stress.

Highlights

  • 6 valve positions for compact pneumatic layouts
  • M7 and M3 ports for direct tube connection
  • Wrought aluminium sub-base resists low corrosion stress
  • Operates from -10 °C to 60 °C ambient
  • Compressed air to ISO 8573-1:2010 [7:4:4] quality

Specifications

BrandFESTO
ModelMHA1-P6-2-M3-PI 197229
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How do I confirm the manifold is working after installation?

Pressurise the circuit to the 0 bar ... 8 bar range and verify each of the 6 valve positions actuates cleanly; air should flow from the M7 supply port through the M3 outlets without leakage at the wrought aluminium alloy sub-base.

What comes in the box and what must I supply?

The box contains 1 pack with the manifold sub-base and valve assembly; you must provide M7 and M3 fittings, tubing, compressed air meeting ISO 8573-1:2010 [7:4:4] and an electrical pilot signal.

Which manifold version should I choose for my application?

Select the MHA1-P6-2-M3-PI (197229) when you need 6 valve positions, M7 supply, M3 outlet threads and through-hole sub-base mounting on a wrought aluminium alloy manifold.
