Festo
Festo DSNU-20-80-PPS-A ISO Cylinder 20 80 559274
ISO cylinder with 20 mm bore and 80 mm stroke for pneumatic automation
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- ISO cylinder delivers precise linear motion
- 20 mm bore and 80 mm stroke for compact automation
- Red finish aids visual inspection in panels
- Single-unit box simplifies inventory management
- Three-year parts coverage plus one-year labour support
ISO Cylinder for Automation
The Festo DSNU-20-80-PPS-A is a standard ISO pneumatic cylinder built for linear motion tasks in automated systems. It delivers a bore of 20 mm and a stroke of 80 mm. The unit is supplied new in a single pack under part number 559274. Its red finish identifies the Festo product line.
Suited for Repetitive Linear Motion
This cylinder suits machine builders who need a compact ISO actuator for pushing, clamping or feeding operations. It is not intended for applications that require guided rod motion, integrated position sensing or a different bore and stroke combination. Buyers needing a non-ISO form factor should consider alternative ranges.
Bore 20 mm and Stroke 80 mm
The decisive specification is the 20 mm bore paired with an 80 mm stroke, which fixes the force output and travel distance for the target application. Verify that these dimensions match the mechanical design before ordering. The ISO mounting pattern ensures interchangeability with other standards-based cylinders.
Highlights
- ISO cylinder delivers precise linear motion
- 20 mm bore and 80 mm stroke for compact automation
- Red finish aids visual inspection in panels
- Single-unit box simplifies inventory management
- Three-year parts coverage plus one-year labour support

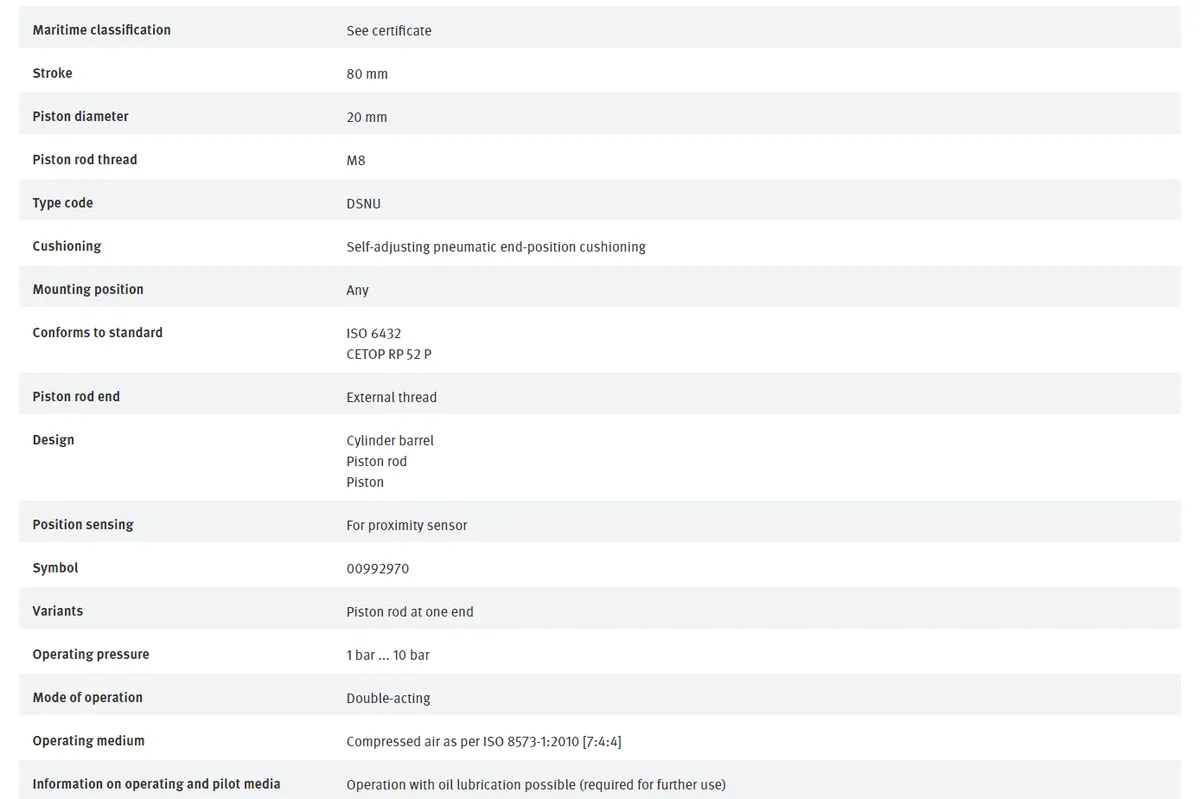

Specifications
| Brand | FESTO |
|---|---|
| Model | DSNU-20-80-PPS-A |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
What mounting hardware is required to install the 20 mm bore cylinder?
Standard ISO cylinder mounting accessories matching the 20 mm bore size are needed for secure installation.
Can the 80 mm stroke cylinder replace an existing ISO cylinder with the same bore and stroke?
Yes, the DSNU-20-80-PPS-A conforms to ISO standards, allowing direct replacement of compatible cylinders with identical bore and stroke dimensions.
How can I verify the cylinder operates correctly after installation?
Apply compressed air and confirm smooth extension and retraction over the full 80 mm stroke without binding or air leaks at the ports.
