Festo

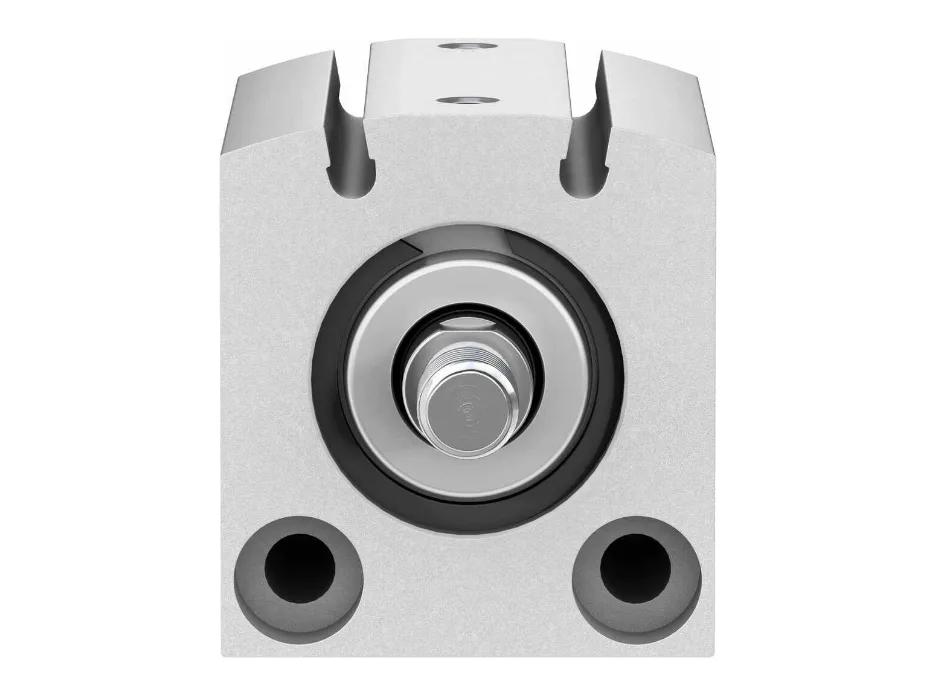

Festo DPZ-10-50-P-A 32684 Dual Piston Rod Cylinder
A dual piston rod cylinder with 10 mm bore and 50 mm stroke for pneumatic automation
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- Dual piston rod design provides guided linear motion
- 50 mm stroke length suits short-travel applications
- 10 mm bore diameter fits compact pneumatic circuits
- Festo manufacturing ensures reliable industrial-grade performance
- Red colour coding allows quick visual identification on the line
Product identity
The Festo DPZ-10-50-P-A is a dual piston rod cylinder supplied new in a single box. It carries part number 32684 and is finished in red. The unit is intended for pneumatic automation tasks that require guided linear motion with two parallel rods.
Installation checks
Verify that the compressed air supply can deliver the pressure and flow rate this cylinder needs. Confirm that the mounting pattern and rod ends match the machine frame and tooling you plan to use. Ensure the control valves and tubing sizes are compatible with the cylinder ports.
Build and daily use
The dual rod design resists rotation and handles side loads better than a single rod cylinder. A red coated body helps visual identification in busy panels. The package includes one cylinder; spare parts coverage is three years and labour coverage is one year.
Highlights
- Dual piston rod design provides guided linear motion
- 50 mm stroke length suits short-travel applications
- 10 mm bore diameter fits compact pneumatic circuits
- Festo manufacturing ensures reliable industrial-grade performance
- Red colour coding allows quick visual identification on the line
Specifications
| Brand | FESTO |
|---|---|
| Model | DPZ-10-50-P-A |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
Does the DPZ-10-50-P-A cylinder ship alone or with mounting hardware included?
The cylinder is supplied as a single unit in one box; mounting brackets, sensors and tubing must be sourced separately.
How do the 10 mm bore and 50 mm stroke figures guide the choice between this model and other DPZ variants?
The 10 mm bore sets the force output while the 50 mm stroke defines the travel; select this variant when those exact dimensions match the application layout.
What does the 32684 part number tell an engineer about interchangeability in an existing pneumatic circuit?
Part number 32684 identifies this exact bore, stroke and cushioning configuration, so it drops into any circuit designed for that specification without re-plumbing.
