Festo

Festo ADVU-40-10-P-A Compact Cylinder 10 mm stroke electrician tool

SKU CH-NJ90-T7XGW MPN ADVU-40-10-P-A

Compact cylinder with 10 mm stroke for precise pneumatic actuation in electrician tasks

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Compact 10 mm stroke for tight-space precision
  • 40 mm bore delivers reliable pneumatic force
  • Festo engineering ensures consistent test-equipment performance
  • Red finish allows quick visual identification on site
  • Supplied as a single 156541 unit ready for installation

Compact cylinder for short-stroke automation

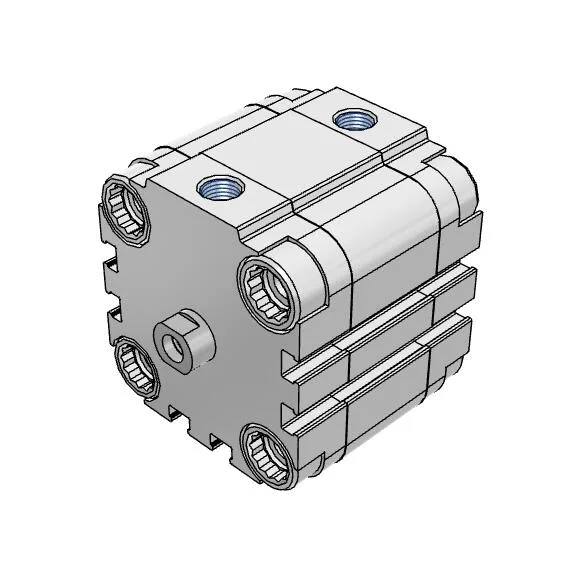

The Festo ADVU-40-10-P-A is a compact pneumatic cylinder with a 10 mm stroke and 40 mm bore. It suits machine builders and maintenance engineers who need precise linear motion in tight spaces. The unit is supplied new in a single pack under part number 156541. Its short travel makes it ideal for clamping, ejecting or positioning tasks.

Pneumatic interface limits force and speed

The cylinder operates on compressed air, so output force and cycle speed depend directly on supply pressure and flow capacity. A 10 mm stroke restricts total displacement, limiting the work piece travel to that exact distance. Side loads on the piston rod reduce seal life and must be avoided through proper alignment. Operating outside the rated pressure range will cause premature wear or failure.

Direct mounting simplifies installation

The compact body allows direct mounting on machine frames without additional brackets in many cases. The 40 mm bore provides standard mounting hole patterns for secure attachment. Ensure the air supply is filtered and lubricated to prevent contamination of internal seals. Misalignment during fitting is the most common cause of rod seal leakage and reduced service life.

Highlights

  • Compact 10 mm stroke for tight-space precision
  • 40 mm bore delivers reliable pneumatic force
  • Festo engineering ensures consistent test-equipment performance
  • Red finish allows quick visual identification on site
  • Supplied as a single 156541 unit ready for installation

Specifications

BrandFesto
ModelADVU-40-10-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What does the 40 in the ADVU-40-10-P-A model number tell me about this cylinder?

The 40 indicates a 40 mm bore diameter, which determines the force output at a given pressure.

How much linear travel does the 10 mm stroke provide in an actual installation?

The piston rod extends and retracts 10 mm total, giving a short, precise push or pull motion.

Which pneumatic port standard does the ADVU-40-10-P-A use and what flow does it limit?

It uses standard G 1/8 ports, which cap the maximum airflow to the cylinder’s bore size.
