Red Festo short-stroke cylinder model ADVC-100-20-I-P-A in box

Festo

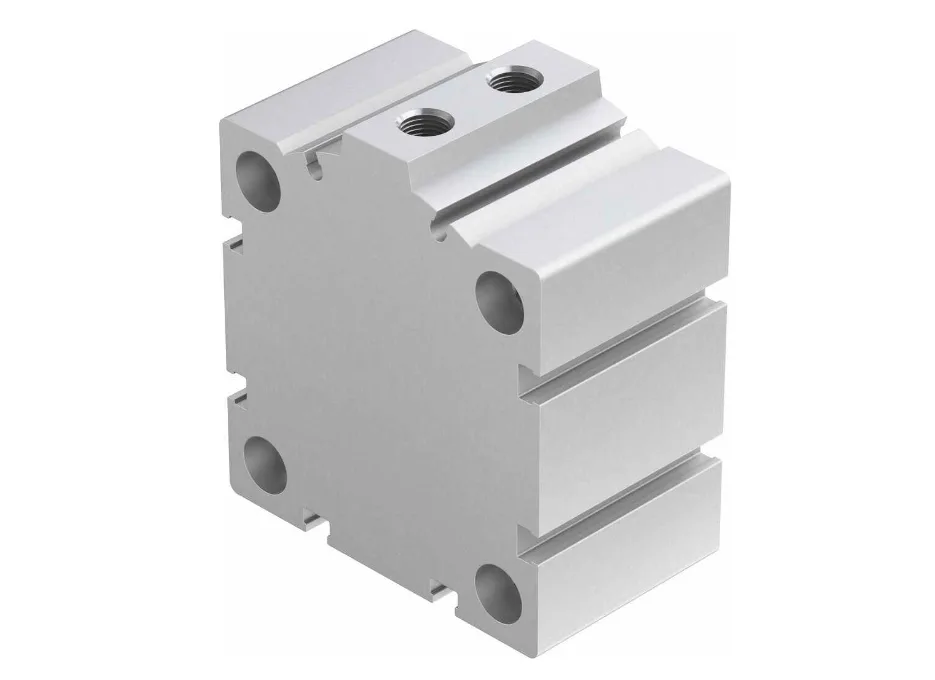

Festo ADVC-100-20-I-P-A 188334 short-stroke cylinder

SKU CH-6Z9Q-CS8NB MPN ADVC-100-20-I-P-A

stroke cylinder with 100 mm bore and 20 mm stroke for compact linear motion

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Short 20 mm stroke for tight-space actuation
  • 100 mm bore delivers high force output
  • Compact cylinder design fits confined installations
  • Red finish aids quick visual identification
  • Supplied as single unit in protective box

Festo ADVC Short-Stroke Cylinder

The Festo ADVC-100-20-I-P-A is a short-stroke cylinder supplied new in a single box. It carries the manufacturer part number 188334 and is finished in red. The unit is classified as test equipment within the electrician tools range.

Build integration and clearances

The cylinder installs directly into pneumatic circuits that require a compact stroke length of 20 and a bore of 100. Its short-stroke profile frees up linear space inside machine frames and control cabinets. Standard pneumatic fittings and mounting accessories complete the installation.

Suitability and alternatives

This model suits maintenance engineers and OEM assemblers who need a Festo short-stroke actuator with the specified bore and stroke combination. Buyers who require a longer stroke length or a different bore diameter should look at other variants in the ADVC series.

Highlights

  • Short 20 mm stroke for tight-space actuation
  • 100 mm bore delivers high force output
  • Compact cylinder design fits confined installations
  • Red finish aids quick visual identification
  • Supplied as single unit in protective box

Specifications

BrandFESTO
ModelADVC-100-20-I-P-A
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What stroke length does the ADVC-100-20-I-P-A cylinder provide?

The ADVC-100-20-I-P-A delivers a 20 mm stroke length for short-stroke actuation tasks.

How much compressed air does the cylinder consume during continuous cycling?

Air consumption depends on operating pressure and cycle rate; the cylinder bore is 100 mm, so calculate flow from those parameters.

Which pneumatic fittings and pressure supply are needed to install this cylinder?

You need a compressed-air source, suitable tubing and fittings for the cylinder's ports, plus a 3/2 or 5/2 valve to control the 20 mm stroke.
