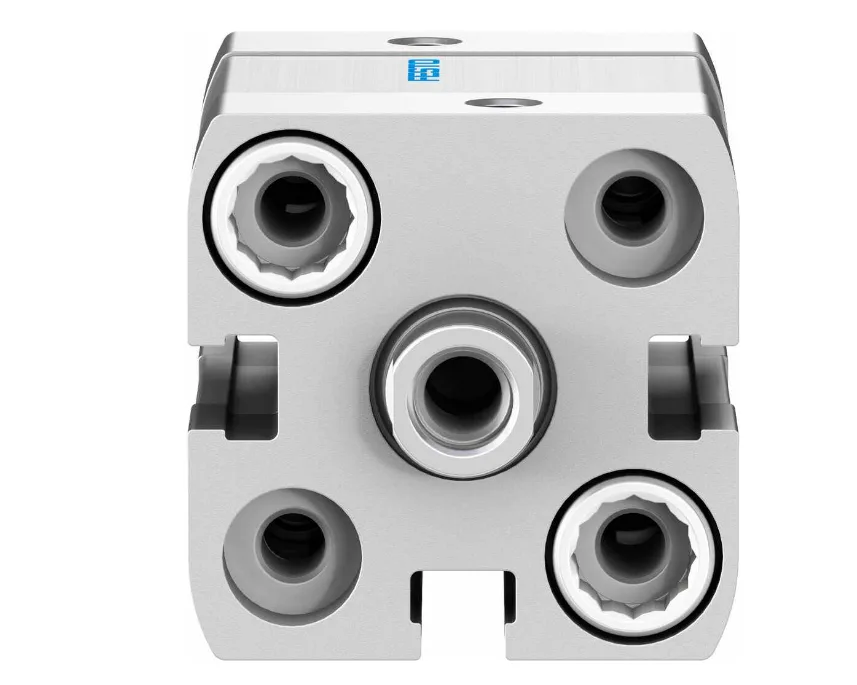

Festo ADN-32-20-I-P-A 32mm 20mm stroke compact air cylinder
Compact air cylinder with a 32 mm bore and 20 mm stroke for linear motion tasks
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- 32 mm bore fits tight machine spaces
- 20 mm stroke delivers precise linear travel
- Compact cylinder design reduces overall assembly footprint
- Festo 536281 part number ensures exact replacement match
- New condition guarantees full factory performance
Compact cylinder for pneumatic circuits
The Festo ADN-32-20-I-P-A is a compact air cylinder with a 32 mm bore and 20 mm stroke designed for space-constrained pneumatic automation. It suits machine builders and maintenance engineers who need reliable linear motion in tight assemblies. The unit arrives new in a single pack under part number 536281.
Red finished body with standard mounting
The cylinder body carries a red finish that aids visual identification in crowded panels. Its compact form factor allows direct integration into existing fixture layouts without major redesign. Standard mounting interfaces simplify installation and replacement during scheduled downtime.
Three-year parts coverage included
The manufacturer supplies three years of parts coverage and one year of labour coverage with each box. This support reduces spare-parts inventory pressure for facilities running continuous shifts. No additional software or accessories are bundled with the cylinder.
Highlights
- 32 mm bore fits tight machine spaces
- 20 mm stroke delivers precise linear travel
- Compact cylinder design reduces overall assembly footprint
- Festo 536281 part number ensures exact replacement match
- New condition guarantees full factory performance
Specifications
| Brand | FESTO |
|---|---|
| Model | ADN-32-20-I-P-A |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
What pneumatic port size does the ADN-32-20-I-P-A use for air supply?
The cylinder uses standard G1/8 ports for compressed air connections.
Which mounting style fits the ADN-32-20-I-P-A body?
The unit has a basic body with through holes for direct machine mounting.
How is the ADN-32-20-I-P-A installed and what step is often missed?
Mount the cylinder, connect tubing to both ports, then adjust cushioning screws before pressurising the system.
