Five USB-C female screw-mount connectors with 6-pin headers

Fervit

Fervit USB C Female to 6Pin Screw Mount PD 65W 5pcs

SKU CH-RCFA-9B384

A five-pack of screw-mount USB-C female sockets delivering up to 20 V and 65 W PD power plus USB 2.0 data at 480 Mbps

  • Delivers up to 65W PD charging via 5V/20V power negotiation
  • Reversible USB-C plug inserts either way for hassle-free connection
  • Transfers data at 480Mbps over USB 2.0 for quick file moves

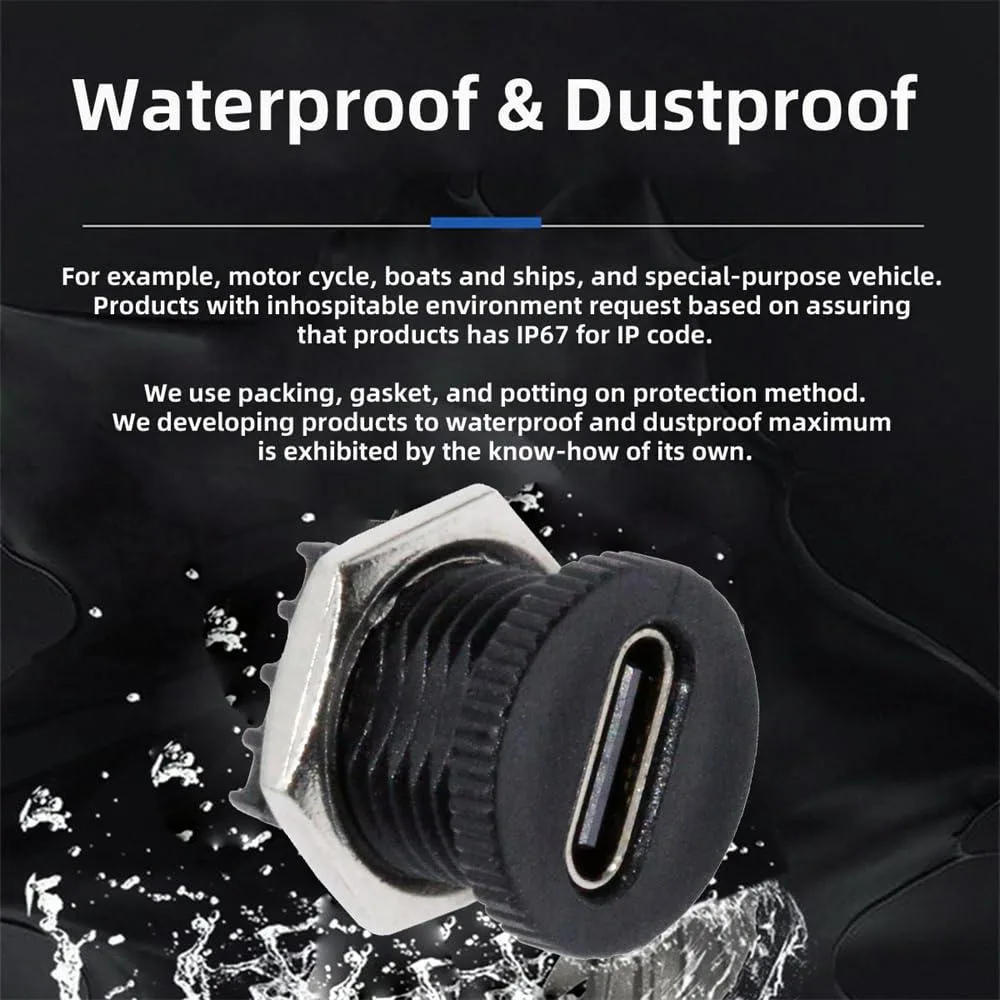

  • Screw-nut mount secures the socket firmly to panels or enclosures

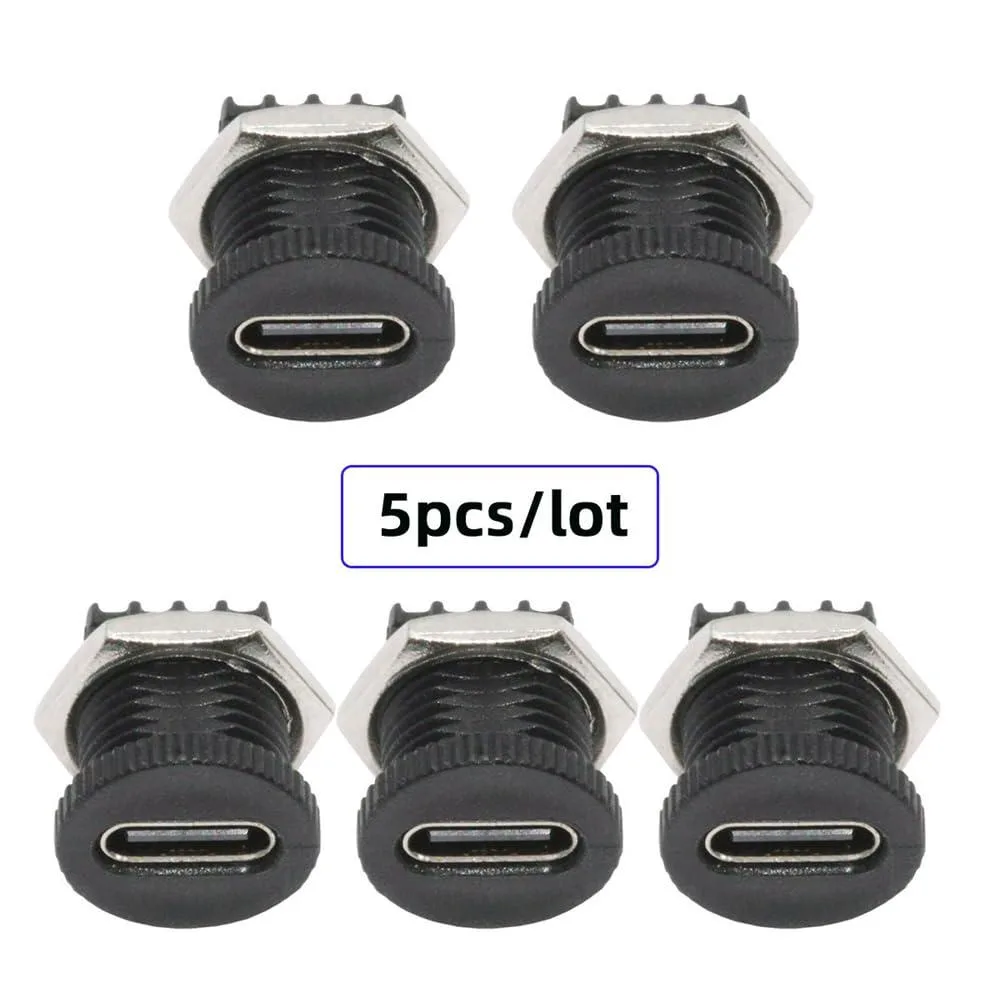

  • Five-piece set equips multiple DIY projects or spare replacements

DIY USB-C Panel Connector

This five-piece set provides a screw-mount USB-C female socket with a six-pin PCBA header for custom panel integration. It suits builders adding a front-panel or enclosure port for charging and data. The connector accepts USB 2.0 PD sources up to 20 V and delivers up to 65 W to attached devices. Reversible plug orientation simplifies cable insertion in tight spaces.

Sustained Power and Data Flow

The assembly maintains a continuous 65 W power path when paired with a compliant PD supply and device. USB 2.0 signalling runs at 480 Mbps without throttle during extended transfers. Voltage negotiation follows the PD contract, so output remains stable across the 5 V to 20 V range. No active cooling or thermal management is required on the connector itself.

Thermal and Electrical Profile

Passive operation means zero fan noise and no additional power draw beyond the negotiated PD load. The screw-nut mount secures the socket firmly to a chassis, preventing strain on the PCB header. Contact resistance stays low under normal mating cycles, keeping temperature rise minimal. The design is intended for indoor cabinet or enclosure use rather than harsh environments.

Highlights

  • Delivers up to 65W PD charging via 5V/20V power negotiation
  • Reversible USB-C plug inserts either way for hassle-free connection
  • Transfers data at 480Mbps over USB 2.0 for quick file moves
  • Screw-nut mount secures the socket firmly to panels or enclosures
  • Five-piece set equips multiple DIY projects or spare replacements

Specifications

BrandFervit

Questions about this item

How much heat or power draw should I expect from the 65 W PD connection when the adapter runs all day?

The connector itself adds negligible loss; it simply passes up to 20 V at the negotiated PD level, so heat and power draw depend on the attached charger and device, not the socket.

What must I already have to use these screw-mount sockets in a cabinet or enclosure?

You need a USB-C PD power source capable of 5 V or 20 V output, a panel cut-out for the screw-nut mount, and a 6-pin header or flying leads to wire the PCB pins.

Will the USB 2.0 480 Mbps data link work reliably with older USB-A peripherals through a passive adapter?

Yes, the socket presents a standard USB 2.0 interface, so legacy USB-A devices connected via a passive USB-C to USB-A adapter will enumerate at 480 Mbps.
