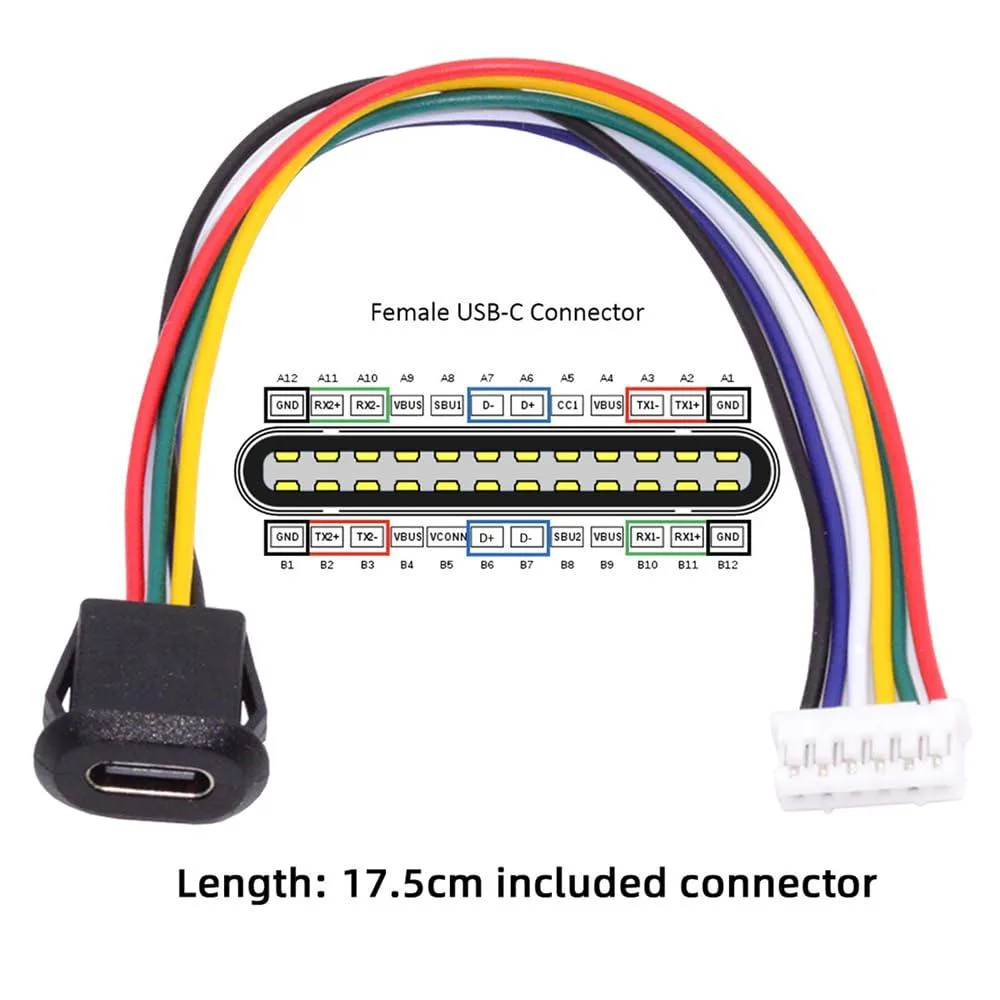

Five USB-C female to 6-pin header cables with latch mount connectors, 17.5cm length

Fervit

Fervit USB-C Female to 6-Pin Header Cable 2.0mm Pitch Latch Mount 17.5cm 5pcs

SKU CH-C6SM-ZKWG9

Set of five USB-C female to 6-pin header cables with 2.0mm pitch latch mount, 17.5cm length, supporting 480Mbps data and up to 65W power delivery

  • USB 2.0 data at 480Mbps for quick file transfers
  • PD charging up to 65W through DC 5V/20V input
  • Reversible USB-C plug inserts either way without checking
  • Latch-mount female socket secures the link inside a chassis
  • Five 17.5cm cables included for multiple DIY builds

USB-C latch-mount cable set for DIY panels

This set contains five cables that adapt a USB-C female socket to a six-pin header with a 2.0 mm pitch. Each cable measures 17.5 cm including the connectors and features a latch-mount design for secure panel installation. The reversible Type-C plug accepts either orientation for easier device connection.

USB 2.0 speed and PD 65 W power ceiling

Data transfer is limited to the USB 2.0 standard at 480 Mbps, so high-bandwidth peripherals will not reach their full rate. Power delivery tops out at 65 W over DC 5 V to 20 V when paired with a compliant PD source and device, making the cables unsuitable for higher-wattage charging scenarios.

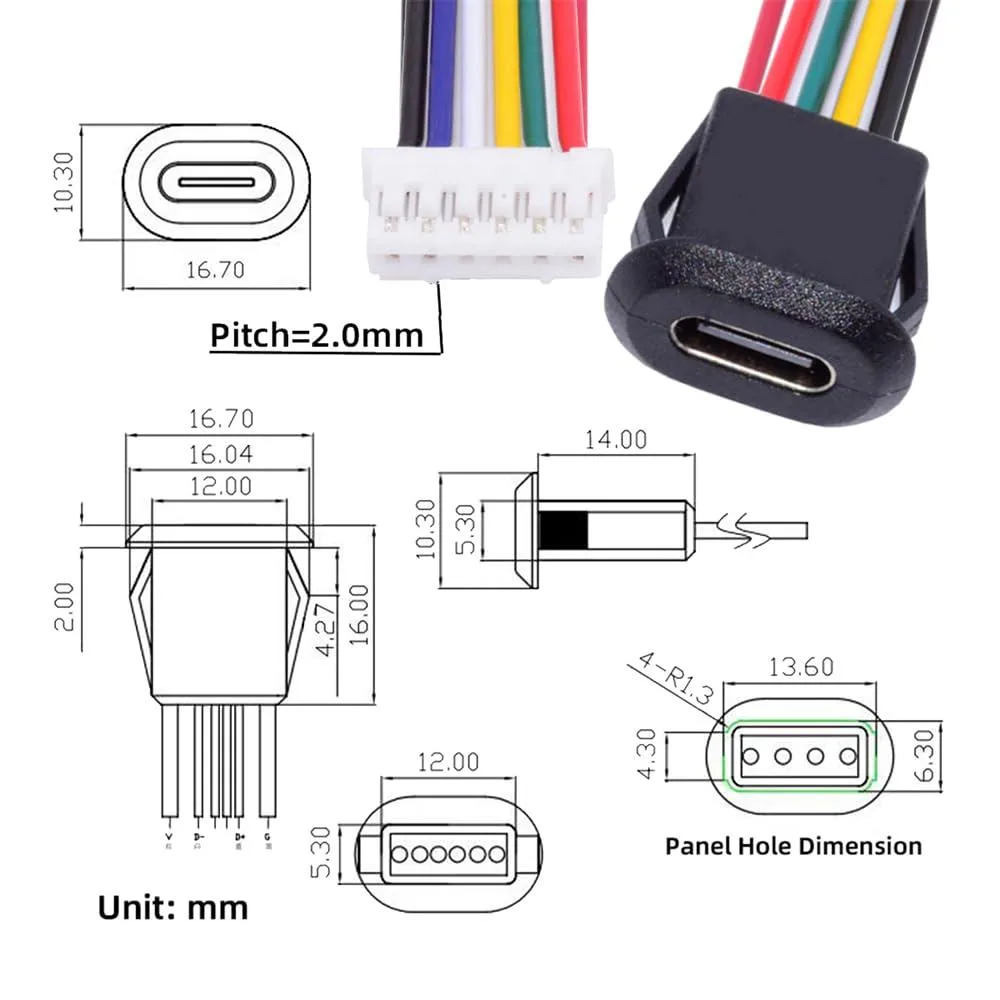

Check header pitch and panel cut-out before ordering

Verify that your target board or enclosure uses a six-pin header with exactly 2.0 mm pin spacing, as other pitches will not mate. Confirm the panel cut-out dimensions suit the latch-mount flange, and ensure your power source and end device both support USB Power Delivery if you need the full 65 W capability.

Highlights

  • USB 2.0 data at 480Mbps for quick file transfers
  • PD charging up to 65W through DC 5V/20V input
  • Reversible USB-C plug inserts either way without checking
  • Latch-mount female socket secures the link inside a chassis
  • Five 17.5cm cables included for multiple DIY builds

Specifications

BrandFervit

Questions about this item

What does the 480 Mbps figure mean when the cable is installed in a PC?

It is the maximum USB 2.0 data rate; real-world throughput will be lower due to protocol overhead and the host controller.

What power delivery does the DC 5 V / 20 V rating allow?

Up to 65 W when paired with a USB 2.0 PD source and a compatible device.

How does the 2.0 mm pitch header connect to a motherboard or panel?

The 6-pin latch-mount header plugs directly into a matching 2.0 mm pitch connector on the board or chassis.
