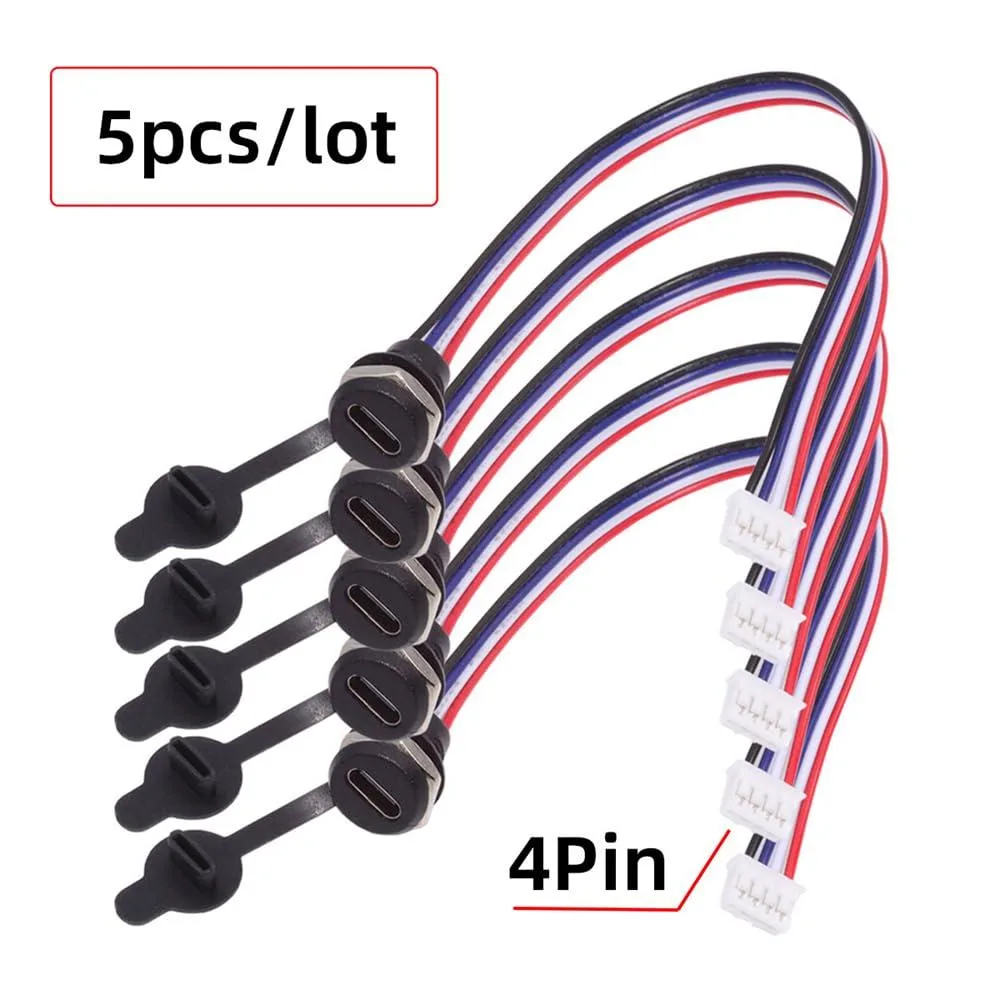

Five USB-C female to 4-pin header cables, 17.5cm, panel-mount connectors

Fervit

Fervit USB-C Female to 4-Pin Header Cable 5-Pack 17.5cm PD 65W

SKU CH-WQ8P-M1KMG

A five-pack of 17.5 cm USB-C female to 4-pin header cables supporting USB 2.0 at 480 Mbps and PD power up to 65 W for panel-mount DIY builds

  • USB 2.0 data at 480 Mbps for quick file moves
  • PD 65 W charging powers laptops and phones fast
  • Panel-mount female socket adds USB-C to any enclosure
  • Five 17.5 cm cables included for multiple builds
  • Reversible Type-C plug inserts either way up

Five-piece USB-C panel-mount kit

This set supplies five USB-C female sockets on 17.5 cm cables that terminate in a 2.0 mm pitch four-pin header. Each unit fits a standard panel cut-out and adds a reversible Type-C port to enclosures, test rigs or custom panels. The connectors accept any USB-C plug orientation without force.

USB 2.0 data and PD 65 W power upgrade

The cables carry USB 2.0 signals at 480 Mbps and support Power Delivery up to 20 V at 65 W when paired with a compliant source. Builders moving from USB-A headers or barrel-jack power can replace those with a single modern port that handles both data and charging. The jump is worthwhile when the host controller and power supply already speak PD.

Check header pitch and PD source capability

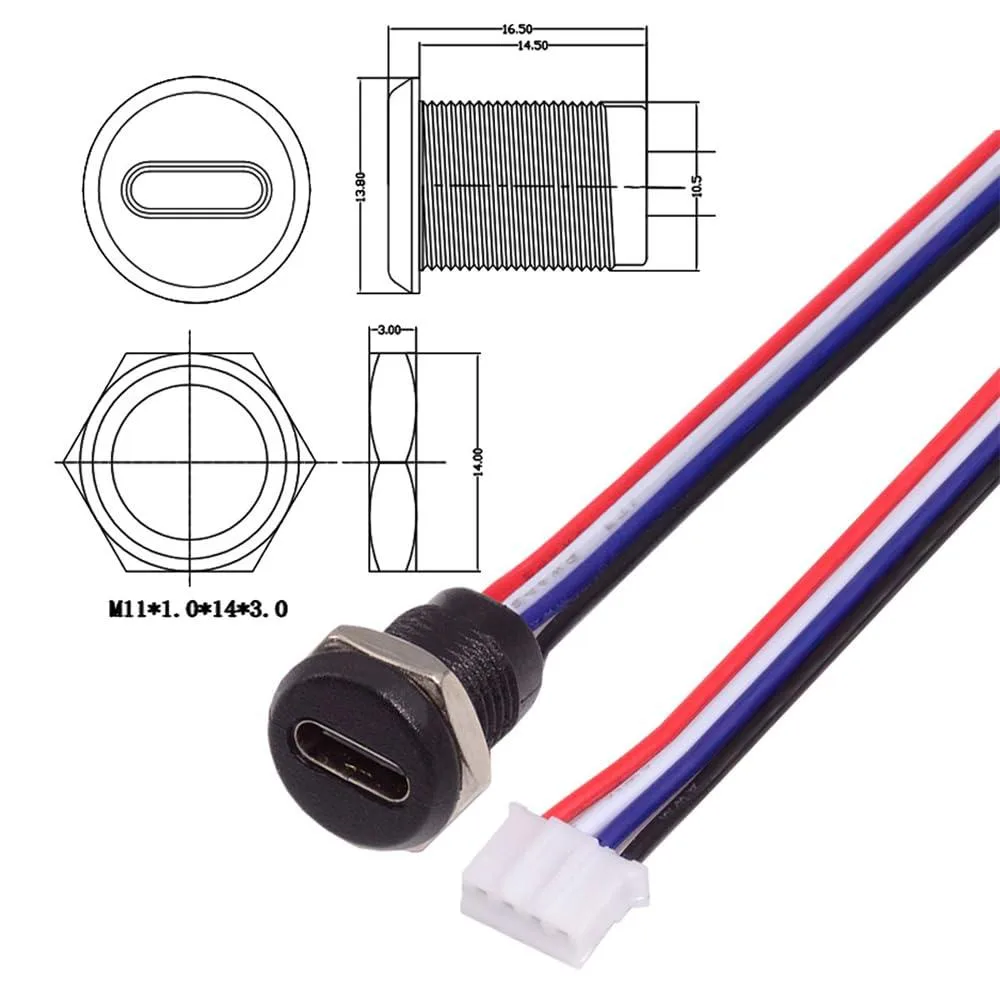

Verify that the destination board provides a four-pin header at 2.0 mm pitch with the correct pin-out for USB 2.0 differential pairs and VBUS/GND. Confirm the upstream power source can negotiate the desired voltage up to 20 V; a 5 V-only supply will not deliver the higher PD levels. Ensure the panel cut-out matches the socket flange dimensions.

Highlights

  • USB 2.0 data at 480 Mbps for quick file moves
  • PD 65 W charging powers laptops and phones fast
  • Panel-mount female socket adds USB-C to any enclosure
  • Five 17.5 cm cables included for multiple builds
  • Reversible Type-C plug inserts either way up

Specifications

BrandFervit

Questions about this item

What panel cut-out and header pitch does the USB-C female socket require?

The socket is designed for panel mounting and connects to a 4-pin header with a 2.0mm pitch.

Which step is often missed when wiring the 4-pin header to the motherboard?

Matching each of the four pins to the correct header positions is critical; reversing the connector will prevent power and data from working.

When should the 17.5cm cable be replaced in a permanent chassis installation?

Replace the cable if the USB-C female port becomes loose, the header pins bend, or power delivery drops below the rated 65W during use.
