Five USB-C female to 4-pin header cables, 12cm, 2.0mm pitch, latch mount

Fervit

Fervit USB C Female to 4-Pin Header Cable 12cm 2.0mm Pitch Latch Mount 5pcs

SKU CH-FGMT-7AJFB

Adds a latch-mount USB-C female port with 2.0 mm pitch header cable for DC 5 V power delivery

  • Connect peripherals via USB-C for power delivery
  • Supplies up to DC 5V 3A for fast charging
  • Latch-mount design secures cable inside cabinets
  • Reversible USB-C plug inserts either way
  • Compact 12 cm length fits tight build spaces

DIY USB-C power cable set

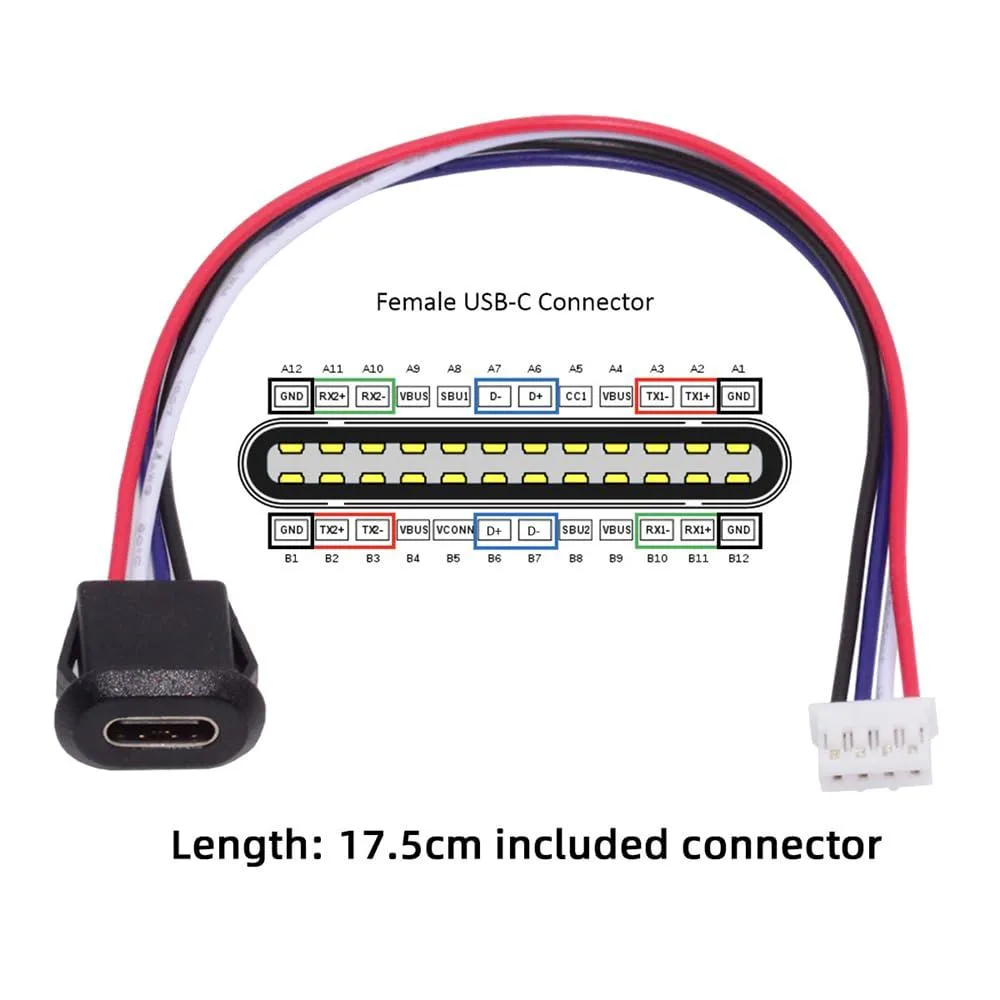

This pack contains five cables that adapt a USB-C female socket to a 4-pin header with a 2.0mm pitch. They are intended for builders who need to bring a Type-C power input to a custom enclosure or cabinet device.

Power-only delivery up to 5 V 3 A

Each cable carries DC power only and supports up to 5 volts at 3 amps when paired with a USB 2.0 Type-C source and device. The 12cm length keeps the internal routing short and tidy.

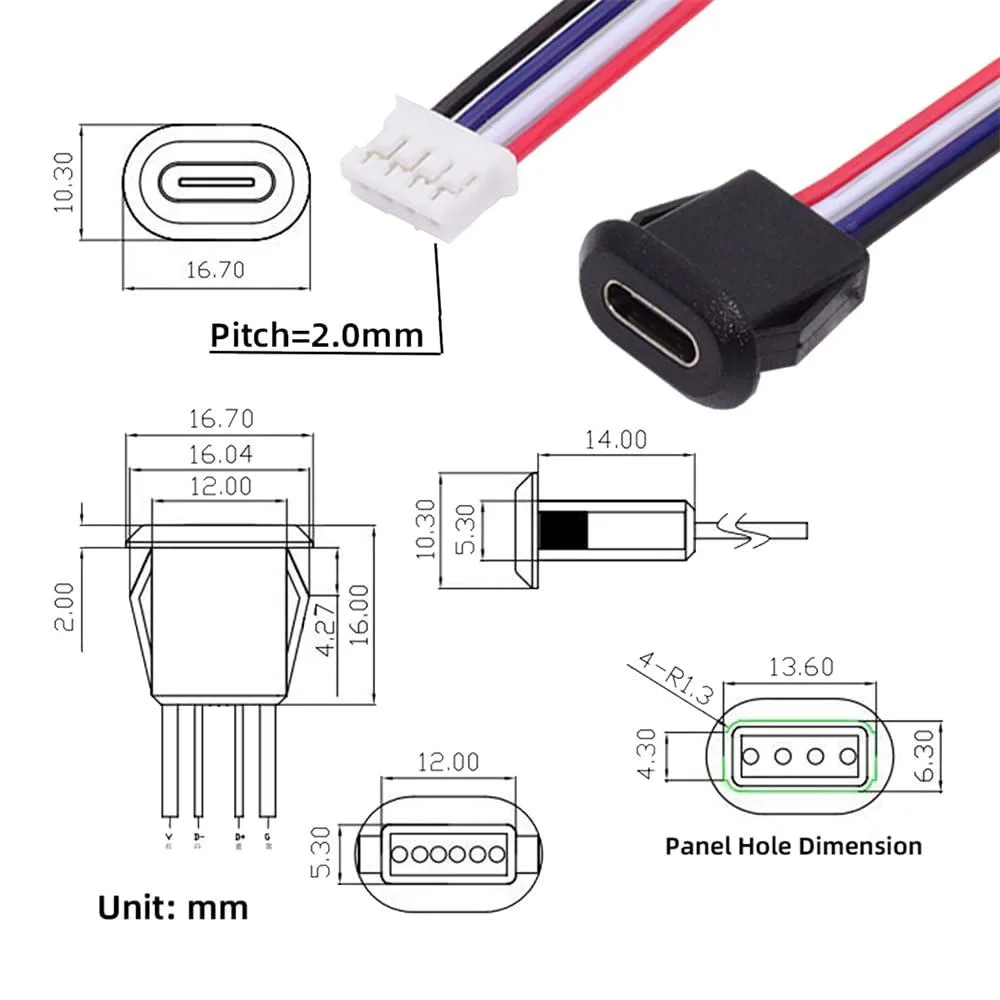

Latch-mount socket for secure panel fit

The female Type-C connector uses a latch-mount design that locks into a panel cut-out, preventing the port from shifting during repeated insertions. The reversible plug orientation allows the cable to be connected in either direction.

Highlights

  • Connect peripherals via USB-C for power delivery
  • Supplies up to DC 5V 3A for fast charging
  • Latch-mount design secures cable inside cabinets
  • Reversible USB-C plug inserts either way
  • Compact 12 cm length fits tight build spaces

Specifications

BrandFervit

Questions about this item

How do I mount the latch-type USB-C female socket to a 4-pin header, and what is the common alignment mistake?

Align the 2.0mm pitch connector with the header pins, then press the latch until it clicks; the keyed shroud prevents reverse insertion, but forcing it before the latch engages can bend pins.

What maintenance or replacement will this cable set need over time?

The latch mechanism and 12cm cable are rated for repeated mating cycles; replace a unit if the latch no longer holds or if the connector shows visible wear or intermittent power.

What limit appears first when running the cable at its maximum 3 A rating continuously?

The 12cm length and 2.0mm pitch conductors will reach their thermal limit before the USB 2.0 power source does, so sustained 3 A loads may warm the cable noticeably.
