Five USB-C female sockets on short cables with 2-pin headers, 17.5cm long

Fervit

Fervit USB-C Female to 2-Pin Header Cable 2.0mm 17.5cm 5pcs

SKU CH-NK1F-KJJT1

Five-panel-mount USB-C female sockets with 2.0 mm pitch headers deliver up to 5 V 3 A power over 17.5 cm cables

  • Power-only USB-C connection for mobile devices and laptops
  • Up to 5 V 3 A throughput with USB 2.0 power sources
  • Panel-mount female socket extends USB-C to a cabinet or chassis

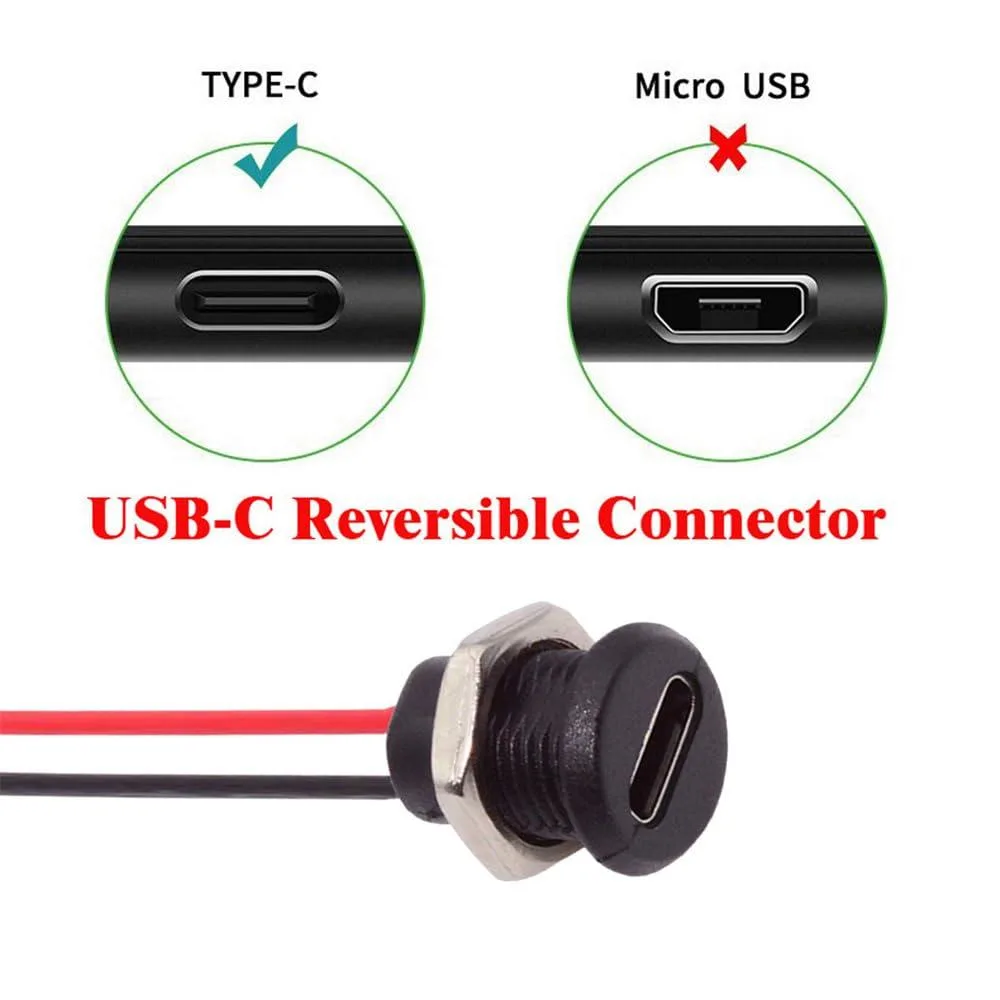

  • Reversible Type-C plug inserts either way up
  • 5 cm cable with 2.0 mm pitch 2-pin header

USB-C panel-mount power cable kit

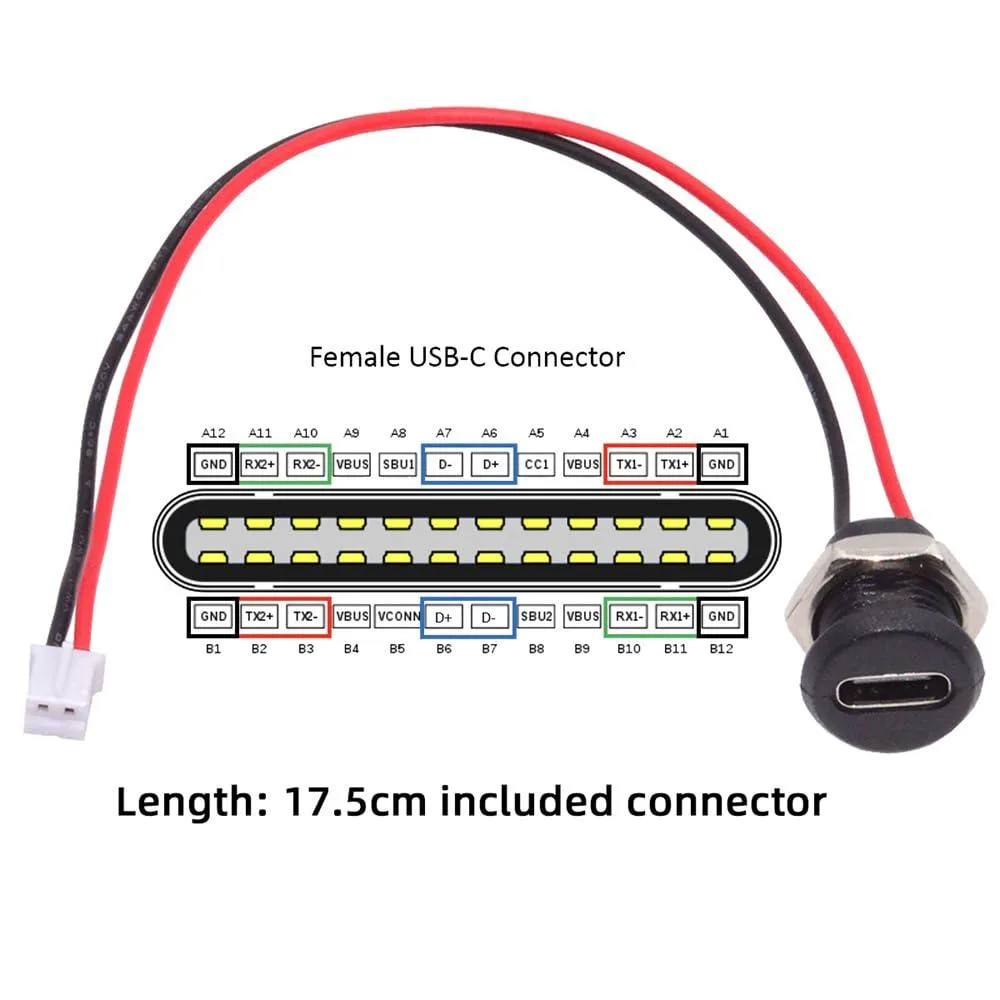

This five-piece set provides a USB-C female socket on a 2-pin 2.0mm pitch header with a 17.5cm lead. It is intended for DIY builders who need to bring a Type-C power port to a cabinet, enclosure or custom panel. The connector accepts reversible Type-C plugs and carries DC 5V power only, with no data lines. Each cable is ready for direct header connection inside the chassis.

Sustained 5V 3A delivery

The assembly supports up to DC 5V 3A when paired with a USB 2.0 power source and a compatible device. Because the conductors are rated for power-only traffic, the thermal load remains stable during continuous charging sessions. No active cooling or additional regulation is required on the cable itself. The short 17.5cm run minimises voltage drop under full rated current.

Header mounting and reversible socket

The 2-pin 2.0mm header plugs straight onto a matching motherboard or controller header, securing the female Type-C shell against the panel cut-out. Reversible plug orientation means the user can insert a Type-C connector either way up without forcing it. The compact pigtail keeps cable routing tidy behind the panel. This kit suits builders adding a single dedicated power port to a fixed enclosure.

Highlights

  • Power-only USB-C connection for mobile devices and laptops
  • Up to 5 V 3 A throughput with USB 2.0 power sources
  • Panel-mount female socket extends USB-C to a cabinet or chassis
  • Reversible Type-C plug inserts either way up
  • 5 cm cable with 2.0 mm pitch 2-pin header

Specifications

BrandFervit

Questions about this item

Does the 2.0 mm pitch header draw noticeable power or generate heat when the cable runs at 5 V 3 A continuously?

The cable passes up to 5 V 3 A through the 2.0 mm header; it carries power only and has no active components, so heat is limited to normal conductor loss.

What must the chassis or board provide for the USB-C female panel mount to install and function?

A cut-out that matches the panel-mount socket and a 2.0 mm pitch 2-pin header on the host board to plug the cable into.

Will the reversible Type-C connector mate reliably with older USB-A devices through an adapter?

The connector is USB-C female only; any USB-A device needs a separate USB-A to USB-C adapter, and the cable still delivers power only.
